Icon Vehicle Dynamics 3 Inch Lift Kit (MPN: IVD4300)

Enhance your Ford Bronco's performance with this durable lift kit.

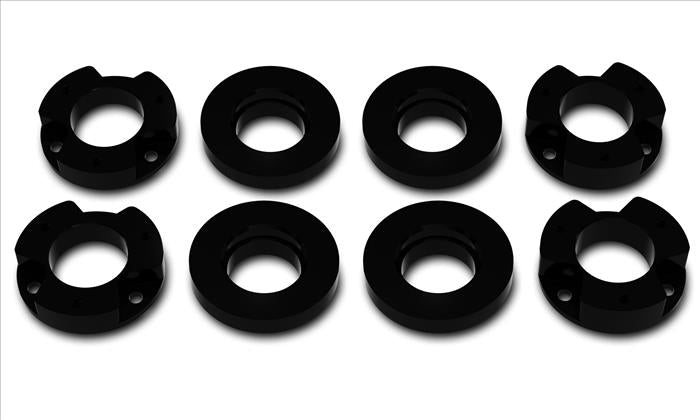

The Icon Vehicle Dynamics 3 Inch Lift Coilover Spacer Kit is engineered for the 2021 and newer Ford Bronco, providing a significant lift of 3 inches in the front and up to 2.75 inches in the rear, depending on the suspension package. This kit utilizes a combination of coil spring preload spacers and top load shims, ensuring that the vehicle's front-end geometry is maintained to prevent ball joint over extension or bind, which can lead to damage. Constructed from CNC machined 6061 billet aluminum, the components feature a black anodized finish that offers excellent corrosion resistance, making them suitable for both on and off-road conditions. This vehicle-specific design allows for increased ride height and ground clearance, accommodating oversized tires without interference with the fender. The kit is designed to be installed without the need for shock absorbers, simplifying the installation process.

Features

• CNC Machined 6061 Aluminum Components
• Increased Ride Height Over Stock
• Increased Ground Clearance
• Keeps Oversized Tire From Interference With Fender
• Vehicle Specific Design
• No Ball Joint Over Extension Or Bind
• Black Anodized Finish For Excellent Corrosion Resistance

Specifications

• Manufacturer: Icon Vehicle Dynamics
• Manufacturer Part Number: IVD4300
• Front Lift Amount (IN): 3 Inch
• Rear Lift Amount (IN): 2-3/4 Inch
• Maximum Tire Size: 37 x 12.50
• Front Lift Type: Coil Over
• Rear Lift Type: Coil Over
• Shock Type: Without Shocks
• Wheel Backspacing (IN): 4.5
• Minimum Wheel Diameter: 17
• Wheel Offset (MM): 0
• Shocks: Without Shock Absorbers In Kit - Shock Change Not Necessary
• Color: Black

Compatibility / Fit

• 2021-2025 Ford Bronco

Technical Documents

• IVD4300_REVB.pdf
• ICON_2018_WARRANTY_INFO_1392.pdf
• ICON_2018_WARRANTY_INFO_1392.pdf
