Enhance off-road performance with advanced electronic damping technology.

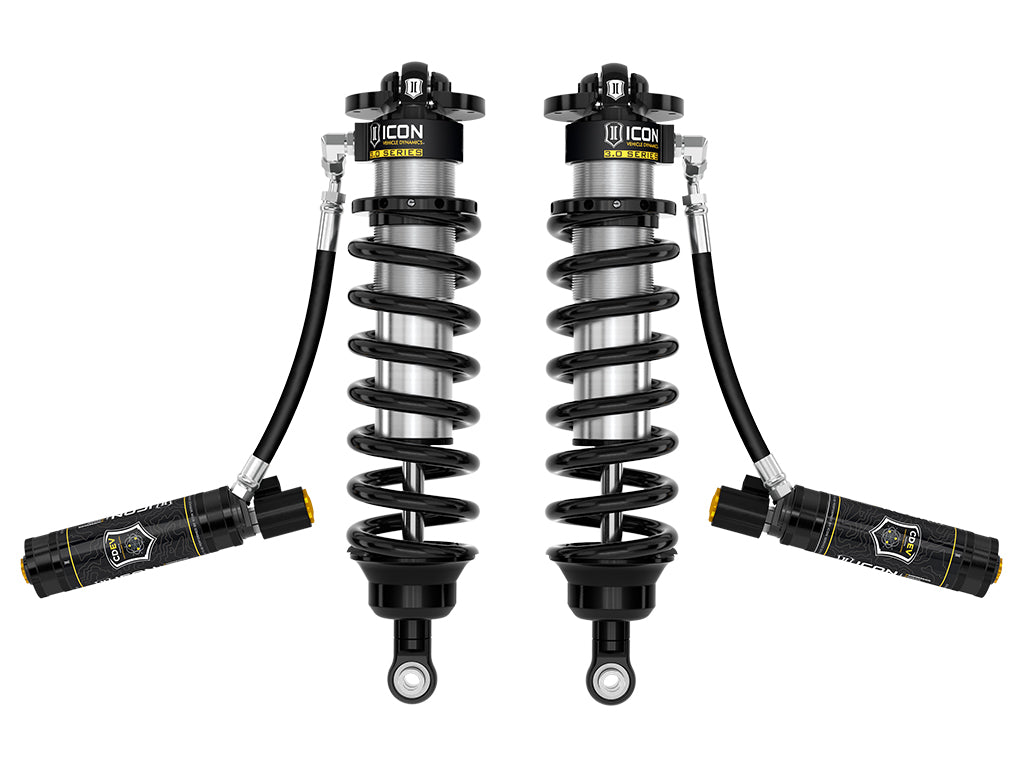

The Icon Vehicle Dynamics 3.0 Series Coilover Shock Absorber is engineered to elevate the off-road capabilities of trucks by increasing wheel travel by up to 40 percent. This shock absorber features a robust design with a 3-inch body diameter, providing greater oil volume and a larger piston area for improved damping performance. The multi-stage hydraulic bump zone significantly enhances bottom-out resistance, ensuring stability during extreme off-road conditions and maintaining control on paved surfaces.
Incorporating Icon's Compression Damping Electronic Valve (CDEV) technology, these coilovers allow for real-time adjustments to compression damping settings, adapting to varying terrains with precision. The system utilizes data from onboard sensors to optimize shock performance, making it suitable for diverse driving environments. The coilovers are designed as a direct OEM replacement, facilitating a straightforward installation process.
Constructed with high-quality materials, including CNC machined 6061 aluminum components and PTFE lined spherical bearings, these shocks are built for durability and longevity. The gas-charged design and fully rebuildable nature of the shocks ensure they can be retuned for continued performance over time. With a sleek black and gray finish, the Icon 3.0 Series Coilover Shock Absorber combines functionality with aesthetic appeal.
Features
- Icon's CDE Valve Technology Allows For In Vehicle Adjustment Of Compression Damping Settings And Active Adjustment Via The Icon Intelligent Control
- 40 Percent Increase In Front Wheel Travel Over Stock
- Vehicle Specific Design And Tuning For Superior Shock Damping And Control
- 3 Inch Body Diameter For Increased Oil Volume And Larger Piston Area
- Icon's Multi-Stage, Tunable Hydraulic "Bump Zone" Exponentially Increases Bottom-Out Resistance In The Last 40 Percent Of Compression Travel
- CNC Machined 6061 Aluminum Components With A Black Anodized Finish
- PTFE Lined Spherical Bearings For Extended Longevity And Minimal Deflection
- 7/8 Inch Diameter Induction Hardened, Chrome Plated Shock Shafts
- Fully Rebuildable And Re-Tunable
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 58775E
- Adjustable: Yes
- Upper Mounting Type: Strut
- Lower Mounting type: Eyelet
- Front/Rear Drop (IN): 1-1/4 To 4-1/2 Inch Lift
- Extended Height (IN): OEM
- Compressed Height (IN): OEM
- Quantity: Set Of 2
- Valving Type: Electronic Adjustable Valving
- Shock Type: Gas Charged
- Shock Body Color: Black/ Gray
- Shock Body Material: Aluminum
- Spring Style: Standard
- Spring Color: Black
- Spring Material: Steel
- Includes Mounting Hardware: Yes
Compatibility / Fit
- 2023-2025 Toyota Sequoia
- 2022-2025 Toyota Tundra
Technical Documents
Product Videos
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
