Advanced hydraulic shocks with electronic adjustable valving for superior performance.

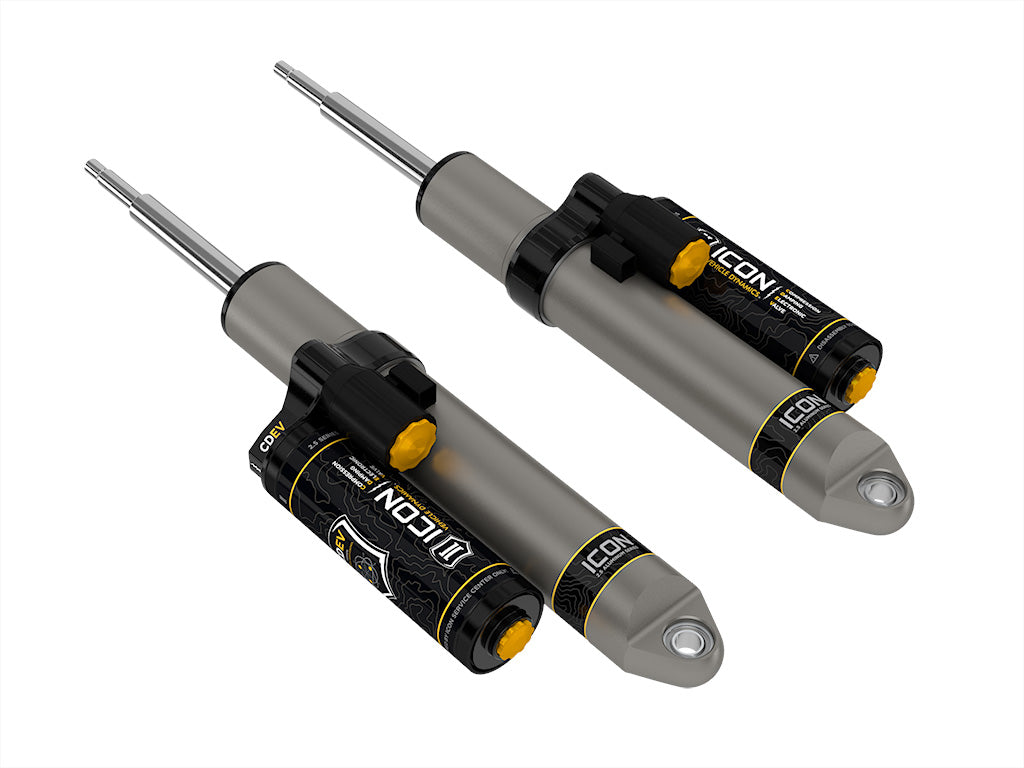

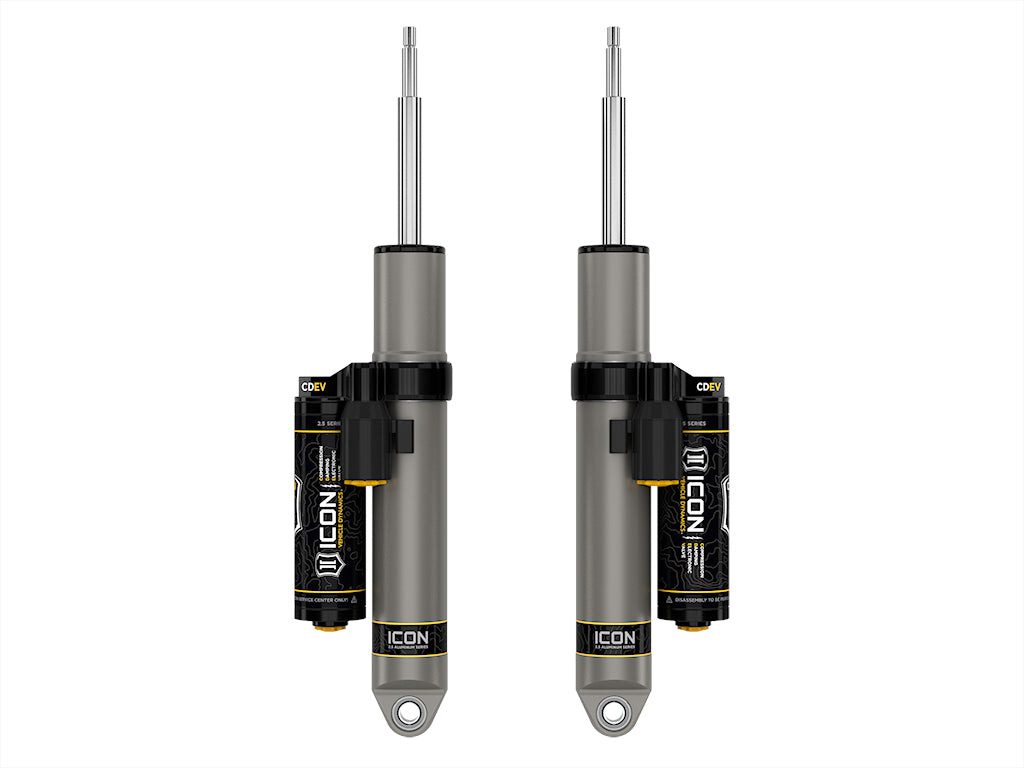

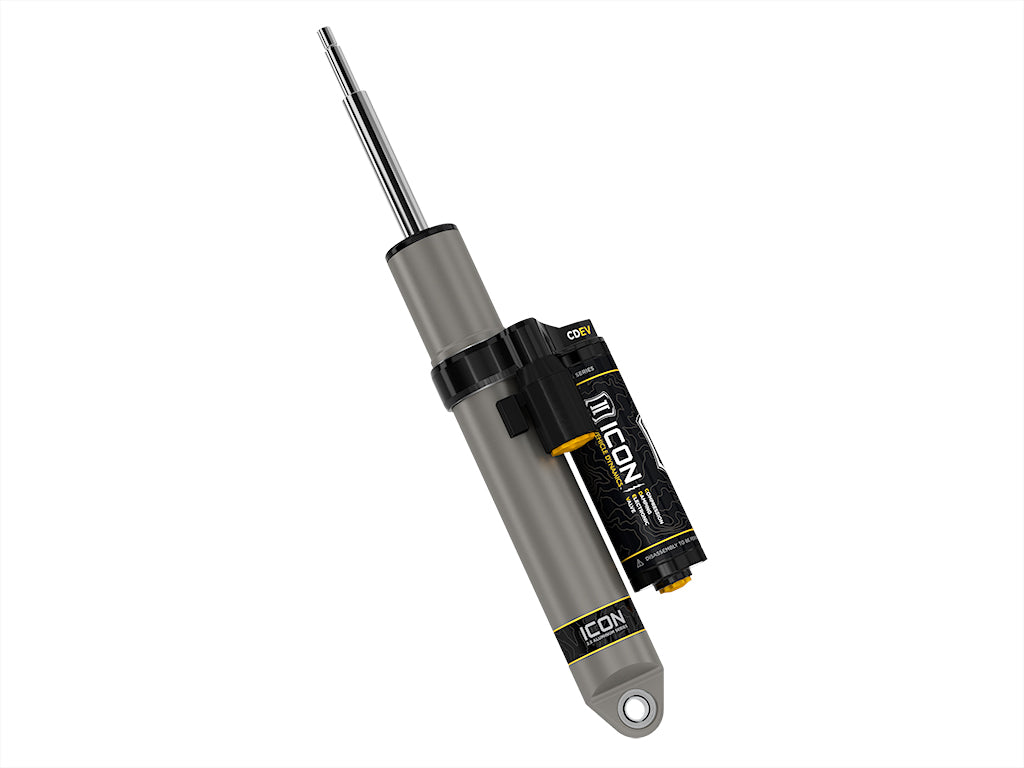

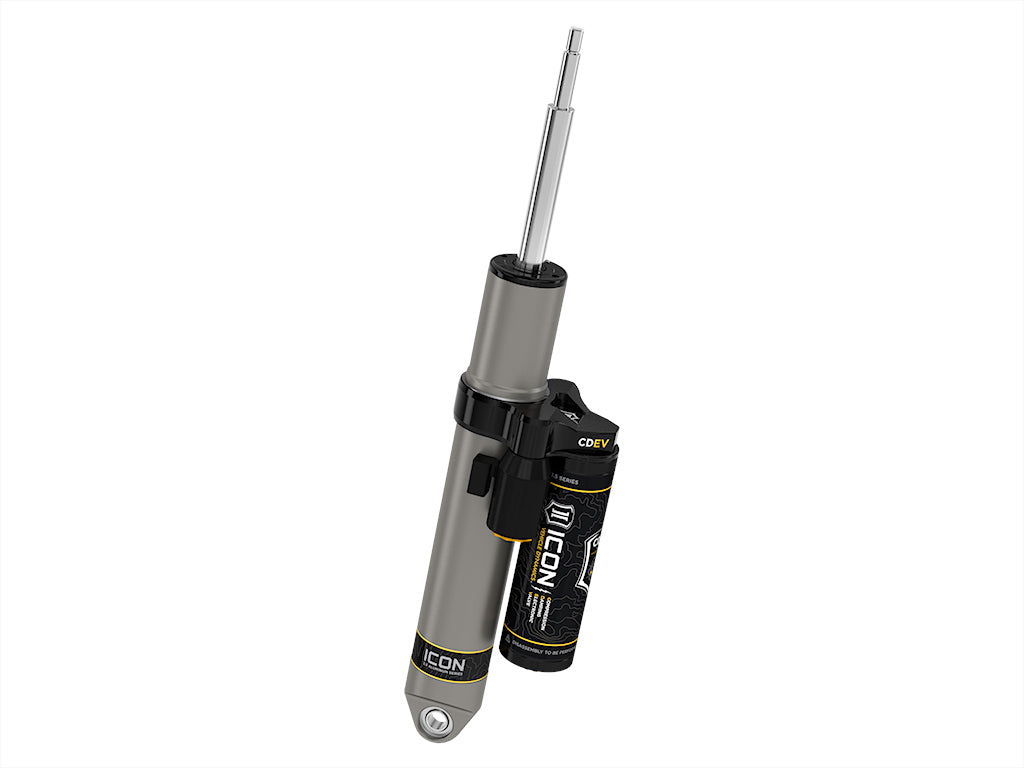

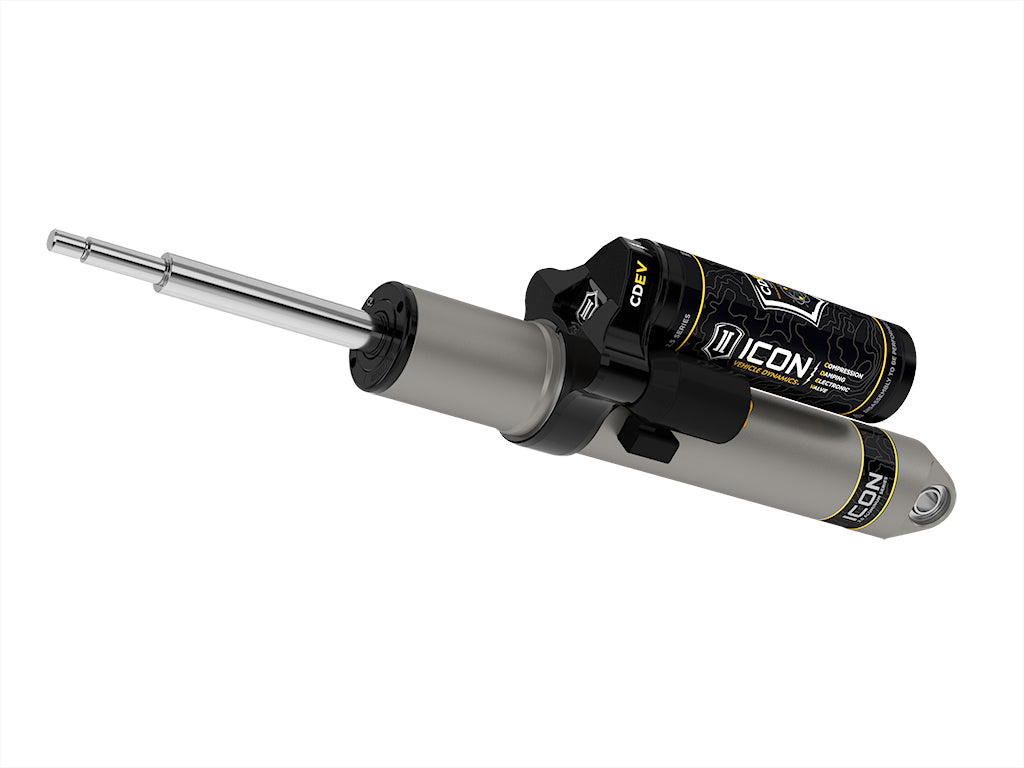

The Icon Vehicle Dynamics 2.5 Series Shock Absorbers are engineered for exceptional performance both on and off-road. These hydraulic shocks feature a unique design that includes a remote reservoir and electronic adjustable valving, allowing for precise tuning of the ride characteristics directly from inside the vehicle. Constructed from 6061 aircraft grade aluminum, these shocks are built to withstand rigorous conditions while providing a smooth ride. The internal Bump Zone technology enhances damping force by 20 percent, effectively preventing harsh bottom outs and improving control during high-velocity compression.
Each shock is fully rebuildable and re-tunable, ensuring longevity and adaptability to changing driving conditions. The one-piece digressive piston design, combined with application-specific valving, delivers unmatched ride quality tailored to your vehicle's needs. With features such as PTFE lined spherical bearings and a piggyback reservoir for improved heat dissipation, these shocks are designed for consistent performance across a wide temperature range. The Icon 2.5 Series Shock Absorbers are a reliable choice for those seeking enhanced suspension performance.
Features
- 6061 Aircraft Grade Aluminum CNC Machined Components
- 7/8 Inch Diameter Induction Hardened Chrome Plated Shock Shaft
- One-Piece Digressive Piston Design With Vehicle Specific Valving For Unsurpassed Performance And Ride Quality On And Off-Road
- Fully Rebuildable And Re-Tunable; ICON's CDE Valve Technology Allows For In Vehicle Adjustment Of Compression Damping Settings And Active Adjustment Via The ICON Intelligent Control
- Premium Grade 5WT Shock Oil For Consistent Suspension Damping Along A Wide Temperature Range
- PTFE Lined Spherical Bearings And Application Specific Mounting Hardware
- Piggyback Reservoir Design Improves Heat Dissipation To Reduce Shock Fade During Prolonged Use
- One-Piece Hard Anodized Impact Extruded Aluminum Cylinders Offer Excellent Corrosion Resistance And Consistent Finish
- ICON’s Internal “Bump Zone” Increases Damping By 20 Percent To Provide More Control As The Shock Approaches Full Compression
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 217706EP
- Type: Hydraulic
- With Coil Spring: No
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Gray
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Application Specific Valving
- Ride Height Adjustable: Yes
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2014-2025 Ram 2500
