Advanced hydraulic shocks with electronic adjustable valving for superior performance.

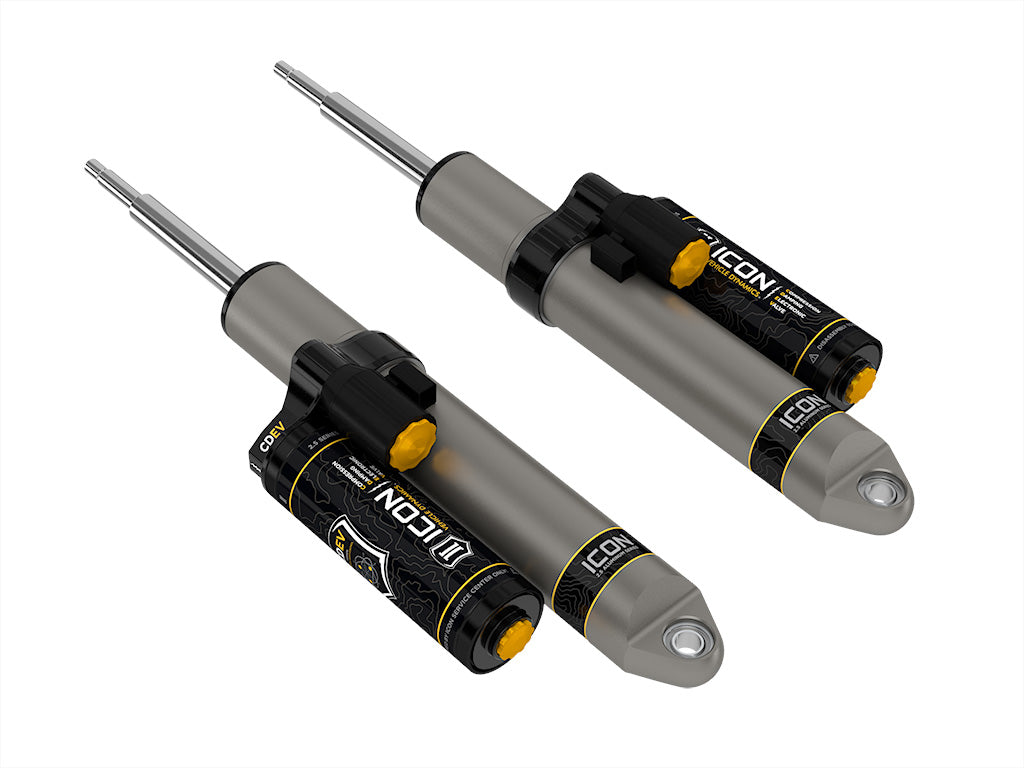

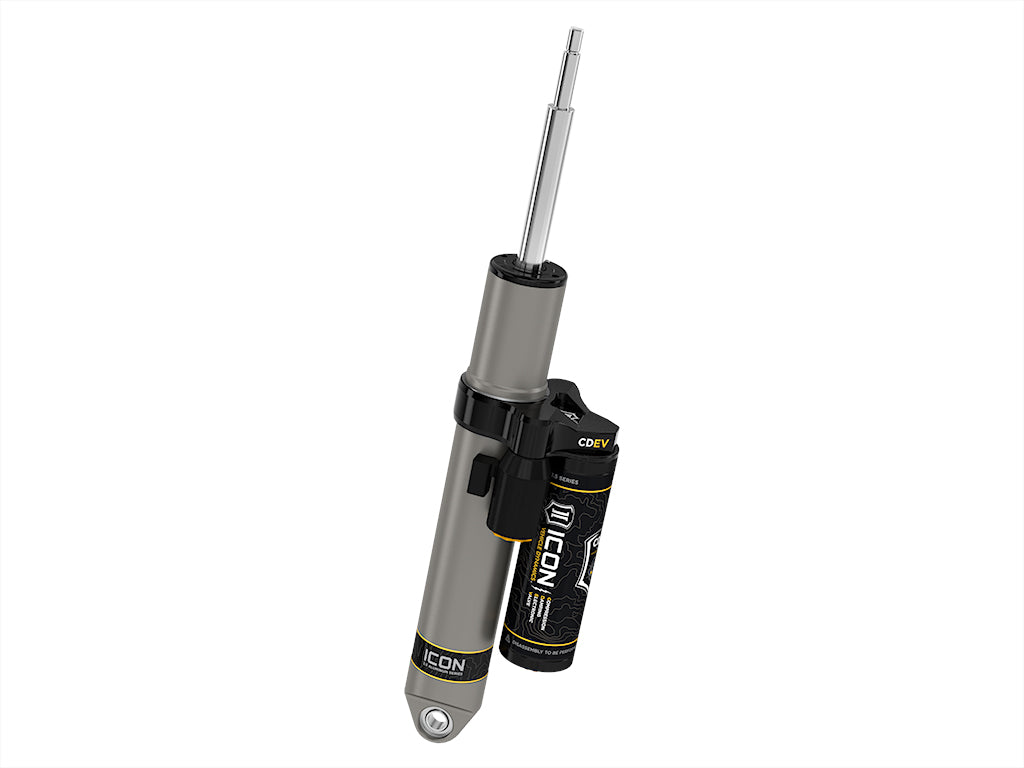

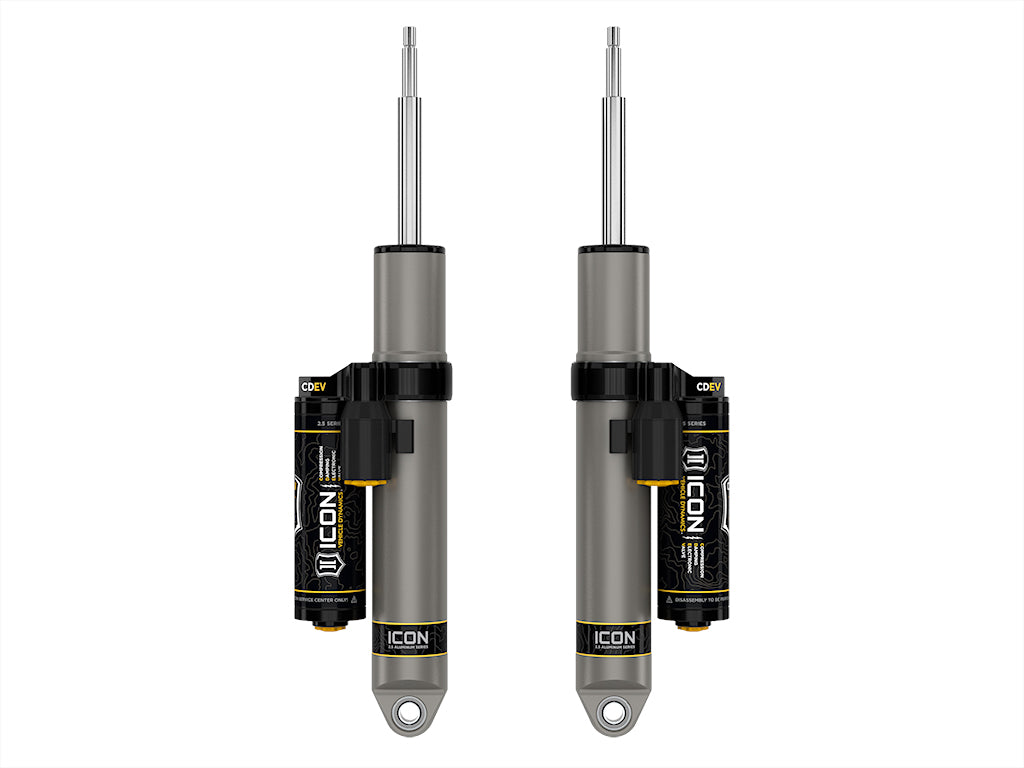

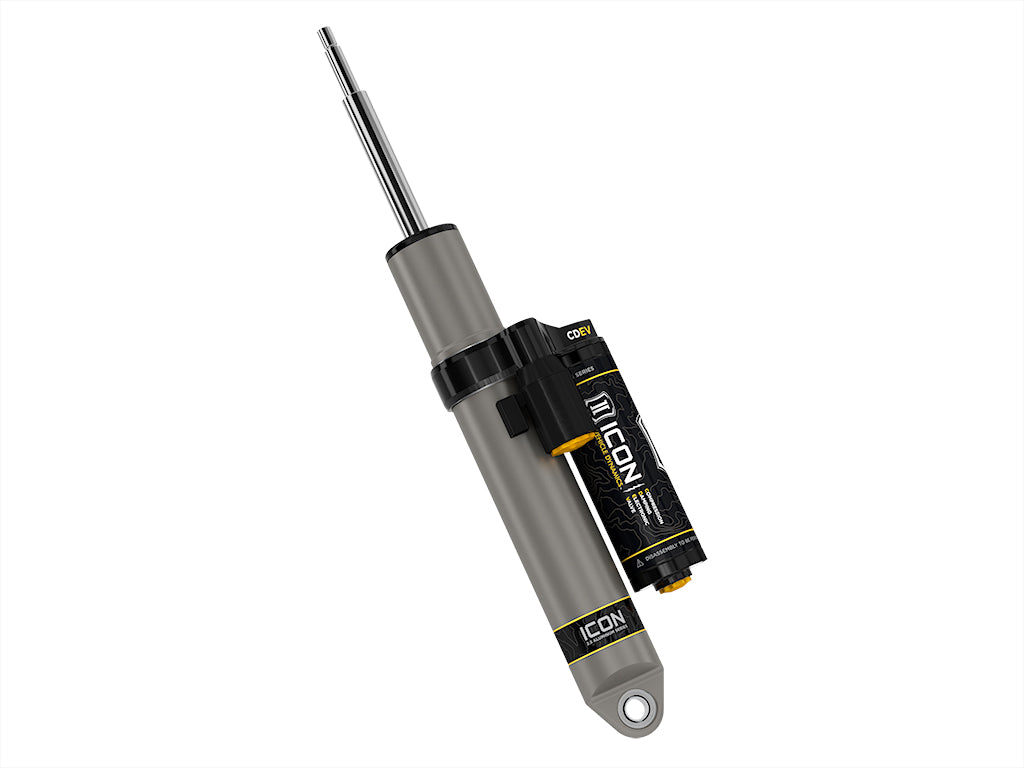

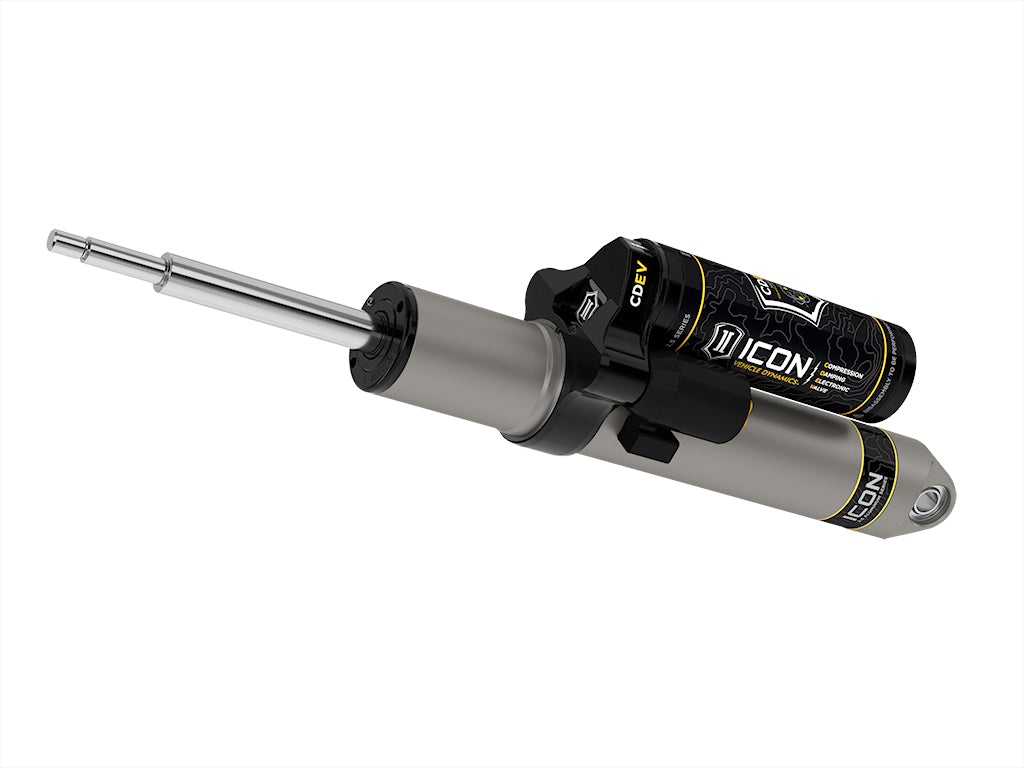

The Icon Vehicle Dynamics 2.5 Series Shock Absorbers are engineered to enhance both off-road performance and on-road comfort. These hydraulic shocks feature a unique design that includes a remote reservoir and electronic adjustable valving, allowing for precise tuning of the ride characteristics directly from the vehicle's interior. Constructed from 6061 aircraft-grade aluminum, these shocks are built to withstand harsh conditions while providing a consistent and reliable performance.
The internal Bump Zone technology increases damping force by 20 percent, effectively preventing harsh bottom outs and improving control during high-velocity compression. With a one-piece digressive piston design and application-specific valving, these shocks deliver exceptional ride quality tailored to the specific needs of your vehicle. Additionally, the fully rebuildable and re-tunable design ensures longevity and adaptability to changing driving conditions.
Featuring a piggyback reservoir for improved heat dissipation, the Icon 2.5 Series Shock Absorbers are equipped with premium-grade shock oil that maintains consistent damping across a wide temperature range. The robust construction includes PTFE lined spherical bearings and anodized aluminum cylinders, ensuring excellent corrosion resistance and durability. This set of two shocks is designed for vehicle-specific applications, making them a reliable choice for serious off-road enthusiasts.
Features
- 6061 Aircraft Grade Aluminum CNC Machined Components
- 7/8 Inch Diameter Induction Hardened Chrome Plated Shock Shaft
- One-Piece Digressive Piston Design With Vehicle Specific Valving For Unsurpassed Performance And Ride Quality On And Off-Road
- Fully Rebuildable And Re-Tunable; ICON's CDE Valve Technology Allows For In Vehicle Adjustment Of Compression Damping Settings And Active Adjustment Via The ICON Intelligent Control
- Premium Grade 5WT Shock Oil For Consistent Suspension Damping Along A Wide Temperature Range
- PTFE Lined Spherical Bearings And Application Specific Mounting Hardware
- Piggyback Reservoir Design Improves Heat Dissipation To Reduce Shock Fade During Prolonged Use
- One-Piece Hard Anodized Impact Extruded Aluminum Cylinders Offer Excellent Corrosion Resistance And Consistent Finish
- ICON’s Internal “Bump Zone” Increases Damping By 20 Percent To Provide More Control As The Shock Approaches Full Compression
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 217705EP
- Type: Hydraulic
- With Coil Spring: No
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Gray
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Application Specific Valving
- Ride Height Adjustable: Yes
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2014-2025 Ram 2500
Technical Documents
Product Videos
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
