Advanced hydraulic shocks with electronic adjustable valving for superior performance.

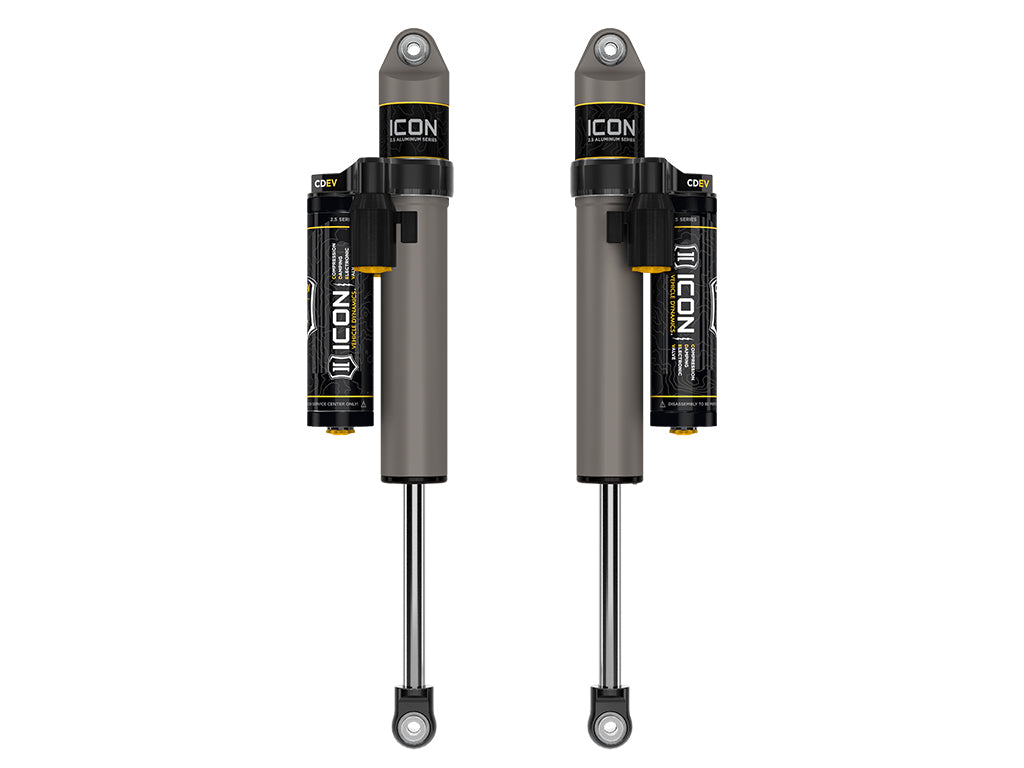

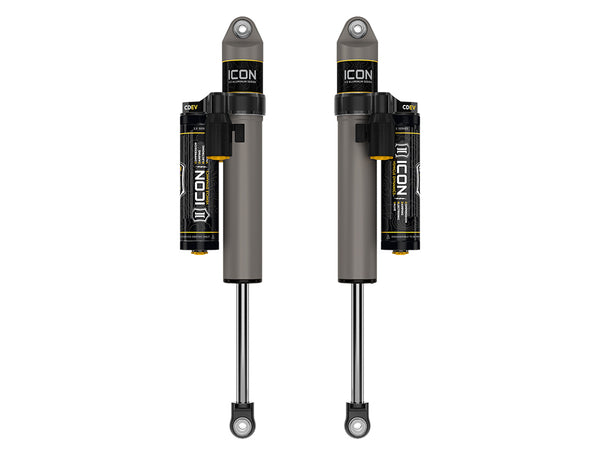

The Icon Vehicle Dynamics 2.5 Series Shock Absorber is engineered for exceptional performance both on and off-road. Constructed from 6061 aircraft grade aluminum, these shocks feature a unique internal Bump Zone that increases damping by 20 percent, enhancing control during high-velocity compression. The electronic adjustable valving allows for precise tuning of compression damping settings directly from inside the vehicle, adapting to varying terrain conditions seamlessly.
Designed with a piggyback reservoir, these shocks improve heat dissipation, reducing shock fade during extended use. The monotube design, combined with a one-piece digressive piston, ensures consistent ride quality and performance. The ICON Intelligent Control system, powered by a mobile app, utilizes onboard sensors to optimize shock settings based on real-time data, providing a tailored driving experience.
With a robust construction and advanced technology, the Icon 2.5 Series shocks are fully rebuildable and re-tunable, making them a reliable choice for vehicle-specific applications. The 7/8 inch diameter induction hardened shock shaft and hard anodized finish contribute to the durability and longevity of these shock absorbers, ensuring they withstand the rigors of off-road adventures.
Features
- 6061 Aircraft Grade Aluminum CNC Machined Components
- ICON's CDE Valve Technology Allows For In Vehicle Adjustment Of Compression Damping Settings And Active Adjustment Via The ICON Intelligent Control
- One-Piece, Hard Anodized, Impact Extruded Aluminum Cylinders Offer Excellent Corrosion Resistance And Consistent Finish
- ICON’s Internal “Bump Zone” Increases Damping By 20 Percent To Provide More Control As The Shock Approaches Full Compression
- Piggyback Reservoir Design Improves Heat Dissipation To Reduce Shock Fade During Prolonged Use
- Premium Grade 5WT Shock Oil For Consistent Suspension Damping Along A Wide Temperature Range
- Nitrogen Charged Monotube Design With Piggyback Reservoir
- One Piece Digressive Piston Design With Vehicle Specific Valving For Unsurpassed Performance And Ride Quality On And Off-Road
- 7/8 Inch Diameter Induction Hardened, Chrome Plated Shock Shaft
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 97720EP
- Type: Hydraulic/ Nitrogen Gas Charged
- With Coil Spring: No
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Gray
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Electronic Adjustable Valving
- Ride Height Adjustable: Yes
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 2021-2026 Ford F-150
