Engineered for superior off-road performance and on-road comfort.

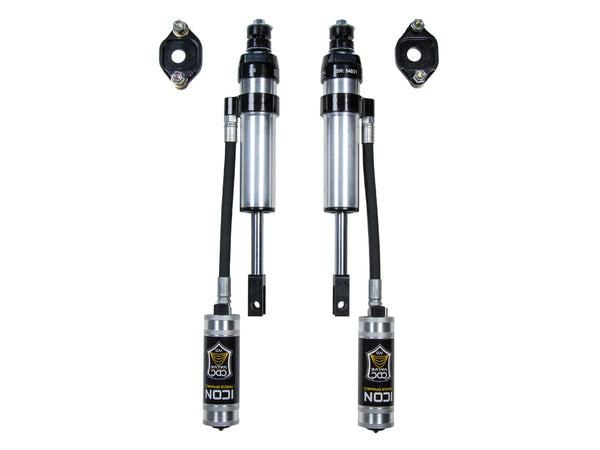

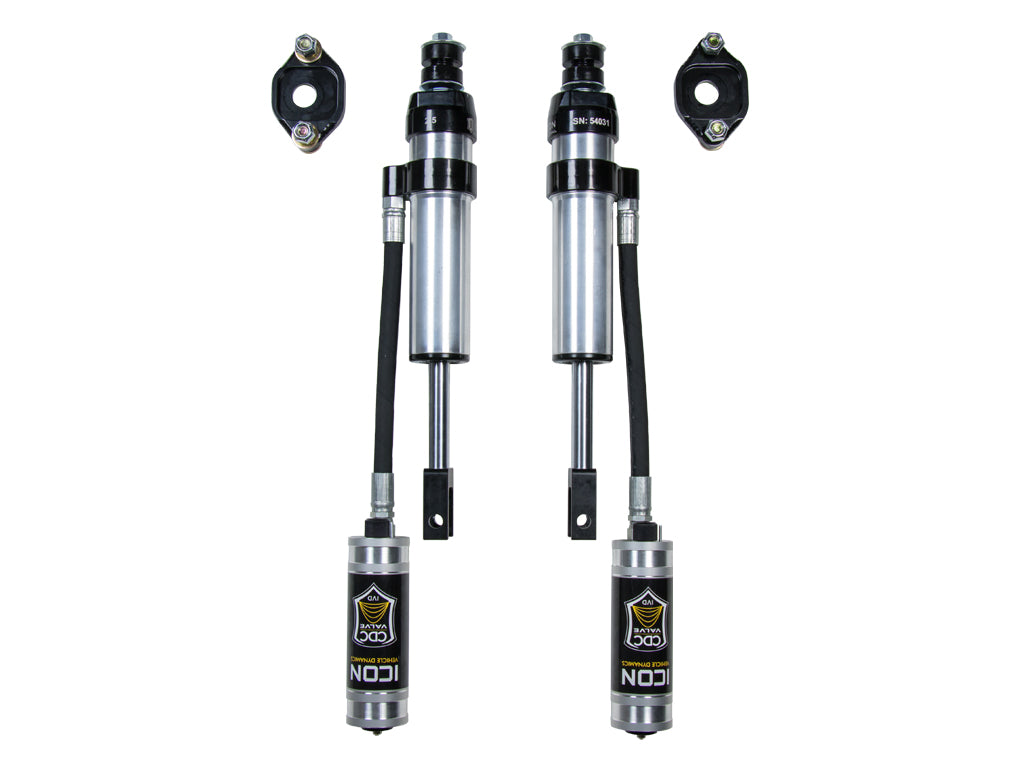

The Icon Vehicle Dynamics 2.5 Series shock absorbers are engineered to enhance vehicle performance both off-road and on the street. These shocks feature a nitrogen gas charged monotube design with a remote reservoir, allowing for improved heat dissipation and reduced shock fade during extended use. Each shock is specifically configured for its application, ensuring optimal length and damping tune for various vehicles.
Constructed from 6061 aircraft grade aluminum and precision machined components, these shocks are built for durability and reliability. The unique internal 'Bump Zone' design increases damping force by 20 percent, effectively preventing harsh bottom outs and maintaining control during high-velocity compression. The externally adjustable ICON CDC Valve provides 10 levels of compression damping, allowing for customization based on driving conditions.
With a one-piece digressive piston design and premium grade shock oil, the 2.5 Series shocks deliver consistent performance across a wide temperature range. They are 100 percent rebuildable and revalveable, ensuring longevity and adaptability to changing performance needs. The combination of polyurethane bushings and forged steel mounting stems guarantees a factory-type fitment, making installation straightforward.
Features
- 6061 Aircraft Grade Aluminum CNC Machined Components
- 7/8 Inch Diameter Induction Hardened, Chrome Plated Shock Shaft
- One Piece Digressive Piston Design With Vehicle Specific Valving For Unsurpassed Performance And Ride Quality On And Off-Road
- Nitrogen Charged Monotube Design With Piggyback Reservoir
- Premium Grade 5WT Shock Oil For Consistent Suspension Damping Along A Wide Temperature Range
- Remote Reservoir Design Improves Heat Dissipation To Reduce Shock Fade During Prolonged Use
- CAD Plated, Precision Machined 1026 DOM Steel Shock Body For Maximum Durability And Corrosion Resistance
- 100 Percent Rebuildable And 100 Percent Revalveable
- Polyurethane Bushings And Forged Steel Mounting Stems For OE Factory Type Fitment
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 77832CP
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Upper Mounting Style: Stud
- Lower Mounting Style: Clevis
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Gray
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Firm Compression And Adjustable Rebound Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 2011-2019 Chevrolet Silverado 2500 HD
- 2011-2019 Chevrolet Silverado 3500 HD
- 2011-2019 GMC Sierra 2500 HD
- 2011-2019 GMC Sierra 3500 HD
