Engineered for superior off-road performance and on-road comfort.

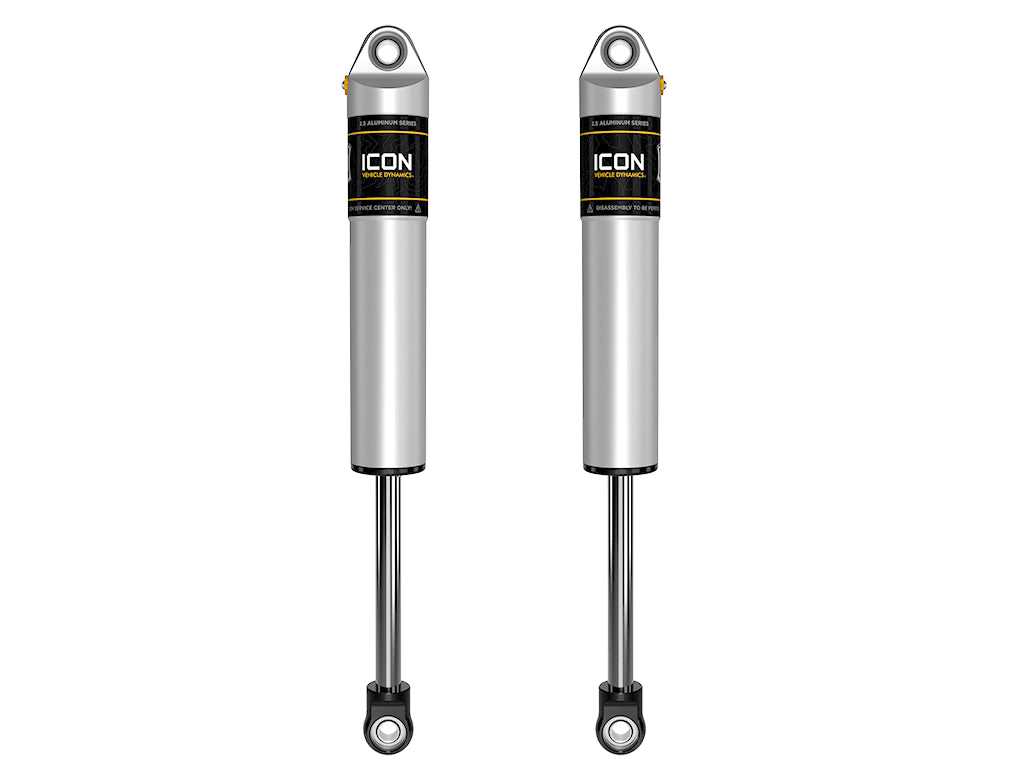

The Icon Vehicle Dynamics 2.5 Series Shock Absorber is designed to enhance vehicle performance both off-road and on the street. This shock absorber features a nitrogen gas charged monotube design that ensures consistent damping across a wide temperature range, making it suitable for various driving conditions. The unique one-piece digressive piston design, combined with vehicle specific valving, provides exceptional ride quality and handling, preventing harsh bottom outs during high-velocity compression.
Constructed from 6061 aircraft grade aluminum and precision machined 1026 DOM steel, the shock body is built for maximum durability and corrosion resistance. The 7/8 inch diameter induction hardened, chrome plated shock shaft contributes to the overall strength and longevity of the product. Additionally, the shock is 100 percent rebuildable and revalveable, allowing for maintenance and customization to meet specific performance needs.
With a focus on performance, the Icon 2.5 Series Shock Absorber is engineered to provide a smooth ride while maintaining control during off-road excursions. The absence of a remote reservoir simplifies installation while still delivering effective heat dissipation to reduce shock fade during prolonged use. This set of two shocks is specifically designed for vehicle applications, ensuring a precise fit and optimal performance.
Features
- 6061 Aircraft Grade Aluminum CNC Machined Components
- 7/8 Inch Diameter Induction Hardened, Chrome Plated Shock Shaft
- One Piece Digressive Piston Design With Vehicle Specific Valving For Unsurpassed Performance And Ride Quality On And Off-Road
- Nitrogen Charged Monotube Design With Piggyback Reservoir
- Premium Grade 5WT Shock Oil For Consistent Suspension Damping Along A Wide Temperature Range
- Remote Reservoir Design Improves Heat Dissipation To Reduce Shock Fade During Prolonged Use
- CAD Plated, Precision Machined 1026 DOM Steel Shock Body For Maximum Durability And Corrosion Resistance
- 100 Percent Rebuildable And 100 Percent Revalveable
- Polyurethane Bushings And Forged Steel Mounting Stems For OE Factory Type Fitment
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 77601P
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 25.11 Inch
- Compressed Length (IN): 16.03 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Gray
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 2001-2019 Chevrolet Silverado 2500 HD
- 2001-2006 Chevrolet Silverado 3500
- 2007-2007 Chevrolet Silverado 3500 Classic
- 2007-2019 Chevrolet Silverado 3500 HD
- 2001-2004 GMC Sierra 2500
- 2001-2019 GMC Sierra 2500 HD
- 2001-2006 GMC Sierra 3500
- 2007-2007 GMC Sierra 3500 Classic
- 2007-2019 GMC Sierra 3500 HD
