Advanced nitrogen gas charged shocks for superior off-road performance and comfort.

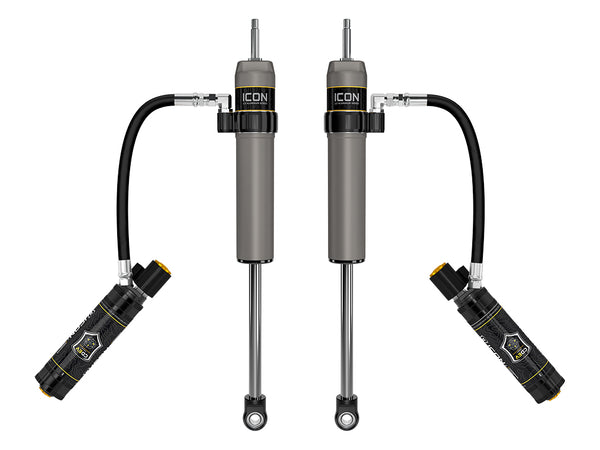

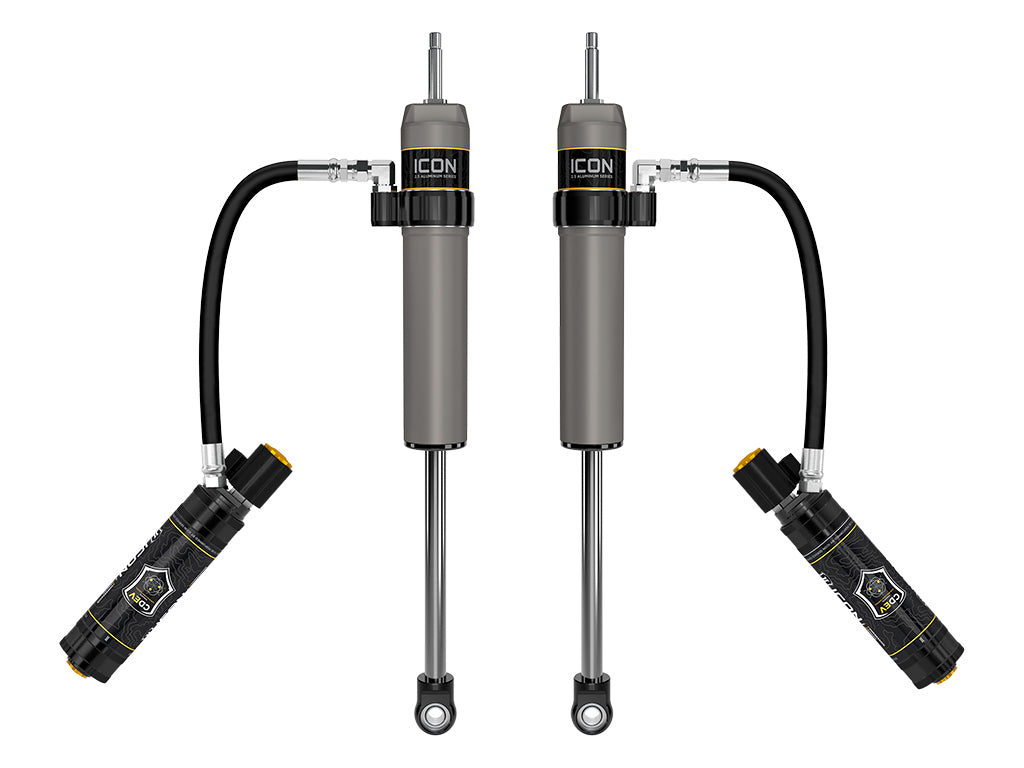

The Icon Vehicle Dynamics 2.5 Series Shock Absorber is engineered to enhance both off-road performance and on-road comfort. This shock features a nitrogen gas charged monotube design with a remote reservoir, which improves heat dissipation and reduces shock fade during extended use. The unique internal 'Bump Zone' increases damping by 20 percent, providing enhanced control as the shock approaches full compression, making it suitable for various terrains.
Equipped with Icon's CDE Valve Technology, these shocks allow for in-vehicle adjustment of compression damping settings, enabling users to tailor their ride experience based on real-time conditions. The electronically controlled valve reacts in less than 40 milliseconds, ensuring precise adjustments for optimal performance. The one-piece digressive piston design, combined with vehicle-specific valving, ensures superior ride quality both on and off the road.
Constructed from 6061 aircraft-grade aluminum, these shocks are fully rebuildable and re-tunable, ensuring longevity and adaptability to changing driving conditions. The 7/8 inch diameter induction hardened, chrome plated shock shaft, along with PTFE lined spherical bearings, contributes to the overall durability and performance of the shock absorber. This set of two shocks is designed specifically for vehicle applications, making it a reliable choice for enthusiasts seeking enhanced suspension performance.
Features
- Icon's CDE Valve Technology Allows For In Vehicle Adjustment Of Compression Damping Settings And Active Adjustment Via The Icon Intelligent Control
- Icon's Internal "Bump Zone" Increases Damping By 20 Percent To Provide More Control As The Shock Approaches Full Compression
- Remote Reservoir Design Improves Heat Dissipation To Reduce Shock Fade During Prolonged Use
- One-Piece, Hard Anodized, Impact Extruded Aluminum Cylinders Offer Excellent Corrosion Resistance And Consistent Finish
- Premium Grade 5WT Shock Oil For Consistent Suspension Damping Along A Wide Temperature Range
- Nitrogen Charged Monotube Design With Remote Reservoir
- One-Piece Digressive Piston Design With Vehicle Specific Valving For Unsurpassed Performance And Ride Quality On And Off-Road
- 7/8 Inch Diameter Induction Hardened, Chrome Plated Shock Shaft; PTFE Lined Spherical Bearings And Application Specific Mounting Hardware
- 6061 Aircraft Grade Aluminum CNC Machined Components; Fully Rebuildable And Re-Tunable
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 57840EP
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Upper Mounting Style: Strut
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Gray
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Velocity Sensitive Digressive Valving
- Ride Height Adjustable: Yes
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2023-2025 Toyota Sequoia
- 2022-2025 Toyota Tundra
