Advanced nitrogen gas charged shocks for superior off-road performance and comfort.

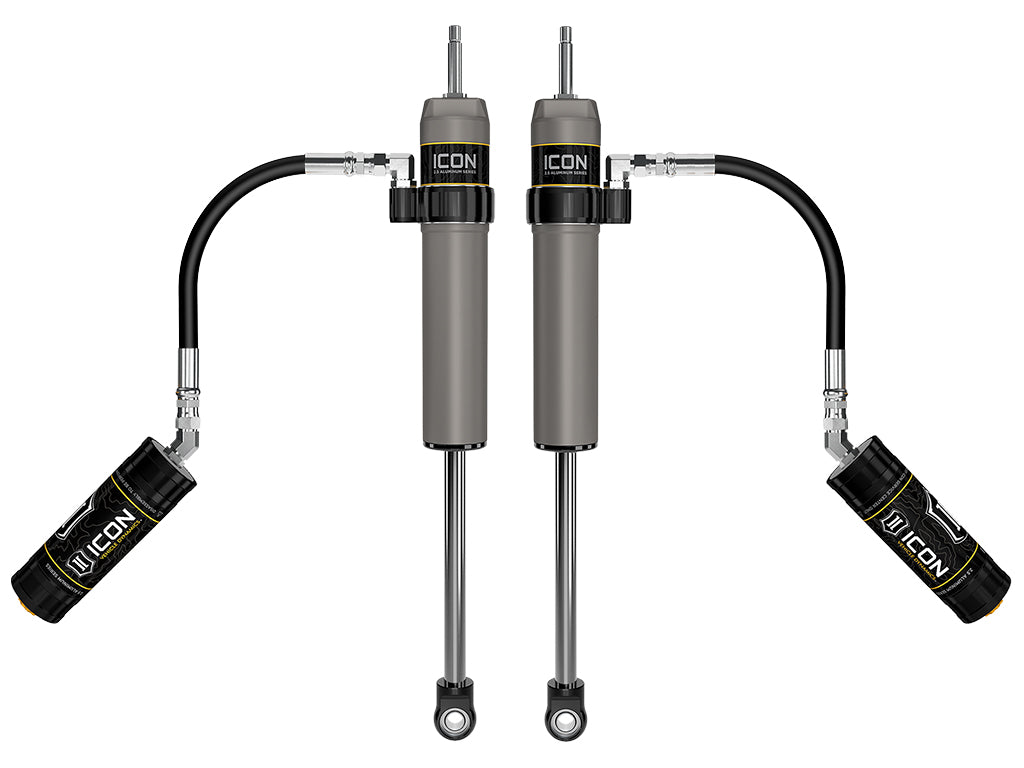

The Icon Vehicle Dynamics 2.5 Series Shock Absorber is engineered to enhance both off-road performance and on-road comfort. This shock features a nitrogen gas charged monotube design with a remote reservoir, which significantly improves heat dissipation and reduces shock fade during extended use. The unique internal Bump Zone technology increases damping force by 20 percent, providing better control as the shock approaches full compression, thus preventing harsh bottom outs and maintaining suspension control at high velocities.
Constructed from one-piece, hard anodized, impact extruded aluminum, these shocks offer excellent corrosion resistance and a consistent finish. The 7/8 inch diameter induction hardened, chrome plated shock shaft ensures durability and longevity. With vehicle specific valving and a digressive piston design, the Icon 2.5 Series shocks deliver unmatched performance and ride quality, making them suitable for a variety of driving conditions.
For those seeking a more tailored tuning experience, the Compression Damping Control Valve (CDCV) technology allows for high-resolution compression adjustability. This feature, combined with premium grade shock oil, ensures consistent suspension damping across a wide temperature range. The shocks come as a set of two and include all necessary hardware for installation.
Features
- ICON’s Internal “Bump Zone” Increases Damping By 20 Percent To Provide More Control As The Shock Approaches Full Compression
- Remote Reservoir Design Improves Heat Dissipation To Reduce Shock Fade During Prolonged Use
- One-Piece, Hard Anodized, Impact Extruded Aluminum Cylinders Offer Excellent Corrosion Resistance And Consistent Finish
- Premium Grade 5WT Shock Oil For Consistent Suspension Damping Along A Wide Temperature Range
- Nitrogen Charged Monotube Design With Remote Reservoir
- ICON's CDC Valve Technology Allows For 10 Levels Of High-Resolution Compression Adjustability With The Turn Of A Knob
- One-Piece Digressive Piston Design With Vehicle Specific Valving For Unsurpassed Performance And Ride Quality On And Off-Road
- 7/8 Inch Diameter Induction Hardened, Chrome Plated Shock Shaft
- Rubber Dust Boot Provided For Added Shaft Protection
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 57808P
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Gray
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Non Adjustable Valving
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2024-2025 Toyota Tacoma
