Advanced nitrogen gas charged shocks for superior off-road and on-road performance.

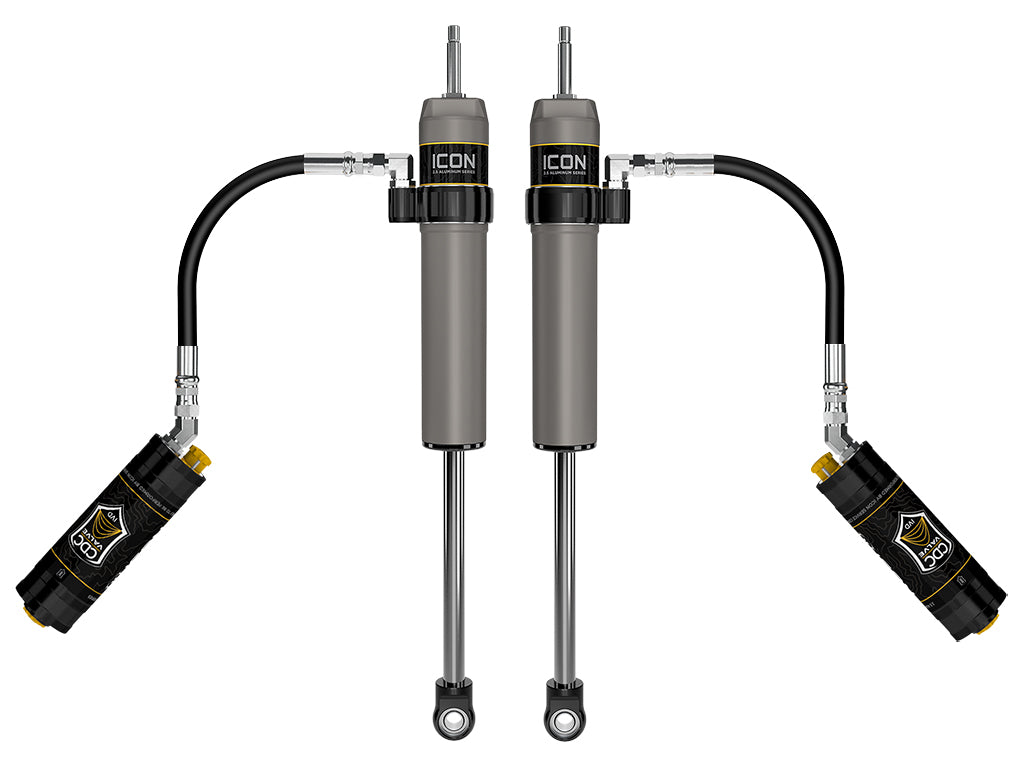

The Icon Vehicle Dynamics 2.5 Series Shock Absorber is engineered to enhance vehicle performance both off-road and on the street. This shock features a nitrogen gas charged monotube design with a remote reservoir, which improves heat dissipation and reduces shock fade during extended use. The unique internal Bump Zone increases damping by 20 percent, providing additional control as the shock approaches full compression, which is crucial for maintaining stability during high-velocity maneuvers.
Constructed from one-piece, hard anodized aluminum, these shocks offer excellent corrosion resistance and a consistent finish. The premium grade 5WT shock oil ensures consistent damping across a wide temperature range, while the exclusive Compression Damping Control Valve technology allows for ten levels of high-resolution compression adjustability. This feature enables precise tuning of suspension performance, whether navigating rocky terrains or cruising at high speeds.
With vehicle-specific valving and a robust 7/8 inch diameter induction hardened chrome plated shock shaft, the Icon 2.5 Series Shock Absorber delivers unmatched ride quality and performance. Designed for easy installation, this set of two shocks includes all necessary hardware and is tailored for specific vehicle applications, ensuring optimal fit and function.
Features
- ICON’s Internal “Bump Zone” Increases Damping By 20 Percent To Provide More Control As The Shock Approaches Full Compression
- Remote Reservoir Design Improves Heat Dissipation To Reduce Shock Fade During Prolonged Use
- One-Piece, Hard Anodized, Impact Extruded Aluminum Cylinders Offer Excellent Corrosion Resistance And Consistent Finish
- Premium Grade 5WT Shock Oil For Consistent Suspension Damping Along A Wide Temperature Range
- Nitrogen Charged Monotube Design With Remote Reservoir
- ICON's CDC Valve Technology Allows For 10 Levels Of High-Resolution Compression Adjustability With The Turn Of A Knob
- One-Piece Digressive Piston Design With Vehicle Specific Valving For Unsurpassed Performance And Ride Quality On And Off-Road
- 7/8 Inch Diameter Induction Hardened, Chrome Plated Shock Shaft
- Rubber Dust Boot Provided For Added Shaft Protection
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 57808CP
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Gray
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Application Specific Valving
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2024-2025 Toyota Tacoma
