Advanced nitrogen gas charged shocks with electronic adjustable valving for superior performance.

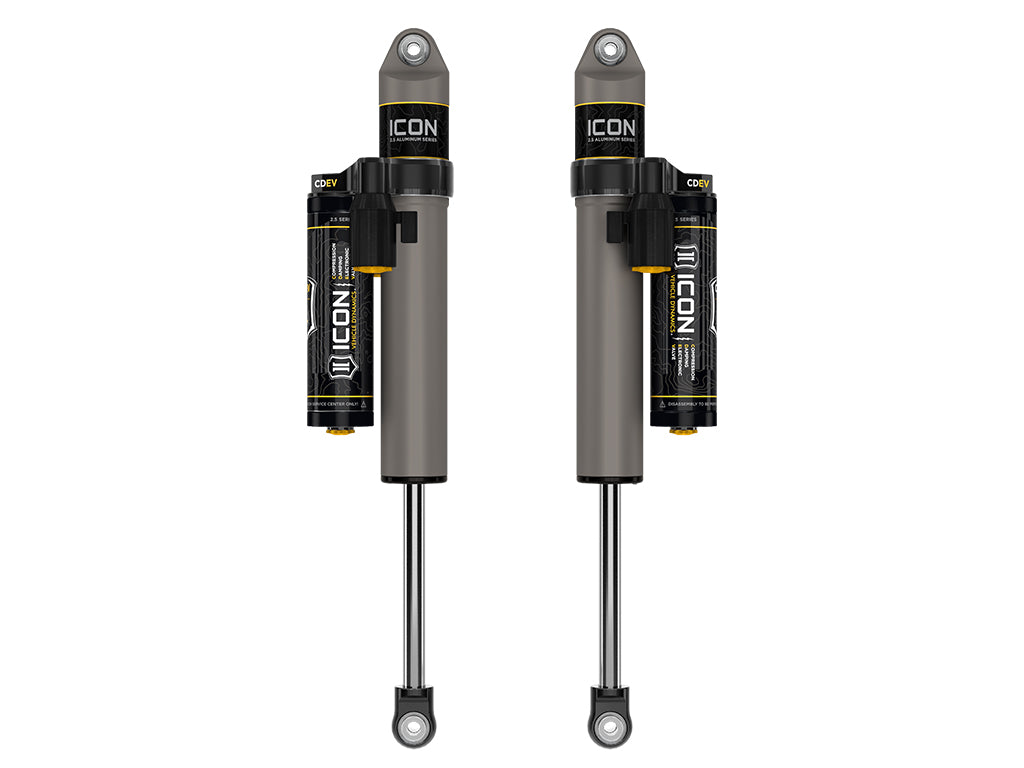

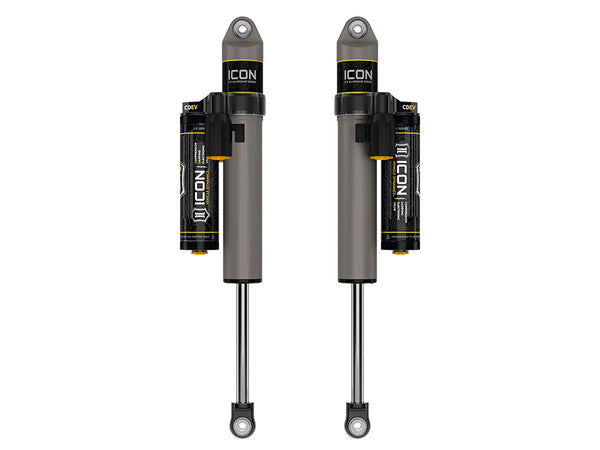

The Icon Vehicle Dynamics 2.5 Series Shock Absorber is engineered for both off-road performance and on-road comfort. Featuring nitrogen gas charging and electronic adjustable valving, these shocks provide customizable damping settings to enhance vehicle handling and ride quality. The unique internal Bump Zone design increases damping force by 20 percent, effectively preventing harsh bottom outs and improving control during high-velocity compression.
Constructed from one-piece, hard anodized aluminum, these shocks offer excellent corrosion resistance and durability. The piggyback reservoir design aids in heat dissipation, reducing shock fade during extended use. With a fully rebuildable and re-tunable design, these shocks can be adjusted to meet specific driving conditions and preferences.
The 2.5 Series is compatible with a variety of vehicles, ensuring a tailored fit and performance. The use of premium grade shock oil ensures consistent damping across a wide temperature range, while the digressive piston design provides superior ride quality both on and off the road.
Features
- ICON's CDE Valve Technology Allows For In Vehicle Adjustment Of Compression Damping Settings And Active Adjustment Via The ICON Intelligent Control (IIC)
- ICON's Internal "Bump Zone" Increases Damping By 20 Percent To Provide More Control As The Shock Approaches Full Compression
- One-Piece, Hard Anodized, Impact Extruded Aluminum Cylinders Offer Excellent Corrosion Resistance And Consistent Finish
- Piggyback Reservoir Design Improves Heat Dissipation To Reduce Shock Fade During Prolonged Use
- Premium Grade 5WT Shock Oil For Consistent Suspension Damping Along A Wide Temperature Range
- One-Piece Digressive Piston Design With Vehicle Specific Valving For Unsurpassed Performance And Ride Quality On And Off-Road
- 7/8 Inch Diameter Induction Hardened, Chrome Plated Shock Shaft; 6061 Aircraft Grade Aluminum CNC Machined Components
- PTFE Lined Spherical Bearings And Application Specific Mounting Hardware
- Fully Rebuildable And Re-Tunable
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 37701EP
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Gray
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Electronic Adjustable Valving
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2017-2026 Ford F-250 Super Duty
- 2017-2026 Ford F-350 Super Duty
