Engineered for superior off-road performance and on-road comfort.

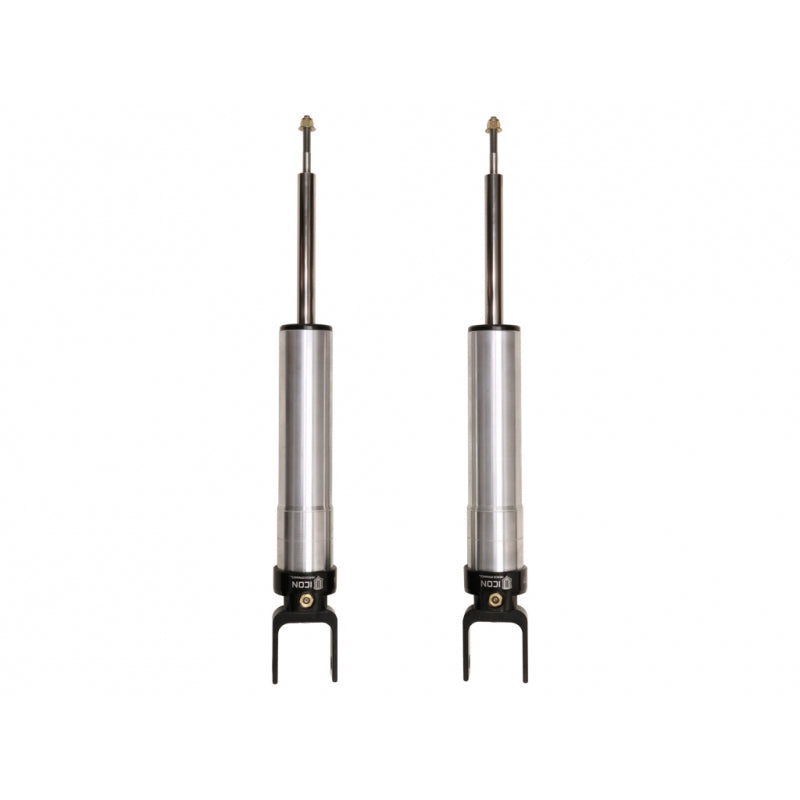

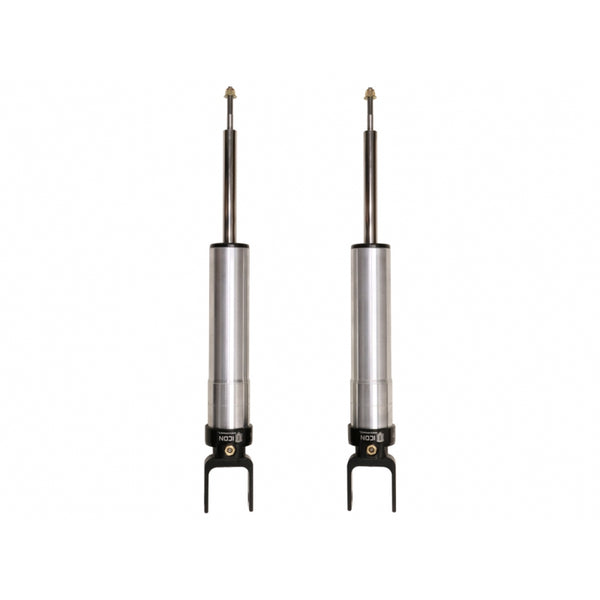

The Icon Vehicle Dynamics 2.5 Series Shock Absorber is designed to enhance vehicle performance both off-road and on the street. This nitrogen gas charged shock features a monotube design that ensures consistent damping across a wide temperature range, making it suitable for various driving conditions. The shock is built with 6061 aircraft grade aluminum components and a robust 1026 DOM steel body, providing maximum durability and corrosion resistance.
Each shock is configured specifically for its application, ensuring optimal length and damping tune for your vehicle. The one-piece digressive piston design, combined with application specific valving, delivers exceptional ride quality and performance. Additionally, the shock is 100 percent rebuildable and revalveable, allowing for maintenance and customization over time.
With a 7/8 inch diameter induction hardened chrome plated shock shaft, the Icon 2.5 Series is engineered to withstand the rigors of off-road driving. The absence of a remote reservoir does not compromise its performance, as the internal design includes a unique bump zone that increases damping force by 20 percent, preventing harsh bottom outs during high-velocity compression.
Features
- 6061 Aircraft Grade Aluminum CNC Machined Components
- 7/8 Inch Diameter Induction Hardened, Chrome Plated Shock Shaft
- One Piece Digressive Piston Design With Vehicle Specific Valving For Unsurpassed Performance And Ride Quality On And Off-Road
- Nitrogen Charged Monotube Design With Piggyback Reservoir
- Premium Grade 5WT Shock Oil For Consistent Suspension Damping Along A Wide Temperature Range
- Remote Reservoir Design Improves Heat Dissipation To Reduce Shock Fade During Prolonged Use
- CAD Plated, Precision Machined 1026 DOM Steel Shock Body For Maximum Durability And Corrosion Resistance
- 100 Percent Rebuildable And 100 Percent Revalveable
- Polyurethane Bushings And Forged Steel Mounting Stems For OE Factory Type Fitment
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 27781P
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 22.81 Inch
- Compressed Length (IN): 15-3/4 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Clevis
- Adjustable Valving: No
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Gray
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 2010-2015 Jeep Grand Cherokee
