Advanced hydraulic shocks with electronic adjustable valving for superior performance.

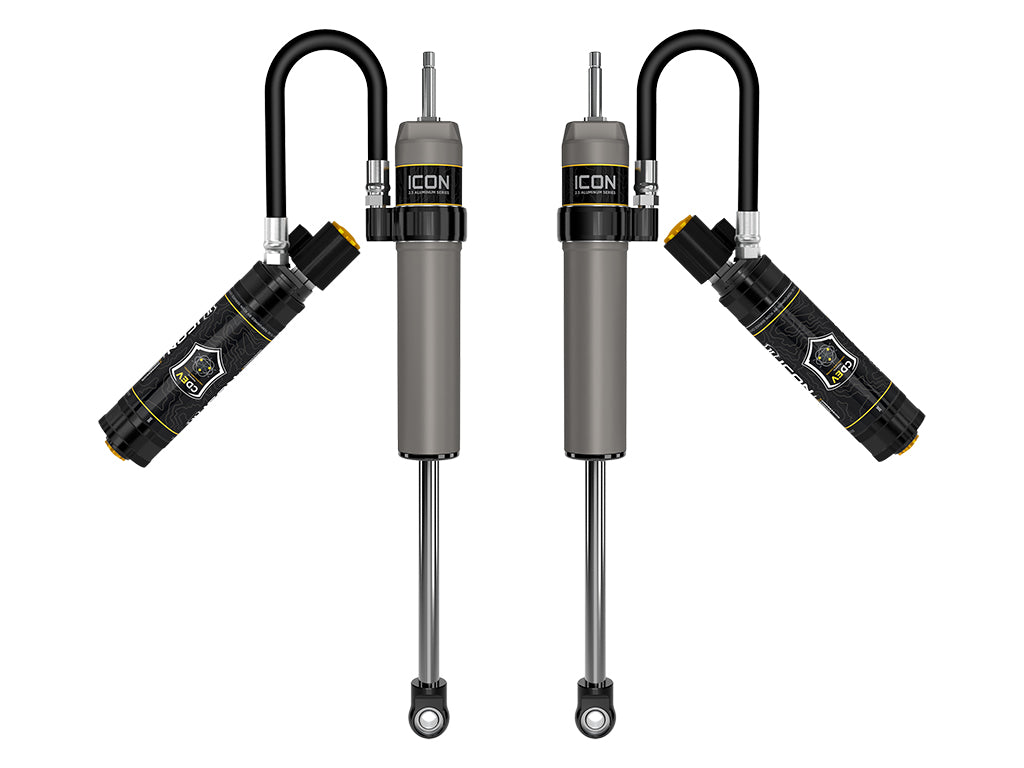

The Icon Vehicle Dynamics 2.5 Series Shock Absorber is engineered for both off-road performance and on-road comfort. Featuring a hydraulic design with electronic adjustable valving, these shocks are tailored to enhance vehicle handling and ride quality. The unique 6061-billet aluminum manifold design introduces an internal Bump Zone, increasing damping force by 20 percent to mitigate harsh bottom outs and improve control during high-velocity compression.
Constructed from aircraft-grade aluminum, the shocks are CNC machined for precision and durability. The one-piece digressive piston design ensures vehicle-specific valving, providing optimal performance across various terrains. With the inclusion of ICON's CDE Valve technology, users can easily adjust compression damping settings from within the vehicle, allowing for a customizable ride experience.
These shocks are fully rebuildable and re-tunable, ensuring longevity and adaptability to changing driving conditions. The piggyback reservoir design enhances heat dissipation, reducing shock fade during extended use. With a robust construction that includes a 7/8 inch diameter induction hardened chrome plated shock shaft, the Icon 2.5 Series Shock Absorber is built to withstand rigorous demands while maintaining consistent performance.
Features
- 6061 Aircraft Grade Aluminum CNC Machined Components
- 7/8 Inch Diameter Induction Hardened Chrome Plated Shock Shaft
- One-Piece Digressive Piston Design With Vehicle Specific Valving For Unsurpassed Performance And Ride Quality On And Off-Road
- Fully Rebuildable And Re-Tunable; ICON's CDE Valve Technology Allows For In Vehicle Adjustment Of Compression Damping Settings And Active Adjustment Via The ICON Intelligent Control
- Premium Grade 5WT Shock Oil For Consistent Suspension Damping Along A Wide Temperature Range
- PTFE Lined Spherical Bearings And Application Specific Mounting Hardware
- Piggyback Reservoir Design Improves Heat Dissipation To Reduce Shock Fade During Prolonged Use
- One-Piece Hard Anodized Impact Extruded Aluminum Cylinders Offer Excellent Corrosion Resistance And Consistent Finish
- ICON’s Internal “Bump Zone” Increases Damping By 20 Percent To Provide More Control As The Shock Approaches Full Compression
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 217803EP
- Type: Hydraulic
- With Coil Spring: No
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Stud
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Gray
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Application Specific Valving
- Ride Height Adjustable: Yes
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2014-2025 Ram 2500
