Advanced hydraulic shocks with electronic adjustable valving for superior performance.

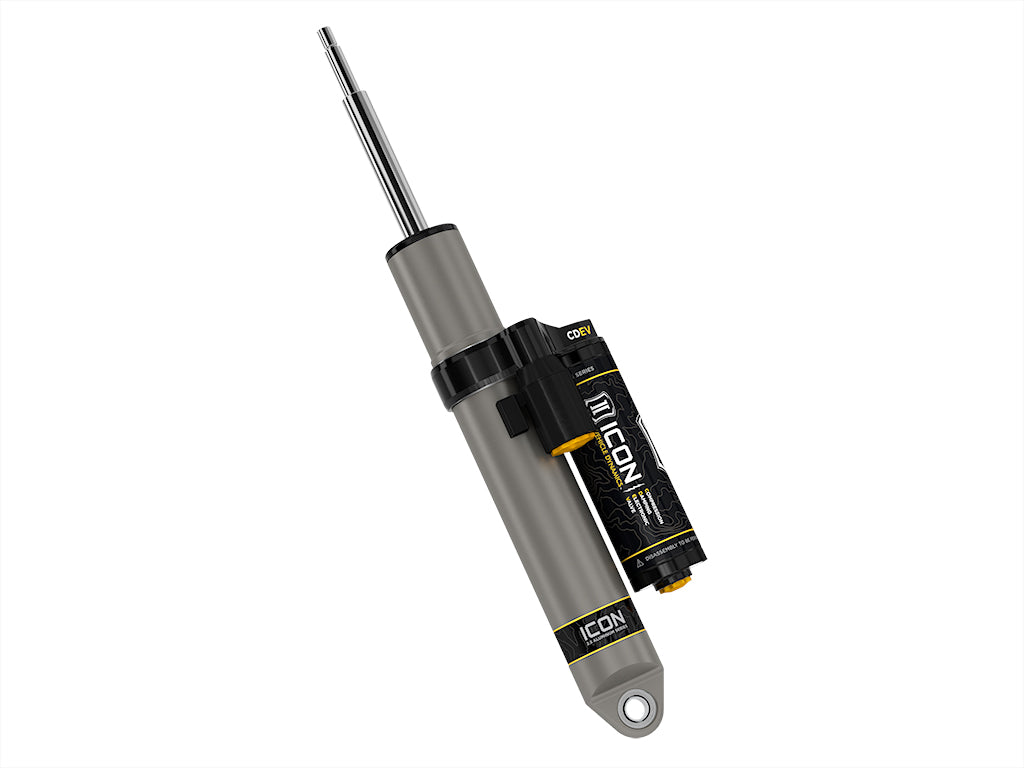

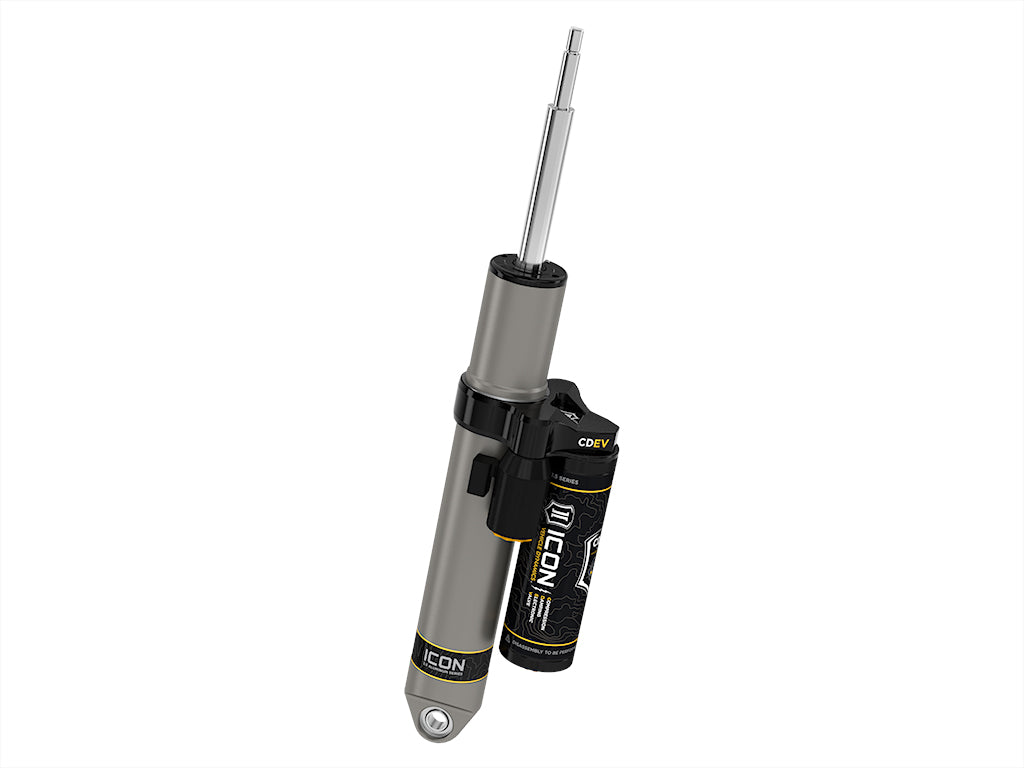

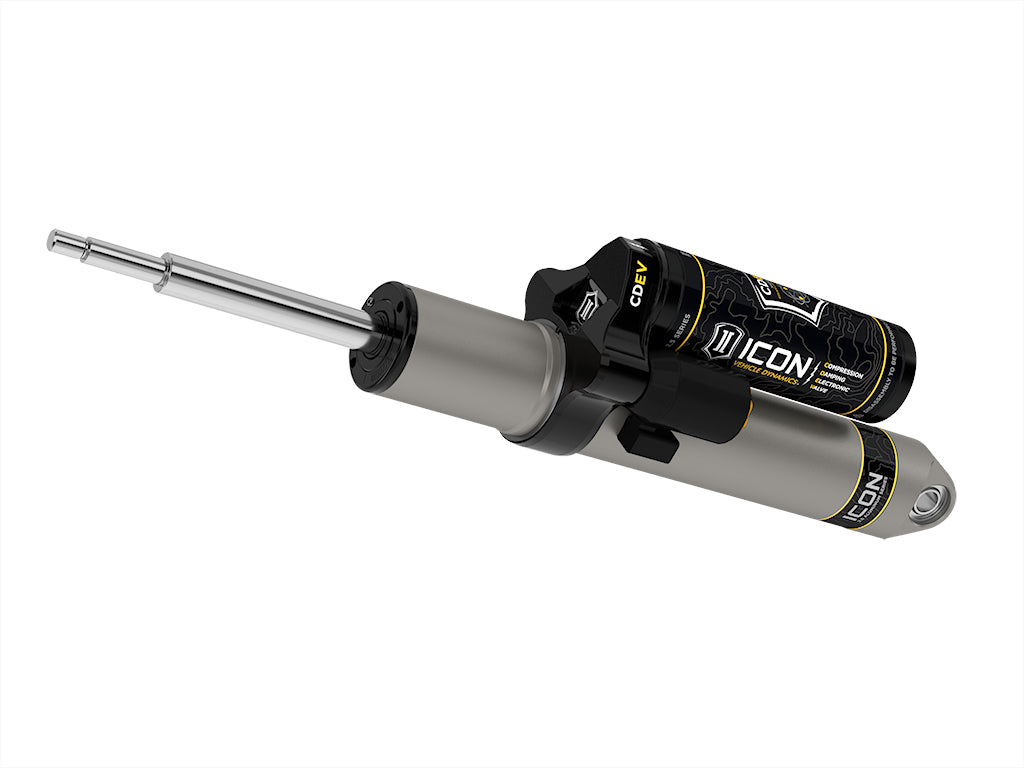

The Icon Vehicle Dynamics 2.5 Series Shock Absorber is engineered for exceptional performance both on and off-road. Featuring a hydraulic design with electronic adjustable valving, these shocks provide a customizable ride experience tailored to specific vehicle applications. The use of 6061 aircraft grade aluminum in the construction ensures durability and resistance to corrosion, while the unique internal Bump Zone increases damping force by 20 percent, enhancing control during high-velocity compression.
These shocks are fully rebuildable and re-tunable, allowing for adjustments to be made easily from inside the vehicle. The premium grade shock oil ensures consistent damping across a wide temperature range, making these shocks reliable under various conditions. With a piggyback reservoir design, heat dissipation is improved, reducing shock fade during extended use, which is critical for maintaining performance in demanding environments.

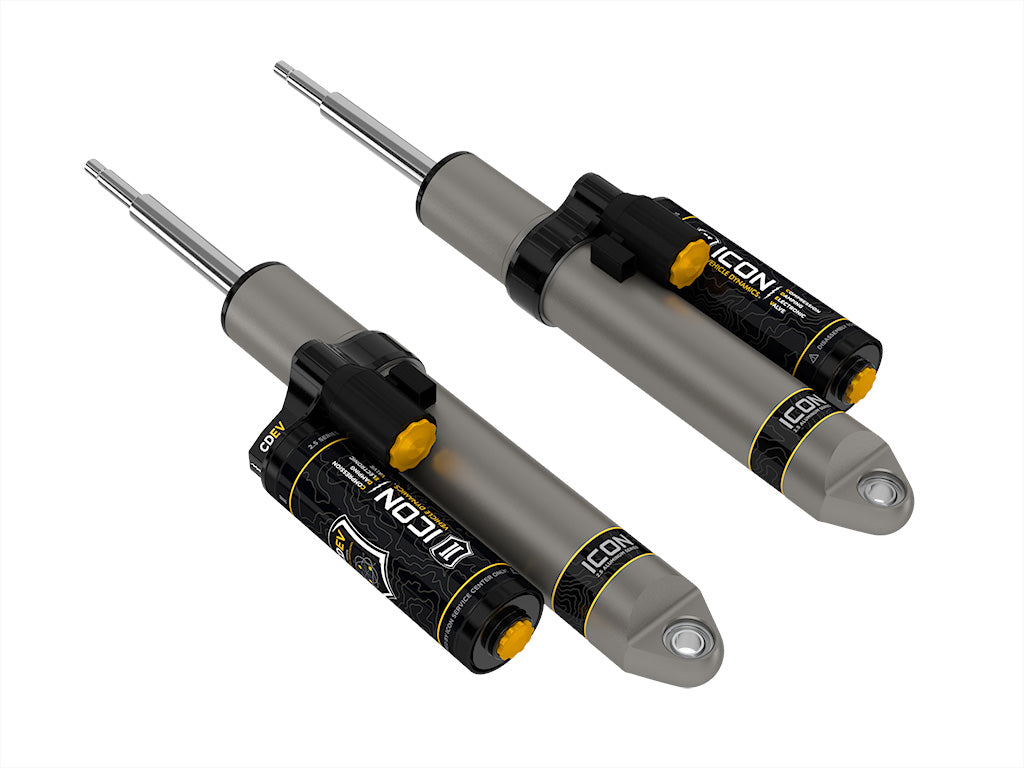

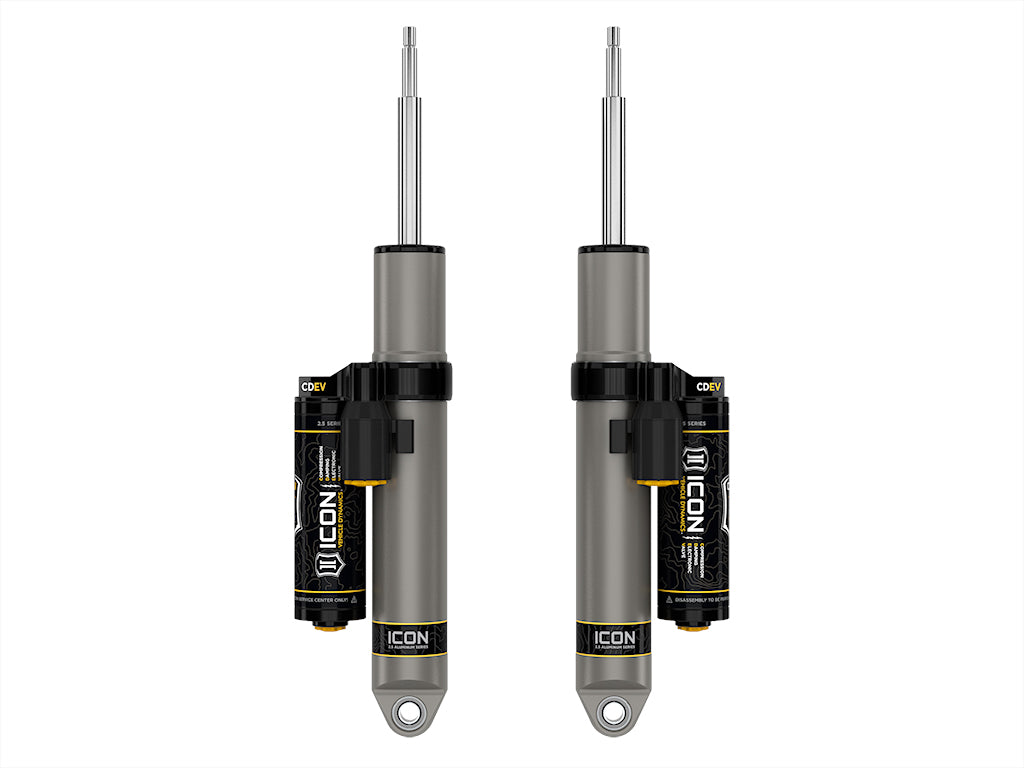

The Icon 2.5 Series Shock Absorber is designed with vehicle-specific valving and a one-piece digressive piston for optimal ride quality. The 7/8 inch diameter induction hardened chrome plated shock shaft and PTFE lined spherical bearings contribute to the overall performance and longevity of the product. This set of two shocks is a vital component for enhancing your vehicle's suspension system.
Features
- 6061 Aircraft Grade Aluminum CNC Machined Components
- 7/8 Inch Diameter Induction Hardened Chrome Plated Shock Shaft
- One-Piece Digressive Piston Design With Vehicle Specific Valving For Unsurpassed Performance And Ride Quality On And Off-Road
- Fully Rebuildable And Re-Tunable; ICON's CDE Valve Technology Allows For In Vehicle Adjustment Of Compression Damping Settings And Active Adjustment Via The ICON Intelligent Control
- Premium Grade 5WT Shock Oil For Consistent Suspension Damping Along A Wide Temperature Range
- PTFE Lined Spherical Bearings And Application Specific Mounting Hardware
- Piggyback Reservoir Design Improves Heat Dissipation To Reduce Shock Fade During Prolonged Use
- One-Piece Hard Anodized Impact Extruded Aluminum Cylinders Offer Excellent Corrosion Resistance And Consistent Finish
- ICON’s Internal “Bump Zone” Increases Damping By 20 Percent To Provide More Control As The Shock Approaches Full Compression
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 217708EP
- Type: Hydraulic
- With Coil Spring: No
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Gray
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Application Specific Valving
- Ride Height Adjustable: Yes
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2014-2018 Ram 2500
