Advanced hydraulic shocks with electronic adjustable valving for superior performance.

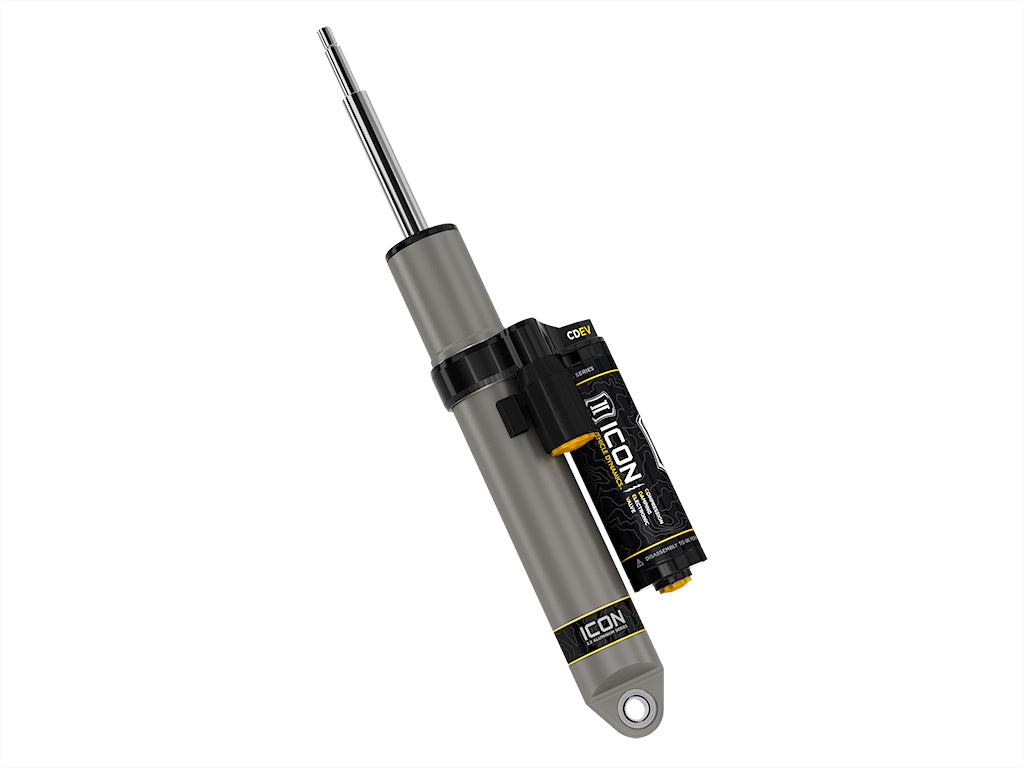

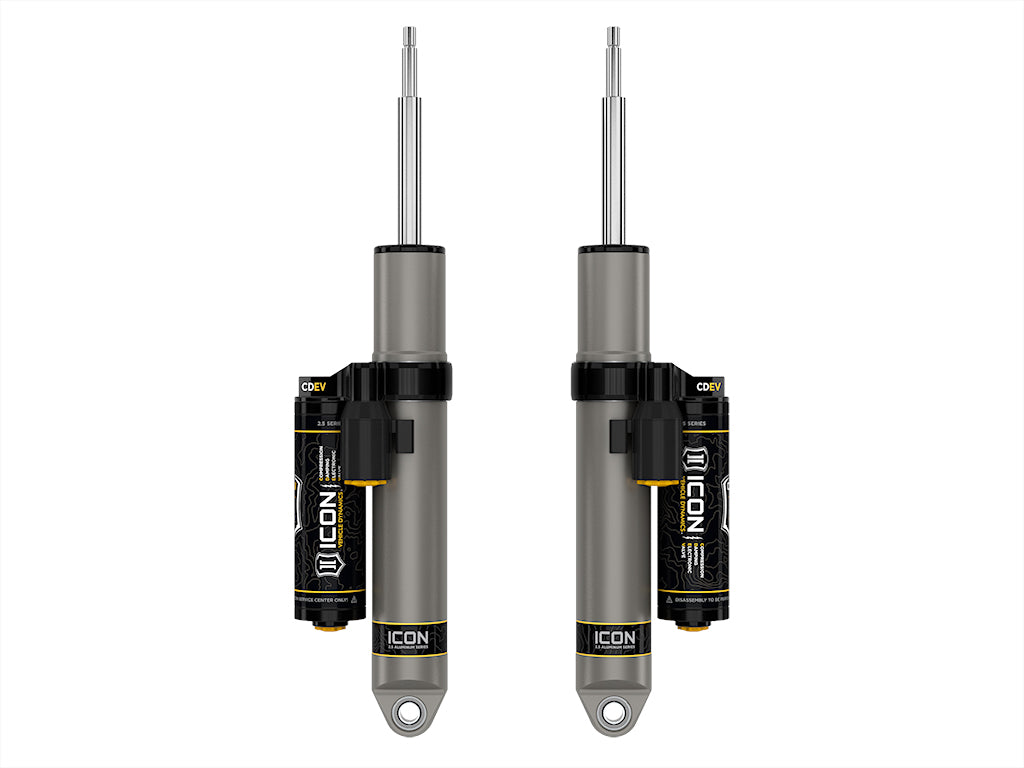

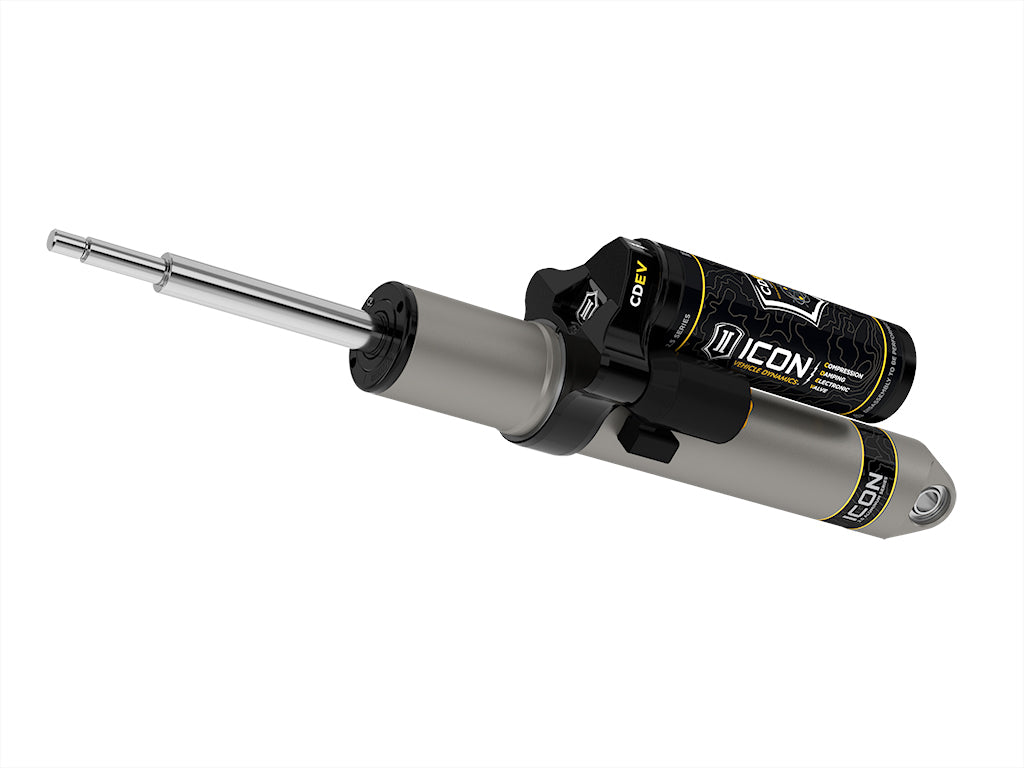

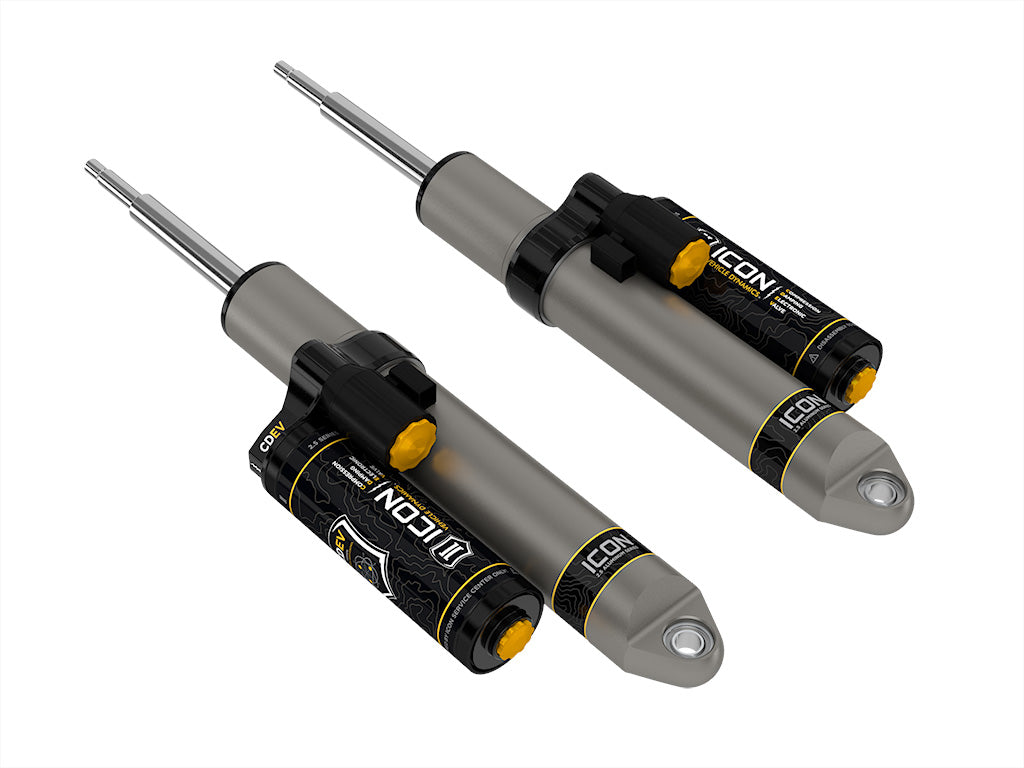

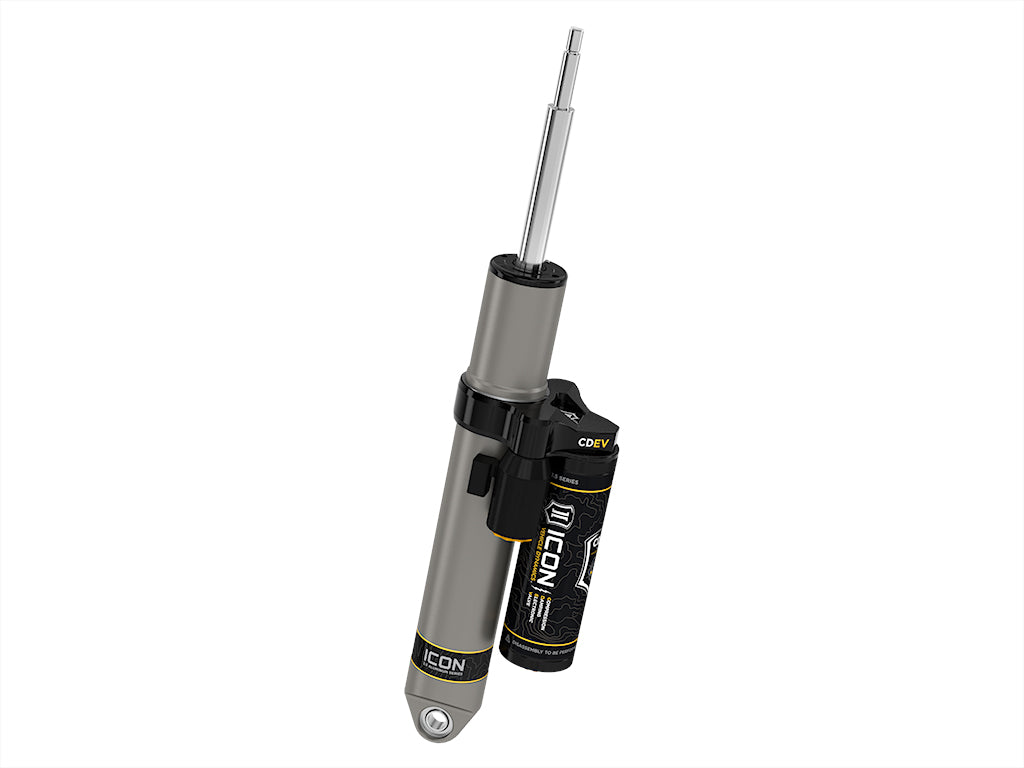

The Icon Vehicle Dynamics 2.5 Series Shock Absorber is engineered for exceptional performance both on and off-road. Featuring a hydraulic design with electronic adjustable valving, these shocks provide a customizable ride experience tailored to specific vehicle applications. The use of 6061 aircraft grade aluminum in the construction ensures durability and resistance to corrosion, while the unique internal Bump Zone increases damping force by 20 percent, enhancing control during high-velocity compression.
These shocks are fully rebuildable and re-tunable, allowing for adjustments to be made easily from inside the vehicle. The premium grade shock oil ensures consistent performance across a wide temperature range, while the piggyback reservoir design improves heat dissipation, reducing shock fade during extended use. With application-specific valving and a one-piece digressive piston design, the Icon 2.5 Series shocks deliver superior ride quality and performance.
Designed specifically for vehicle compatibility, these shocks come in a set of two and feature a robust construction with a 7/8 inch diameter induction hardened chrome plated shock shaft. The adjustable valving allows for fine-tuning of the ride characteristics, making these shocks a versatile choice for various driving conditions.
Features
- 6061 Aircraft Grade Aluminum CNC Machined Components
- 7/8 Inch Diameter Induction Hardened Chrome Plated Shock Shaft
- One-Piece Digressive Piston Design With Vehicle Specific Valving For Unsurpassed Performance And Ride Quality On And Off-Road
- Fully Rebuildable And Re-Tunable; ICON's CDE Valve Technology Allows For In Vehicle Adjustment Of Compression Damping Settings And Active Adjustment Via The ICON Intelligent Control
- Premium Grade 5WT Shock Oil For Consistent Suspension Damping Along A Wide Temperature Range
- PTFE Lined Spherical Bearings And Application Specific Mounting Hardware
- Piggyback Reservoir Design Improves Heat Dissipation To Reduce Shock Fade During Prolonged Use
- One-Piece Hard Anodized Impact Extruded Aluminum Cylinders Offer Excellent Corrosion Resistance And Consistent Finish
- ICON’s Internal “Bump Zone” Increases Damping By 20 Percent To Provide More Control As The Shock Approaches Full Compression
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 217704EP
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 25.16 Inch
- Compressed Length (IN): 16.13 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Gray
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Application Specific Valving
- Ride Height Adjustable: Yes
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2014-2025 Ram 2500
