Enhance your Toyota Hilux with advanced shock technology for superior performance.

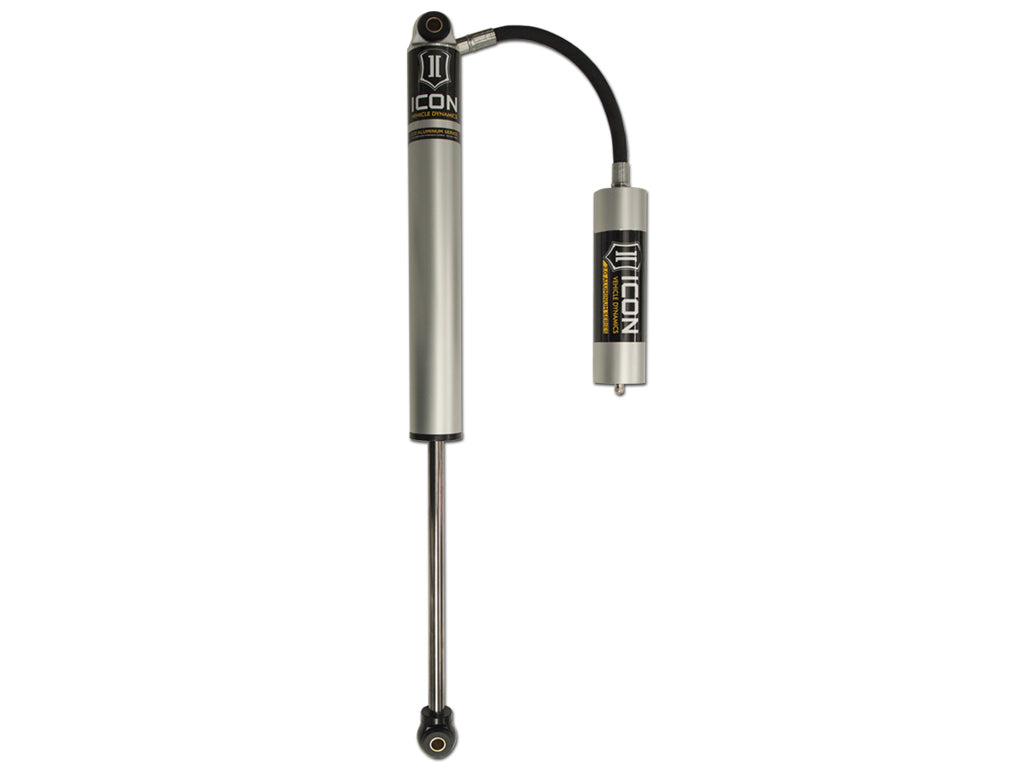

The Icon Vehicle Dynamics 2.0 Aluminum Shock Absorber is engineered specifically for the 2012-2015 Toyota Hilux, providing a significant upgrade in suspension performance. This nitrogen gas charged monotube shock features a remote reservoir, ensuring consistent damping across a wide temperature range. Constructed with premium materials, including a 6063 anodized aluminum body and a 5/8 inch chrome plated hardened steel shaft, this shock absorber is designed for durability and resistance to corrosion.
With a one-piece linear or digressive piston design and vehicle specific valving, the V.S. 2.0 Aluminum Series shocks deliver exceptional ride quality both on and off-road. The inclusion of polyurethane bushings and zinc plated sleeves ensures a factory-type fitment, while the nitrile rubber top out bumper provides noise-free operation. This shock absorber is 100 percent rebuildable and revalveable, allowing for long-term use and adaptability to changing driving conditions.
The Icon 2.0 Aluminum Shock Absorber is a single unit that does not include shock boots or hardware, making it a straightforward addition to your vehicle's suspension system. Its gray finish not only enhances the aesthetic appeal but also contributes to its heat dissipation capabilities. Upgrade your Toyota Hilux with this high-performance shock absorber to experience improved handling and comfort.
Features
- Premium Grade 5WT Shock Oil For Consistent Suspension Damping Along A Wide Temperature Range
- Nitrogen Charged Monotube Design With Internal Reservoir
- 5/8 Inch Chrome Plated Hardened Steel Shaft Resists Corrosion And Pits
- 6061 Aluminum Rod End, Top Cap, And Internals Ensure Strength And Durability
- 6063 Anodized Aluminum Body And Reservoir Tubing For Superb Heat Dissipation, Excellent Corrosion Resistance, And High-Tech Appearance
- Nitrile Rubber Top Out Bumper For Noise Free Operation
- One Piece Linear Or Digressive Piston Design With Vehicle Specific Valving For Unsurpassed Performance And Ride Quality On And Off-Road
- 100 Percent Rebuildable And 100 Percent Revalveable
- Polyurethane Bushings, Zinc Plated Sleeves, And Forged Steel Mounting Stems For OE Factory Type Fitment
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 56513R
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 23 Inch
- Compressed Length (IN): 13.55 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Gray
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Velocity Sensitive Valving
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
