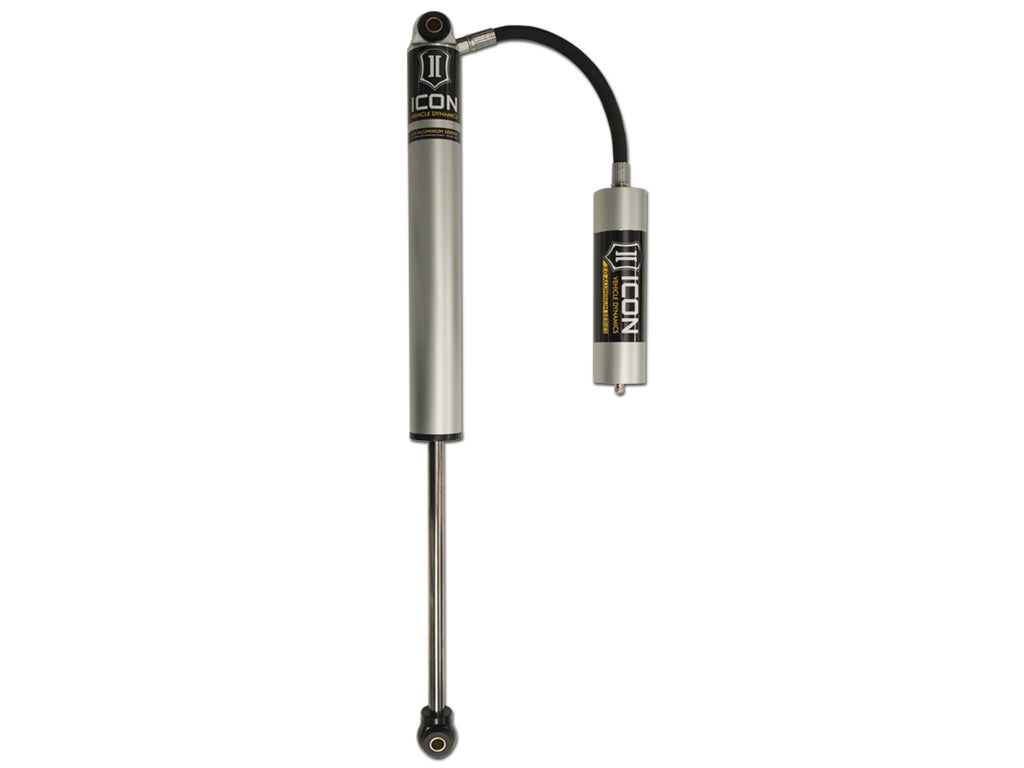

Icon Vehicle Dynamics 2.0 Aluminum Shock Absorber (MPN: 36508R)

Enhance your vehicle's performance with advanced shock technology.

The Icon Vehicle Dynamics 2.0 Aluminum Shock Absorber is engineered for both street and off-road applications, providing a significant upgrade in performance. This nitrogen gas charged monotube design features a remote reservoir, ensuring consistent damping across a wide temperature range. Constructed with premium materials, including a 6063 anodized aluminum body and a 5/8 inch chrome plated hardened steel shaft, this shock absorber is built for durability and resistance to corrosion.

Designed with vehicle-specific valving, the shock absorber utilizes a one-piece linear or digressive piston for optimal ride quality. The nitrile rubber top out bumper contributes to noise-free operation, while the polyurethane bushings and zinc plated sleeves ensure a factory-type fitment. With a focus on performance, the Icon 2.0 Aluminum Shock Absorber is 100 percent rebuildable and revalveable, allowing for customization and longevity.

This shock absorber is a single unit, making it suitable for specific vehicle applications. Its gray finish not only enhances aesthetics but also provides excellent heat dissipation. The Icon Vehicle Dynamics 2.0 Aluminum Shock Absorber is a reliable choice for those seeking improved handling and comfort on various terrains.

Features

• Premium Grade 5WT Shock Oil For Consistent Suspension Damping Along A Wide Temperature Range
• Nitrogen Charged Monotube Design With Internal Reservoir
• 5/8 Inch Chrome Plated Hardened Steel Shaft Resists Corrosion And Pits
• 6061 Aluminum Rod End, Top Cap, And Internals Ensure Strength And Durability
• 6063 Anodized Aluminum Body And Reservoir Tubing For Superb Heat Dissipation, Excellent Corrosion Resistance, And High-Tech Appearance
• Nitrile Rubber Top Out Bumper For Noise Free Operation
• One Piece Linear Or Digressive Piston Design With Vehicle Specific Valving For Unsurpassed Performance And Ride Quality On And Off-Road
• 100 Percent Rebuildable And 100 Percent Revalveable
• Polyurethane Bushings, Zinc Plated Sleeves, And Forged Steel Mounting Stems For OE Factory Type Fitment

Specifications

• Manufacturer: Icon Vehicle Dynamics
• Manufacturer Part Number: 36508R
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 32.67 Inch
• Compressed Length (IN): 19.35 Inch
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Gray
• Rod Diameter (IN): 5/8 Inch
• Valving Type: Velocity Sensitive Valving
• Rod Material: Steel
• Body Material: Aluminum
• With Reservoir: Yes
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2000-2005 Ford Excursion
• 1999-2016 Ford F-250 Super Duty
• 1999-2016 Ford F-350 Super Duty

Technical Documents

• ICON_Warranty_2023_1730.pdf
