Engineered for superior off-road performance and on-road comfort.

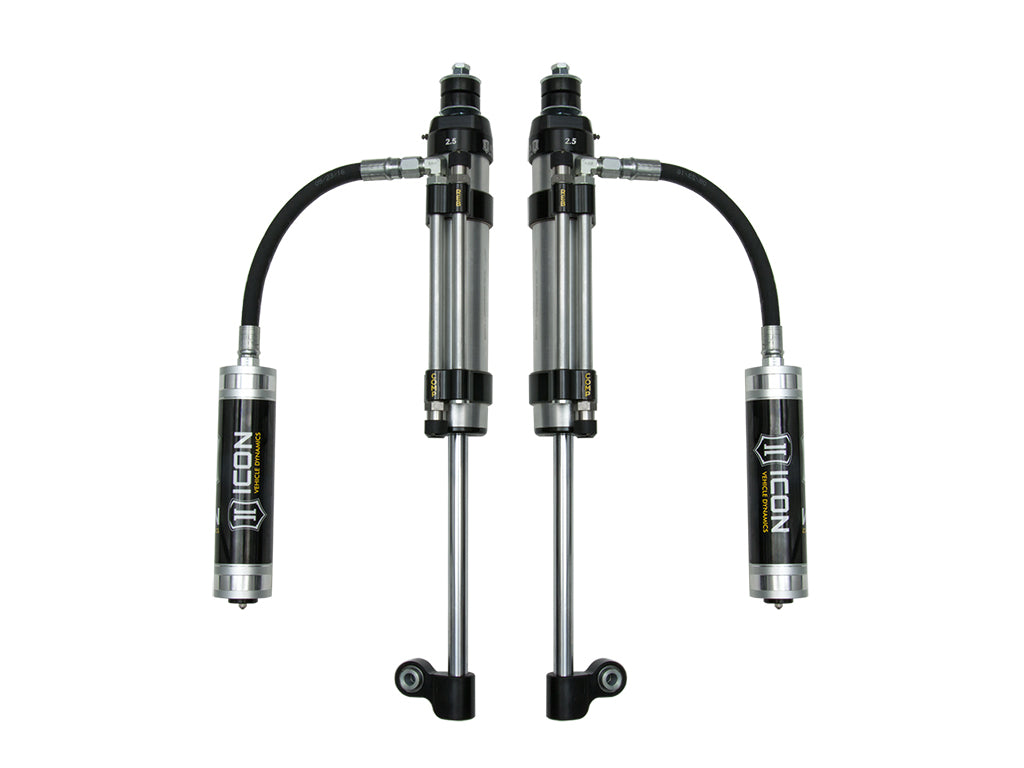

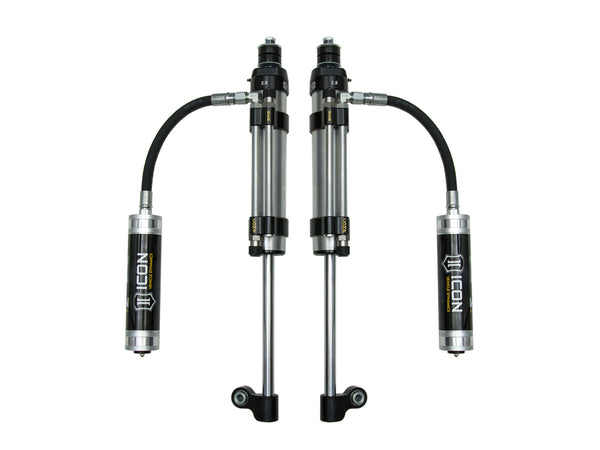

The Icon Omega Series Bypass Shocks are engineered to enhance vehicle performance both off-road and on the street. These nitrogen gas charged shocks are designed with vehicle-specific tuning to provide increased damping and oil volume, ensuring consistent performance under varying conditions. The unique two-tube bypass design allows for 24 settings of compression and rebound damping adjustment, enabling users to customize their ride characteristics without the need for tools.
Constructed with a 6061 billet aluminum manifold, the shocks feature an internal bump zone that significantly increases damping force, preventing harsh bottom outs and maintaining control during high-velocity compression. The 10-inch aluminum reservoirs provide ample oil and nitrogen volume, which helps maintain consistent damping as shock temperatures rise. Additionally, the shocks are fully rebuildable and revalveable, ensuring longevity and adaptability to changing performance needs.
Installation is straightforward, utilizing factory mounting locations with a unique side-mounted lower eyelet that allows for increased travel. Tested under rigorous off-road conditions, the Icon Omega Series Bypass Shocks validate their performance, strength, and durability, making them a reliable choice for enthusiasts seeking enhanced suspension performance.
Features
- Vehicle-Specific Tuned Shocks Provide Increased Damping And Oil Volume
- 10 Inch Aluminum Reservoirs Provide Generous Oil And Nitrogen Volume For Consistent Damping As Shock Temperature Increases
- Shocks Are Fully Rebuildable And Revalveable

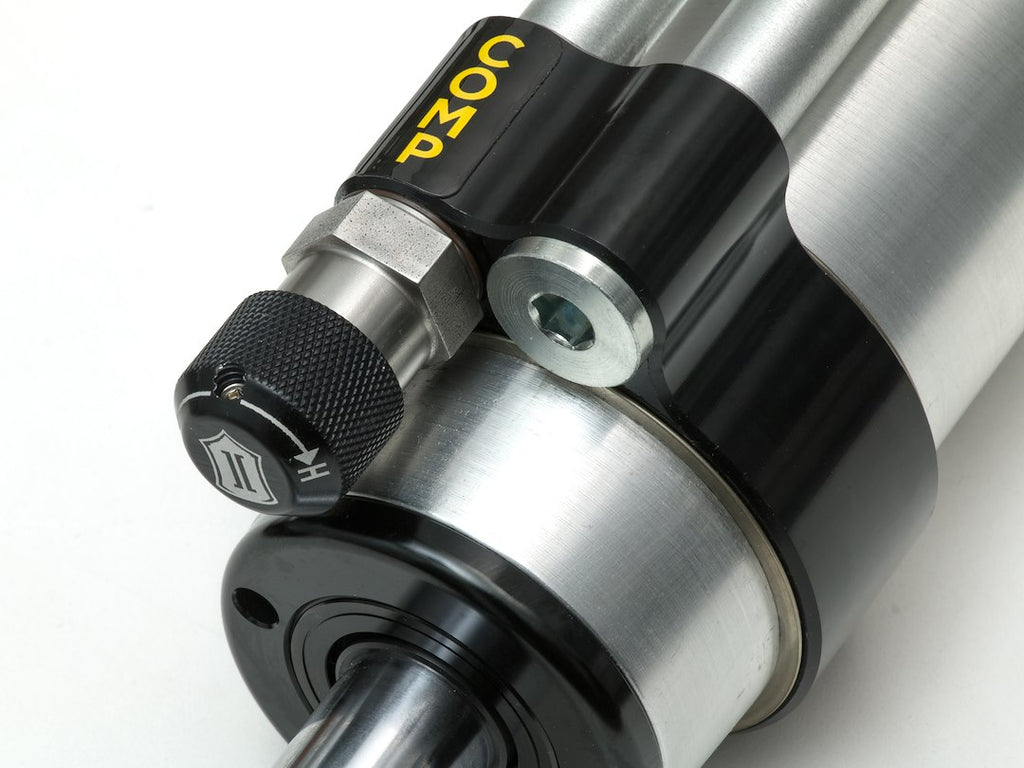

- Omega Series Two-Tube Bypass Allows For 24 Settings Of Compression And Rebound Damping Adjustment

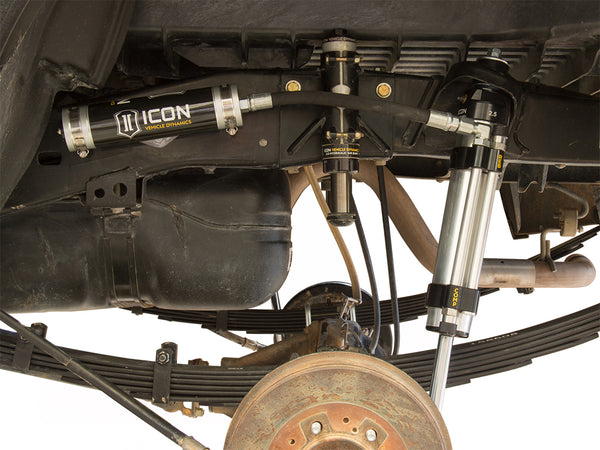

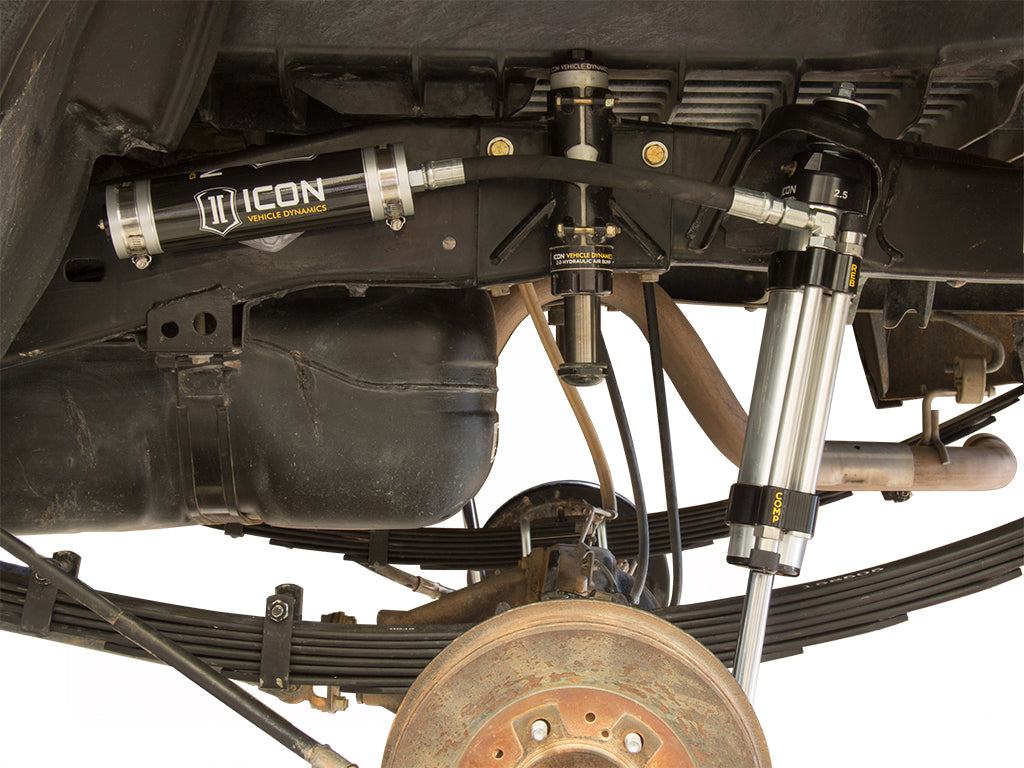

- Unique Side-Mounted Lower Eyelet Allows For Increased Travel While Utilizing Factory Mounting Location
- Tested Under Rigorous Off-Road Conditions To Validate Tune, Performance, Strength, And Durability
- Simple And Straightforward Installation
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 59926P
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Gray
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 2005-2018 Toyota Tacoma
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
