Enhance off-road performance with adjustable lift and superior damping.

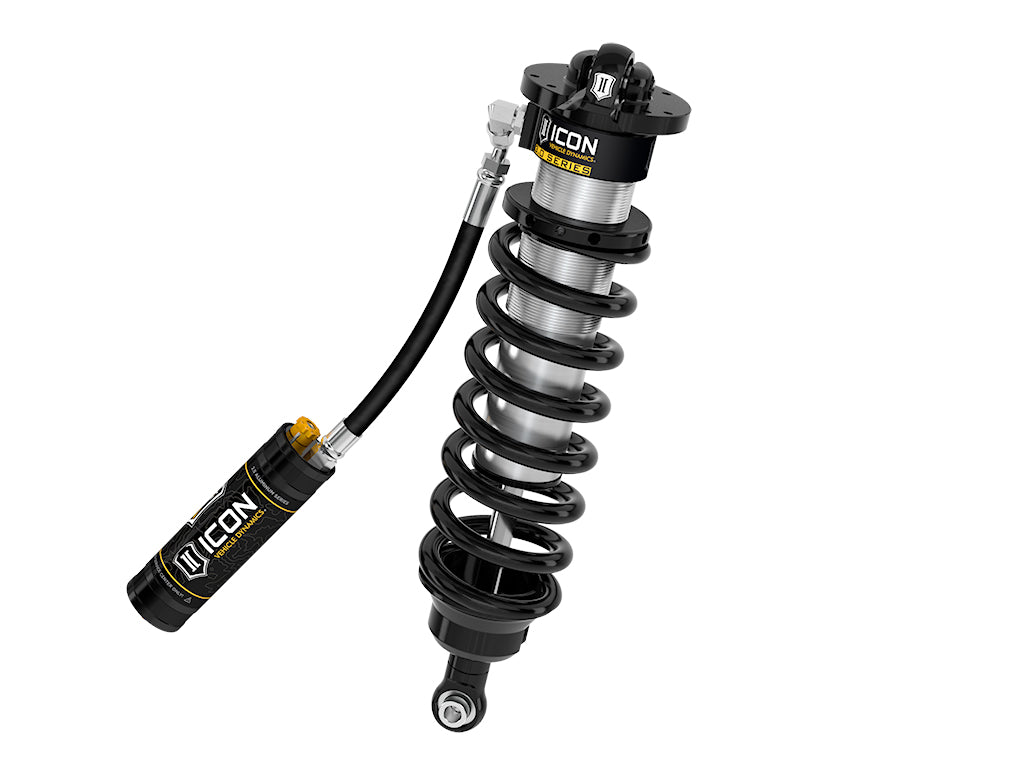

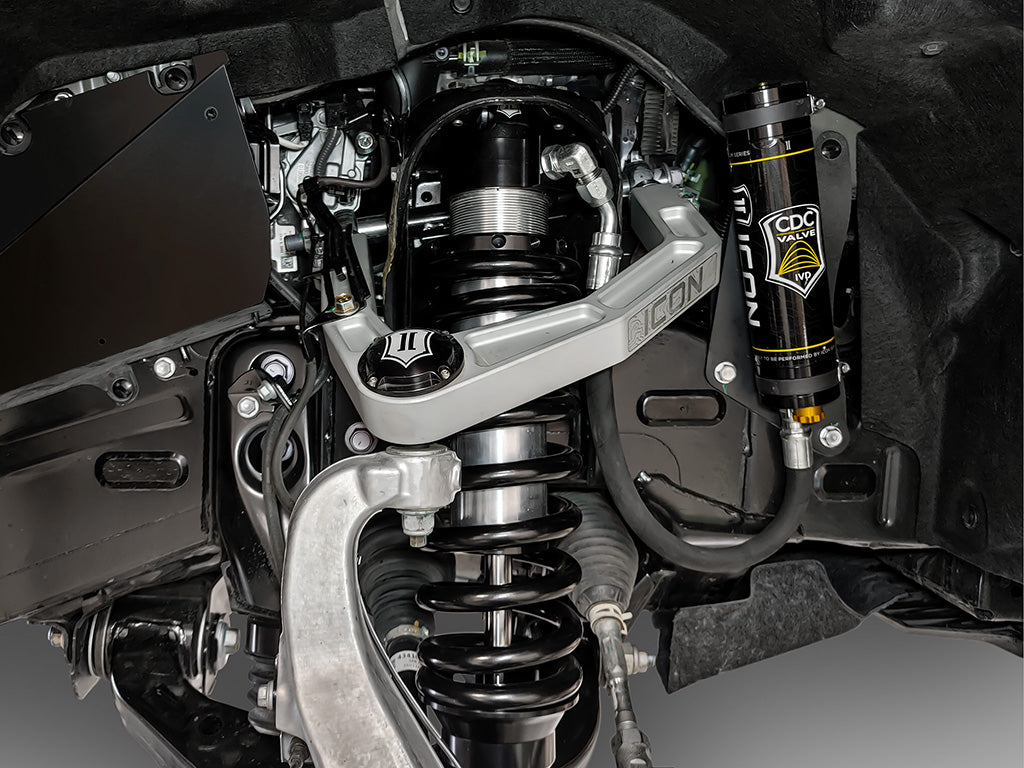

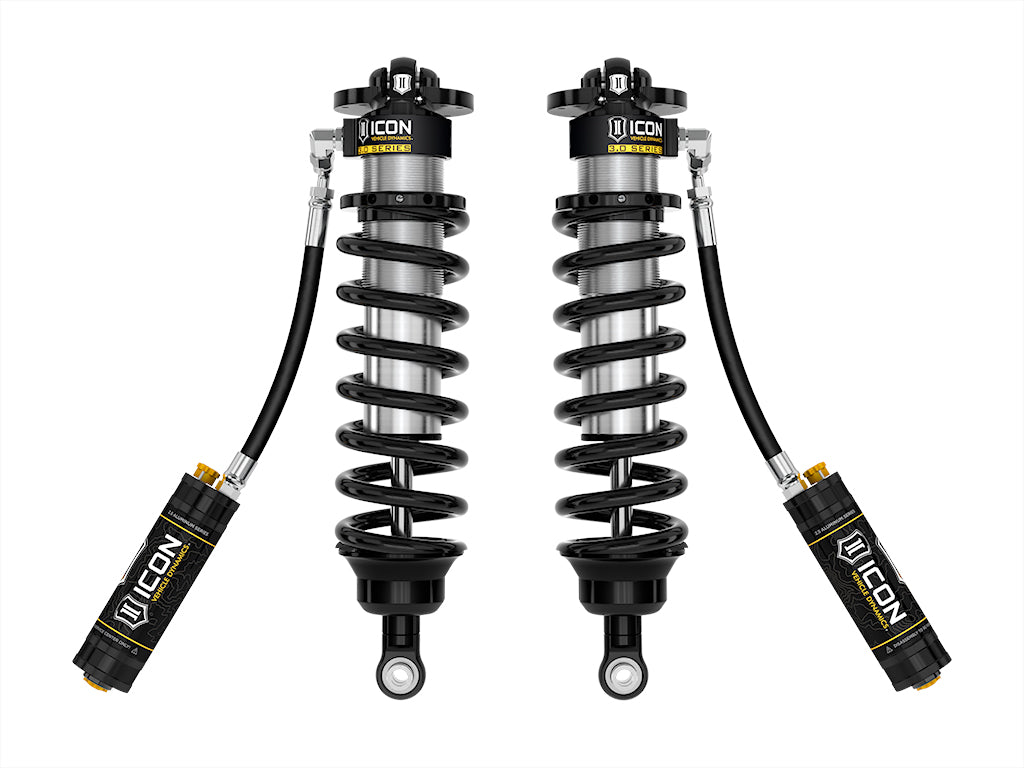

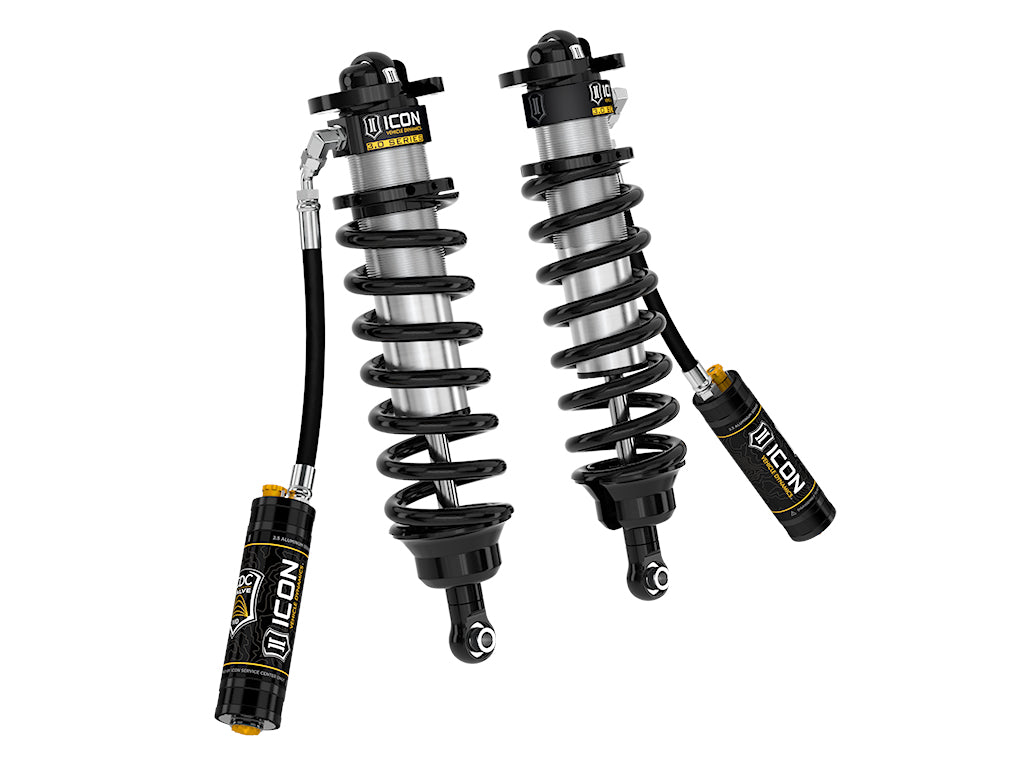

The Icon 3.0 Series Coil Over Shock Absorber is engineered for the 2022 to 2023 Toyota Tundra, providing significant enhancements to off-road capabilities. With a 40 percent increase in front wheel travel and a multi-stage hydraulic bump zone, these shocks deliver improved stability and control during extreme driving conditions. The adjustable lift height ranges from 1.25 to 3.25 inches, allowing for the installation of larger wheel and tire combinations while maintaining optimal vehicle dynamics.
Constructed with CNC machined 6061 aluminum components and a black anodized finish, the shocks are designed for durability and performance. The exclusive Compression Damping Control Valves enable precise tuning of suspension performance, accommodating various driving scenarios from street use to rugged off-road trails. The 3-inch body diameter increases oil volume and piston area, further enhancing damping capabilities.
These coilovers are a direct OEM replacement, ensuring a straightforward installation process. With features such as a PTFE lined spherical bearing for longevity and a fully rebuildable design, the Icon 3.0 Series Coil Over Shock Absorber is built to perform under demanding conditions, making it a reliable choice for serious off-road enthusiasts.
Features
- CNC Machined 6061 Aluminum Components With A Black Anodized Finish
- 40 Percent Increase In Front Wheel Travel Over Stock
- Adjustable Lift Heights From 1.25 To 3.25 Inch Over Stock
- Vehicle Specific Design And Tuning For Superior Shock Damping And Control
- 3 Inch Body Diameter For Increased Oil Volume And Larger Piston Area
- Icon's Multi-Stage, Tunable Hydraulic "Bump Zone" Exponentially Increases Bottom-Out Resistance In The Last 40 Percent Of Compression Travel
- PTFE Lined Spherical Bearing For Extended Longevity And Minimal Deflection
- 7/8 Inch Diameter Induction Hardened, Chrome Plated Shock Shaft
- Fully Rebuildable And Re-Tunable
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 58775C
- Adjustable: Yes
- Upper Mounting Type: Base Cup
- Lower Mounting type: Eyelet
- Front/Rear Drop (IN): 1-1/4 To 3-1/4 Inch
- Extended Height (IN): OEM
- Compressed Height (IN): OEM
- Quantity: Set Of 2
- Valving Type: Dampening Adjustable
- Shock Type: Gas Charged
- Shock Body Color: Black/ Gray
- Shock Body Material: Aluminum
- Spring Style: Pigtail
- Spring Color: Black
- Includes Mounting Hardware: Yes
Compatibility / Fit
- 2022-2025 Toyota Tundra
