Enhance off-road capability with adjustable damping and increased travel.

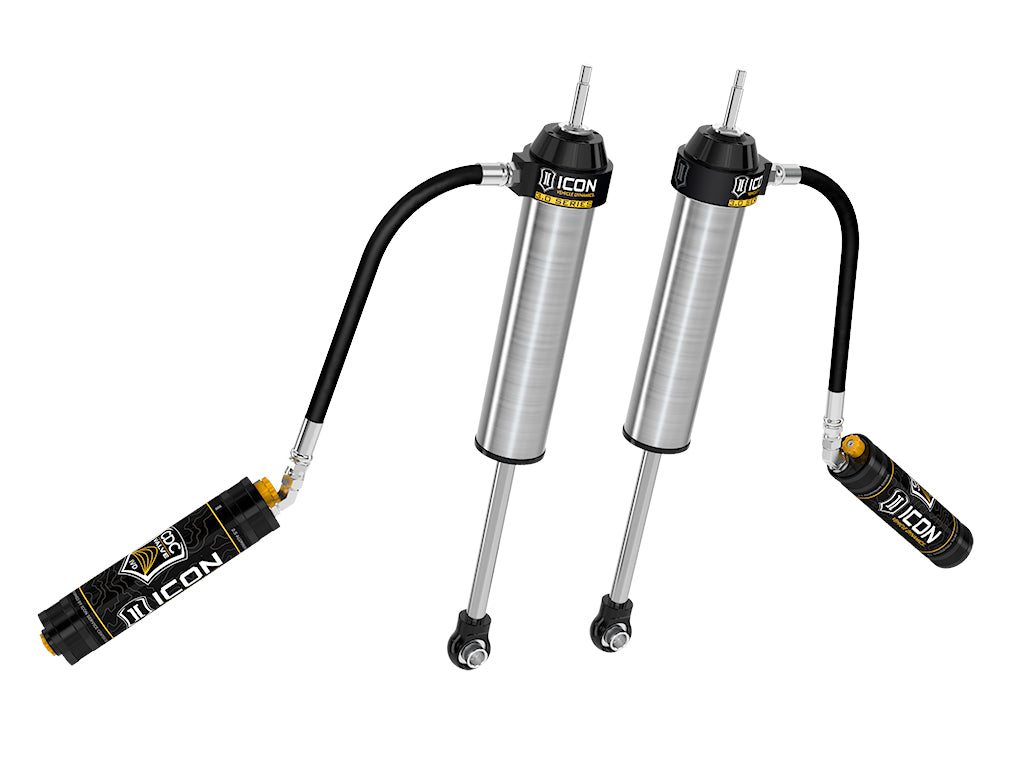

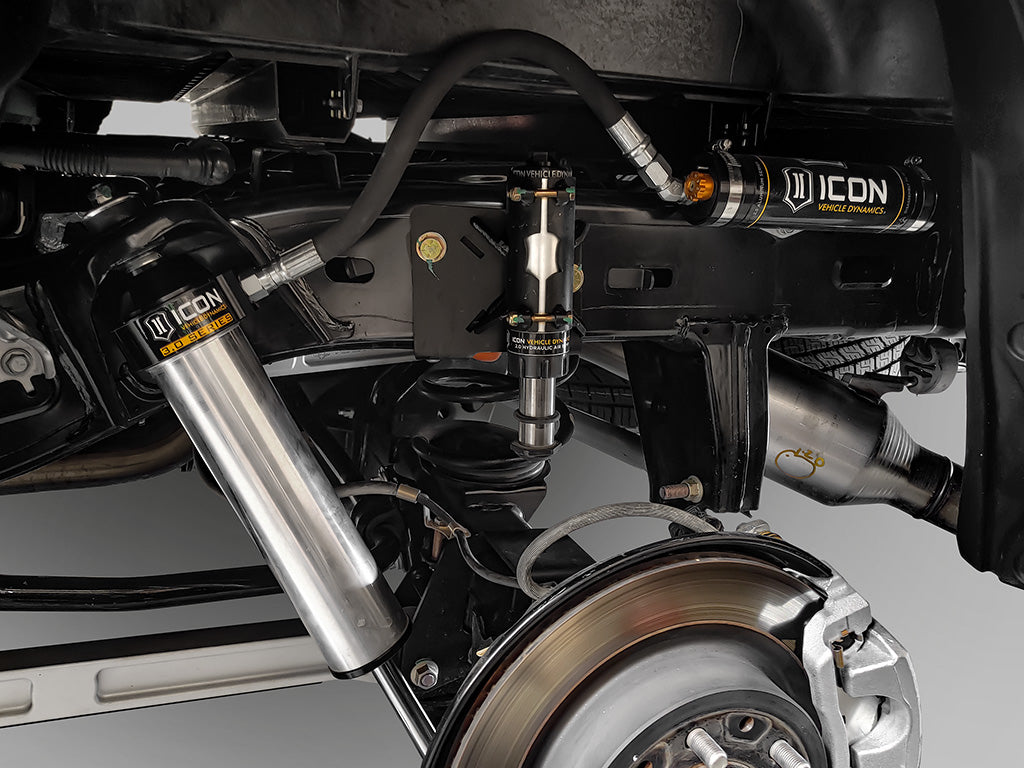

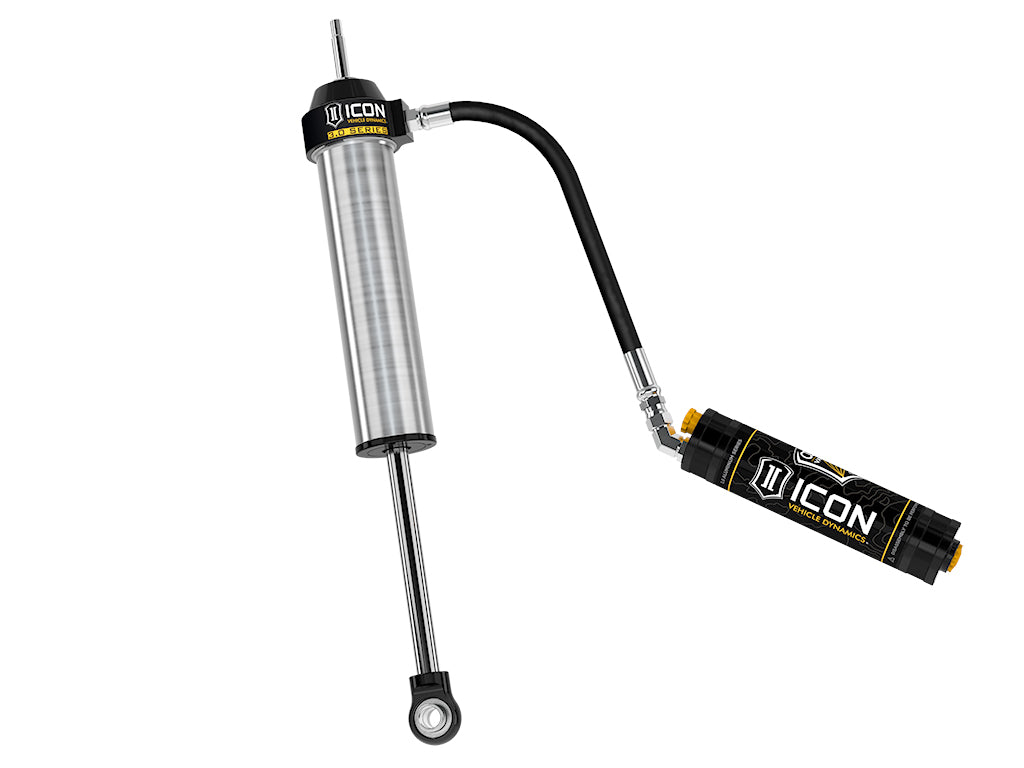

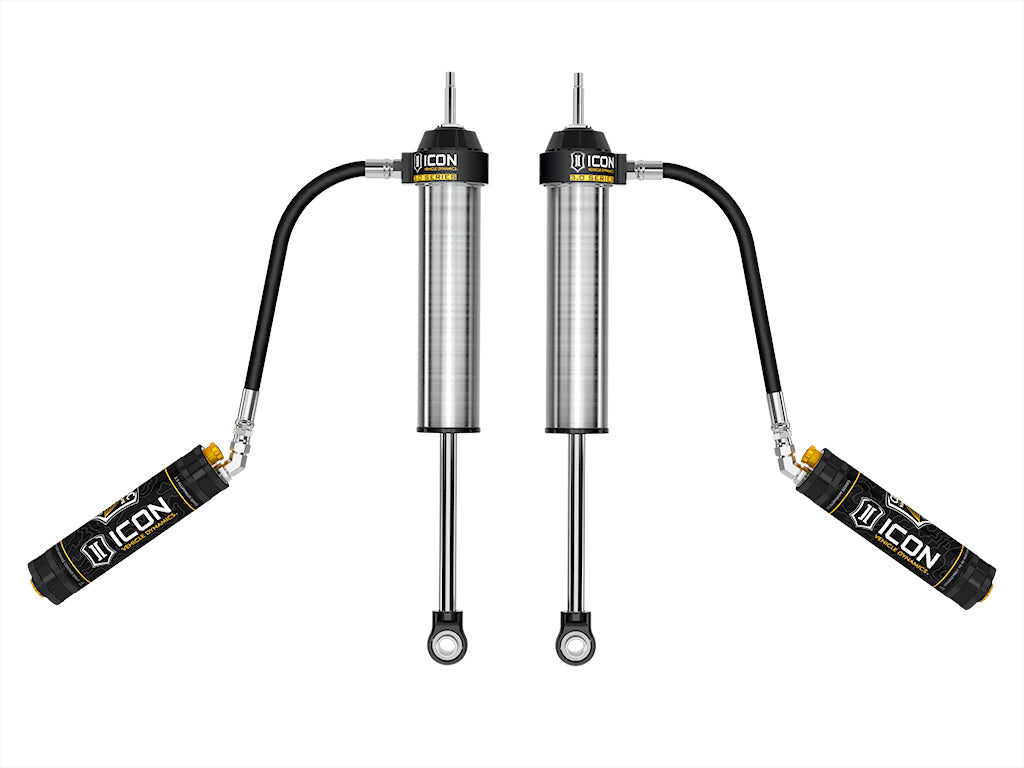

Icon's 3.0 Series Rear Shocks are engineered for the 2022 to 2023 Toyota Tundra, providing significant enhancements to off-road performance. These shocks increase rear suspension travel by up to 20 percent compared to stock, allowing for improved vehicle control and stability in extreme conditions. The design accommodates rear lift heights of up to 1 inch over stock, making it suitable for larger wheel and tire combinations.
The shocks feature a 3-inch body diameter, which increases oil volume and piston area, resulting in better heat dissipation and reduced shock fade during rigorous use. The Compression Damping Control Valves allow for precise tuning of suspension performance, adapting fluid flow under compression to suit various driving conditions, from street driving to off-road adventures.
Constructed with CNC machined 6061 aluminum components and a corrosion-resistant finish, these shocks are built for durability and longevity. The vehicle-specific design ensures optimal shock damping and control, while the fully rebuildable and re-tunable nature of the shocks allows for long-term performance maintenance. Installation is straightforward, designed as a direct OEM replacement for ease of use.
Features
- CNC Machined 6061 Aluminum Components With A Black Anodized Finish
- 20 Percent Increase In Rear Suspension Travel Compared To Stock
- Compatible With Up To 1 Inch Of Rear Lift On Most Models
- Vehicle Specific Design And Tuning For Superior Shock Damping And Control
- 3 Inch Body Diameter For Increased Oil Volume And Larger Piston Area
- Easy-To-Adjust CDC Valve (Compression Damping Control) Allows For End-User Compression Changes To Suit All Types Of Terrain And Vehicle Cargo Configurations
- PTFE Lined Spherical Bearing For Extended Longevity And Minimal Deflection
- Corrosion Resistant CAD Plated Steel Shock Bodies
- Fully Rebuildable And Re-Tunable
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 57845CP
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Gray
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Digressive Compression And Digressive Rebound Valving
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2022-2025 Toyota Tundra
