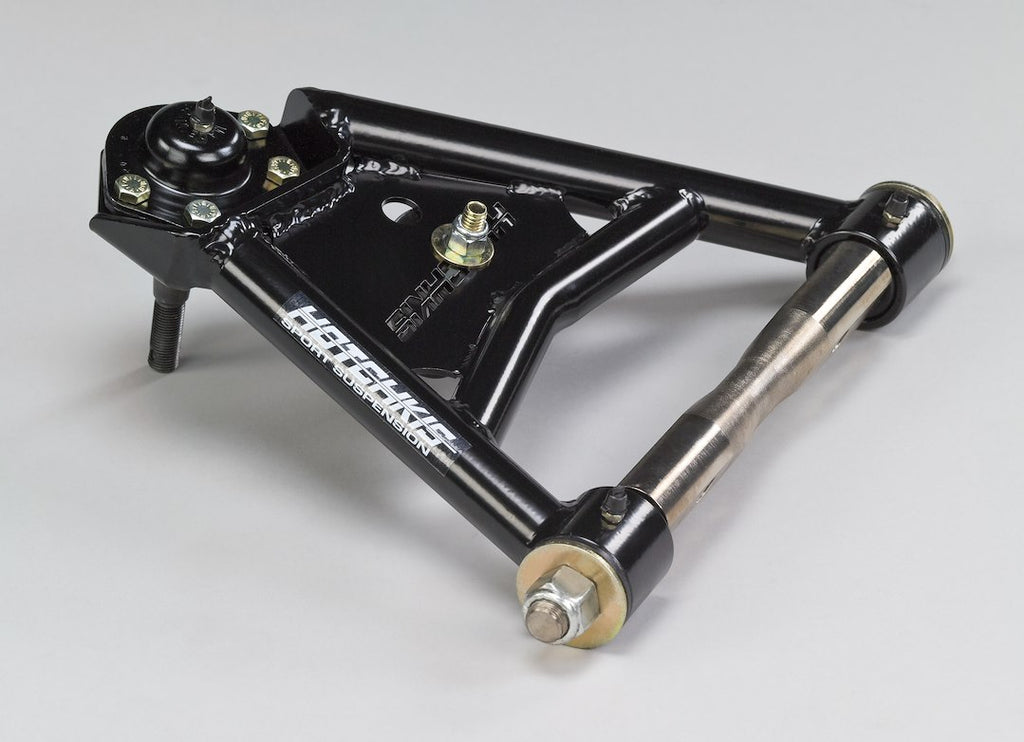

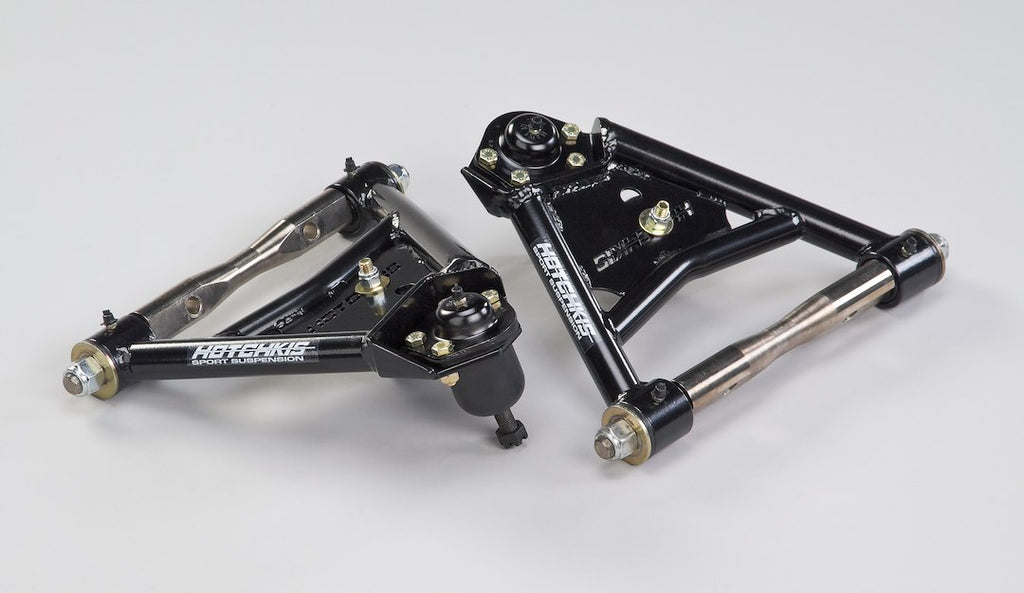

Hotchkis Performance Tubular Upper A-Arms (MPN: 11390U)

Enhance handling and stability for 1963 to 1972 C-10 Pickup.

The Hotchkis Performance Tubular Upper A-Arms are designed specifically for 1963 to 1972 C-10 Pickup trucks, providing significant improvements in handling and control. These arms feature a geometry-corrected design that enhances negative camber gain, resulting in superior handling performance. Constructed from lightweight yet strong 1-1/8 inch TIG welded tubing, they offer increased structural rigidity compared to stock components.

The inclusion of smooth operating greasable Delrin bushings ensures that the arms move freely through their travel, contributing to improved ride quality. Additionally, the increased caster enhances high-speed stability, making these arms a valuable upgrade for performance-oriented drivers. Finished in a durable gloss black powder coat, the arms are ready for installation without the need for vehicle modifications.

Each set includes high-quality ball joints and integrated droop stops, ensuring a complete and reliable installation. For those seeking even greater handling improvements, these upper A-arms can be combined with Hotchkis Sport Suspension Tubular Lower A-Arms.

Features

• Improved Negative Camber Gain, Dramatically Improves Handling Performance
• Increased Caster For High Speed Stability
• Smooth Operating Greasable Delrin Bushings
• Lightweight, Strong 1-1/8 Inch TIG Welded Tubing
• Increased Structural Rigidity Over Stock Due To TIG Welding And Laser Cut Support Plates
• 4130 Offset Cross Shaft For Improved Negative Camber Gain
• Includes High Quality Ball Joints

Specifications

• Manufacturer: Hotchkis Performance
• Manufacturer Part Number: 11390U
• Type: Adjustable Tubular
• With Bushing: Yes
• Finish: Gloss Powder Coated
• Color: Black
• Material: Steel
• Quantity: Set Of 2

Compatibility / Fit

• 1963-1972 Chevrolet C10 Pickup

Technical Documents

• 11390U.pdf
