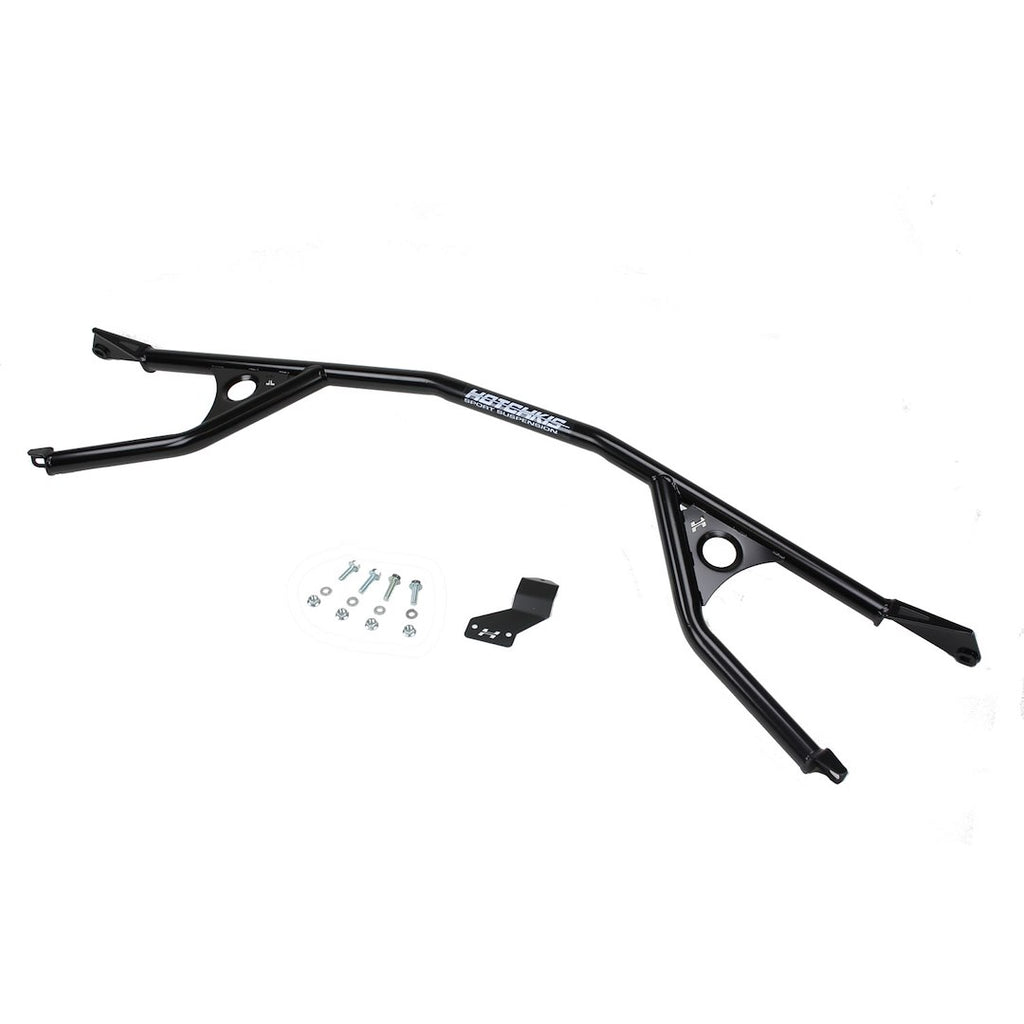

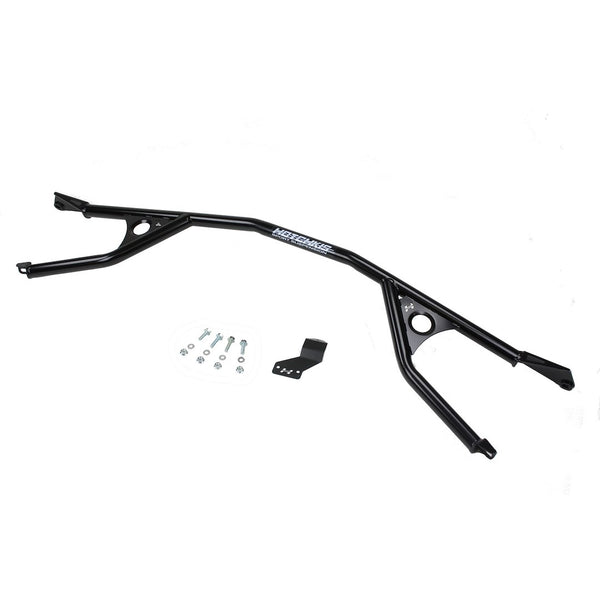

Hotchkis Performance Strut Tower Brace (MPN: 20109)

Enhance chassis rigidity and handling for 2010 Camaro models.

The Hotchkis Performance Strut Tower Brace is engineered to address the common issue of chassis flex in the 2010 Camaro. This product significantly improves stability and control during hard cornering and on uneven surfaces by connecting the strut towers at four mounting points. The four-point design offers superior support compared to traditional two-point systems, maximizing the benefits of other chassis enhancements such as sport springs and sway bars.

Constructed from robust 1-1/4 inch DOM steel tubing, this strut tower brace is 100 percent TIG welded and features laser cut brackets and corner gussets for added strength. The semi-gloss black powder-coated finish ensures durability while maintaining a sleek appearance. Designed to accommodate both stock and Magnuson supercharged engines, the brace is easy to install with the included hardware and detailed instructions.

This strut tower brace not only increases chassis rigidity but also enhances handling responsiveness and reduces sub-frame flex. It is an essential component for those seeking improved performance during spirited street driving or track days. Hotchkis Performance products are designed, track tested, and manufactured in the USA, ensuring high quality and reliability.

Features

• Fabricated From Strong, Lightweight 1-1/4 Inch DOM Steel Tubing With Laser Cut Brackets And Gussets
• Four-Point Mounting System For Maximum Strut Tower Strength
• Works With Naturally Aspirated And Magnuson Superchargers
• Durable, Semi-Gloss Black Powder Coated Finish
• Increases Chassis Rigidity. Improves Handling Responsiveness
• Reduces Sub-Frame Flex
• Easy Installation With Included Hardware Package

Specifications

• Manufacturer: Hotchkis Performance
• Manufacturer Part Number: 20109
• Finish: Powder Coated
• Color: Semi Gloss Black
• Material: Steel

Compatibility / Fit

• 2010-2015 Chevrolet Camaro

Technical Documents

• 20109.pdf
