Enhance handling and reduce roll steer with advanced leaf spring technology.

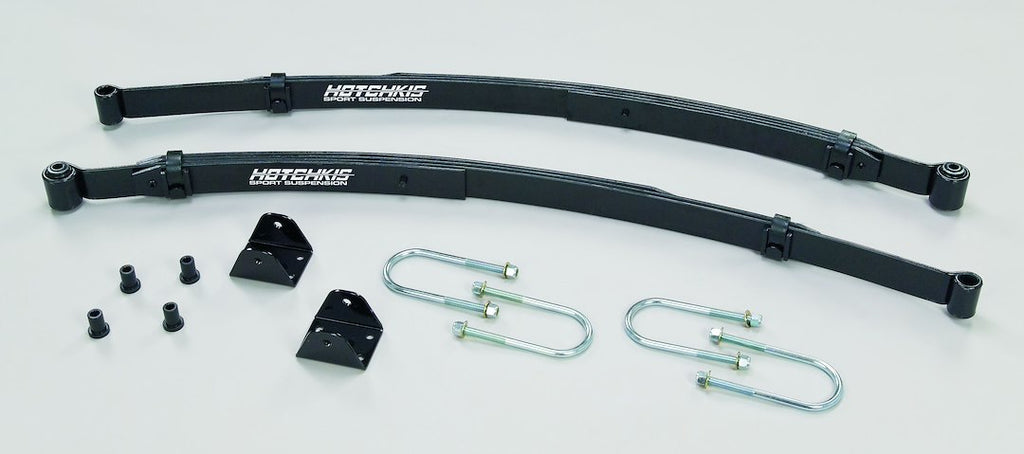

Hotchkis Performance offers a set of Geometry Correcting Sport Leaf Springs designed to significantly improve the cornering performance and traction of Mopar vehicles. This system features a unique bolt-on relocation bracket that effectively reduces roll steer, enhancing overall handling dynamics. The lightweight, 3 leaf design contributes to a lower center of gravity, which not only improves performance but also enhances the vehicle's appearance by lowering it by 1 inch.
The leaf springs are engineered with a half-length top rebound spring and a stiffened front section to manage torque effectively, minimizing axle wrap and wheel hop. The inclusion of high durometer polyurethane and rubber bushings ensures durability and performance, while galvanized center liners reduce noise and friction. This set is finished in a gloss black paint for added aesthetic appeal and protection against the elements.
Features
- CNC Bent, Geometry Correcting Bolt-On Relocation Brackets Reduce Roll Steer
- Berlin Eye's At Both Ends. The Berlin Is The Strongest Of All Bushing Eyes And Offers Reduced Eye Stress By Directing Acceleration And Braking Forces Into The Eye
- Lightweight, 3 Leaf Design Reduces Sprung Un-Sprung Weight When Compared To Competitions Springs
- Features A Half Length Top Rebound Spring, And A Stiffened Front Section To Help Torque Management And Help Reduce Axle Wrap Up And Wheel Hop
- Includes A Engineered Combination Of High Durometer Polyurethane And Rubber Bushings
- Galvanized Center Liners For Reduced Noise And Friction As Well As Polyethylene Isolators On The Clips And UHMW Tip Inserts
- Painted Gloss Black Finish
Specifications
- Manufacturer: Hotchkis Performance
- Manufacturer Part Number: 24367
- Spring Width (IN): 2-1/2 Inch
- Number Of Leafs: 3 Main
- Spring Rate: 160 Pounds Per Inch
- Quantity: Set Of 2
- Spring Type: Diamond Cut Multi-Leaf
- Includes Bushings: Yes
- Bushing Material: Polyurethane/ Rubber
- Estimated Install Time (Hours): 2
Compatibility / Fit
- 1970-1974 Dodge Challenger
- 1970-1974 Plymouth Barracuda
- 1970-1974 Plymouth Cuda
