Enhance handling and reduce roll steer with advanced leaf spring technology.

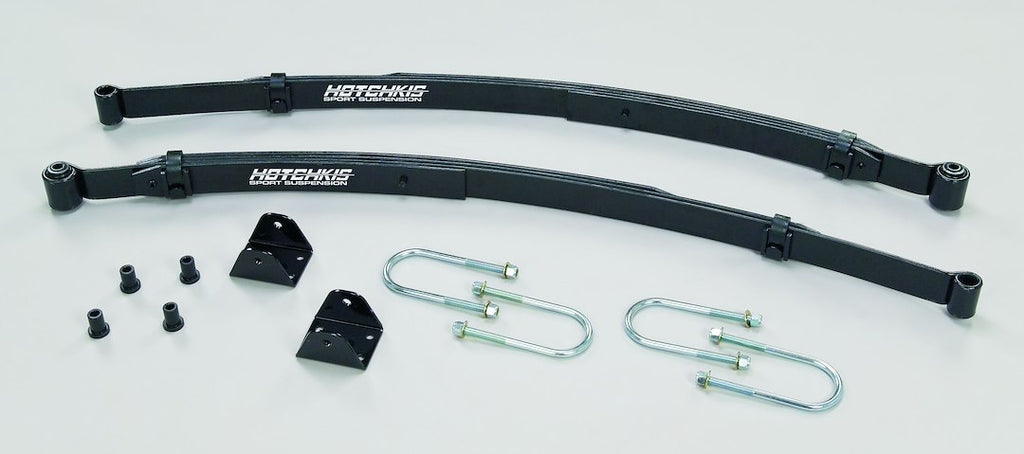

Hotchkis Performance offers a specialized leaf spring set designed to significantly improve the cornering performance and traction of Mopar vehicles. This set features a unique Geometry Correcting design that includes CNC Bent Relocation Brackets, which effectively reduce roll steer and enhance overall handling dynamics. The lightweight, 3 leaf construction minimizes both sprung and un-sprung weight, contributing to better vehicle balance and responsiveness.
The 1 inch lowered design not only lowers the vehicle's center of gravity but also enhances its aesthetic appeal. Each spring is engineered with a half length top rebound spring and a stiffened front section to manage torque effectively, reducing axle wrap and wheel hop. The inclusion of high durometer polyurethane and rubber bushings ensures durability and performance, while galvanized center liners minimize noise and friction.
This set of two leaf springs is finished in a gloss black paint, providing both protection and a sleek look. With an estimated installation time of just two hours, upgrading your suspension system with Hotchkis Performance leaf springs is a straightforward process that yields noticeable improvements in handling and performance.
Features
- CNC Bent, Geometry Correcting Bolt-On Relocation Brackets Reduce Roll Steer
- Berlin Eye's At Both Ends. The Berlin Is The Strongest Of All Bushing Eyes And Offers Reduced Eye Stress By Directing Acceleration And Braking Forces Into The Eye
- Lightweight, 3 Leaf Design Reduces Sprung Un-Sprung Weight When Compared To Competitions Springs
- Features A Half Length Top Rebound Spring, And A Stiffened Front Section To Help Torque Management And Help Reduce Axle Wrap Up And Wheel Hop
- Includes A Engineered Combination Of High Durometer Polyurethane And Rubber Bushings
- Galvanized Center Liners For Reduced Noise And Friction As Well As Polyethylene Isolators On The Clips And UHMW Tip Inserts
- Painted Gloss Black Finish
Specifications
- Manufacturer: Hotchkis Performance
- Manufacturer Part Number: 24366
- Spring Width (IN): 2-1/2 Inch
- Number Of Leafs: 3 Main
- Spring Rate: 160 Pounds Per Inch
- Quantity: Set Of 2
- Spring Type: Diamond Cut Multi-Leaf
- Includes Bushings: Yes
- Bushing Material: Polyurethane/ Rubber
- Estimated Install Time (Hours): 2
Compatibility / Fit
- 1966-1969 Dodge Charger
- 1966-1969 Dodge Coronet
- 1966-1969 Plymouth Belvedere
- 1966-1967 Plymouth Belvedere II
- 1967-1969 Plymouth GTX
- 1968-1969 Plymouth Road Runner
- 1966-1969 Plymouth Satellite
