Innovative design prevents fuel starvation in extreme conditions.

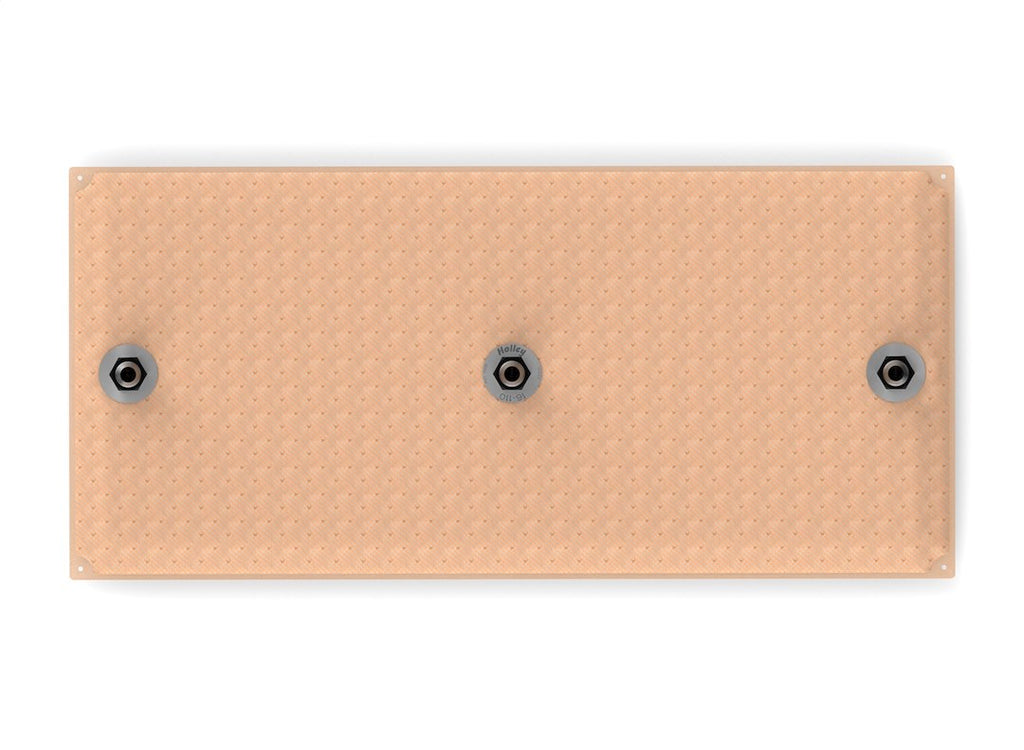

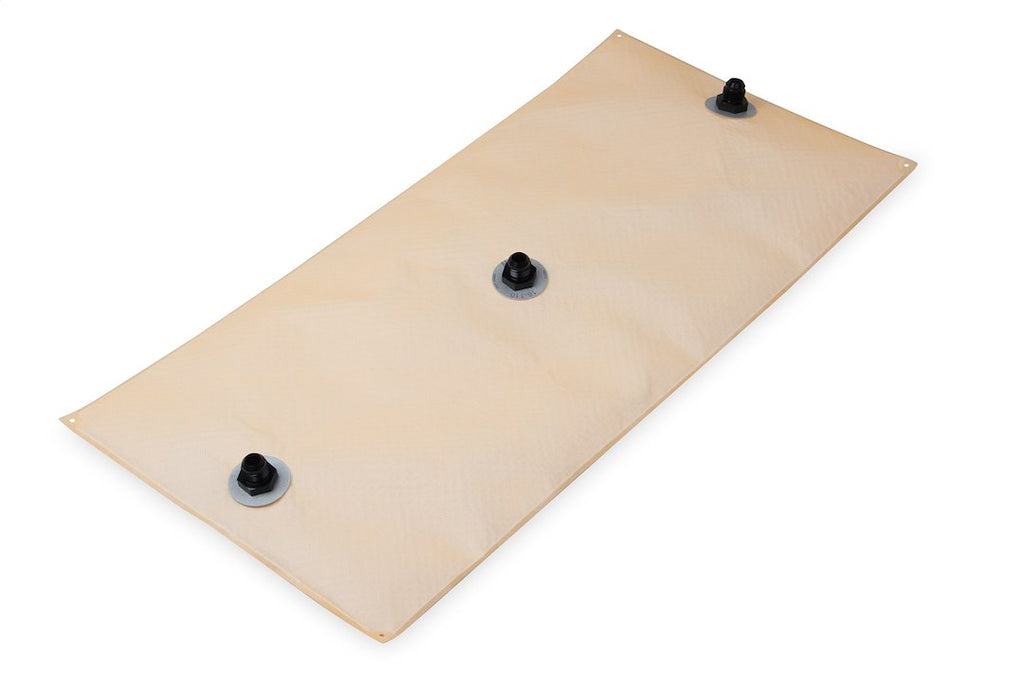

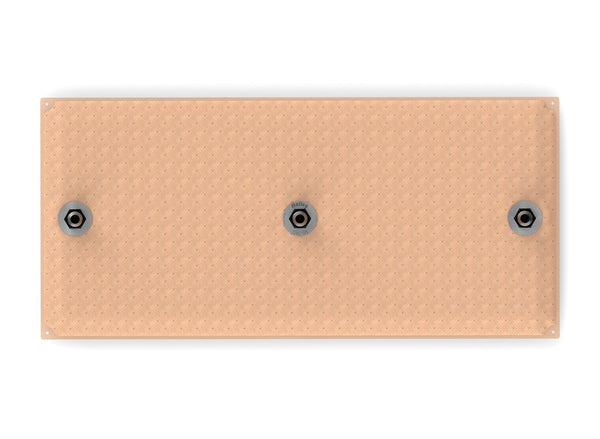

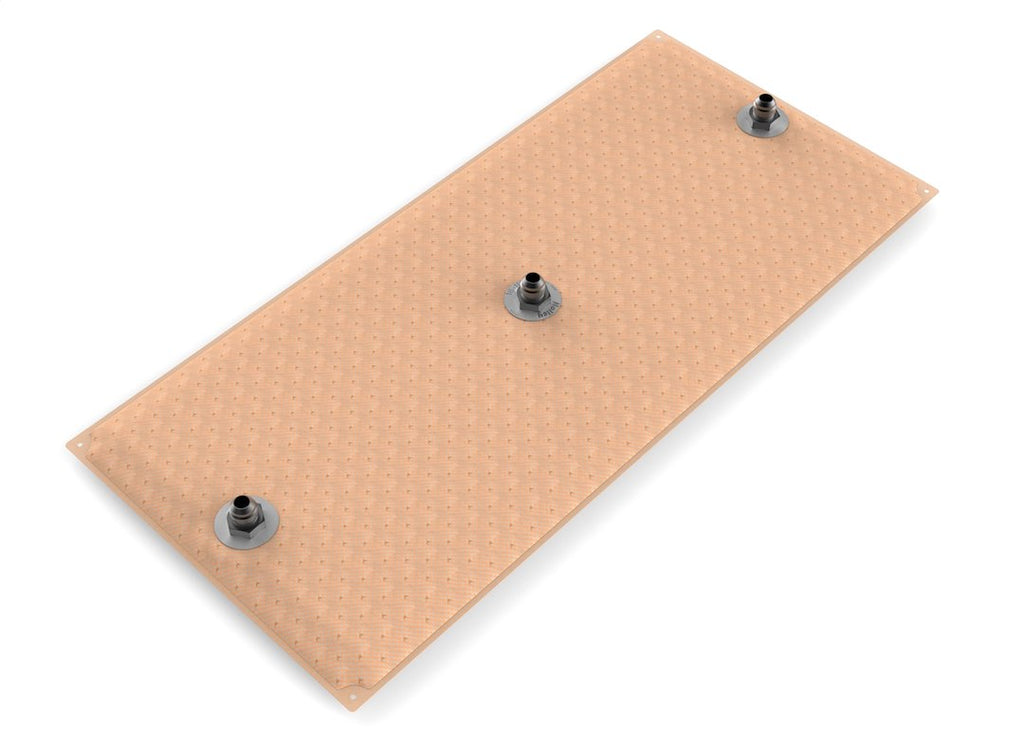

Holley Fuel Filter HydraMat is engineered to address the challenges faced by traditional fuel pick-ups in both stock fuel tanks and racing fuel cells. This patent pending design effectively minimizes the risk of air entering the fuel system, which can lead to engine performance issues and stalling. The HydraMat utilizes surface tension and fluid wicking to draw fuel from any area in contact with it, ensuring a consistent fuel supply even under extreme conditions such as hard cornering, acceleration, and low fuel levels.
The unique internal reservoir of the HydraMat plays a crucial role in maintaining fuel availability at the pickup point, even during significant fuel slosh. This feature eliminates the need for additional specialty reservoirs, sumps, and pick-up pumps, thereby reducing complexity and overall costs. The HydraMat is designed to fit a variety of fuel tanks and cells, making it a versatile solution for various applications.
Additionally, the HydraMat functions as a 15 micron pre-filter, negating the requirement for a separate filter before the fuel pump. Its ability to be folded and compressed allows for easy installation through different fuel cell openings, enhancing its practicality for users. With dimensions of 30 inches in length and 14 inches in width, the HydraMat is a robust solution for fuel management in performance vehicles.
Features
- Patent Pending Design That Solves The Problems Associated With Traditional Fuel Pick-Ups In Stock Fuel Tanks As Well As Racing Fuel Cells
- Greatly Reduces The Potential For Air To Enter Into The Fuel System Which Can Result In Poor Engine Performance And/Or Engine Stalling
- Perfect For Vehicles Experiencing Fuel Starvation During Hard Cornering, Acceleration, Stopping, Inclines, And Low Fuel Conditions
- Surface Tension And Fluid Wicking Allow The HydraMat To Continue To Draw Fuel From The Tank Or Cell Even When Part Of The Mat Uncovered
- Unique Internal Reservoir Assists In Keeping Fuel Available At The Pickup Even Under Extreme Fuel Slosh Conditions
- Eliminates The Need For Specialty Reservoirs, Sumps And Pick Up Pumps Saving Cost And Greatly Reducing Complexity
- Also Acts As A 15 Micron Pre-Filter Eliminating The Need For A Separate Filter Before The Fuel Pump
- Can Be Folded And Compressed For Easy Installation Through A Variety Of Fuel Cell Openings
Specifications
- Manufacturer: Holley Performance
- Manufacturer Part Number: 16-110
- Type: Element
- Location: Fuel Tank
- Fuel Type: Alcohol/ Ethanol/ Methanol/ E85
- Inlet Connection Size: Not Applicable
- Inlet Connection Type: Not Applicable
- Outlet Connection Size: Not Applicable
- Outlet Connection Type: Not Applicable
- Diameter (IN): Not Applicable
- Length (IN): 30 Inch
- Width (IN): 14 Inch
- Micron Rating: 15 Micron
- Color: Tan
- With Gasket: No
- With Hose: No
- With Mounting Hardware: No
