Innovative design prevents fuel starvation in challenging conditions.

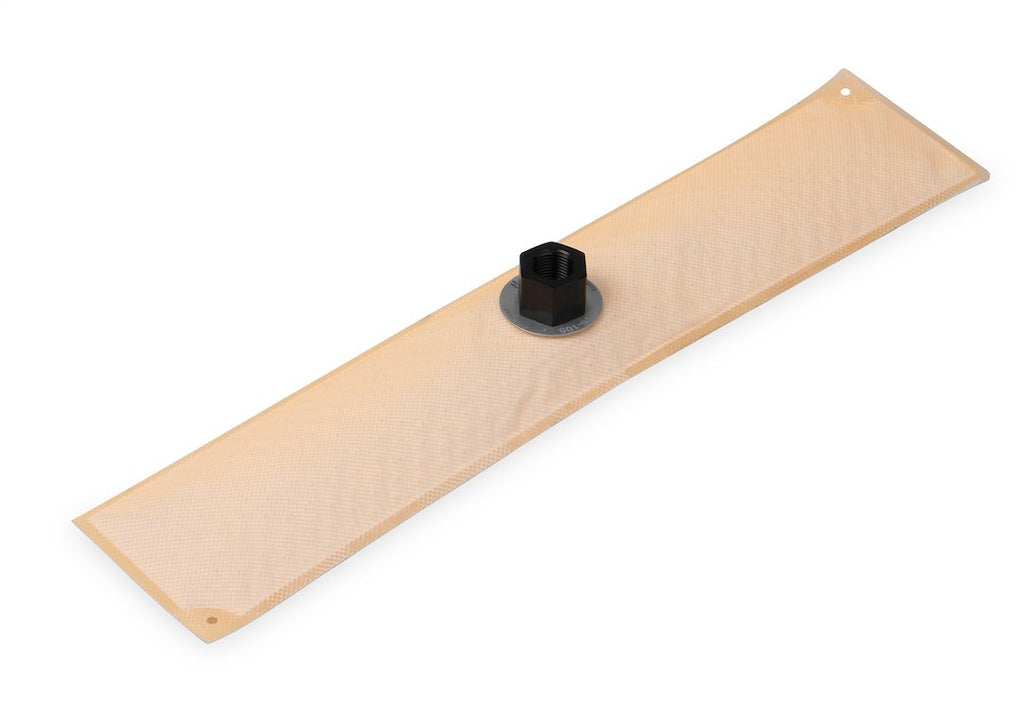

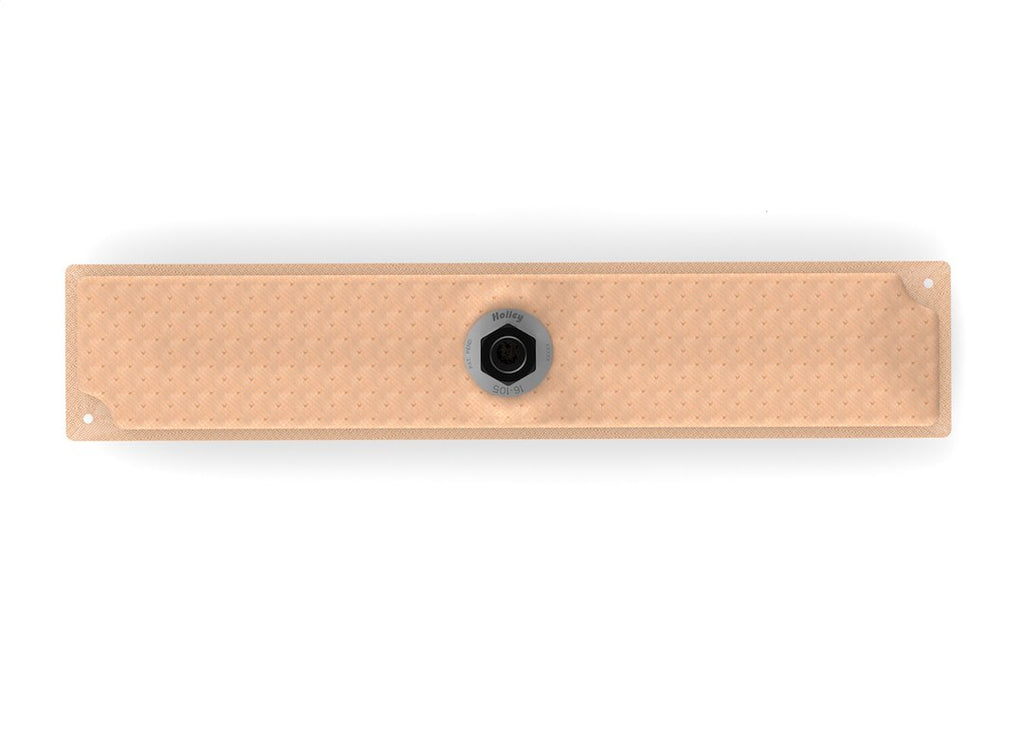

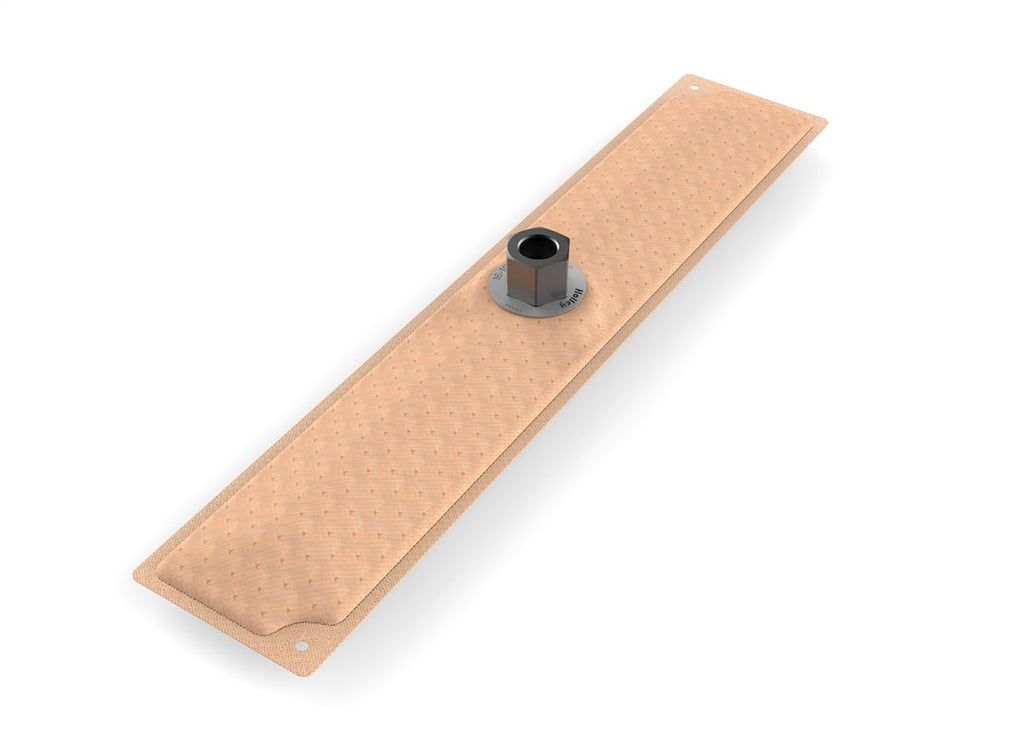

The Holley Fuel Filter HydraMat is engineered to address the limitations of traditional fuel pick-ups in both stock fuel tanks and racing fuel cells. Its patent pending design effectively mitigates the risk of air entering the fuel system during dynamic driving conditions such as hard cornering, acceleration, and low fuel levels. By utilizing surface tension and fluid wicking, the HydraMat can draw fuel from nearly any area in contact with fuel, ensuring a consistent supply even when parts of the mat are uncovered.
This product features a unique internal reservoir that maintains fuel availability at the pick-up point, even under extreme fuel slosh conditions. The HydraMat's extensive coverage area allows it to eliminate the need for specialty reservoirs and pick-up pumps, simplifying installation and reducing costs. Additionally, it functions as a 15 micron pre-filter, negating the requirement for a separate filter before the fuel pump.
Designed for versatility, the HydraMat can be folded and compressed for easy installation through various fuel cell openings. It is compatible with a range of fuel types including alcohol, ethanol, methanol, and E85, making it suitable for diverse applications. The Holley Fuel Filter HydraMat is a significant advancement in fuel management technology, enhancing engine performance and reliability.
Features
- Patent Pending Design That Solves The Problems Associated With Traditional Fuel Pick-Ups In Stock Fuel Tanks As Well As Racing Fuel Cells
- Greatly Reduces The Potential For Air To Enter Into The Fuel System Which Can Result In Poor Engine Performance And/Or Engine Stalling
- Perfect For Vehicles Experiencing Fuel Starvation During Hard Cornering, Acceleration, Stopping, Inclines, And Low Fuel Conditions
- Surface Tension And Fluid Wicking Allow The HydraMat To Continue To Draw Fuel From The Tank Or Cell Even When Part Of The Mat Uncovered
- Unique Internal Reservoir Assists In Keeping Fuel Available At The Pickup Even Under Extreme Fuel Slosh Conditions
- Eliminates The Need For Specialty Reservoirs, Sumps And Pick Up Pumps Saving Cost And Greatly Reducing Complexity
- Also Acts As A 15 Micron Pre-Filter Eliminating The Need For A Separate Filter Before The Fuel Pump
- Can Be Folded And Compressed For Easy Installation Through A Variety Of Fuel Cell Openings
Specifications
- Manufacturer: Holley Performance
- Manufacturer Part Number: 16-105
- Type: Element
- Location: Fuel Tank
- Fuel Type: Alcohol/ Ethanol/ Methanol/ E85
- Inlet Connection Size: Not Applicable
- Inlet Connection Type: Not Applicable
- Outlet Connection Size: Not Applicable
- Outlet Connection Type: Not Applicable
- Diameter (IN): Not Applicable
- Length (IN): 15 Inch
- Width (IN): 3 Inch
- Height (IN): Not Applicable
- Micron Rating: 15 Micron
- Element Material: Hydramat
- Color: Tan
- With Gasket: No
- With Hose: No
- With Mounting Hardware: No
