High-performance fuel delivery system for enhanced racing applications.

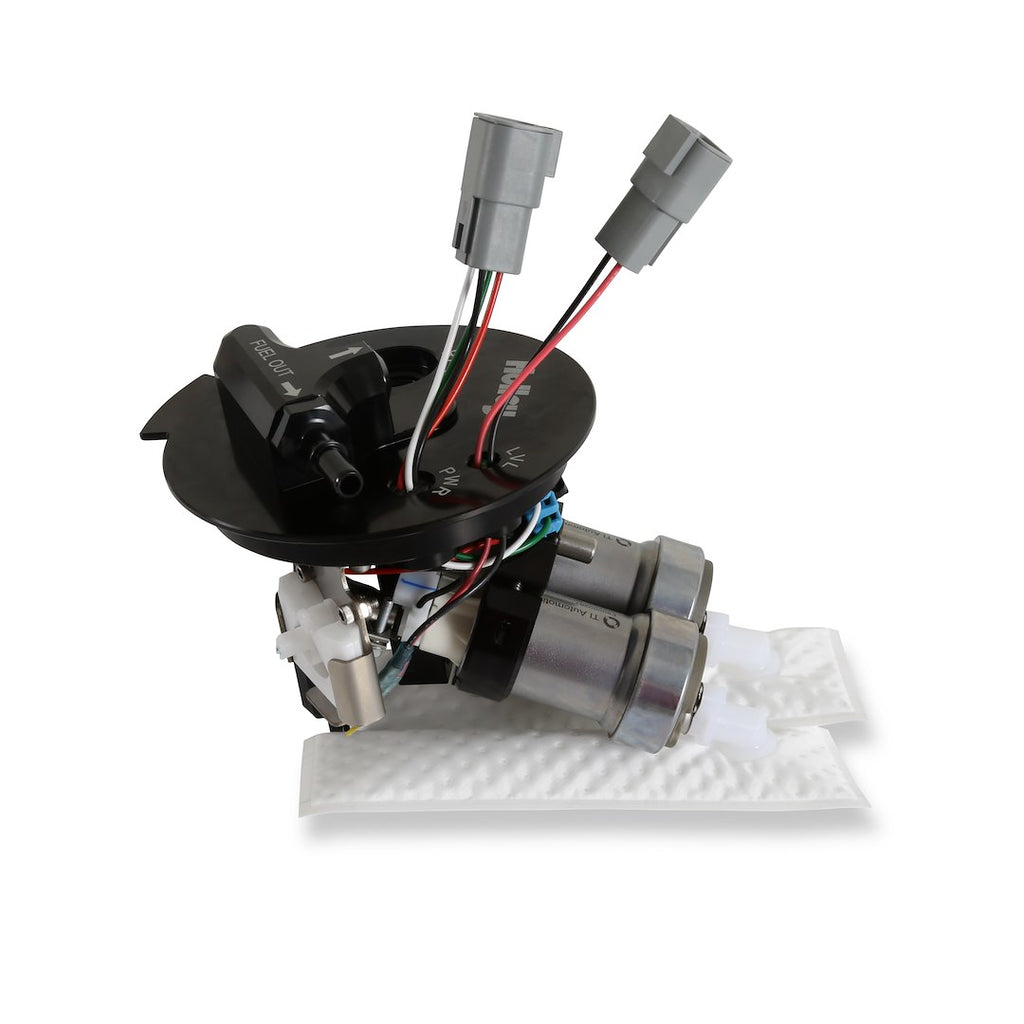

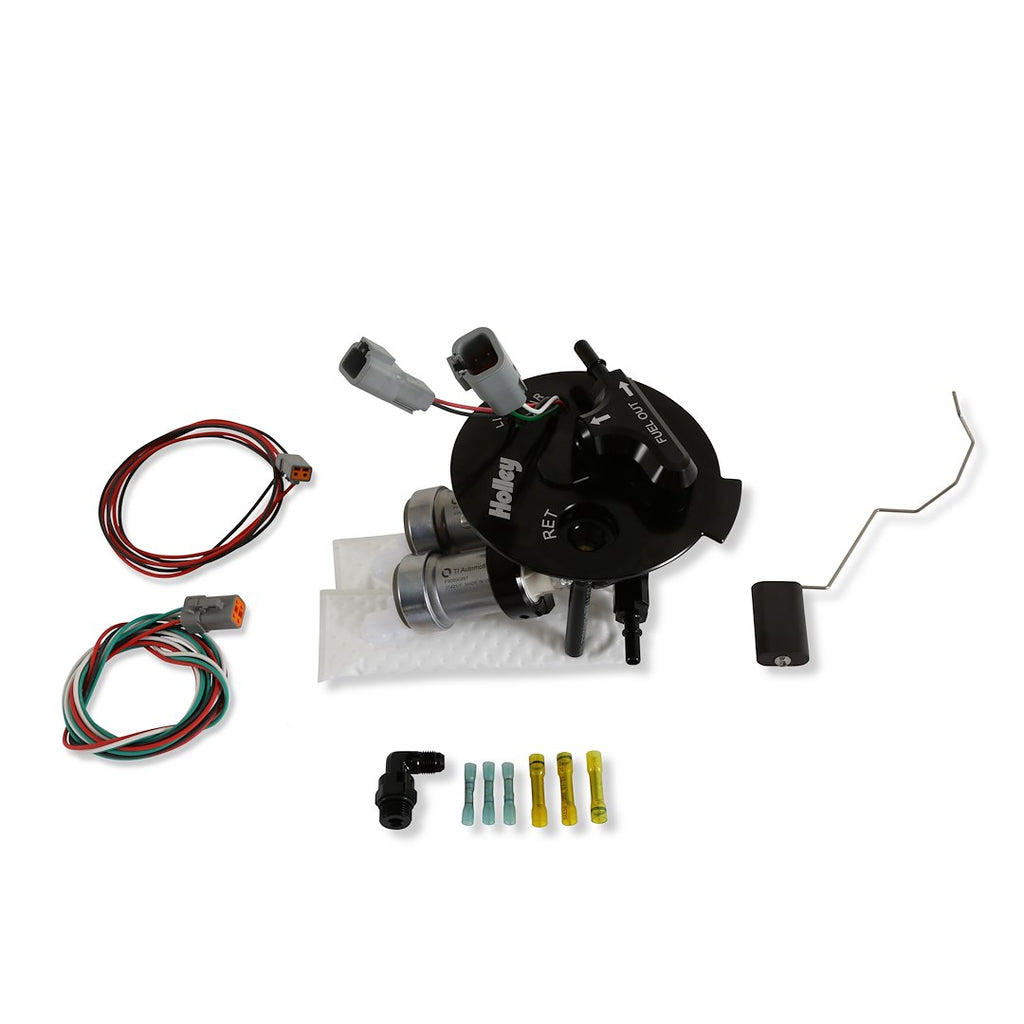

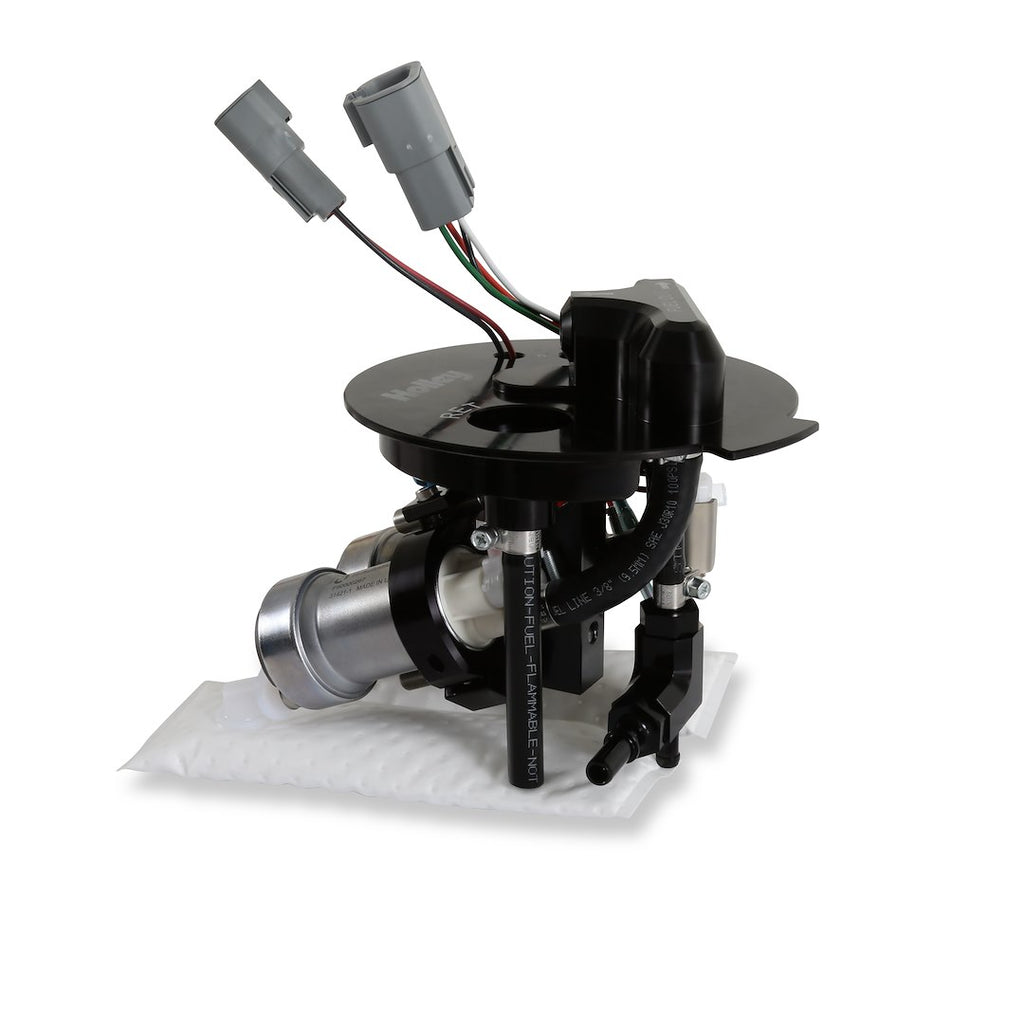

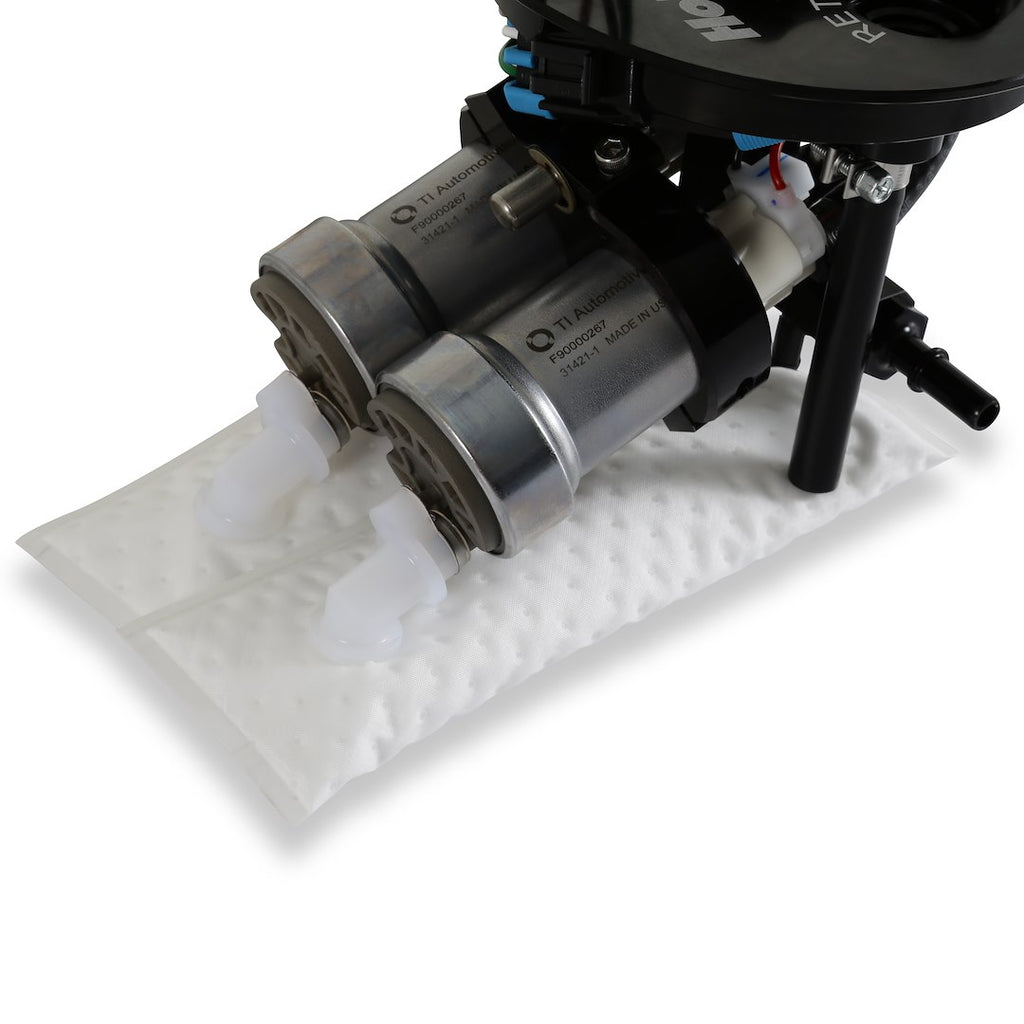

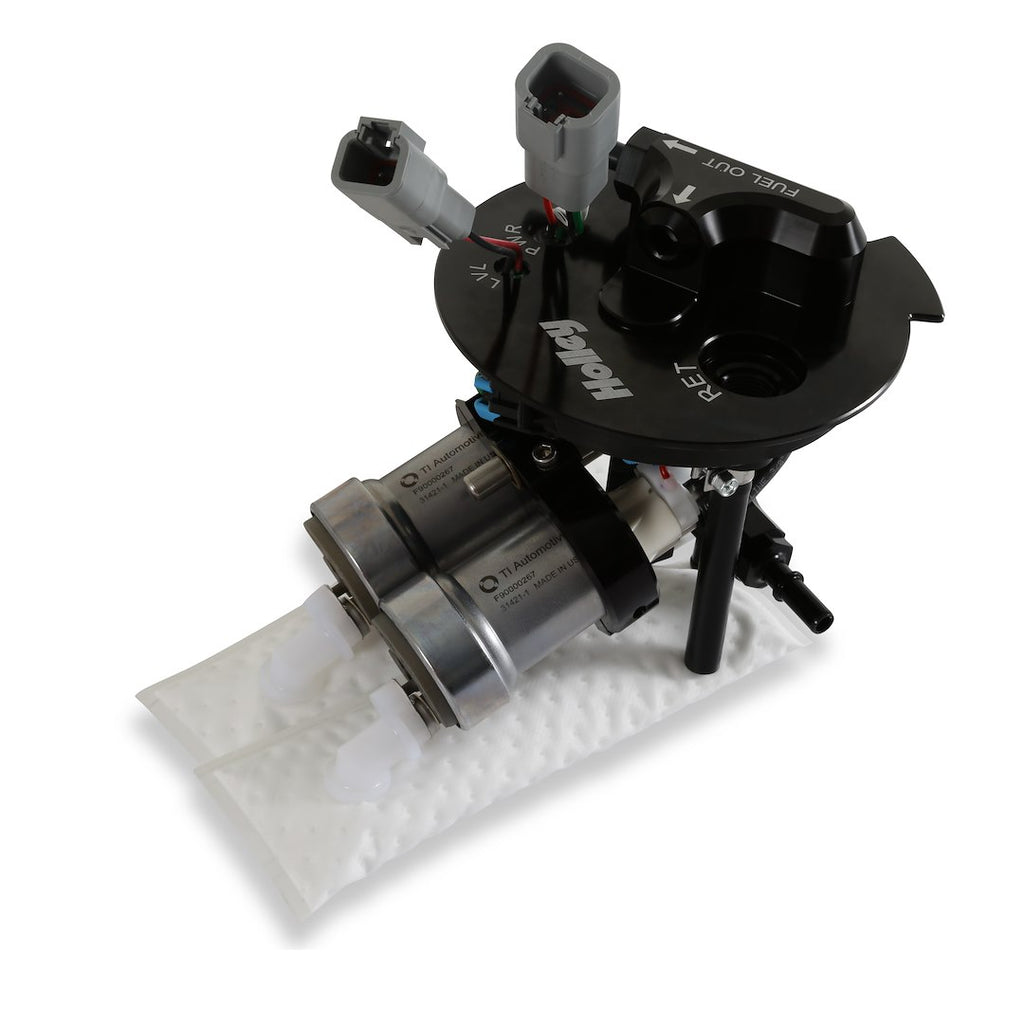

The Holley Electric Fuel Pump Module is designed for high-performance applications, particularly for those adding nitrous or boost to their 2010 to 2015 Camaro race car. This module features a robust billet pump flange assembly that connects to dual fuel pumps, delivering a maximum fuel flow of 910 liters per hour. It is engineered to support gasoline and E85, ensuring optimal fuel delivery under various conditions.

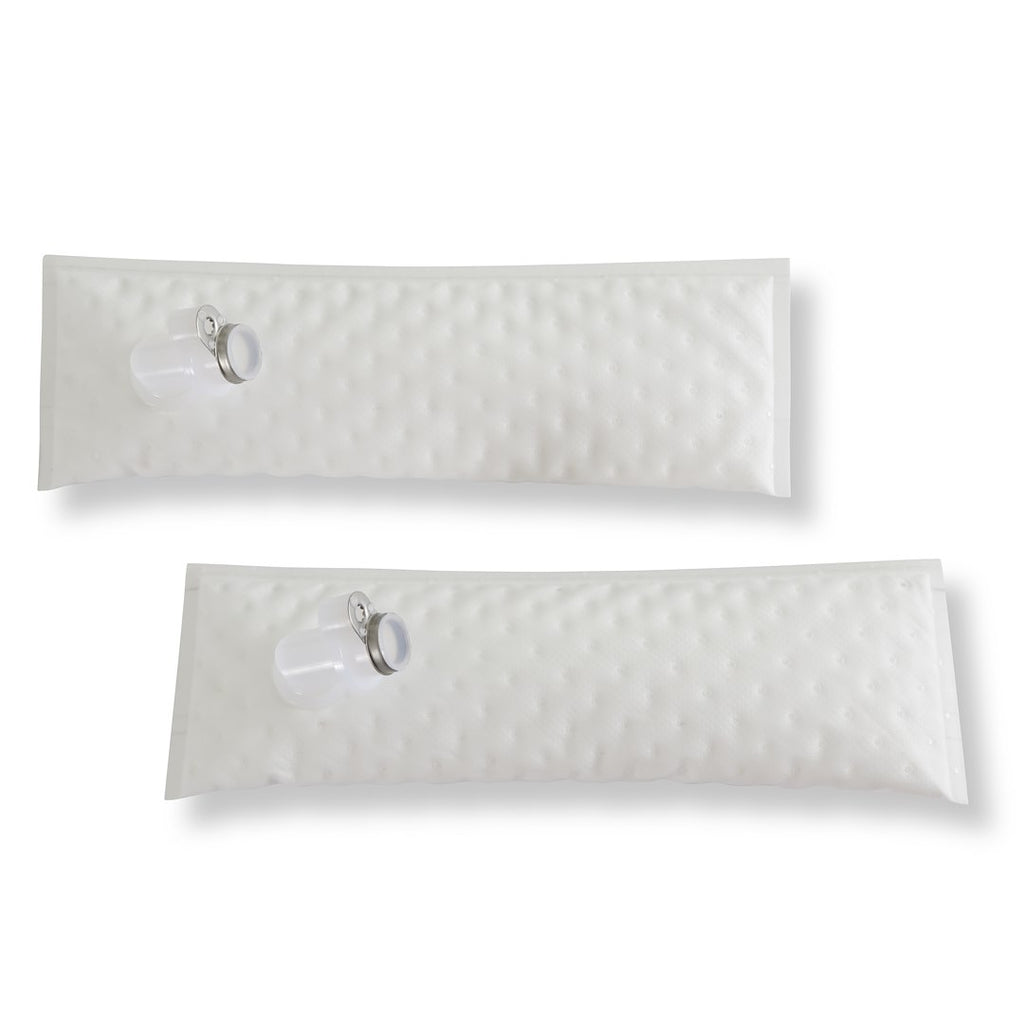

Equipped with two HydraMats, this fuel pump module effectively eliminates fuel starvation during hard acceleration or cornering, maintaining stable fuel pressure even when the fuel level is low. The integrated jet pump assembly retains the factory driver's side fuel pickup, enhancing the module's efficiency. A new level sensor is included and pre-installed, simplifying the installation process by allowing for a straightforward replacement of the factory module.
The module is designed as a return style system, necessitating the installation of a regulator to complete the fuel system. It includes an outlet fitting for easy connection to the factory feed line and features a secondary ORB port for additional AN plumbing options. Constructed with machined, billet, anodized, and laser-etched components, this fuel pump module combines durability with aesthetic appeal.
Features
- Two HydraMats, One For Each Pump
- Integrated Jet Pump Assembly Allows Retention Of Factory Drivers Side Fuel Pickup
- Have Been Tested To Deliver Stable Fuel Pressure Down To Low Fuel Indicator Warning Light
- Brand New Level Sensor Included And Pre-Installed
- Installation Is As Simple As Removing Factory Module And Replacing With Holley Module

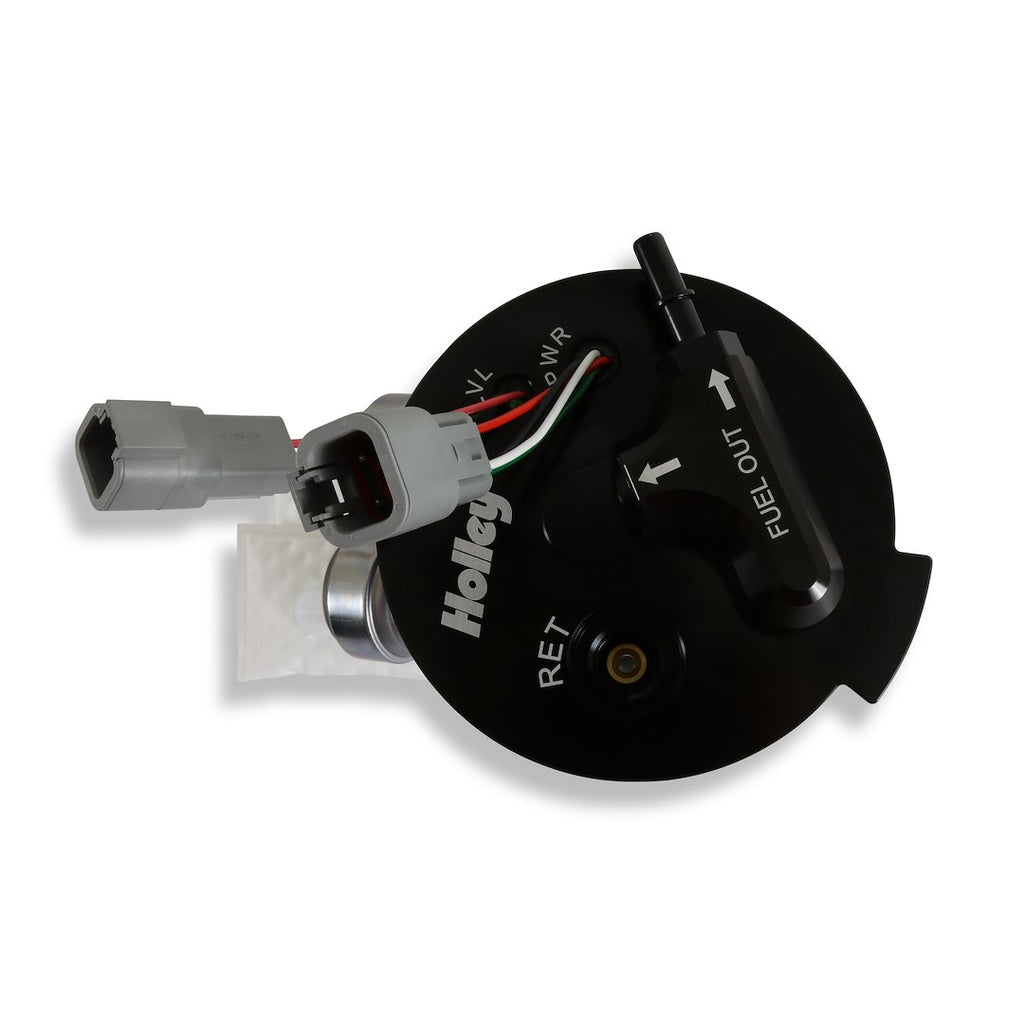

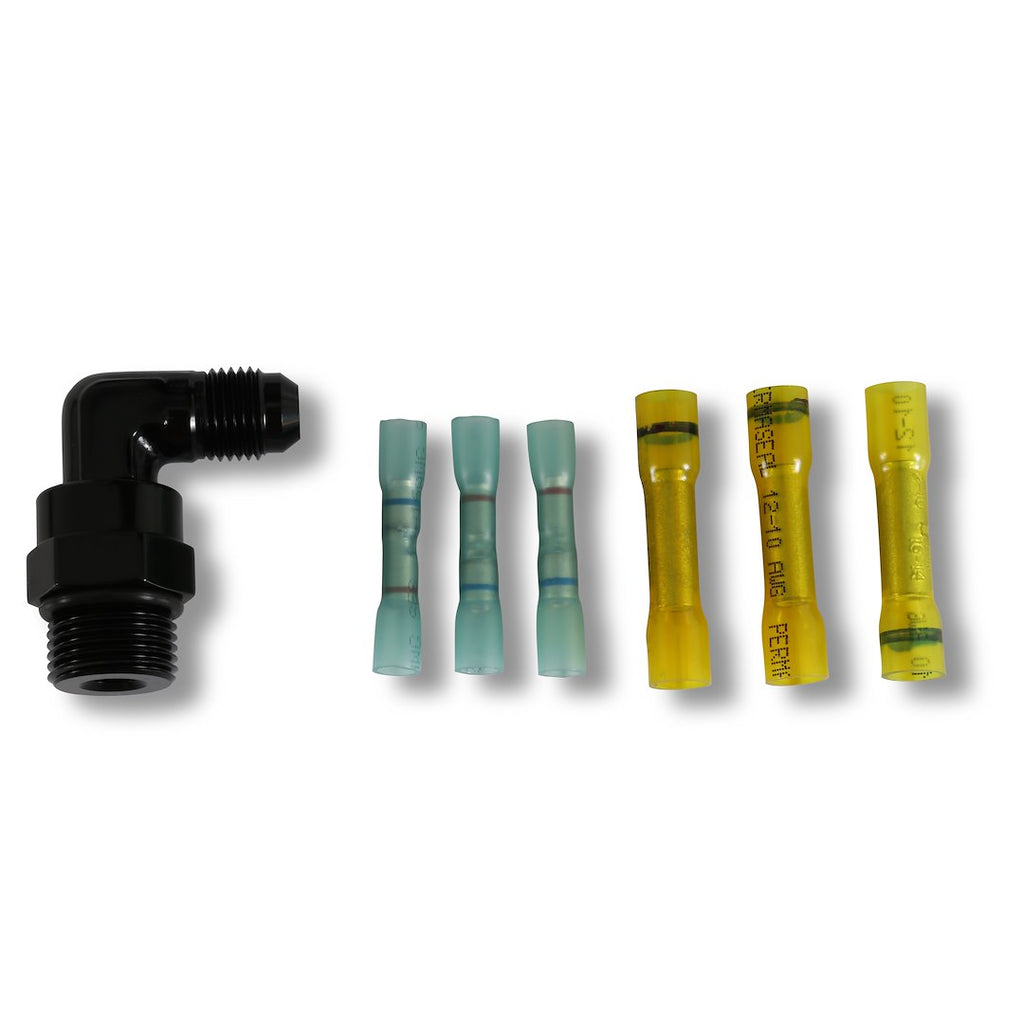

- Outlet Fitting Included To Connect To Factory Feed Line
- Module Is Return Style Only So A Regulator Must Be Installed
- Machined, Billet, Anodized, Laser Etch Components For Durability And Good Looks
Specifications
- Manufacturer: Holley Classic Trucks
- Manufacturer Part Number: 12-351
- Mounting Style: In-Tank
- Fuel Type: Gasoline
- Voltage Rating: 13.5 Volt
- Free Flow Rate: 240.39 Gallon Per Hour
- Maximum Pressure (PSI): 60 Pounds Per Square Inch
- Inlet Size: -8 AN (1/2 Inch)
- Inlet Attachment: Female
- Outlet Size: -8 AN (1/2 Inch)
- Outlet Attachment: Female
- Inlet Quantity: 1
- Outlet Quantity: 1
- With Sending Unit: Yes
- With Mounting Hanger: Yes
- Estimated Install Time (Hours): 2
Compatibility / Fit
- 2010-2015 Chevrolet Camaro
