High-performance in-tank fuel pump for EFI systems up to 550 horsepower.

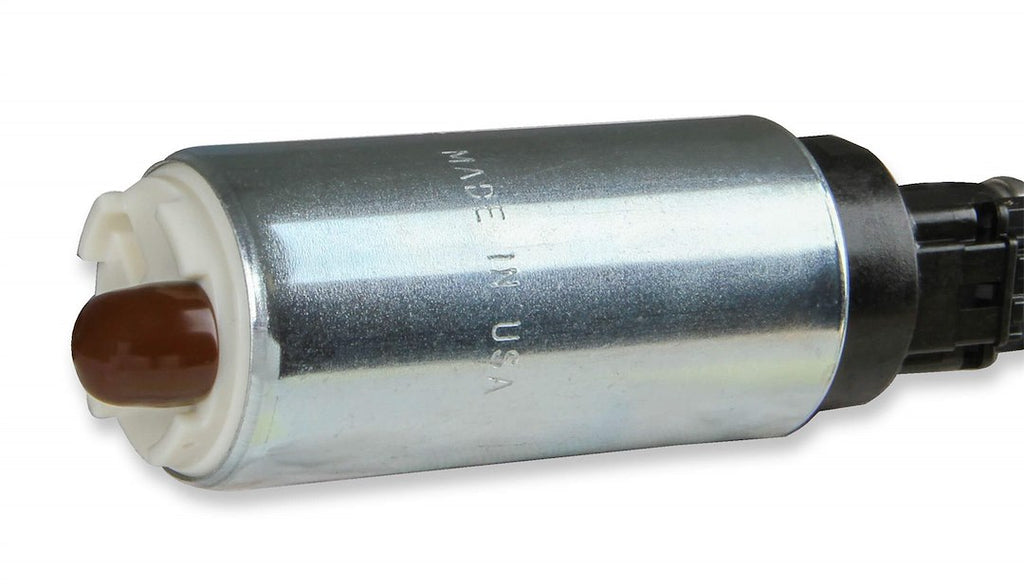

The Holley Electric Fuel Pump is engineered for high-performance applications, specifically designed for EFI systems. This in-tank pump delivers a robust flow rate of 255 liters per hour, supporting engines producing up to 550 horsepower. With an internal fuel pressure regulation preset at 58 PSI, it eliminates the need for an external fuel pressure regulator, simplifying installation and reducing costs.

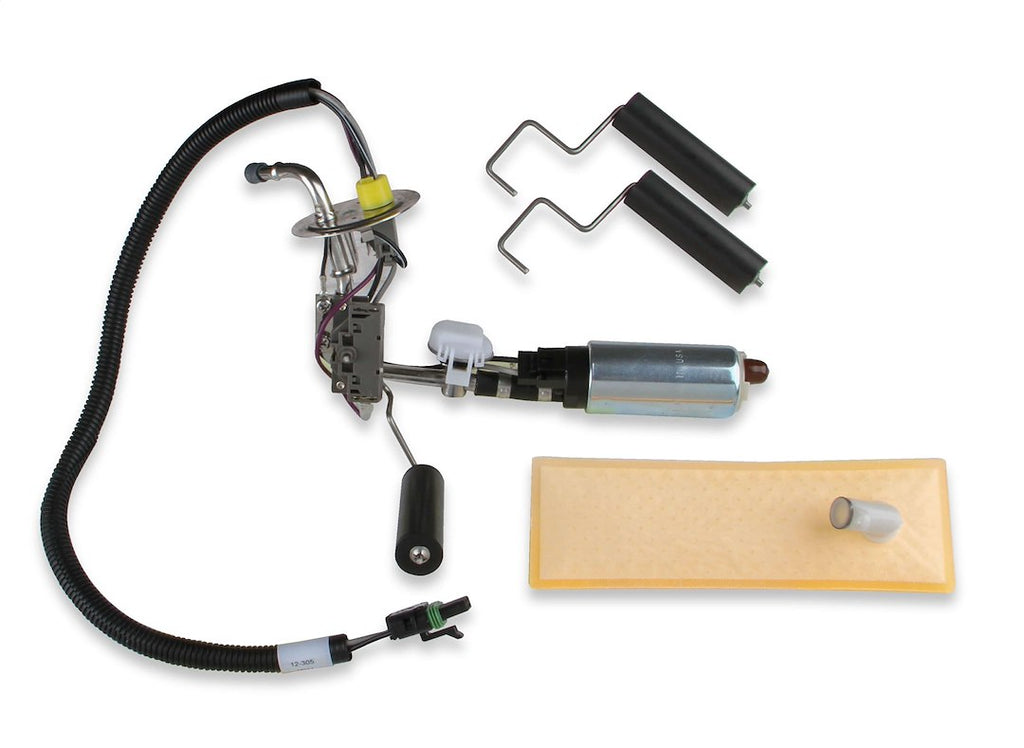

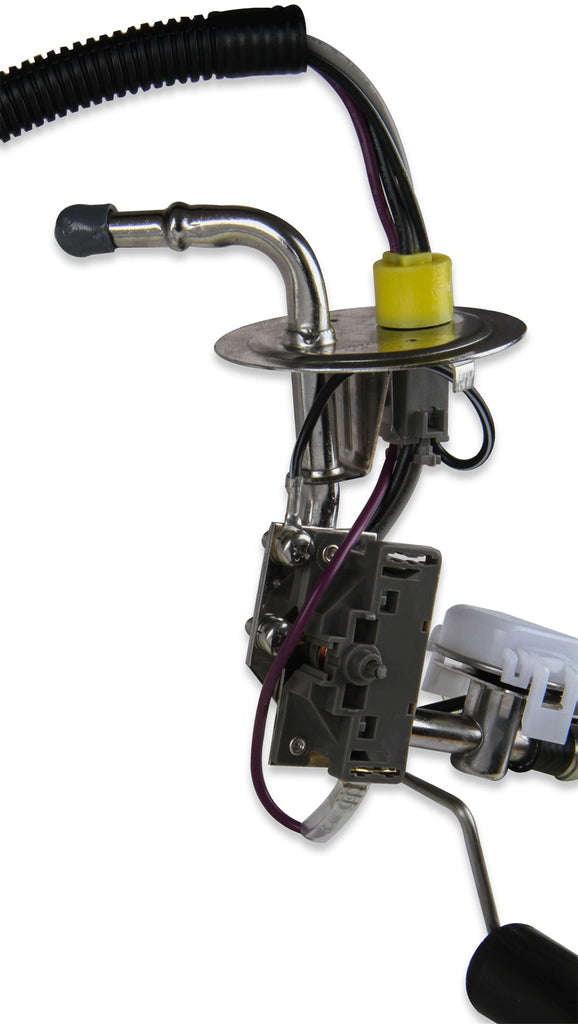

This unit is designed for direct replacement of factory fuel pick-up and sending units, ensuring a seamless transition to EFI without the need for modifications or replacement of the fuel tank. The pump's design allows for the retention of the factory fuel hard line, making it easy to connect using EFI rated fuel hose and clamps.
Additionally, the Holley Electric Fuel Pump features a no-return line design, managing all return fuel within the tank, which enhances efficiency and reduces complexity. It also provides protection from contaminants, ensuring a clean fuel supply for optimal engine performance.
Features
- The In-Tank Fuel Pump Is A High-Pressure 255 Liters Per Hour Unit, Capable Of Supporting EFI Engines Producing Up To 550 Horsepower
- Fuel Pressure Is Regulated Internally And Preset At 58 PSI, Eliminating The Added Expense Of Purchasing An External Fuel Pressure Regulator
- No Return Line Needed; All Return Fuel Is Handled Inside The Tank
- Provides Protection From Contaminates
Specifications
- Manufacturer: Holley Performance
- Manufacturer Part Number: 12-305
- Mounting Style: In-Tank
- Fuel Type: Gasoline
- Voltage Rating: 12 Volt
- Free Flow Rate: 67.3 Gallon Per Hour
- Maximum Pressure (PSI): 58 Pounds Per Square Inch
- Inlet Size: -5 AN (5/16 Inch)
- Inlet Attachment: Hose Barb
- Outlet Size: -6 AN (3/8 Inch)
- Outlet Attachment: Hose Barb
- Inlet Quantity: 1
- Outlet Quantity: 1
- With Sending Unit: Yes
- With Mounting Hanger: No
- Estimated Install Time (Hours): 2
Compatibility / Fit
- 1964-1970 Ford Mustang
