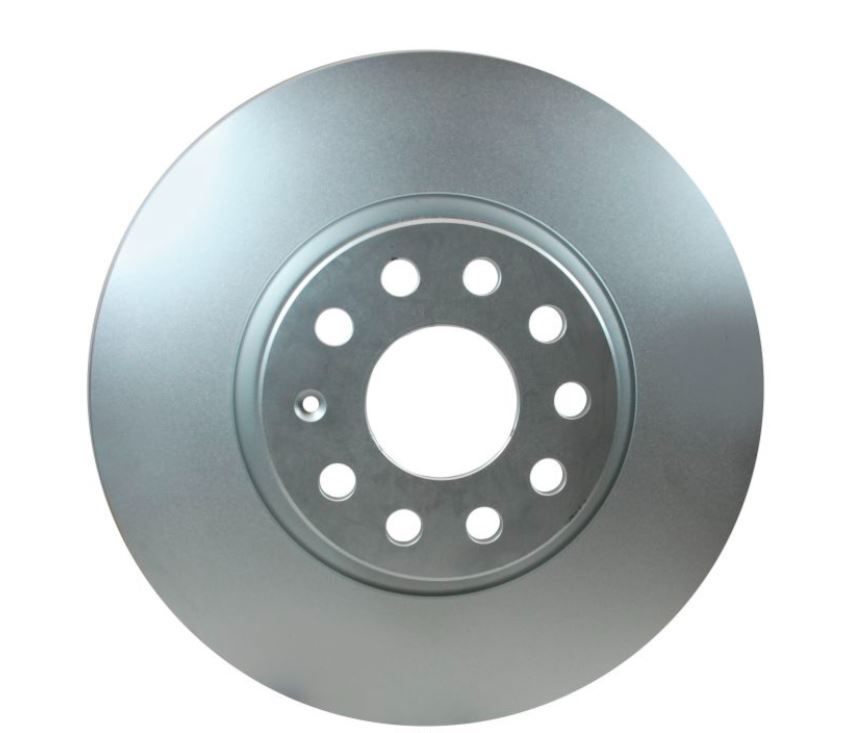

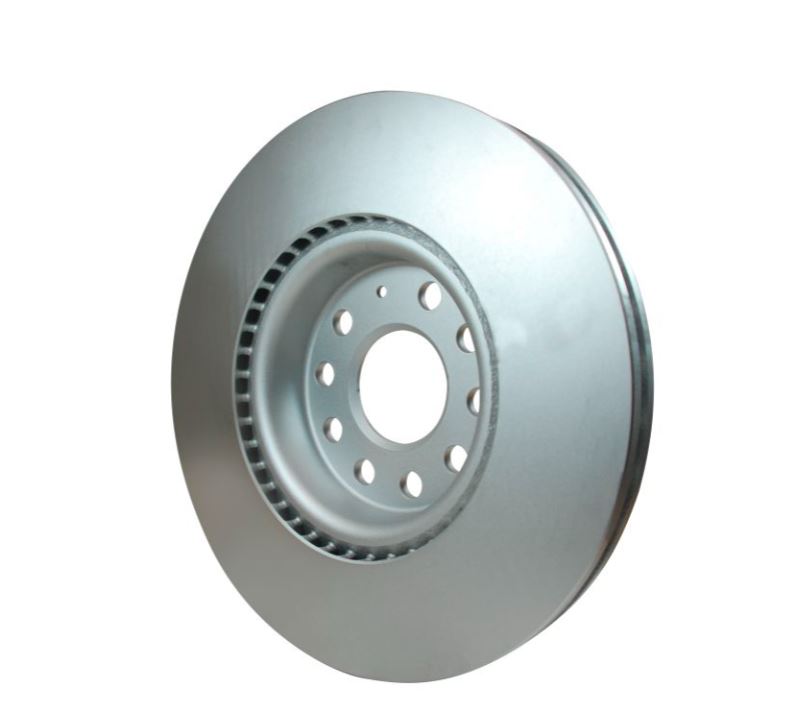

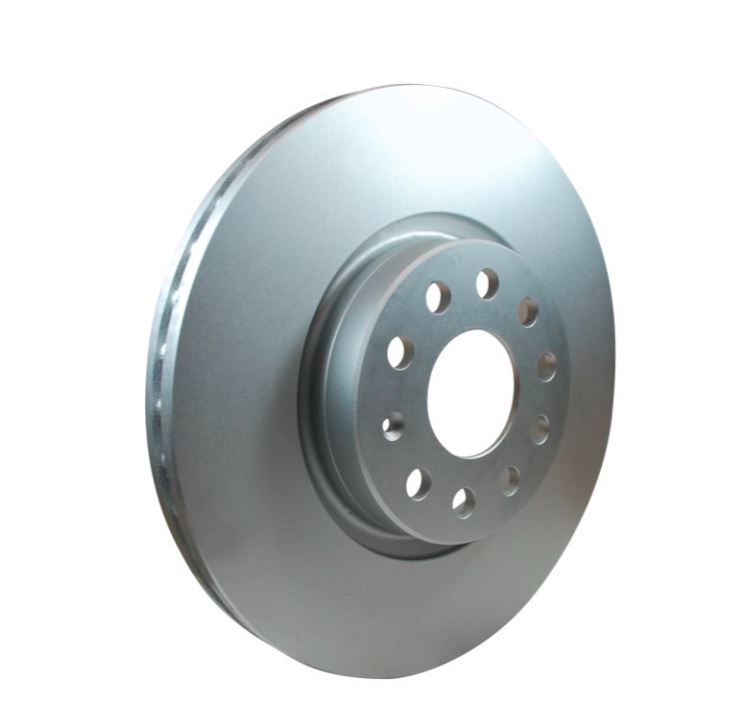

HELLA Brake Rotor (MPN: 355122592)

High-Performance Vented Brake Rotor for Enhanced Safety and Durability

The HELLA Brake Rotor is engineered for optimal braking performance, featuring a vented, one-piece design that ensures efficient heat dissipation. With a wheel bolt pattern of 10 x 112 millimeters and a hub size of 65 millimeters, this rotor is compatible with a wide range of vehicles, making it a versatile choice for automotive applications. Constructed from zinc-coated gray cast iron, it offers superior resistance to corrosion and wear, enhancing its longevity and reliability under various driving conditions.

This brake rotor is designed to meet and exceed the stringent specifications of the ECE R90 directive, ensuring that it provides maximum safety and performance capability. The rotor's dimensions include an outside diameter of 312 millimeters and a nominal thickness of 25 millimeters, which contribute to its robust construction and effective braking power. HELLA's commitment to quality is evident in the rigorous testing each rotor undergoes, including extensive bench tests and real-world evaluations, ensuring that it meets the high standards set by vehicle and brake manufacturers.

Incorporating advanced materials and design features, the HELLA Brake Rotor is a reliable component that enhances the overall braking system of your vehicle. Its premium quality construction and anti-corrosion coating not only improve appearance but also ensure that it performs optimally in all conditions, providing drivers with confidence and control.

Features

• Premium Quality Brake Discs
• HELLA Brake Discs With Anti-Corrosion Coating For An Improved Appearance Or HC Brake Discs With High-Carbon Gray Cast Iron For A Higher Load Capacity
• Optimum Braking Performance In All Conditions
• Hella Brake Discs Far Exceed The Required Specifications Of The ECE R90 Directive

Specifications

• Manufacturer: Hella
• Manufacturer Part Number: 355122592
• Disc Type: Vented
• Quantity: Single
• Design: 1-Piece
• Finish: Zinc Plated
• Material: Cast Iron

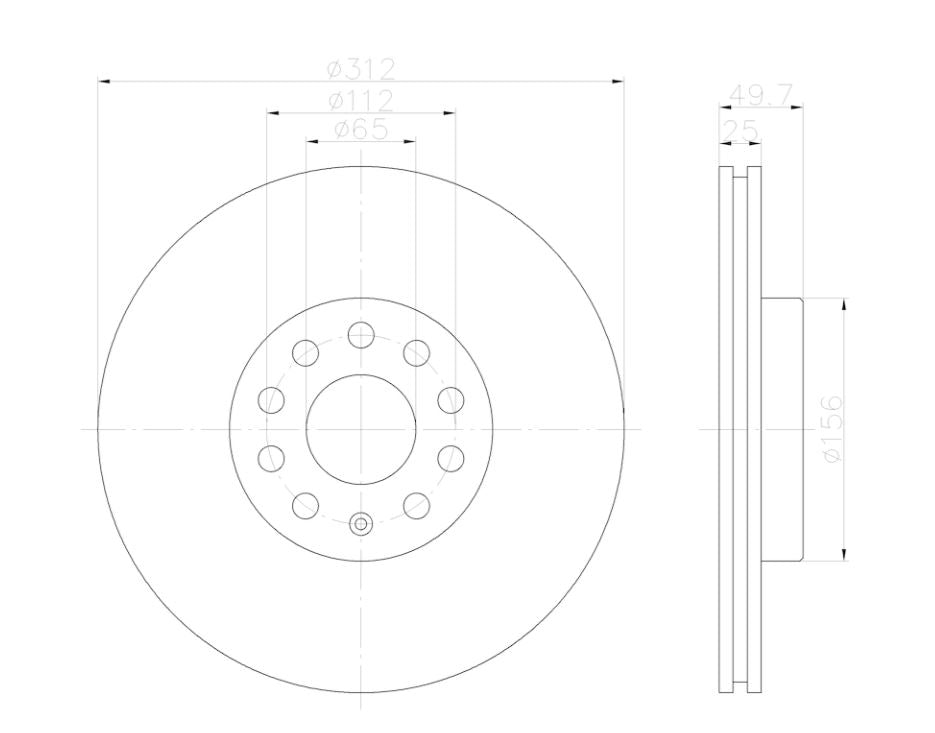

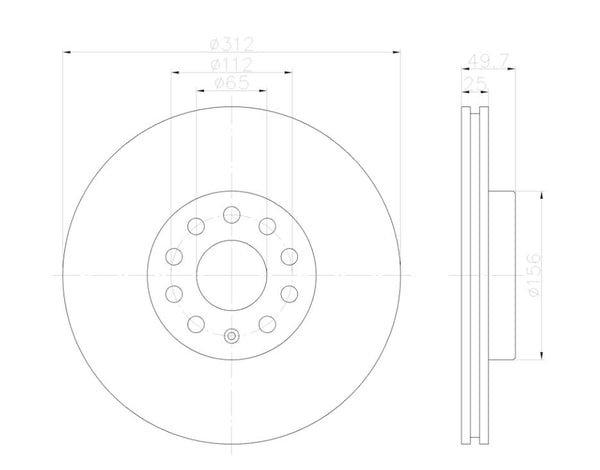

• Hub Bore Size: 65 Millimeter
• Wheel Bolt Circle (IN): 10 X 4.41 Inch
• Wheel Bolt Circle (MM): 10 X 112 Millimeter
• Outer Diameter (IN): 12.3 Inch
• Outer Diameter (MM): 312 Millimeter
• Height (IN): 2.56 Inch
• Height (MM): 65 Millimeter
• Nominal Thickness (IN): 0.98 Inch
• Nominal Thickness (MM): 25 Millimeter

Compatibility / Fit

• 2006-2013 Audi A3
• 2015-2020 Audi A3
• 2006-2013 Audi A3 Quattro
• 2015-2018 Audi A3 Quattro
• 2016-2018 Audi A3 Sportback e-tron
• 2015-2018 Audi Q3
• 2015-2018 Audi Q3 Quattro
• 2008-2009 Audi TT
• 2009-2023 Audi TT Quattro
• 2012-2017 Volkswagen Beetle
• 2009-2017 Volkswagen CC
• 2007-2016 Volkswagen Eos
• 2017-2019 Volkswagen Golf Alltrack
• 2006-2021 Volkswagen GTI
• 2006-2018 Volkswagen Jetta
• 2006-2010 Volkswagen Passat
• 2012-2022 Volkswagen Passat
• 2022-2024 Volkswagen Taos
• 2009-2017 Volkswagen Tiguan
• 2017-2018 Volkswagen Tiguan Limited
