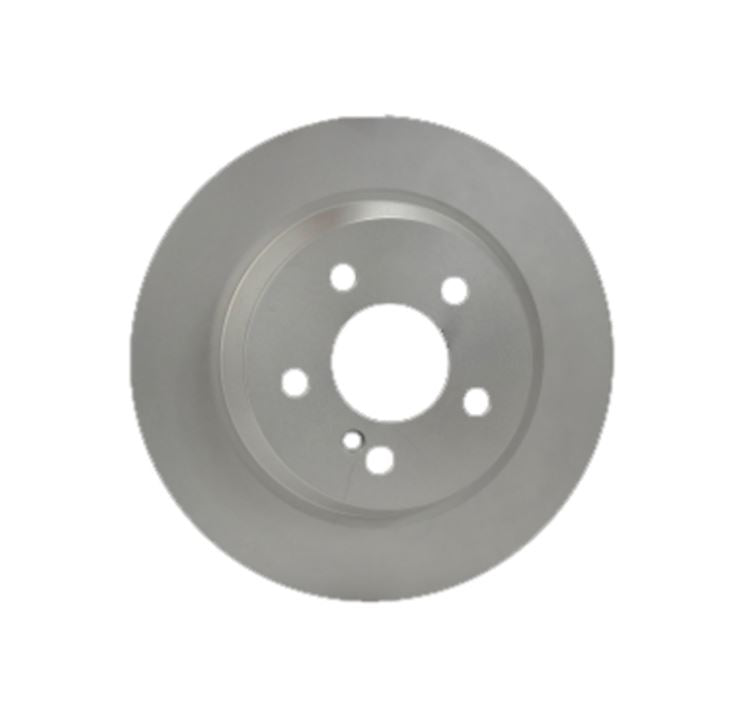

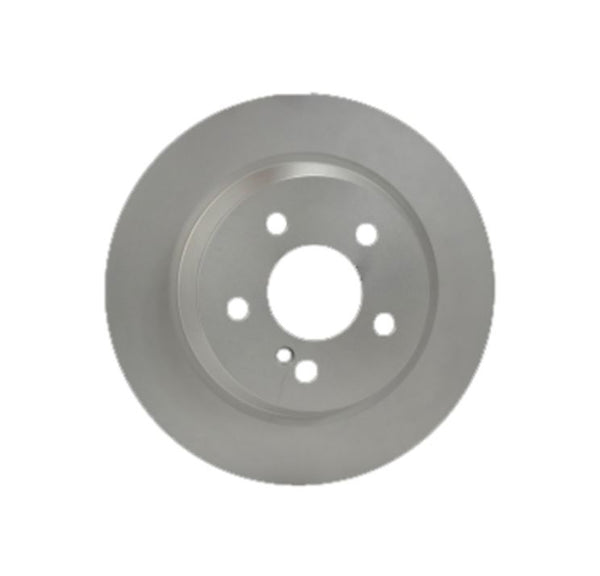

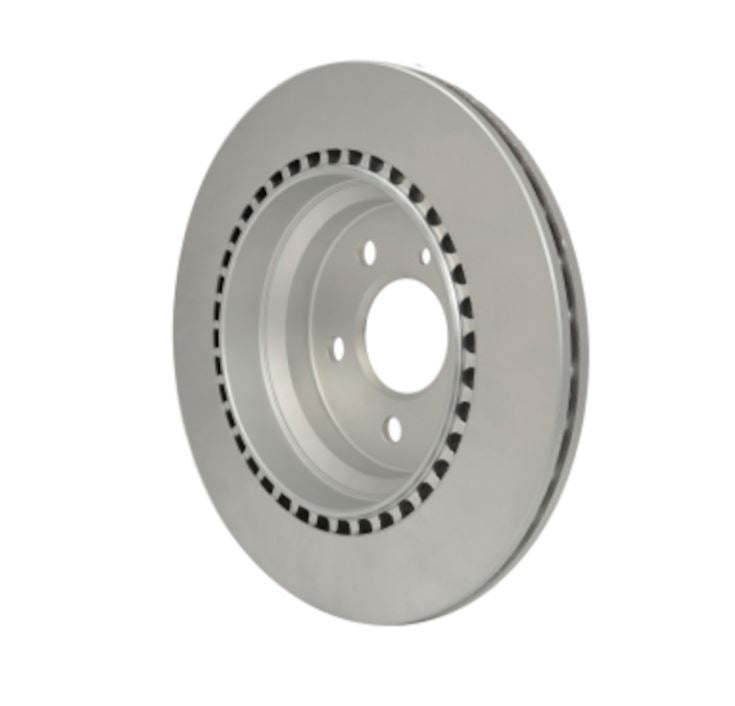

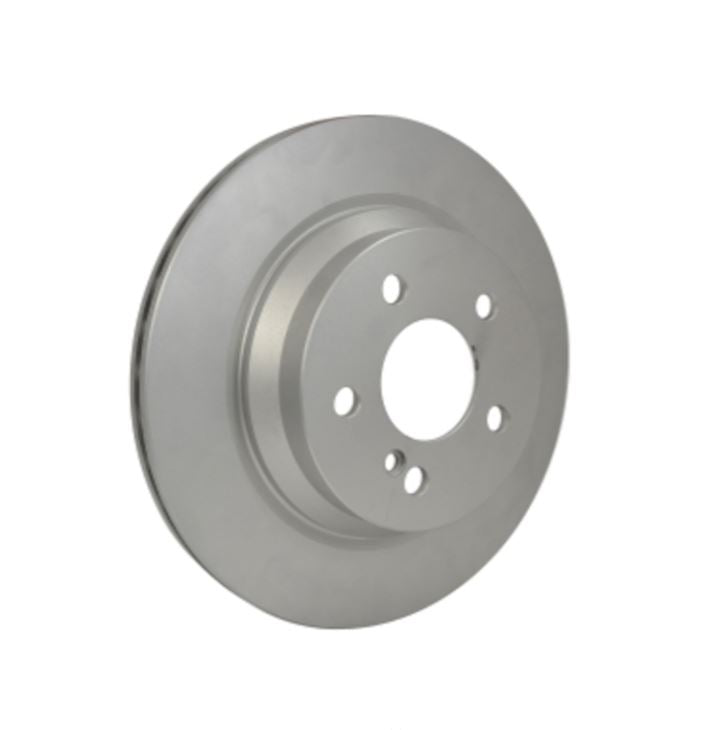

HELLA Brake Rotor (MPN: 355122532)

High-Performance Vented Brake Rotor for Enhanced Safety and Durability

The HELLA Brake Rotor is engineered for optimal braking performance, featuring a vented, one-piece design that ensures efficient heat dissipation. With a wheel bolt pattern of 6 x 112 millimeters and a hub size of 67 millimeters, this rotor is compatible with a wide range of European vehicles. Constructed from zinc-coated gray cast iron, it offers superior resistance to corrosion while maintaining structural integrity under high loads.

This brake rotor is designed to meet and exceed the stringent specifications of the ECE R90 directive, ensuring reliability and safety. The dimensions include a height of 68.20 millimeters, an outside diameter of 300 millimeters, and a nominal thickness of 22 millimeters, making it suitable for various driving conditions. HELLA's commitment to quality is evident in the rigorous testing each rotor undergoes, including extensive bench tests and real-world evaluations.

With a focus on performance, the HELLA Brake Rotor provides consistent braking power, enhancing vehicle control and safety. Its premium quality construction and advanced design features make it a critical component for maintaining optimal braking efficiency.

Features

• Premium Quality Brake Discs
• HELLA Brake Discs With Anti-Corrosion Coating For An Improved Appearance Or HC Brake Discs With High-Carbon Gray Cast Iron For A Higher Load Capacity
• Optimum Braking Performance In All Conditions
• Hella Brake Discs Far Exceed The Required Specifications Of The ECE R90 Directive

Specifications

• Manufacturer: Hella
• Manufacturer Part Number: 355122532
• Disc Type: Vented
• Quantity: Single
• Design: 1-Piece
• Finish: Zinc Plated
• Material: Cast Iron
• Hub Bore Size: 67 Millimeter
• Wheel Bolt Circle (IN): 6 X 4.41 Inch
• Wheel Bolt Circle (MM): 6 X 112 Millimeter
• Outer Diameter (IN): 11.81 Inch
• Outer Diameter (MM): 300 Millimeter
• Height (IN): 2.69 Inch
• Height (MM): 68.2 Millimeter
• Nominal Thickness (IN): 0.87 Inch
• Nominal Thickness (MM): 22 Millimeter

Compatibility / Fit

• 2015-2017 Mercedes-Benz CLS400
• 2006-2006 Mercedes-Benz CLS500
• 2007-2011 Mercedes-Benz CLS550
• 2006-2009 Mercedes-Benz E350
• 2013-2016 Mercedes-Benz E400
• 2003-2006 Mercedes-Benz E500
• 2007-2009 Mercedes-Benz E550
• 2013-2015 Mercedes-Benz GLK250
• 2010-2015 Mercedes-Benz GLK350
