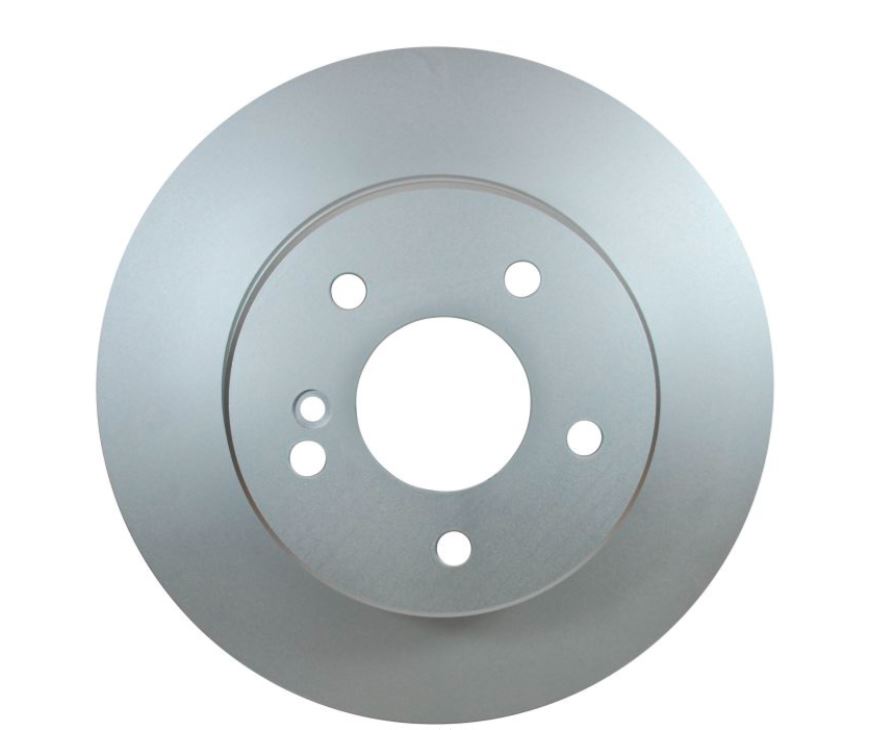

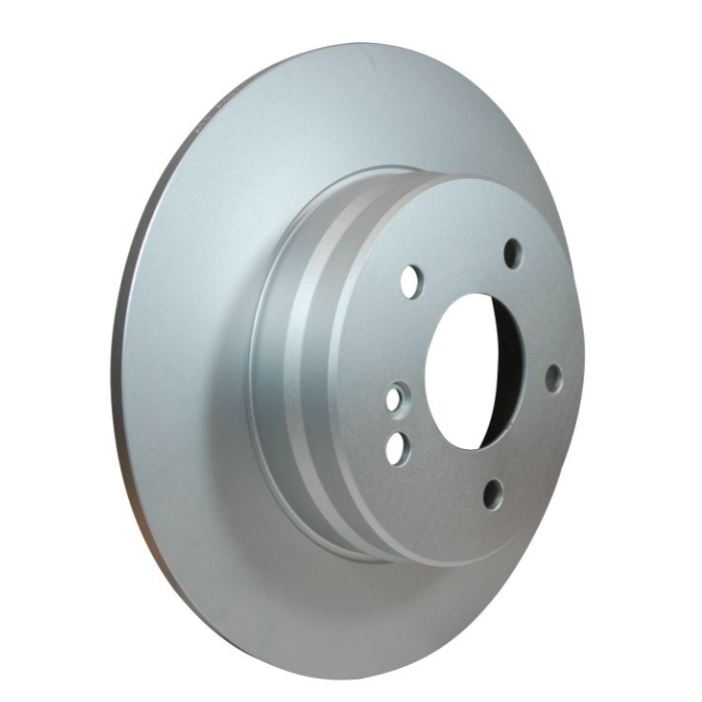

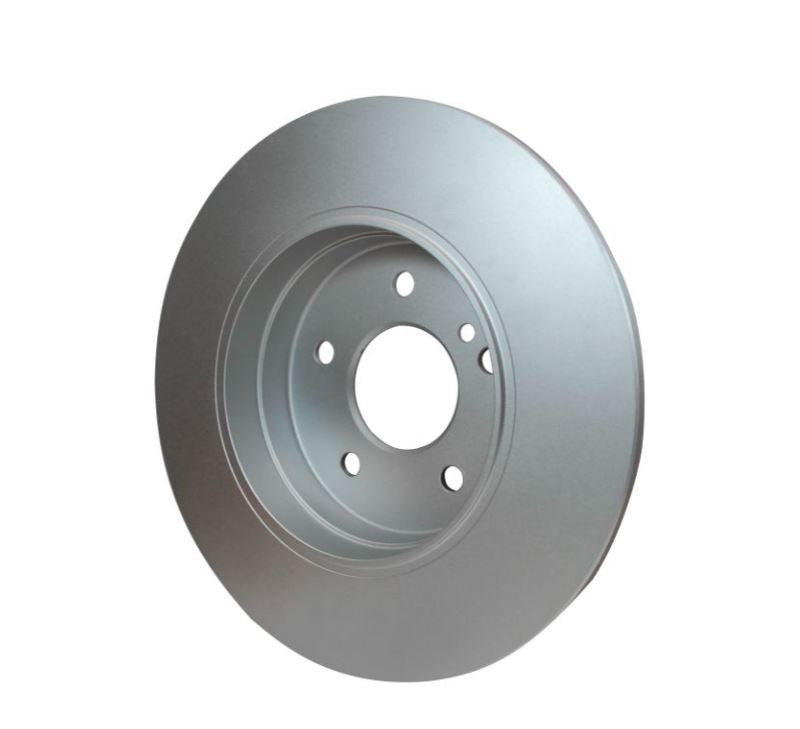

HELLA Brake Rotor (MPN: 355104322)

High-Performance Solid Brake Rotor for Reliable Stopping Power

The HELLA Brake Rotor is engineered for optimal braking performance, featuring a solid one-piece design that ensures durability and reliability. With a wheel bolt pattern of 6 x 112 millimeters and a hub size of 67 millimeters, this rotor is compatible with a wide range of vehicles, making it a versatile choice for automotive applications. The zinc-coated gray cast iron construction not only enhances the appearance but also provides anti-corrosion properties, ensuring longevity under various driving conditions.

Designed to meet and exceed the stringent specifications of the ECE R90 directive, the HELLA Brake Rotor undergoes rigorous testing to guarantee safety and performance. Each rotor is subjected to comprehensive quality tests, including up to 300,000 kilometers of road testing and 1,000 hours of bench tests, ensuring that it meets the high standards set by vehicle and brake manufacturers. This commitment to quality translates into optimum braking performance, providing drivers with confidence in their vehicle's stopping capabilities.

With dimensions of 55.40 millimeters in height, 290 millimeters in outside diameter, and a nominal thickness of 10 millimeters, this brake rotor is designed for effective heat dissipation and consistent braking response. The HELLA Brake Rotor is a single unit, making it easy to install and replace, ensuring that your vehicle maintains its braking efficiency.

Features

• Premium Quality Brake Discs
• HELLA Brake Discs With Anti-Corrosion Coating For An Improved Appearance Or HC Brake Discs With High-Carbon Gray Cast Iron For A Higher Load Capacity
• Optimum Braking Performance In All Conditions
• Hella Brake Discs Far Exceed The Required Specifications Of The ECE R90 Directive

Specifications

• Manufacturer: Hella
• Manufacturer Part Number: 355104322
• Disc Type: Solid
• Quantity: Single
• Design: 1-Piece
• Finish: Zinc Plated
• Material: Cast Iron
• Hub Bore Size: 67 Millimeter
• Wheel Bolt Circle (IN): 6 X 4.41 Inch
• Wheel Bolt Circle (MM): 6 X 112 Millimeter
• Outer Diameter (IN): 11.72 Inch
• Outer Diameter (MM): 290 Millimeter
• Height (IN): 2.18 Inch
• Height (MM): 55.40 Millimeter
• Nominal Thickness (IN): 0.39 Inch
• Nominal Thickness (MM): 10 Millimeter

Compatibility / Fit

• 1993-1993 Mercedes-Benz 300TE
• 2003-2007 Mercedes-Benz C230
• 2003-2005 Mercedes-Benz C240
• 2006-2007 Mercedes-Benz C280
• 2001-2005 Mercedes-Benz C320
• 2006-2007 Mercedes-Benz C350
• 1996-1997 Mercedes-Benz C36 AMG
• 1998-2005 Mercedes-Benz CLK320
• 2006-2009 Mercedes-Benz CLK350
• 1999-2003 Mercedes-Benz CLK430
• 1998-1999 Mercedes-Benz E300
• 1995-2002 Mercedes-Benz E320
• 1997-1997 Mercedes-Benz E420
• 1998-2002 Mercedes-Benz E430
• 2006-2008 Mercedes-Benz SLK280
• 2009-2011 Mercedes-Benz SLK300
• 2005-2011 Mercedes-Benz SLK350
