High-performance LED tail light with robust features for vehicle safety.

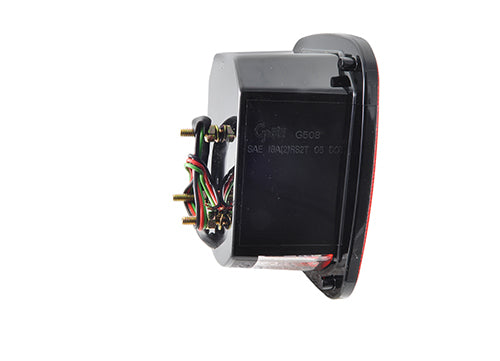

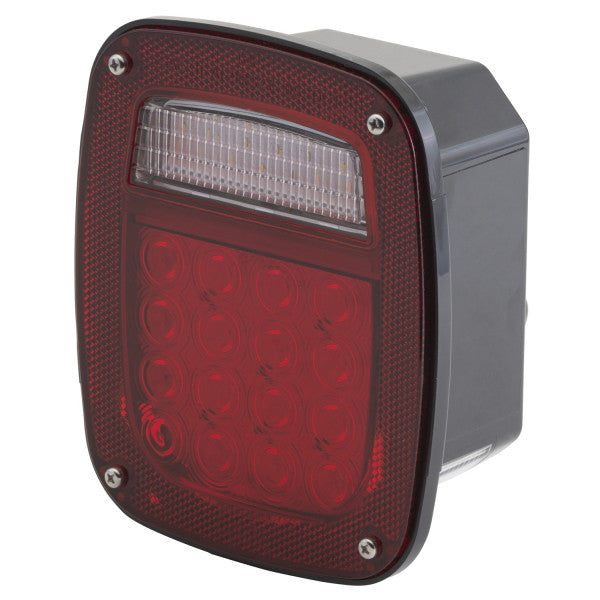

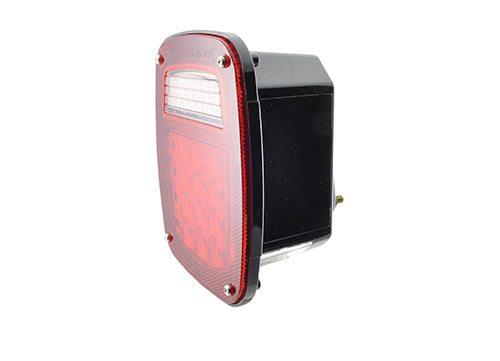

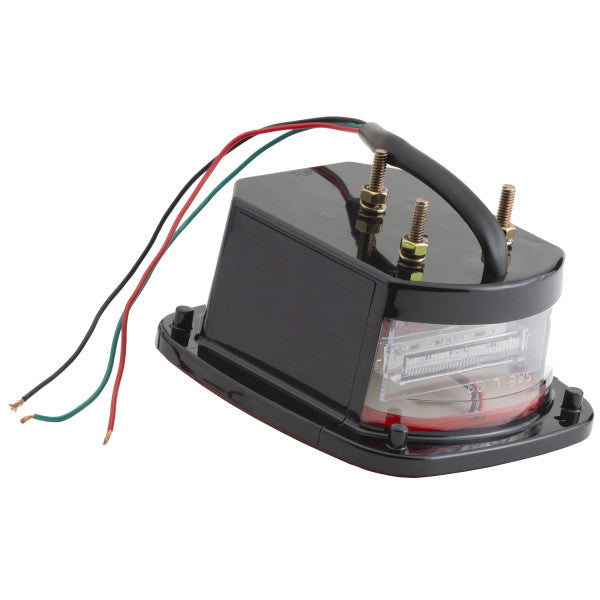

The Grote Tail Light Assembly is designed to enhance vehicle safety with its advanced LED technology. This assembly features a durable black housing and a red lens, ensuring high visibility and compliance with FMVSS 108 regulations. The gasket between the lens and housing protects against moisture intrusion, while the potted circuit board safeguards against vibration and corrosion, making it suitable for various vehicle applications.
This tail light assembly includes a 3 stud mounting design that incorporates a ground function and comes with a reflex reflector for added safety. The side marker version is equipped with multiple diodes for stop, tail, turn, and backup functions, ensuring optimal performance. Installation is straightforward, with all necessary mounting hardware and instructions included, allowing for easy retrofit on a variety of vehicles.
Grote Industries is recognized for its commitment to quality and safety in vehicle lighting solutions. This tail light assembly is an excellent choice for original equipment manufacturers and the aftermarket, providing reliable performance for semi tractors, trailers, buses, and more. With a length of 6-3/4 inches and a width of 5-3/4 inches, this assembly is designed to fit seamlessly into existing vehicle configurations.
Features
- All Functions Utilize LED Technology
- Gasket Between Lens And Housing Protects Against Moisture Intrusion
- Potted Circuit Board Protects Against Vibration And Corrosion
- Side Marker Version Features Circuit Board Protection That Is Compatible With The Existing Flasher Technology
- 3 Stud Mounting Design Incorporates Ground Function. Includes Reflex Reflector
- Side Marker Version Has 16 Stop/Tail/Turn Diodes, 22 Backup Diodes, 4 License Diodes And 2 Side Marker Diodes. Standard Version Has 16 Stop/Tail/Turn Diodes, 22 Backup Diodes And 4 License Diodes
- Mounting Hardware And Instructions Included For Easy Installation/Retrofit
Specifications
- Manufacturer: Grote Industries
- Manufacturer Part Number: G5092-5
- Bulb Type: LED
- Shape: Rectangular
- Diameter: Not Applicable

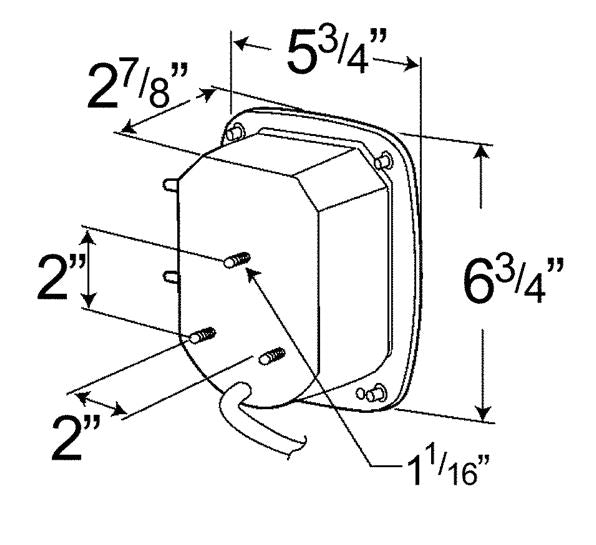

- Length And Width: 6-3/4 Inch Length X 5-3/4 Inch Width
- Depth: 2-7/8 Inch
- Lens Color: Clear/ Red
- Bulb Color: White
- Mounting Type: Screw-On Mount
- Connection Type: Hardwired
- Regulations: FMVSS 108
- Function: Stop Tail Turn
- Housing Color: Black
- Quantity: Single
- Estimated Install Time (Hours): 1.5
Compatibility / Fit
- 1959-1983 Jeep CJ5
- 1966-1968 Jeep CJ5A
- 1959-1975 Jeep CJ6
- 1966-1968 Jeep CJ6A
- 1976-1986 Jeep CJ7
- 1981-1985 Jeep Scrambler
- 1997-2006 Jeep Wrangler TJ
- 1987-1995 Jeep Wrangler YJ
Technical Documents
