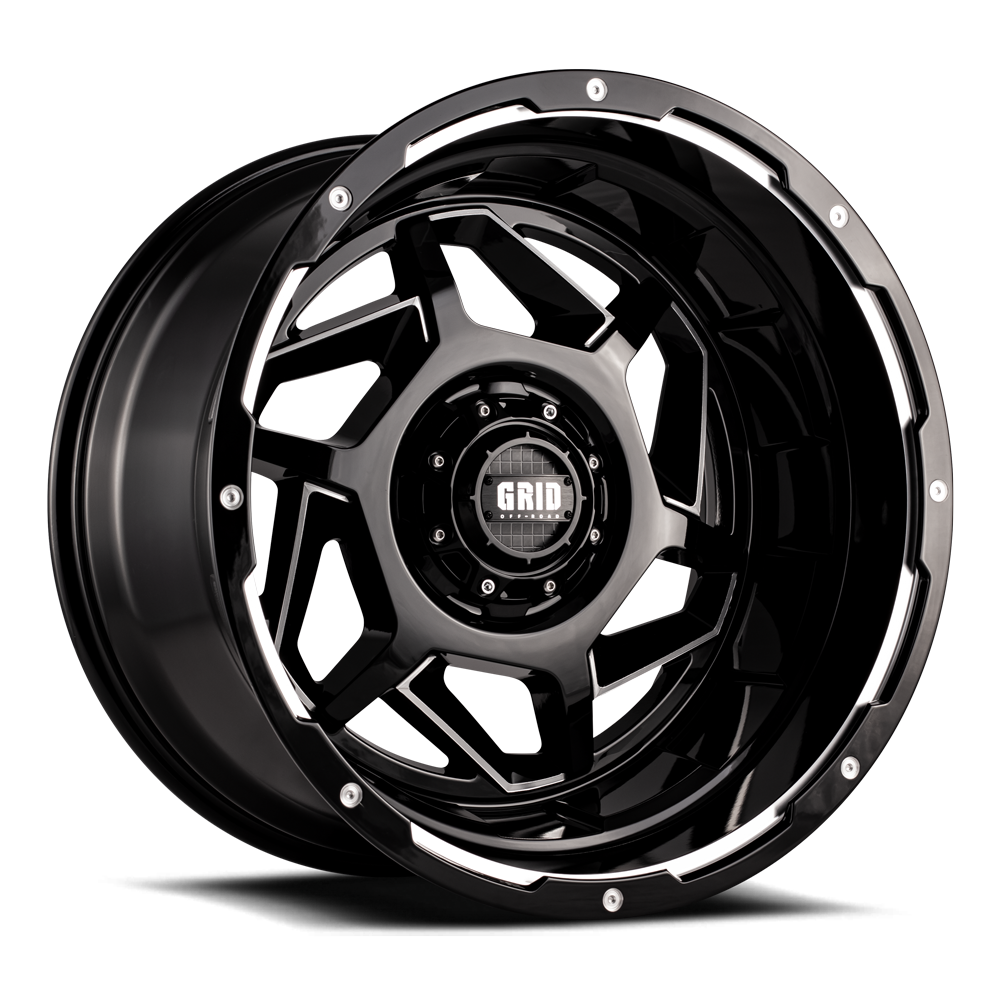

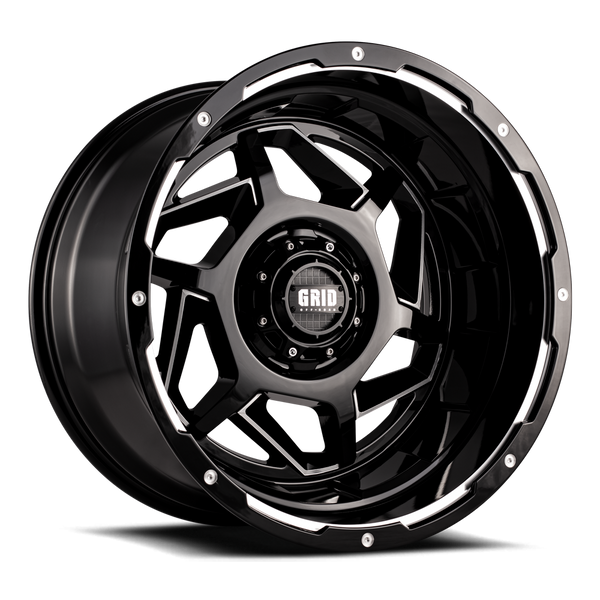

Grid Wheels GD14 22 Inch Wheel (MPN: GD1422120052M487)

Durable cast aluminum wheel with sleek design and high load capacity.

The Grid Wheels GD14 is a robust 22 inch diameter wheel designed for 4x4 vehicles, featuring a 12 inch width and a striking gloss black finish with milled accents. Constructed from a single piece of cast aluminum, this wheel offers a high load capacity of 2600 pounds, making it suitable for various off-road applications. The wheel is compatible with Tire Pressure Monitoring Systems (TPMS) and features a 60 degree conical seat lug for secure fitment.

With a versatile bolt pattern accommodating 5 x 127 millimeter, 5 x 139.7 millimeter, and 5 x 5.00 inch configurations, the GD14 is designed to fit a wide range of truck models. The 4.77 inch backspacing and -44 millimeter offset enhance the wheel's stance, providing improved handling and aesthetics. Additionally, the 87.10 millimeter center bore ensures compatibility with various hub sizes, while the included Grid logo center cap adds a touch of style.

This wheel is engineered for performance and durability, making it an excellent choice for off-road enthusiasts looking to enhance their vehicle's appearance and capability. The GD14 is not just a cosmetic upgrade; it is a functional enhancement that supports larger tire sizes and higher lifts, catering to the diverse needs of modern 4x4 vehicles.

Features

• Gloss Black With Milled Accents
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Grid Logo Center Cap

Specifications

• Manufacturer: Grid Wheels
• Manufacturer Part Number: GD1422120052M487
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 22
• Width: 12
• Offset: -44
• Backspacing: 4.77
• Finish: Painted Gloss With Milled Accents
• Color: Black With Natural Accents
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: 5x5.50
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: 5x139.7
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 87.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 6 Split Spoke
• With Inserts: No
• Load Capacity: 2600
• Size: 22x12
• Max Tire Diameter: 40
• Center Cap Design: Grid Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
• 2011-2018 Ram 1500
• 2024-2024 Ram 1500 Classic
• 2019-2023 Ram 1500 Classic- Old Model
