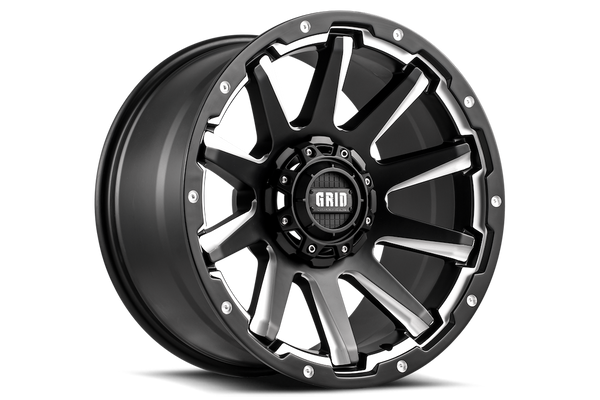

Grid Wheels GD05 20 Inch Wheel (MPN: GD0520100052F287)

Durable cast aluminum wheel with stylish matte black finish.

The Grid Wheels GD05 is a robust 20 inch wheel designed for 4x4 vehicles, featuring a 10 inch width and a striking matte black finish with milled accents. Constructed from a single piece of cast aluminum, this wheel offers a load capacity of 2600 pounds, making it suitable for various off-road applications. The GD05 is compatible with Tire Pressure Monitoring Systems (TPMS) and includes a Grid logo center cap, ensuring both functionality and style.

With a bolt pattern accommodating multiple configurations, including 5 x 127 millimeter and 5 x 139.7 millimeter, this wheel is versatile for different truck models. The -25 millimeter offset and 4.50 inch backspacing provide a custom fit, enhancing the vehicle's stance and performance. Designed for maximum tire diameter of 42 inches, the GD05 is ideal for enthusiasts looking to upgrade their rig's appearance and capability.

Whether navigating dirt trails or rocky terrains, the Grid Wheels GD05 combines aesthetic appeal with practical features, making it a valuable addition to any off-road vehicle. The 60 degree conical seat lug nut design ensures secure installation, while the lifetime structural warranty offers peace of mind for long-term use.

Features

• Matte Black With Milled Accents Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Grid Logo Center Cap
• Vehicle Specific Bolt Pattern And Center Bore
• Custom Backspacing/Offset

Specifications

• Manufacturer: Grid Wheels
• Manufacturer Part Number: GD0520100052F287
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 10
• Offset: -25
• Backspacing: 4.50
• Finish: Painted Matte With Milled Accents
• Color: Black With Natural Accents
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: 5x5.50
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: 5x139.7
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 87.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 10 Spoke
• With Inserts: No
• Load Capacity: 2600
• Size: 20x10
• Max Tire Diameter: 42
• Center Cap Design: Grid Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1988-1999 Chevrolet C1500
• 1994-1996 Chevrolet Impala
• 1989-1991 Chevrolet V1500 Suburban
• 1987-1996 Ford Bronco
• 1980-1983 Ford F-100
• 1980-1994 Ford F-150
• 1979-1986 GMC C1500 Suburban
• 1987-1987 GMC R1500
• 1987-1991 GMC R1500 Suburban
• 2020-2025 Jeep Gladiator JT
• 2007-2017 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
• 2024-2024 Ram 1500 Classic
• 2019-2023 Ram 1500 Classic- Old Model
