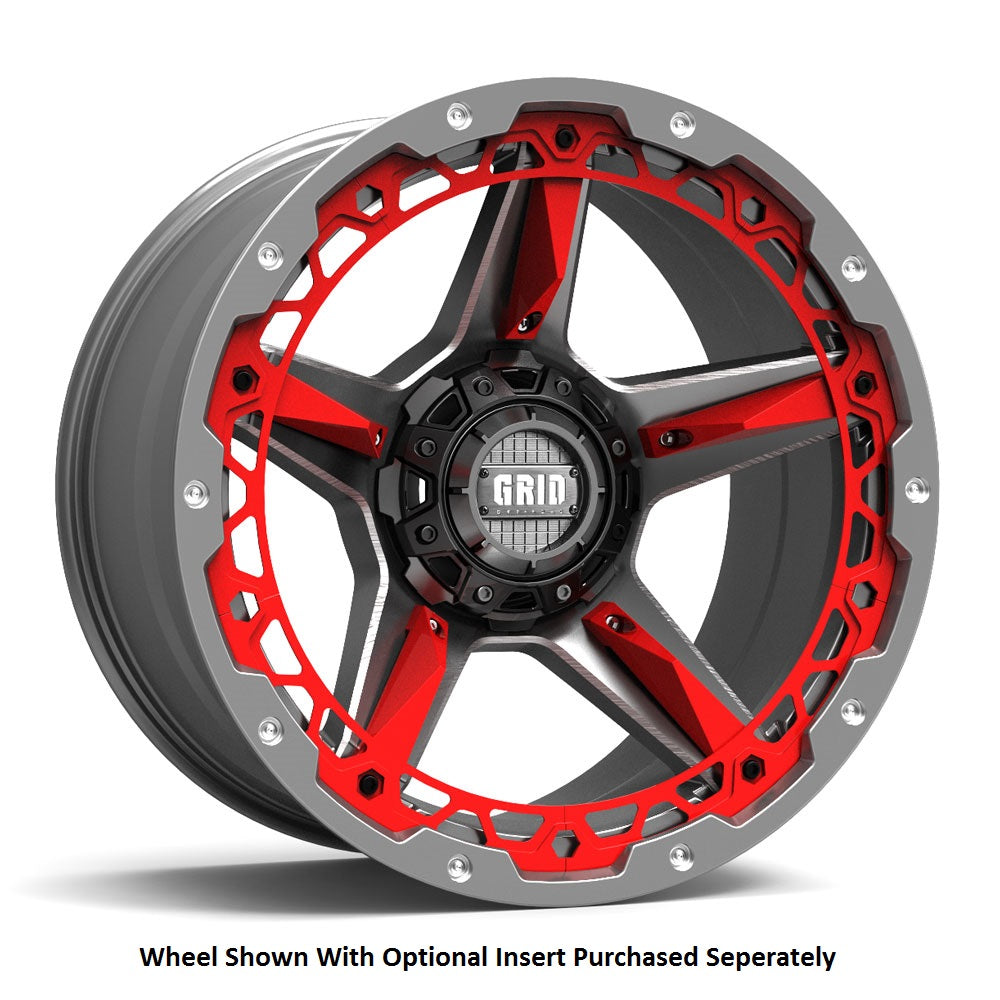

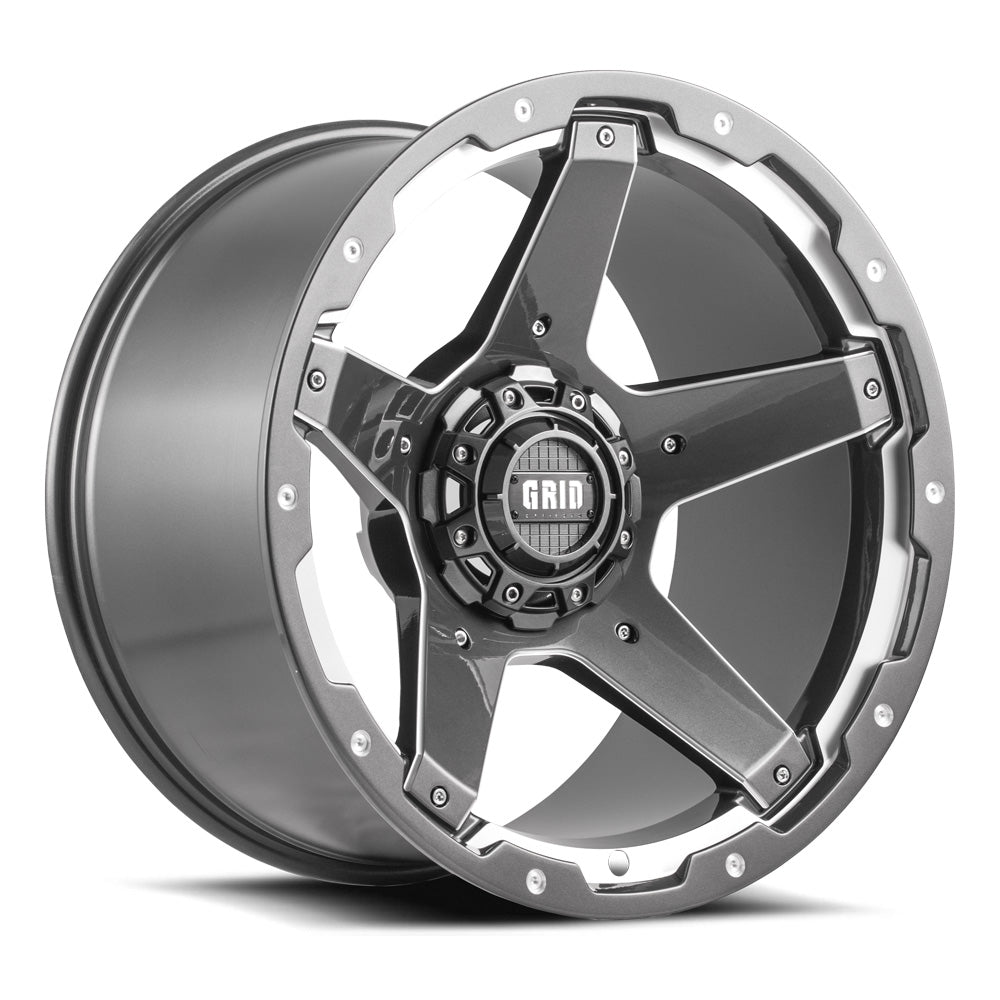

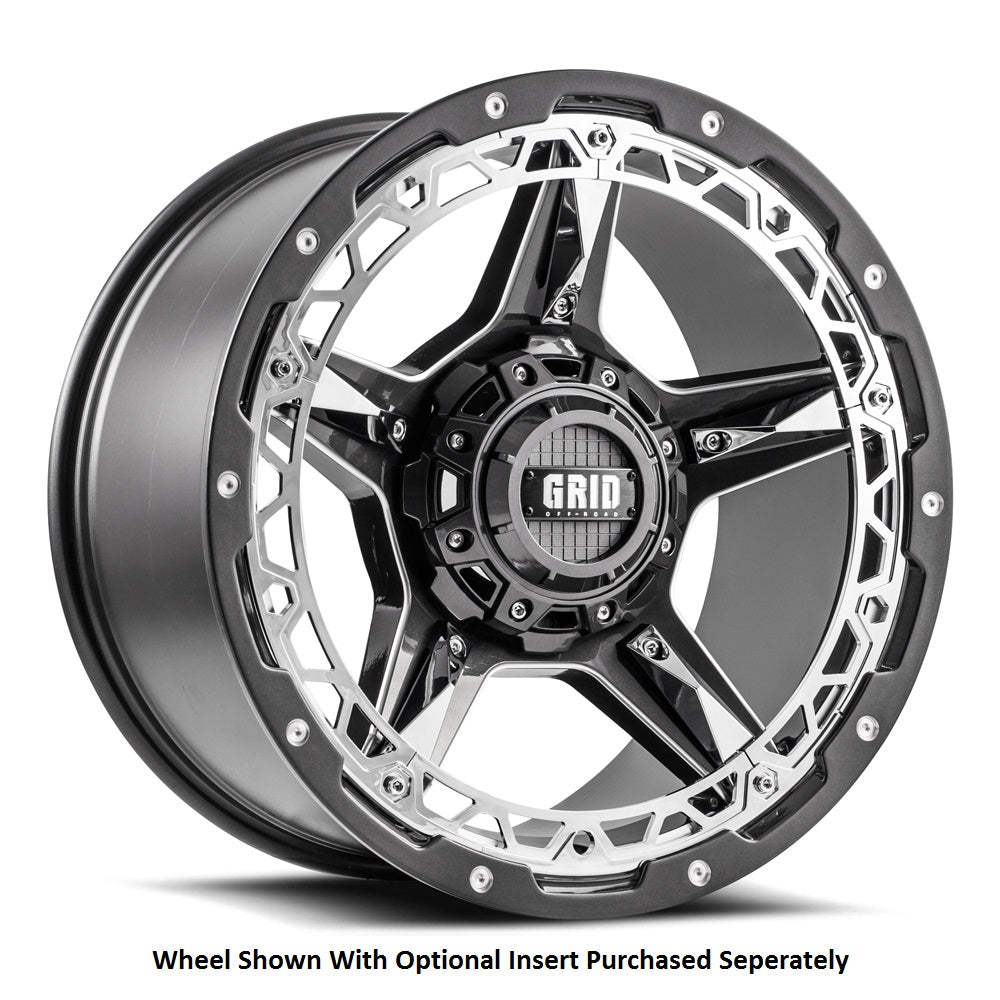

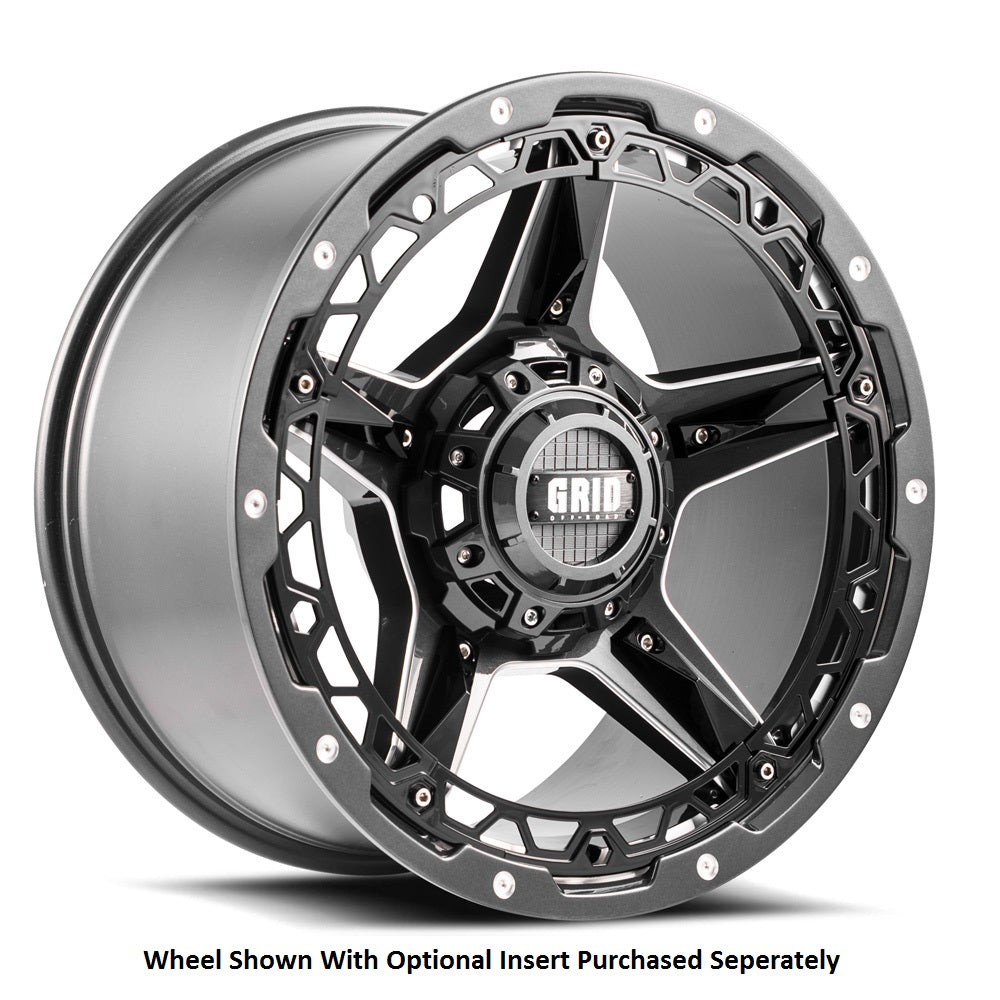

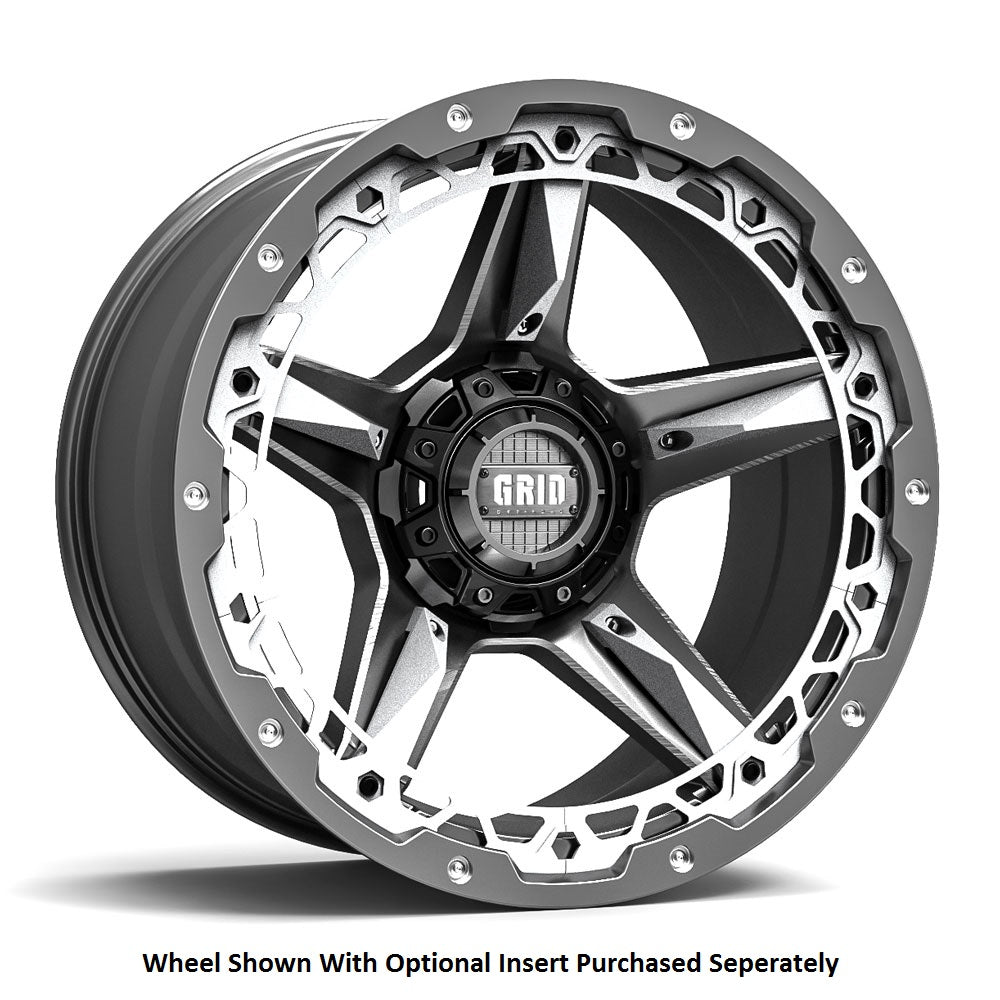

Grid Wheels GD04 17 Inch Wheel (MPN: GD0417090535G1587)

Durable cast aluminum wheel with stylish graphite finish and high load capacity.

The Grid Wheels GD04 is a robust 17 inch wheel designed for 4x4 vehicles, featuring a 9 inch width and a 5 x 135 millimeter bolt pattern. Constructed from a single piece of cast aluminum, this wheel offers a load capacity of 2600 pounds, making it suitable for various off-road applications. The gloss graphite finish with milled accents not only enhances the aesthetic appeal but also provides durability against the elements. With a 15 millimeter offset and 5.60 inch backspacing, this wheel is engineered for optimal fitment on a wide range of trucks and SUVs.

This wheel is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring that tire pressure is monitored effectively for safety and performance. The 60 degree conical seat lug nut design allows for secure installation, while the included Grid logo center cap adds a touch of branding. The GD04 wheel is designed to accommodate a maximum tire diameter of 40 inches, making it versatile for various tire sizes. Whether for aesthetic upgrades or functional enhancements, the Grid Wheels GD04 is a reliable choice for off-road enthusiasts.

Features

• Gloss Graphite With Milled Accent Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• Grid Logo Center Cap
• Vehicle Specific Bolt Pattern And Center Bore
• Custom Backspacing/Offset

Specifications

• Manufacturer: Grid Wheels
• Manufacturer Part Number: GD0417090535G1587
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 9
• Offset: 15
• Backspacing: 5.60
• Finish: Painted Gloss With Milled Accents
• Color: Black With Natural Accents
• Material: Aluminum
• Bolt Pattern Inch: 5x5.31
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x135
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 87.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Spoke
• With Inserts: No
• Load Capacity: 2600
• Size: 17x9
• Max Tire Diameter: 40
• Center Cap Design: Grid Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1997-2002 Ford Expedition
• 1997-2003 Ford F-150
• 2004-2004 Ford F-150 Heritage
• 1998-2002 Lincoln Navigator
