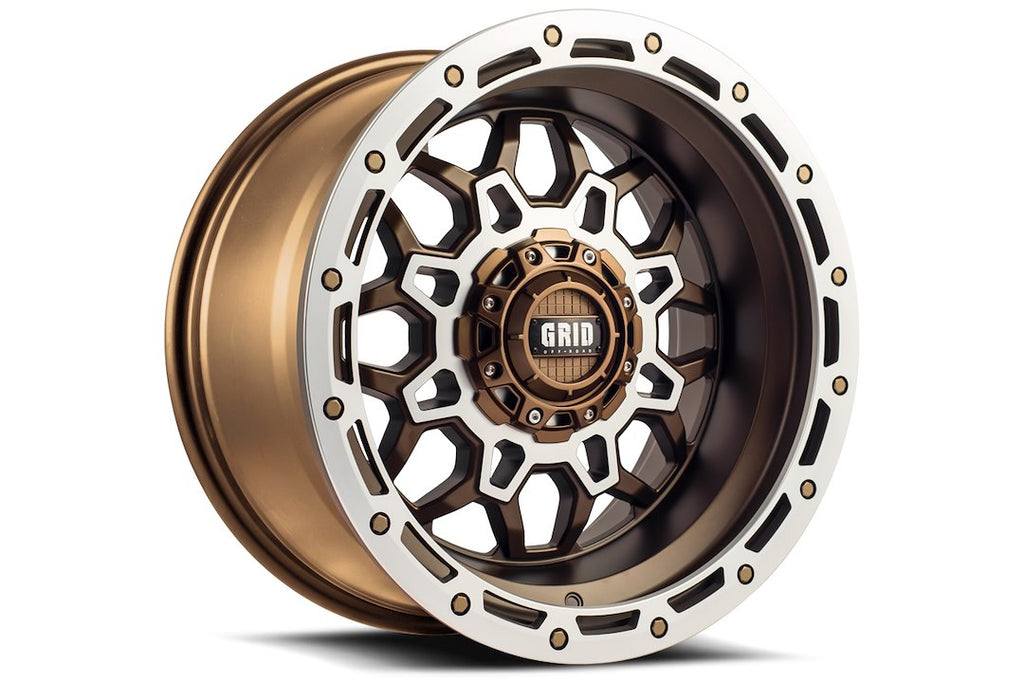

Grid Off-Road Wheel (MPN: GD0920100527Z178)

Durable 20 Inch Wheel for Off-Road Adventures

The Grid Off-Road Wheel is engineered for strength and durability, making it suitable for various terrains and driving conditions. With a diameter of 20 inches and a width of 10 inches, this wheel features a robust 1 piece cast aluminum construction that ensures longevity and performance. The matte bronze finish with milled accents not only enhances its aesthetic appeal but also provides resistance against wear and tear.

Designed with a 5 x 127 millimeter bolt pattern and a 60 degree conical seat lug, this wheel is compatible with a range of vehicles. It boasts a load capacity of 3640 pounds, making it capable of handling heavy loads while maintaining stability. The wheel also includes a Grid logo center cap and is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring that you can monitor tire health effectively.

With a -12 millimeter offset and 5.03 inches of backspacing, the Grid Off-Road Wheel is optimized for performance, allowing for better handling and control on rugged terrains. The maximum tire diameter of 42 inches provides versatility for various tire options, making it a practical choice for off-road enthusiasts and daily drivers alike.

Features

• Matte Bronze With Milled Accents
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Grid Logo Center Cap
• Vehicle Specific Bolt Pattern And Center Bore

Specifications

• Manufacturer: Grid Wheels
• Manufacturer Part Number: GD0920100527Z178
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 10
• Offset: -12
• Backspacing: 5.03
• Finish: Painted Matte With Milled Accents
• Color: Bronze With Natural Accents
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 78.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Double Spoke
• With Inserts: No
• Load Capacity: 3640
• Size: 20x10
• Max Tire Diameter: 42
• Center Cap Design: Grid Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1967-1974 Chevrolet C10 Pickup
• 1988-1999 Chevrolet C1500
• 1971-1975 Chevrolet Impala
• 1989-1991 Chevrolet V1500 Suburban
• 1975-1978 GMC C15
• 1980-1986 GMC C1500
• 1988-1998 GMC C1500
• 1979-1986 GMC C1500 Suburban
• 1987-1987 GMC R1500
• 1987-1991 GMC R1500 Suburban
• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
• 1975-1976 Lincoln Continental
• 1975-1976 Lincoln Mark IV
• 1977-1978 Lincoln Mark V
• 1977-1980 Lincoln Versailles
