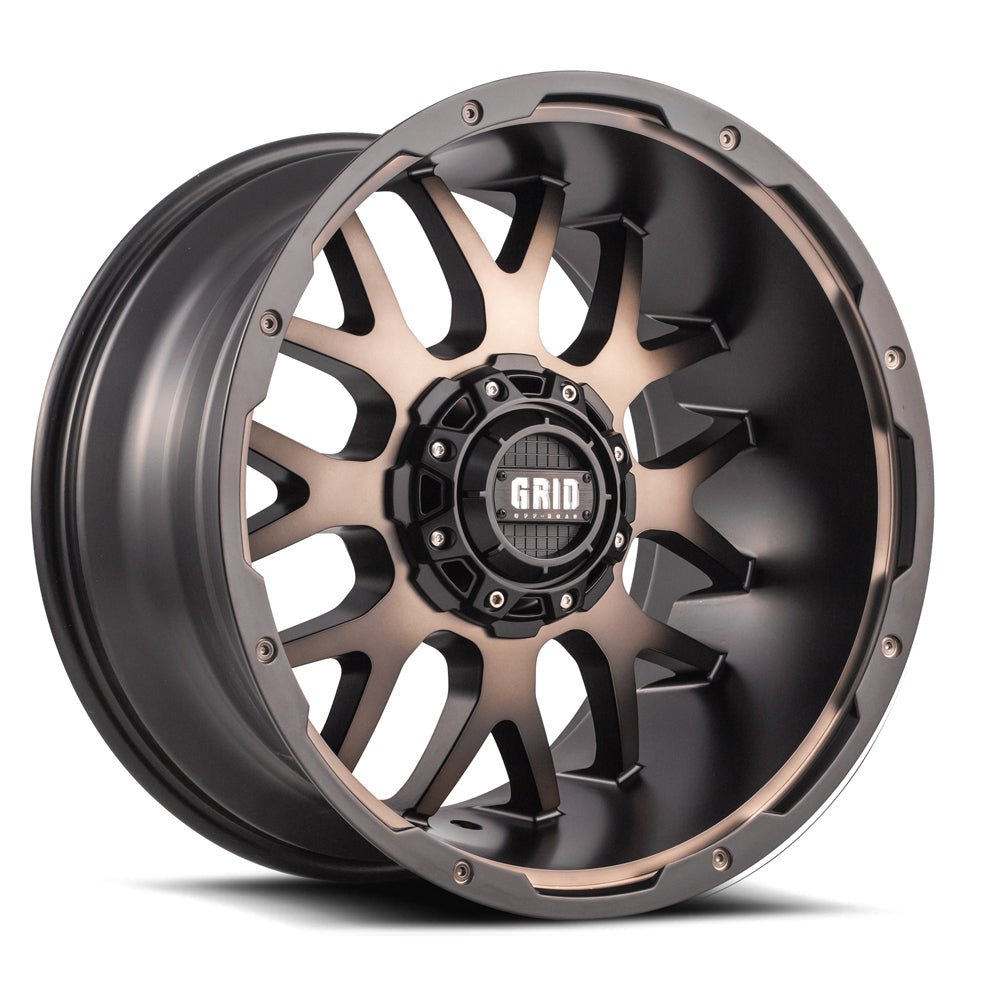

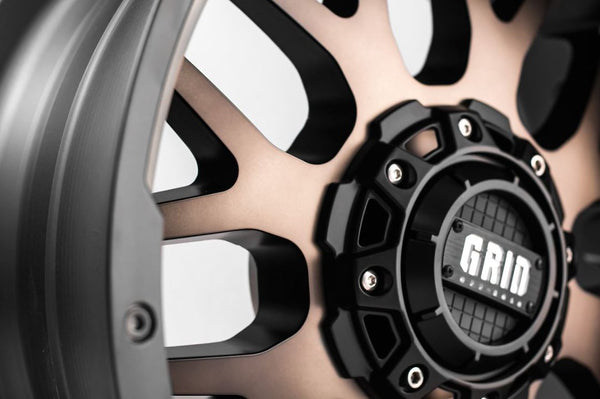

Grid Off-Road Wheel (MPN: GD0220090052D0087)

Durable 20 Inch Wheel for Off-Road Adventures

The Grid Off-Road Wheel is engineered for strength and durability, making it suitable for various terrains and driving conditions. With a diameter of 20 inches and a width of 9 inches, this wheel features a robust one-piece cast aluminum construction that can support a load capacity of 2600 pounds. The matte black finish with a metallic dust face not only enhances its aesthetic appeal but also provides resistance against wear and tear.

Designed with versatility in mind, the wheel accommodates multiple bolt patterns including 5 x 127 millimeter and 5 x 139.7 millimeter, ensuring compatibility with a wide range of vehicles. The 60-degree conical seat lug nut design and 87.10 millimeter center bore facilitate secure installation, while the custom backspacing and offset allow for optimal fitment.

Additionally, the Grid Off-Road Wheel is compatible with Tire Pressure Monitoring Systems (TPMS), providing real-time tire pressure information for enhanced safety. The 8 split spoke design not only contributes to its lightweight structure but also adds a modern touch to your vehicle's appearance. With a maximum tire diameter of 40 inches, this wheel is ready to tackle any off-road challenge.

Features

• Matte Black With Metallic Dust Face Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Grid Logo Center Cap
• Vehicle Specific Bolt Pattern And Center Bore
• Custom Backspacing/Offset

Specifications

• Manufacturer: Grid Wheels
• Manufacturer Part Number: GD0220090052D0087
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 9
• Offset: 0
• Backspacing: 5.00
• Finish: Painted Matte
• Color: Black With Metallic Dust Face
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: 5x5.50
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: 5x139.7
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 87.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Split Spoke
• With Inserts: No
• Load Capacity: 2600
• Size: 20x9
• Max Tire Diameter: 40
• Center Cap Design: Grid Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1978 Buick Electra
• 1959-1963 Buick Invicta
• 1965-1970 Buick Wildcat
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1970-1972 Chevrolet Brookwood
• 1967-1974 Chevrolet C10 Pickup
• 1970-1986 Chevrolet C10 Suburban
• 1988-1999 Chevrolet C1500
• 1992-1999 Chevrolet C1500 Suburban
• 1996-2002 Chevrolet Express 1500
• 1982-1984 Chevrolet G10
• 1986-1994 Chevrolet G10
• 1970-1974 Chevrolet G10 Van
• 1975-1995 Chevrolet G20
• 1970-1974 Chevrolet G20 Van
• 1971-1975 Chevrolet Impala
• 1994-1996 Chevrolet Impala
• 1982-1989 Chevrolet P20
• 1987-1987 Chevrolet R10
• 1987-1988 Chevrolet R10 Suburban
• 1989-1991 Chevrolet R1500 Suburban
• 1995-1999 Chevrolet Tahoe
• 1989-1991 Chevrolet V1500 Suburban
• 1975-1978 GMC C15
• 1979-1986 GMC C1500
• 1988-1998 GMC C1500
• 1979-1986 GMC C1500 Suburban
• 1987-1987 GMC R1500
• 1987-1991 GMC R1500 Suburban
• 1996-2002 GMC Savana 1500
• 1992-1999 GMC Yukon
• 2020-2025 Jeep Gladiator JT
• 2026-2026 Jeep Wrangler
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
• 1972-1976 Lincoln Continental
• 1979-1980 Lincoln Continental
• 1975-1976 Lincoln Mark IV
• 1977-1979 Lincoln Mark V
• 1977-1980 Lincoln Versailles
• 1967-1976 Pontiac Bonneville
• 1967-1970 Pontiac Catalina
