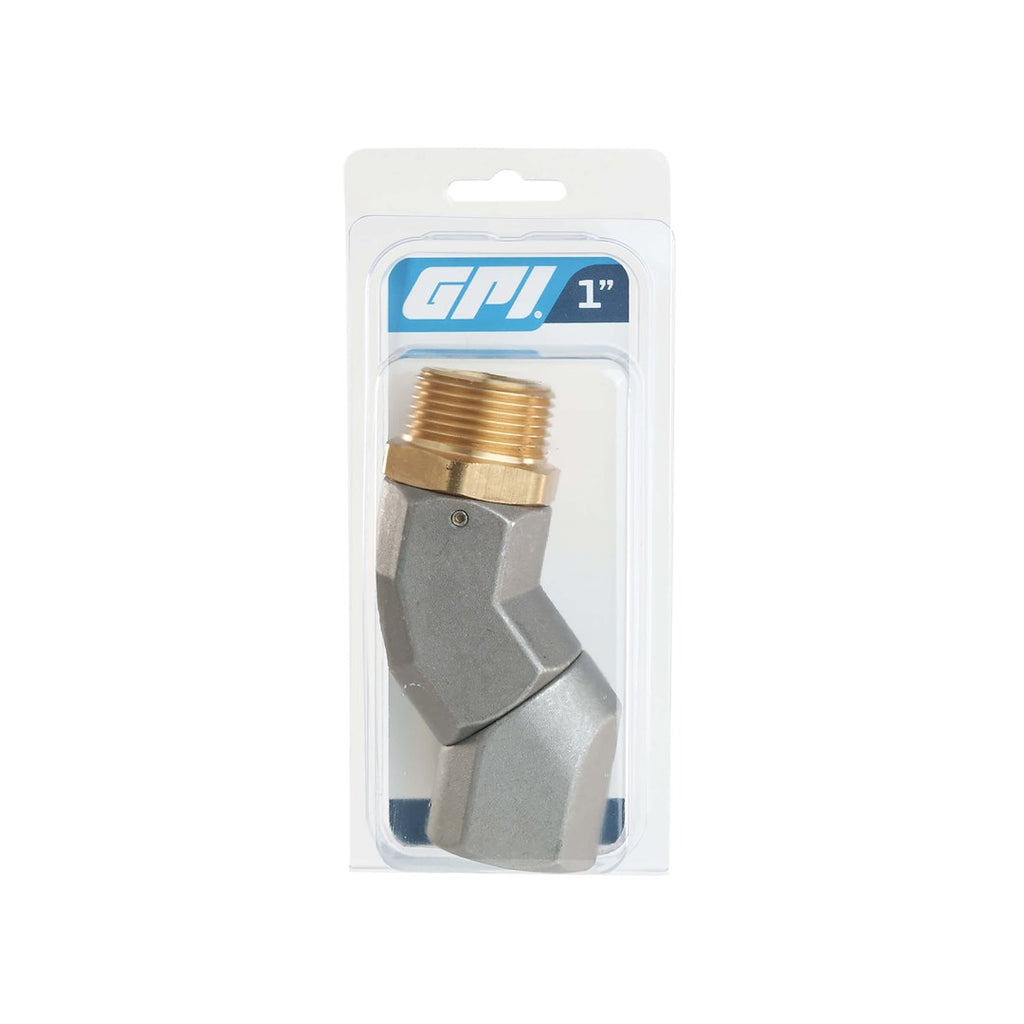

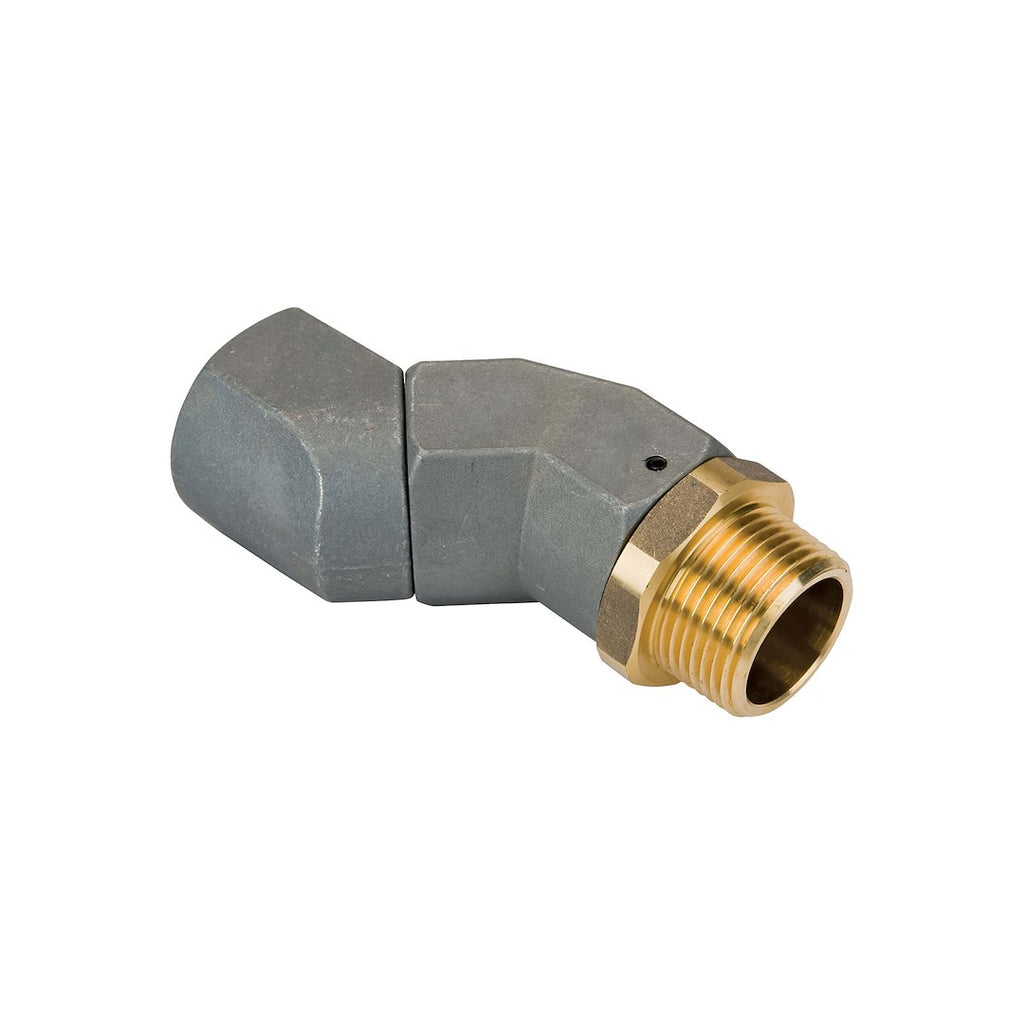

GPI Multi-Plane Hose Swivel (MPN: 150400-04)

Enhance fuel transfer efficiency with 360 degree flexibility and durability.

The GPI Multi-Plane Hose Swivel is engineered to facilitate seamless fuel transfer by connecting a fuel hose to a nozzle. This innovative design allows for 360 degree rotation, significantly reducing the risk of hose twisting and kinking during operation. Constructed from corrosion resistant aluminum alloy, this swivel fitting is built to withstand harsh conditions while maintaining high flow rates.

The lightweight nature of the GPI Multi-Plane Hose Swivel enhances maneuverability, allowing users to dispense fuel from virtually any angle. It features double fluorocarbon O-rings at each swivel, which prolong the life of the fitting and ensure reliable performance even in temperatures as low as -40 degrees Fahrenheit. This product is compatible with 1 inch hoses and nozzles, making it a versatile addition to any fuel transfer setup.

With its fully universal design, the GPI Multi-Plane Hose Swivel is suitable for a wide range of applications, providing flexibility and efficiency in fuel dispensing. The combination of high-quality materials and thoughtful engineering makes this swivel an essential component for effective liquid transfer.

Features

• Corrosion Resistant Aluminum Alloy Body
• Design Delivers High Flow Rate
• Multi-Plane Design Provides The Flexibility To Dispense Fuel From Virtually Any Direction
• Double Fluorocarbon O-Rings At Each Swivel Prolong Life And Ensure Performance Up To -40 Degree Fahrenheit

Specifications

• Manufacturer: GPI
• Manufacturer Part Number: 150400-04
• Type: Multi Plane
• End Size1: 1 Inch
• End Type1: Female Threads
• End Size2: 1 Inch
• End Type2: Male Threads
• Fitting Angle: 360 Degree
• Material: Aluminum
• Includes O-Ring: Yes
• Universality: Fully Universal
