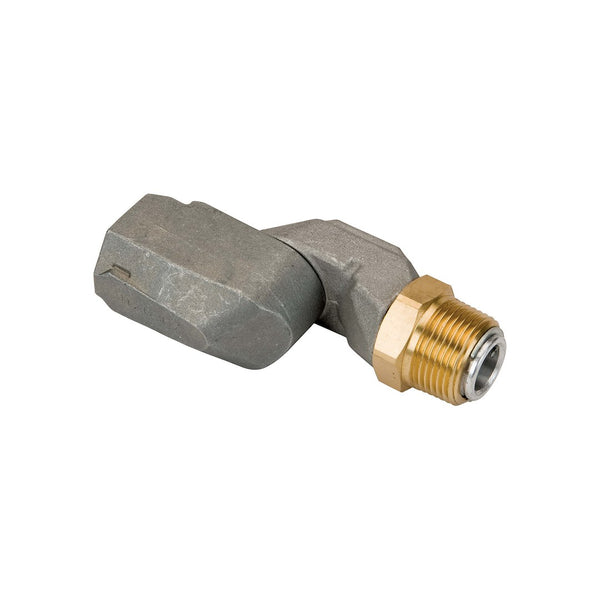

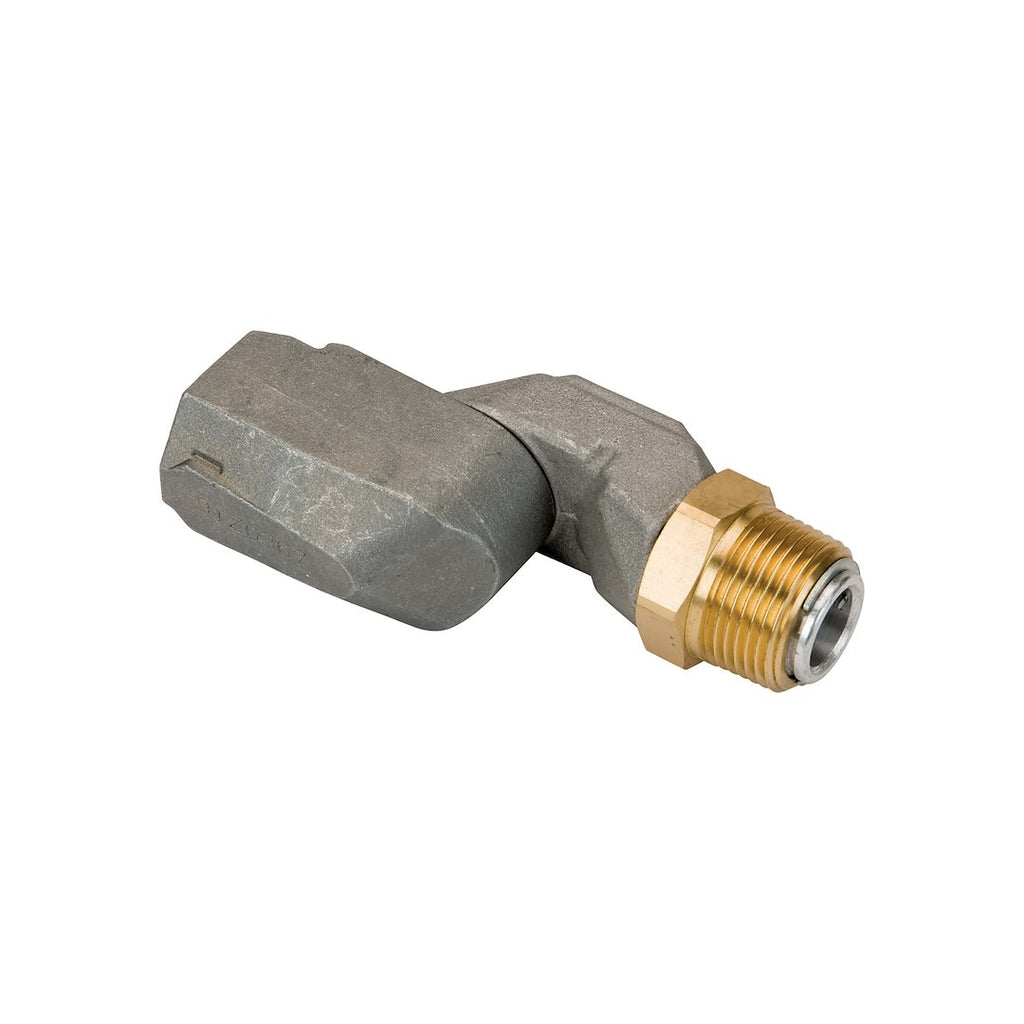

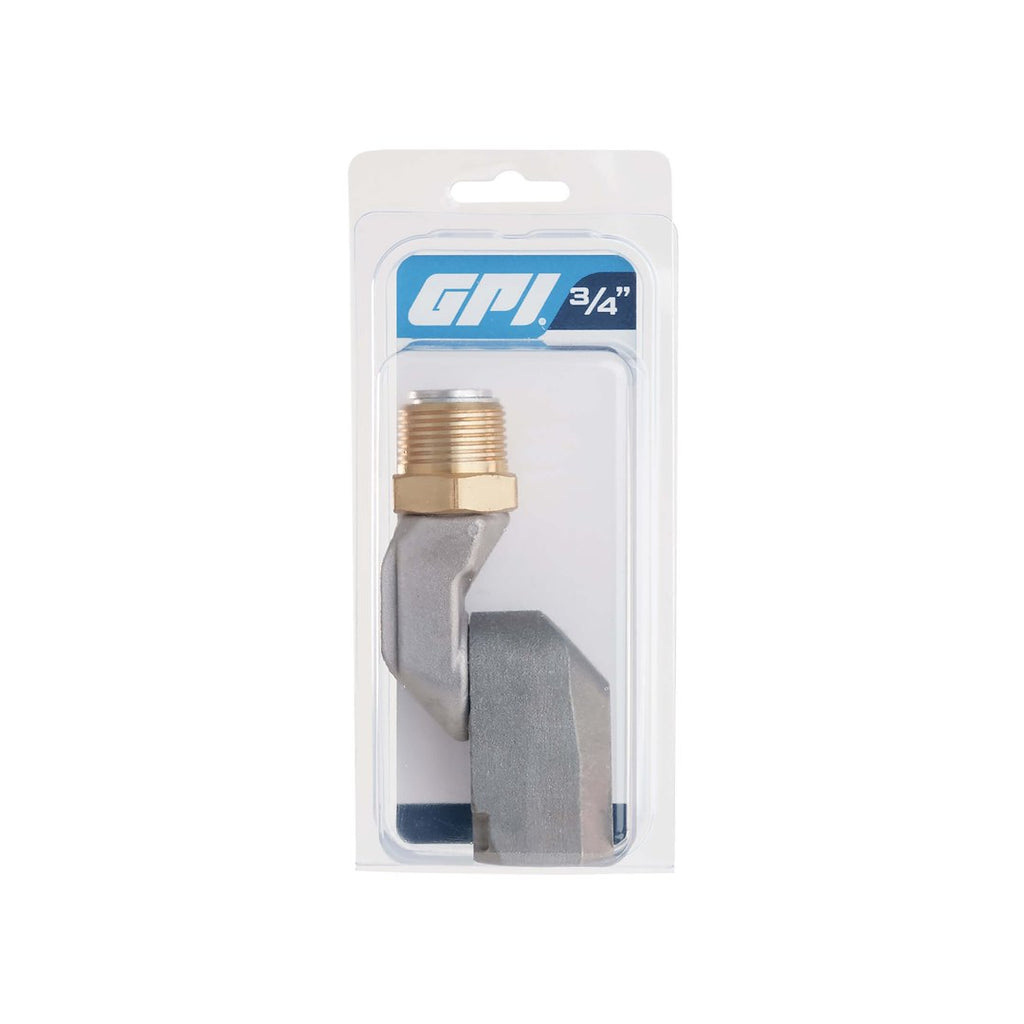

GPI Multi-Plane Hose Swivel (MPN: 150400-02)

Enhance fuel transfer efficiency with 360 degree flexibility.

The GPI Multi-Plane Hose Swivel is engineered to facilitate seamless fuel transfer by connecting a fuel hose to a nozzle. This innovative design allows for 360 degree rotation, significantly reducing the risk of hose twisting and kinking during operation. Constructed from a corrosion resistant aluminum alloy, this swivel fitting is built to withstand various fuel types including diesel, gasoline, and kerosene, ensuring versatility in application.

The laminar flow design of the GPI Multi-Plane Hose Swivel promotes a high flow rate, optimizing the dispensing process. With double fluorocarbon O-rings at each swivel, the product is designed for longevity and reliable performance even in extreme temperatures down to -40 degrees Fahrenheit. This feature enhances the overall durability and functionality of the fitting, making it a practical choice for various fueling needs.

Compatible with 3/4 inch hoses and nozzles, the GPI Multi-Plane Hose Swivel is fully universal, making it suitable for a wide range of fueling applications. Its lightweight construction and flexible design allow for easy maneuverability, enabling users to dispense fuel from virtually any angle or direction.

Features

• Corrosion Resistant Aluminum Alloy Body
• Laminar Flow Design Delivers High Flow Rate
• Multi-Plane Design Provides The Flexibility To Dispense Fuel From Virtually Any Direction
• Double Fluorocarbon O-Rings At Each Swivel Prolong Life And Ensure Performance Up To -40 Degree Fahrenheit

Specifications

• Manufacturer: GPI
• Manufacturer Part Number: 150400-02
• Type: Multi Plane
• End Size1: 3/4 Inch
• End Type1: Female Threads
• End Size2: 3/4 Inch
• End Type2: Male Threads
• Fitting Angle: 360 Degree
• Material: Aluminum
• Includes O-Ring: Yes
• Universality: Fully Universal
