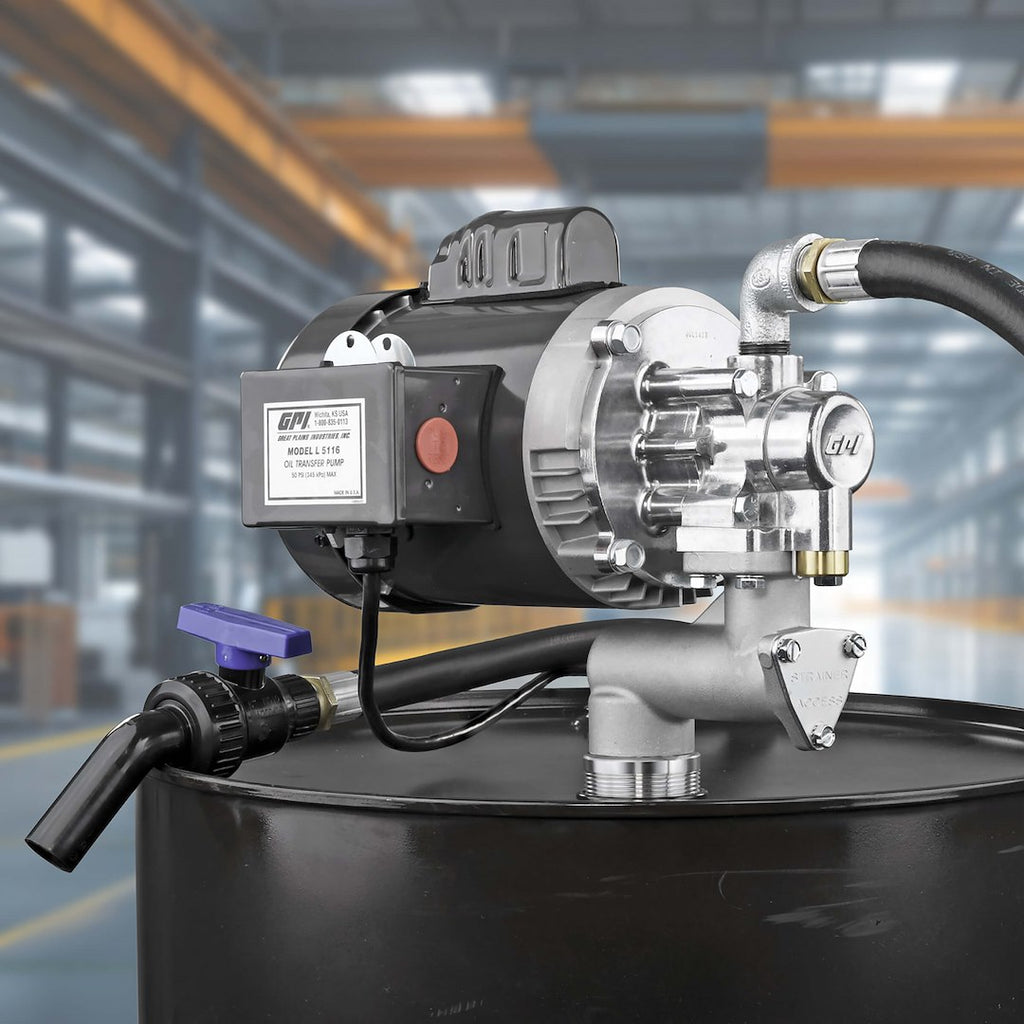

Efficient electric pump for high viscosity fluids and waste oil transfer.

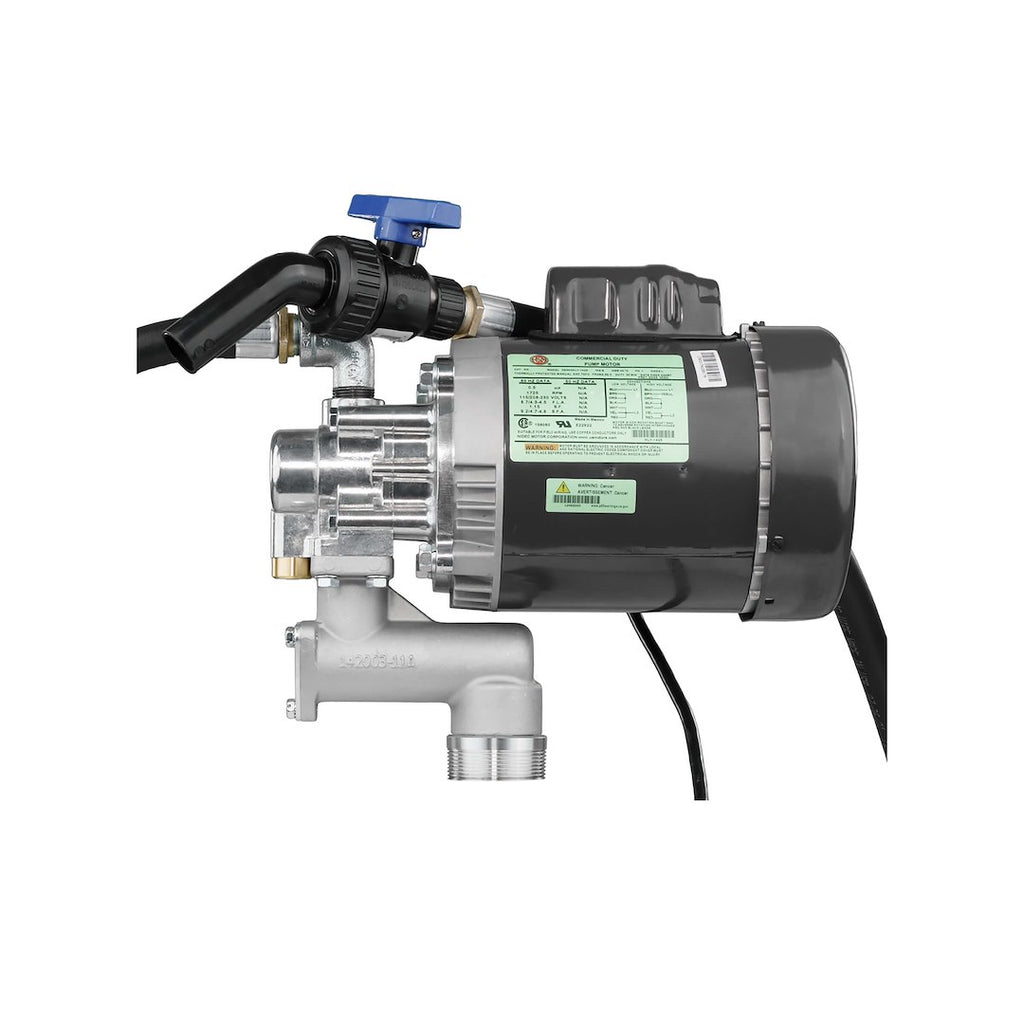

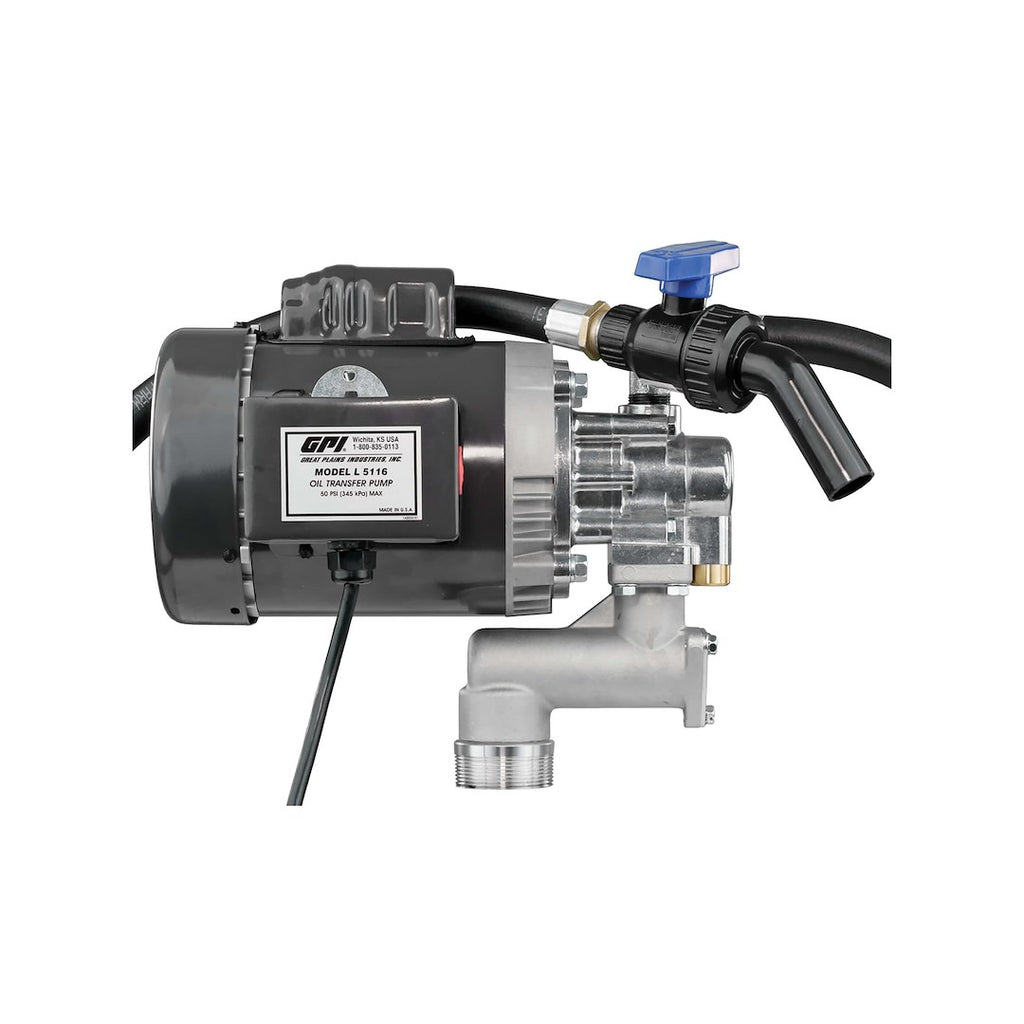

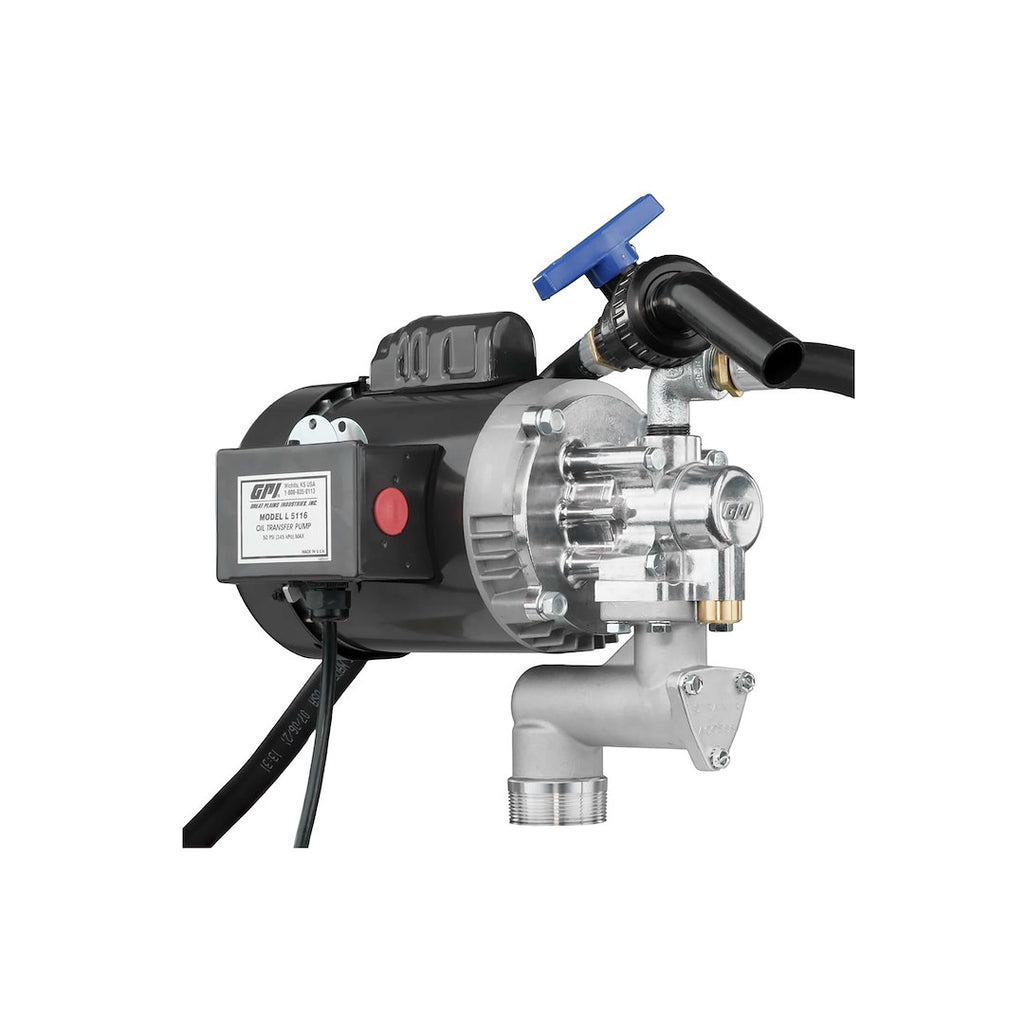

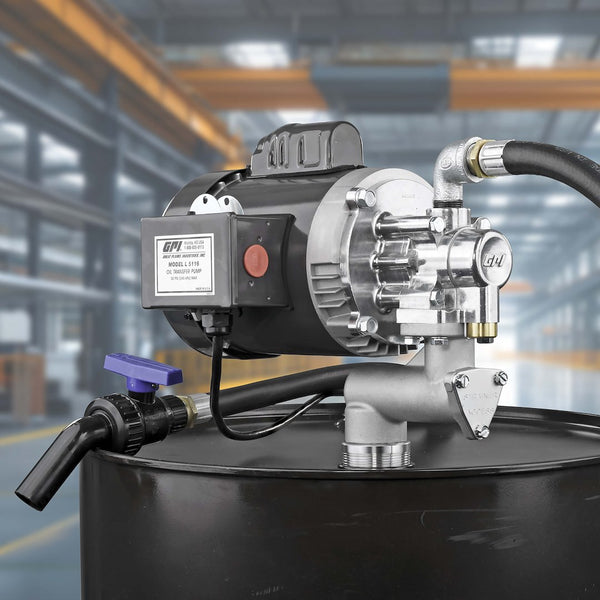

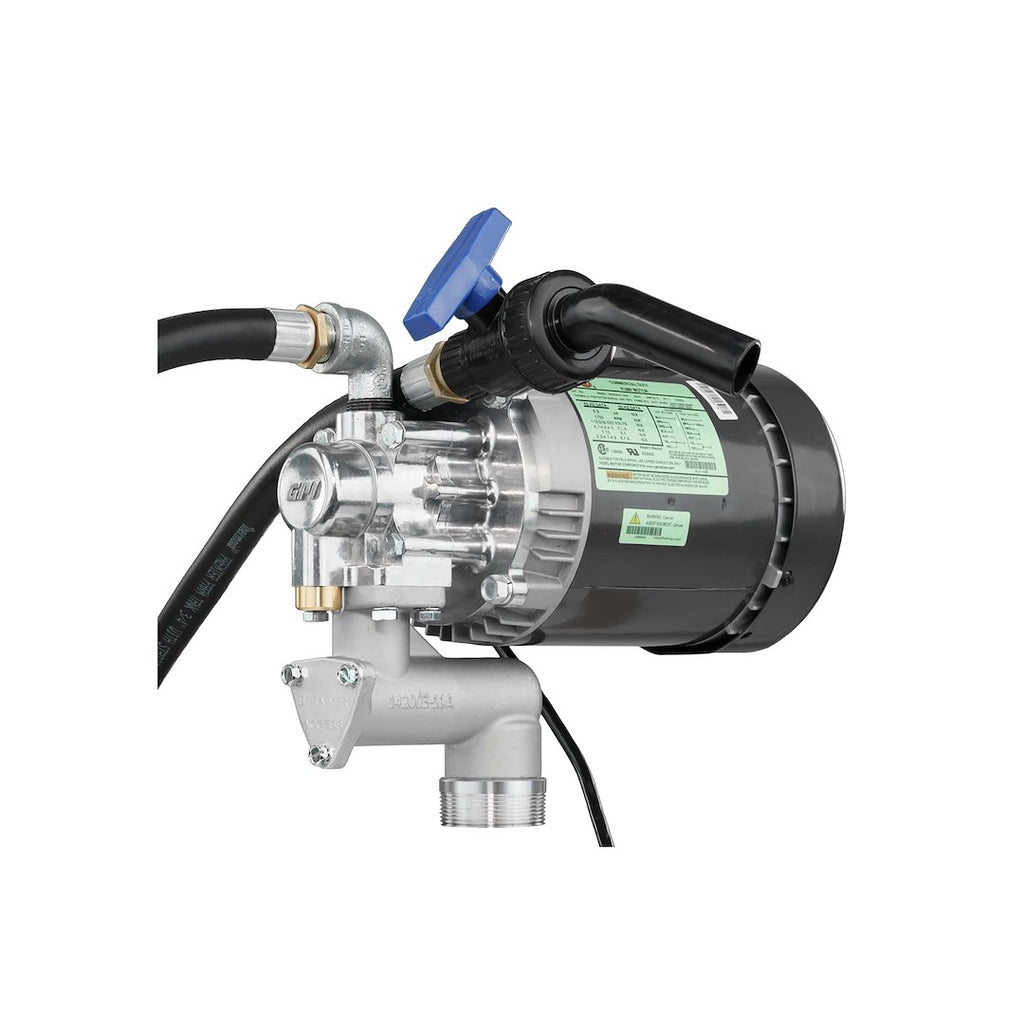

The GPI Liquid Transfer Tank Pump is engineered for the efficient transfer of high viscosity fluids including oil, waste oil, hydraulic fluid, antifreeze, and non-flammable oil-based solvents. With a robust 115-VAC motor, this pump delivers a flow rate of up to 4 gallons per minute, making it suitable for various applications requiring reliable liquid movement. The durable cast aluminum housing ensures longevity and minimal maintenance, while the thermal protection features extend the motor's operational life.
Designed with user convenience in mind, the pump includes an 8-foot hose, a ball valve nozzle, and an adjustable suction pipe that can be configured from 15 inches to 40 inches. The 1-inch inlet and 3/4-inch outlet sizes facilitate compatibility with a range of tanks and containers. Additionally, the pre-installed power cord simplifies setup, allowing for quick deployment in various environments.
This pump is UL recognized and CSA approved, ensuring compliance with safety standards. The weight centering inlet base reduces tank stress and includes a pressure relief valve for added safety. The GPI Liquid Transfer Tank Pump is a reliable solution for those needing to transfer viscous liquids efficiently and safely.

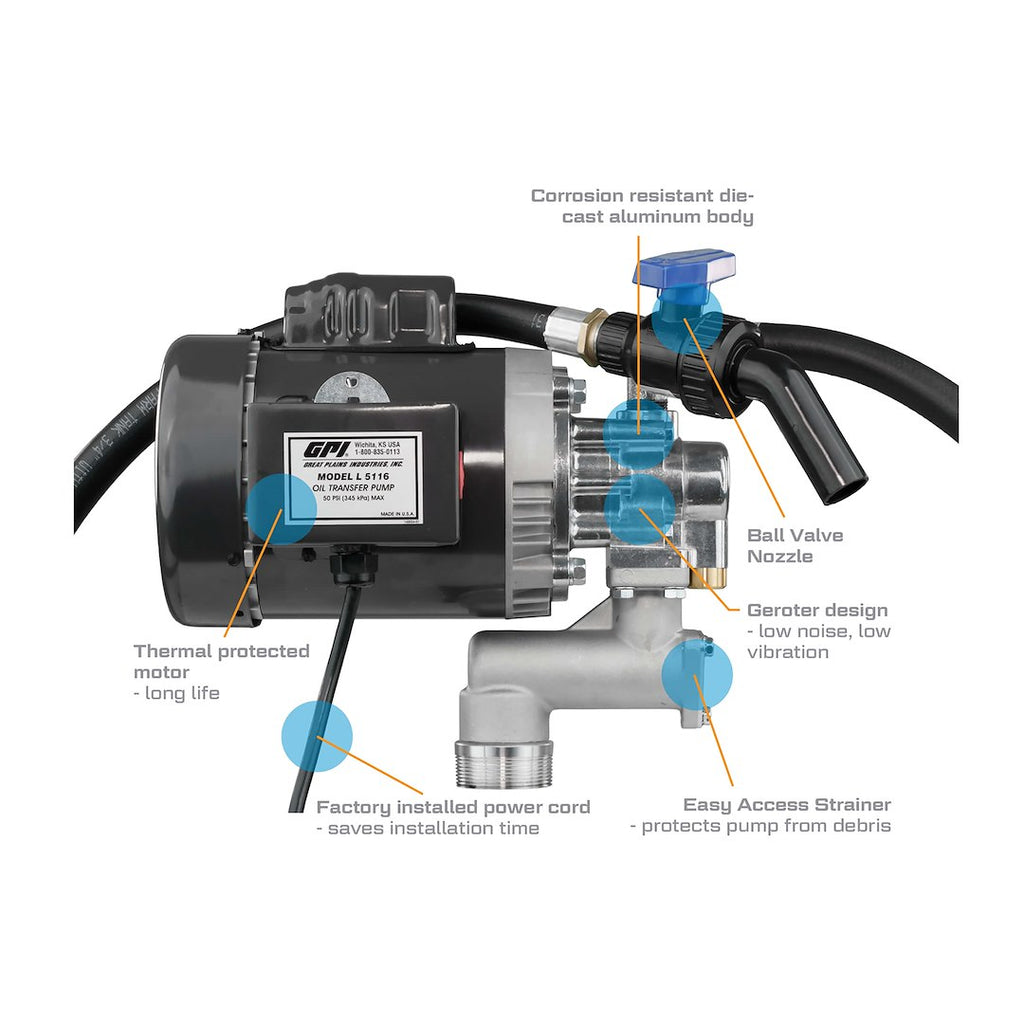

Features
- Weather-Resistant, Thermally Protected 05 Horsepower Motor Is Designed For Long Life And Limited Maintenance
- Specifically Designed For Use With High Viscosity Fluids
- Thermal Limiting Motor Protection Extends Motor Life
- Weight Centering Inlet Base Reduces Tank Stress Includes Pressure Relief Valve And Provides Easy Strainer Access
- Wetted Materials: Aluminum, Stainless Steel, Brass, Steel, Nitrile Rubber And Zinc Plated Steel

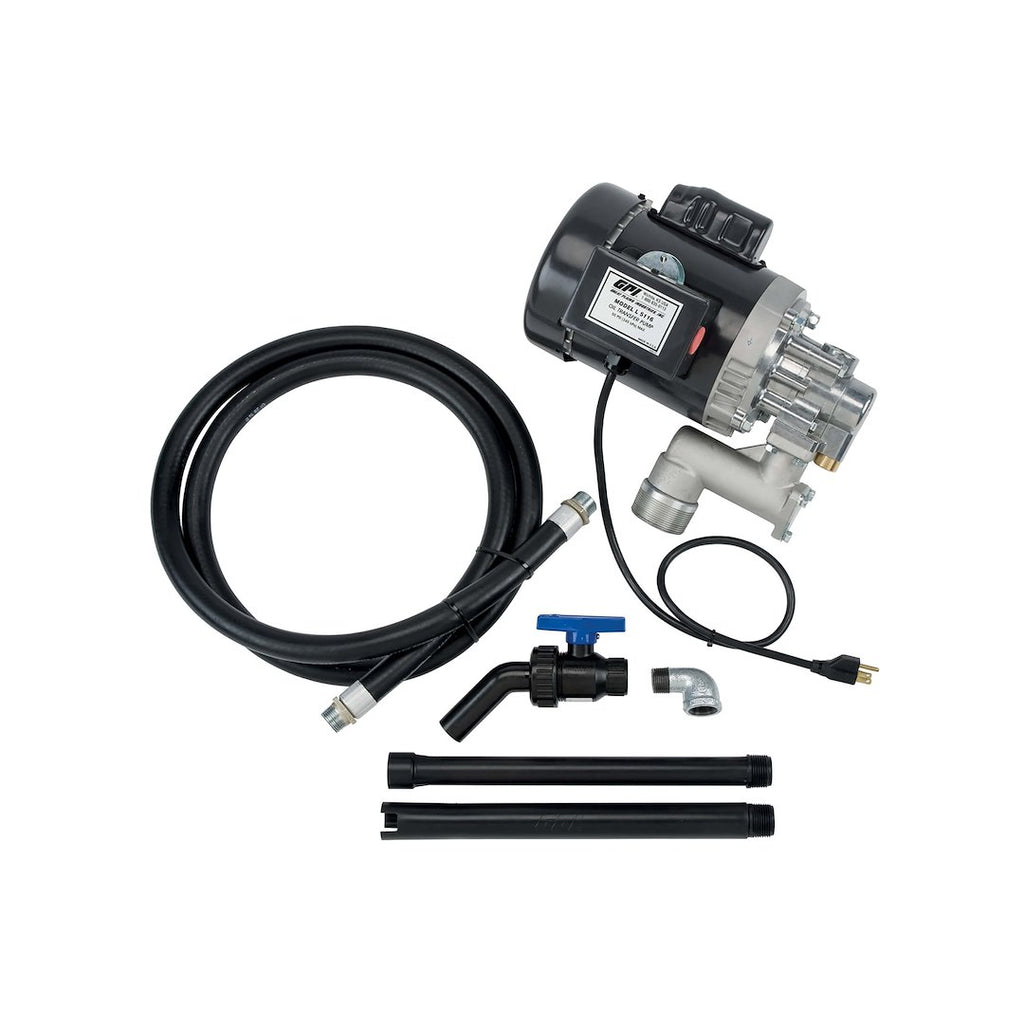

- 075 Inch Ball Valve Nozzle, 075 Inch X 8 Foot Hose, 3 Foot Power Cord With Three-Prong Grounded Plug, Adjustable Suction Pipe (15 Inch To 40 Inch) And 90 Degree Street Elbow
- For Use With Oil (Up To 90 Weight), Waste Oil, Hydraulic Fluid, Antifreeze And Non-Flammable Oil-Based Solvents
- Motor Is UL Recognized Component And CSA Approved
- Pre-Installed Power Cord Greatly Reduces Assembly And Installation Time
Specifications
- Manufacturer: GPI
- Manufacturer Part Number: 142100-01
- Type of Liquid: Oil
- Delivery Type: Electric
- Flowrate: 4 Gallons Per Minute
- Duty Cycle: 30 Minutes On/ 30 Minutes Off

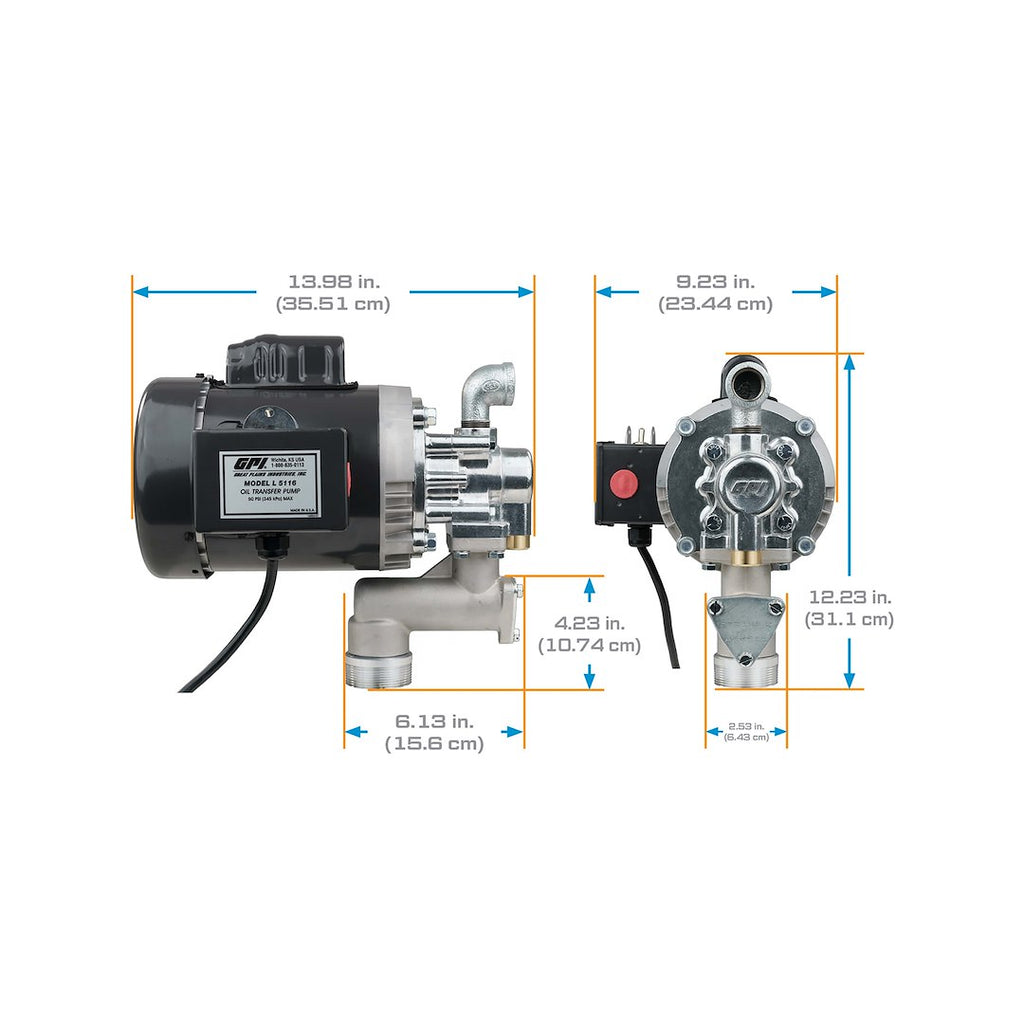

- Inlet Size (IN): 1 Inch
- Outlet Size (IN): 3/4 Inch
- Hose Length: 8 Feet
- Nozzle: Manual
- Universality: Fully Universal
- Hose Diameter: 3/4 Inch
- Power Cord Length (FT): 3 Feet
- Suction Pipe: Three Piece
- UL Listed Approved: Yes
