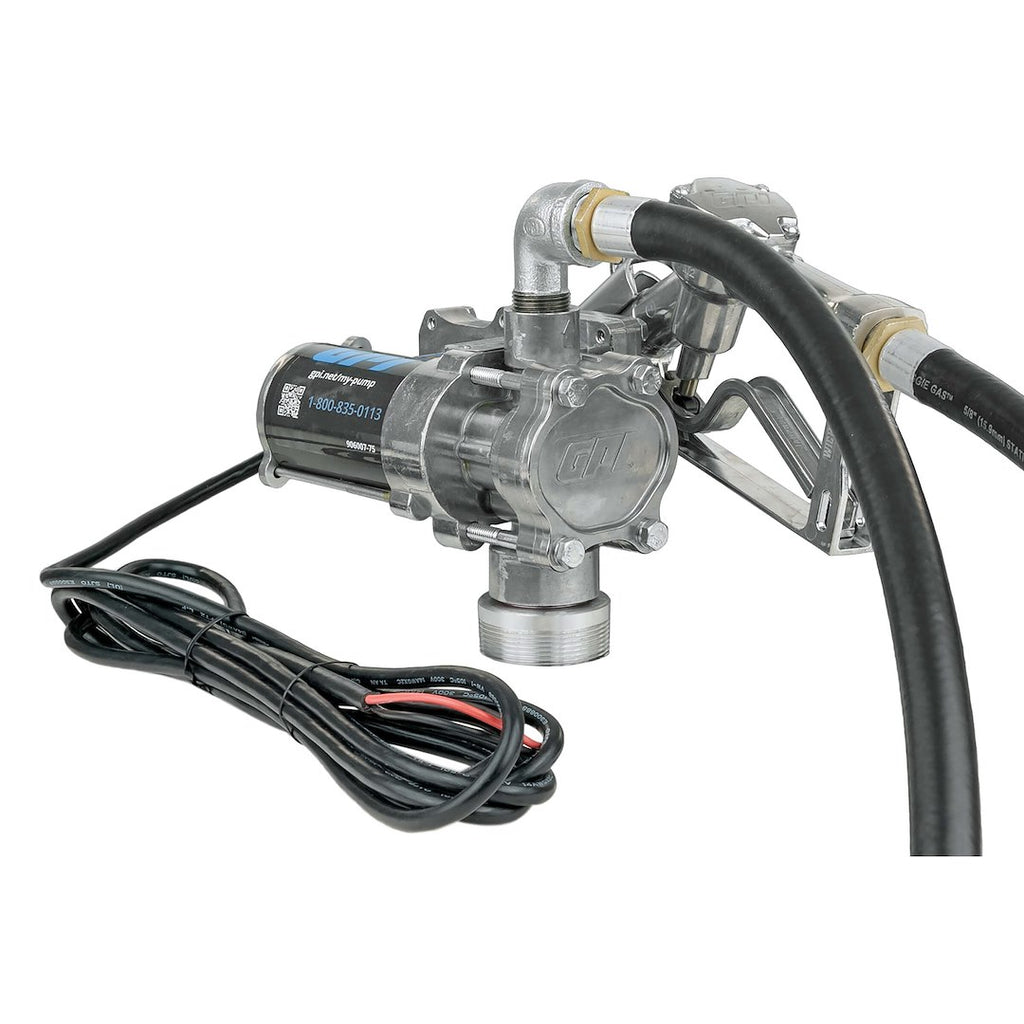

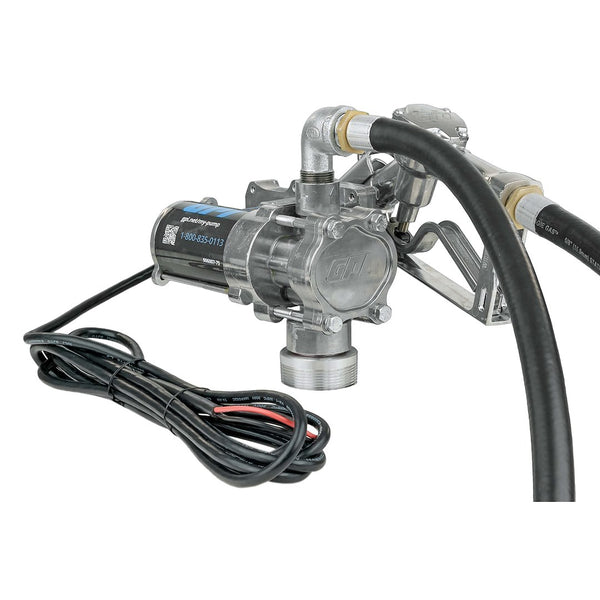

GPI EZ-8 Fuel Transfer Pump (MPN: 137100-01)

Efficient electric pump for gasoline, diesel, and kerosene applications.

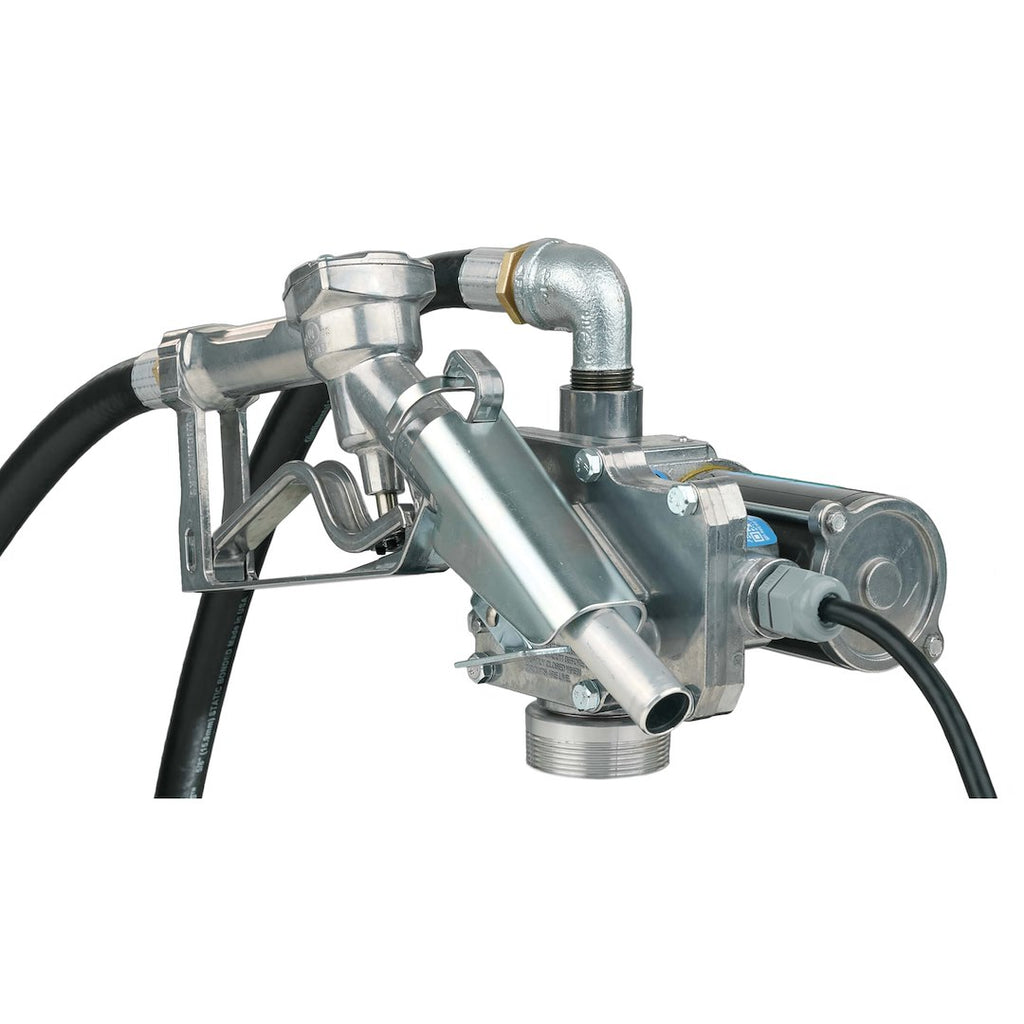

The GPI EZ-8 fuel transfer pump is engineered for high efficiency and durability, featuring a rotary gear design constructed from lightweight cast aluminum. This electric pump operates on a 12-volt DC motor, delivering flow rates comparable to gas stations, with a maximum output of 8 gallons per minute. It is suitable for transferring gasoline, diesel fuel, and kerosene, including biodiesel blends up to 20 percent and alcohol blends up to 15 percent.

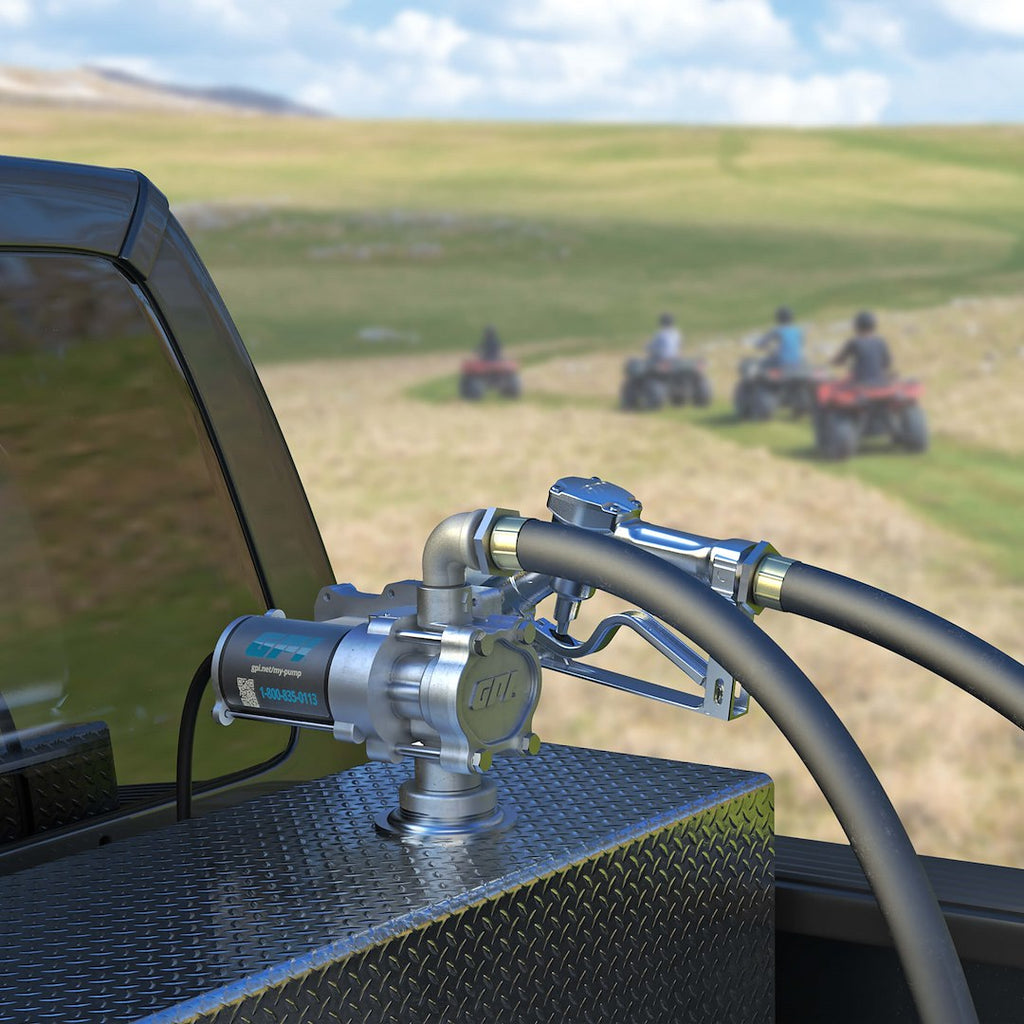

Designed for direct tank mounting, the EZ-8 is ideal for agricultural and automotive fueling applications, as well as for refueling recreational vehicles. The system includes a manual unleaded nozzle, a 10-foot static-wire grounded fuel hose, and a 15-foot power cord, ensuring ease of use and installation. The adjustable suction pipe allows for flexibility in operation, accommodating various tank sizes.

The pump's lightweight design facilitates portability, making it suitable for small tanks and barrels. With thermal overload protection, the pump is built to extend its operational life while maintaining a low maintenance profile. The aluminum body not only provides corrosion resistance but also minimizes stress on storage tanks, ensuring reliable performance in various environments.

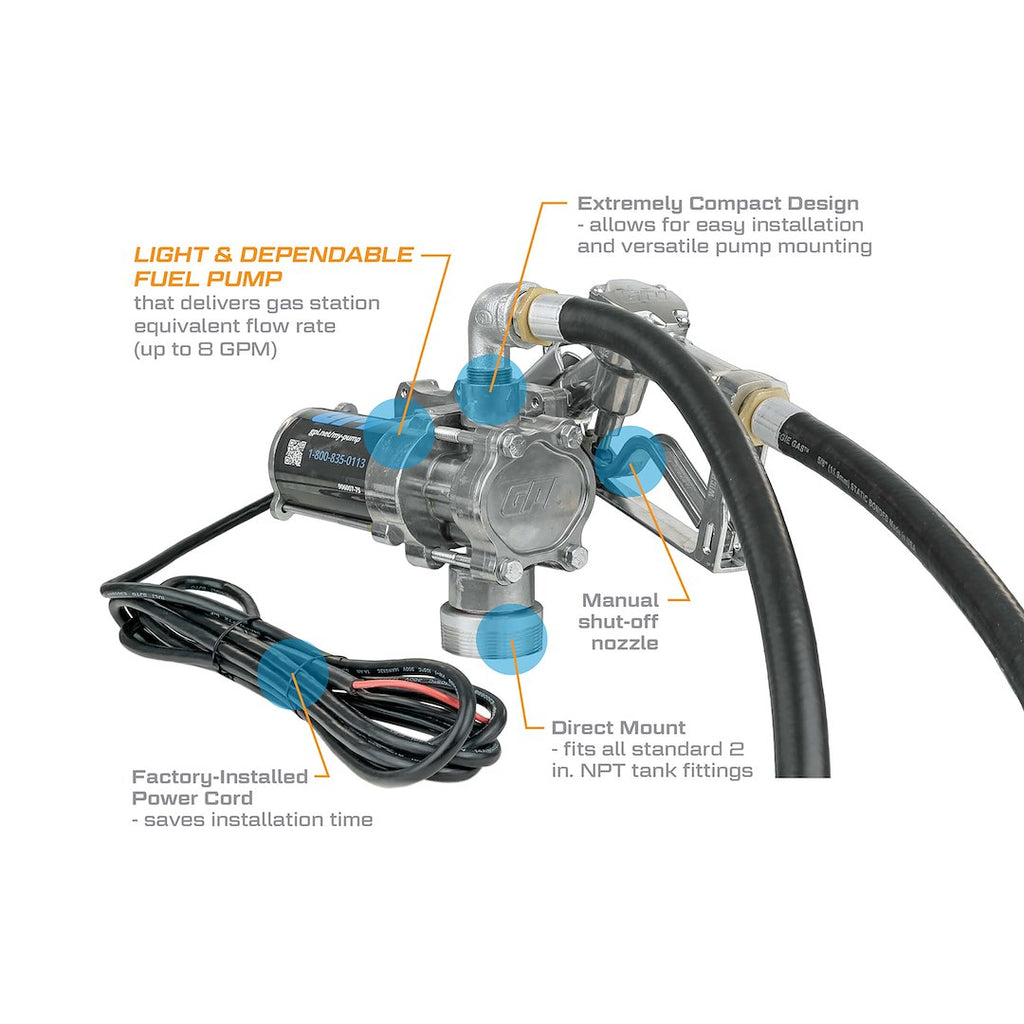

Features

• Gas Station Equivalent Flowrate (Up To 8 GPM)
• Self-Priming Low Maintenance Design
• Extremely Lightweight Design For Use On Small Tanks And Barrels
• Designed For Permanent Mounting On Vented Storage Tanks
• Thermal Overload Protection Extends Pump Life
• Aluminum Body Provides Corrosion Resistance And Reduces Tank Stress. Motor UL Listed To US And Canadian Standards

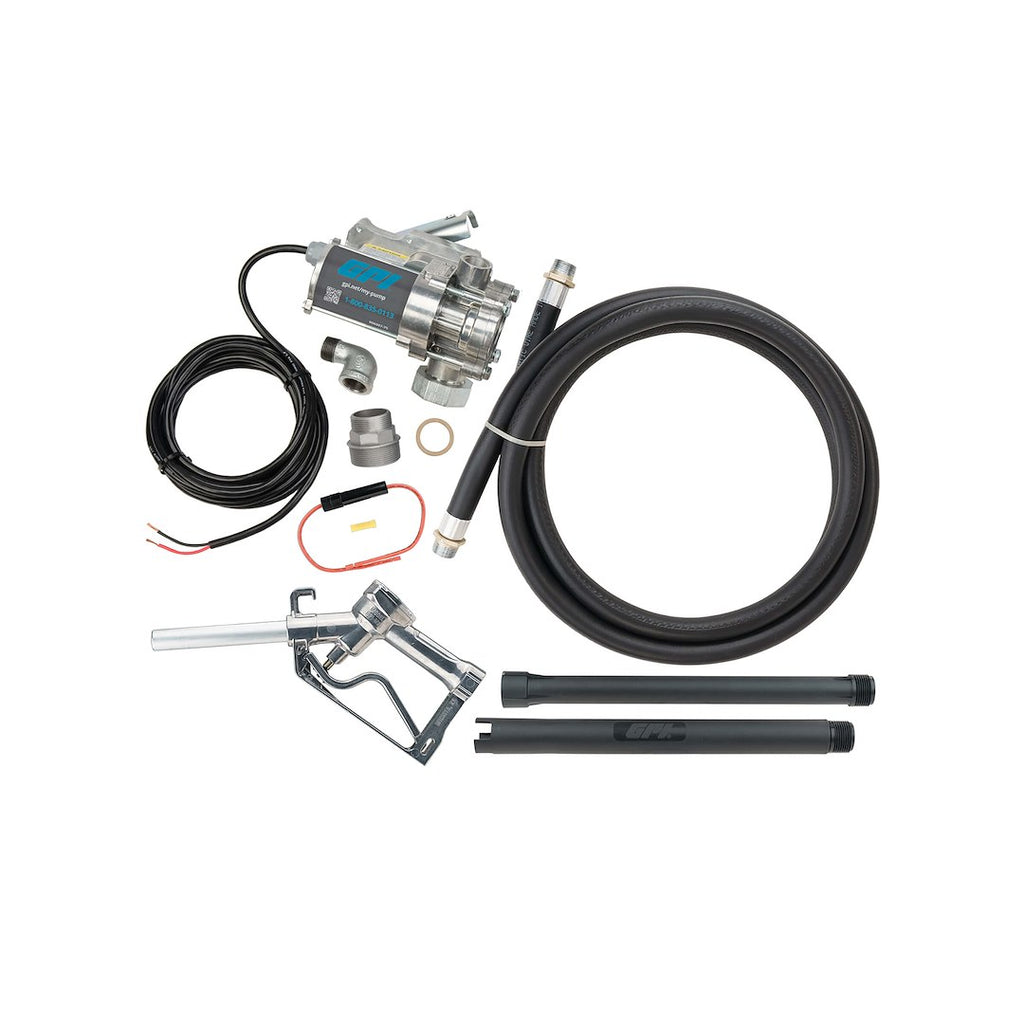

• System Comes Complete With 075 Inch Manual Unleaded Nozzle, 0625 Inch X 10 Foot Static-Wire Grounded Fuel Hose, Adjustable Suction Pipe (15 Inch To 40 Inch) And 15 Foot Power Cord
• For Use With Gasoline (Gasohol Up To E15), Diesel Fuel (Bio-Diesel Blends Up To B20) And Kerosene
• Easy Installation And Direct Tank Mounting

Specifications

• Manufacturer: GPI
• Manufacturer Part Number: 137100-01
• Type of Liquid: Gasoline/ Diesel/ Kerosene
• Delivery Type: Electric
• Flowrate: 8 Gallons Per Minute
• Duty Cycle: 15 Minutes On/ 30 Minutes Off
• Inlet Size (IN): 3/4 Inch
• Outlet Size (IN): 3/4 Inch
• Hose Length: 10 Feet
• Nozzle: Manual
• Universality: Fully Universal
• Hose Diameter: 5/8 Inch
• Hose Material: Rubber
• Power Cord Length (FT): 15 Feet
• Power Cord Gauge: 14/2 AWG
• Suction Pipe: Three Piece Trim To Fit
• UL Listed Approved: Yes

Technical Documents

• ez-8-owners-manual-en-es-fr.pdf
• ez-8-troubleshooting-guide-en-es-fr.pdf
• EZ-8-sell-sheet_EN.pdf
• GPI-GPRO_limited_warranty_policy.pdf
• FLOMEC_limited_warranty_policy.pdf
• GPI-G20LimitedLifetimeWarranty.pdf
