Go Rhino Blackout Series LED Light Bar (MPN: 751052012CSS)

Versatile lighting solution with multi-functional LED capabilities.

The Go Rhino Blackout Series LED Light Bar offers a robust lighting solution with a sleek black design. Measuring 20.5 inches in length, this light bar features a combo beam that combines flood and spot lighting for enhanced visibility. Powered by Osram LEDs, it delivers exceptional illumination performance with a color temperature of 5700 Kelvin, ensuring clear visibility in various conditions.

This light bar is equipped with built-in amber warning lights that comply with R65 standards, providing both solid and flashing amber options for increased safety. The constant white running and marker lights serve to alert other drivers during the day, while the amber lights are essential for low visibility situations such as rain, fog, and dust. The innovative screw-free infinite lens design enhances durability and aesthetics.

Constructed from high-quality black aluminum housing and polycarbonate lens material, the Go Rhino Blackout Series LED Light Bar is designed for surface mounting and includes all necessary components for installation, including a relay, switch, and wire harness. With a total output of 6300 lumens and a wattage of 120 watts, this light bar operates efficiently within a voltage range of 10 to 30 volts.

Features

• Multi-Functional Lights Powered By Osram LEDs Used For High Beam Illumination For Exceptional Lighting Performance
• With The Color Temperature Of 5700 Kelvin, You Can See Clearly What Lies Ahead
• R65 Compliant Built In Amber Warning Lights With Strobe Function Warns Everyone Nearby
• Constant Built-In White Running And Marker Lights Or Daytime Running Lights, To Alert Other Drivers To Your Presence During The Day
• Constant Built-In Amber Running And Marker Lights Or Daytime Running Lights, Are Essential For Low Visibility Situations Like Rain, Fog, Dust And More
• No Edge, Screw-Free Infinite Lens Design

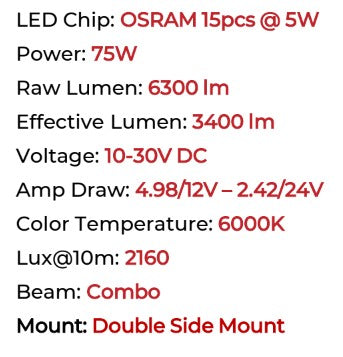

Specifications

• Manufacturer: Go Rhino
• Manufacturer Part Number: 751052012CSS
• Bulb Type: LED
• Style: Straight

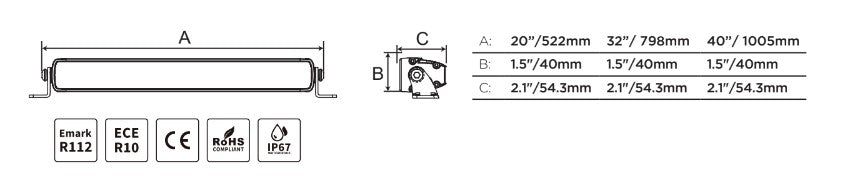

• Length: 20-1/2 Inch
• Beam Type: Combo Beam Flood And Spot
• Number Of Rows: 1
• Light Color: Amber/ White
• Housing Color: Black
• Lumens: 6300 Lumens
• Wattage: 120 Watt
• Voltage Rating: 10 To 30 Volt
• Ampere Rating At 12 Volts: 4.98 Amp
• Ampere Rating At 24 Volts: 2.42 Amp
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Style: Double Side Mount
• Includes: With Light/ Relay/ Switch/ Wire Harness
• Estimated Install Time (Hours): 1.5

Technical Documents

• xplor_light_WIRING.pdf
