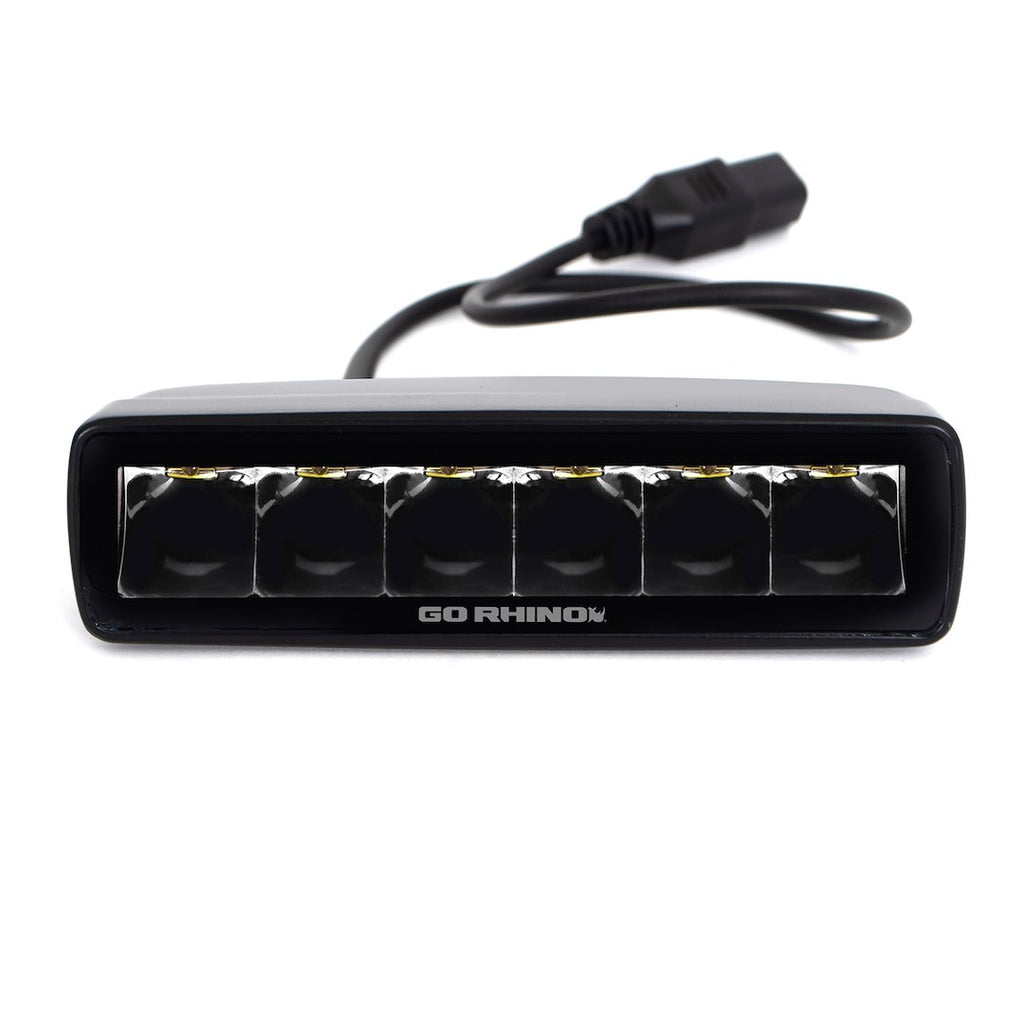

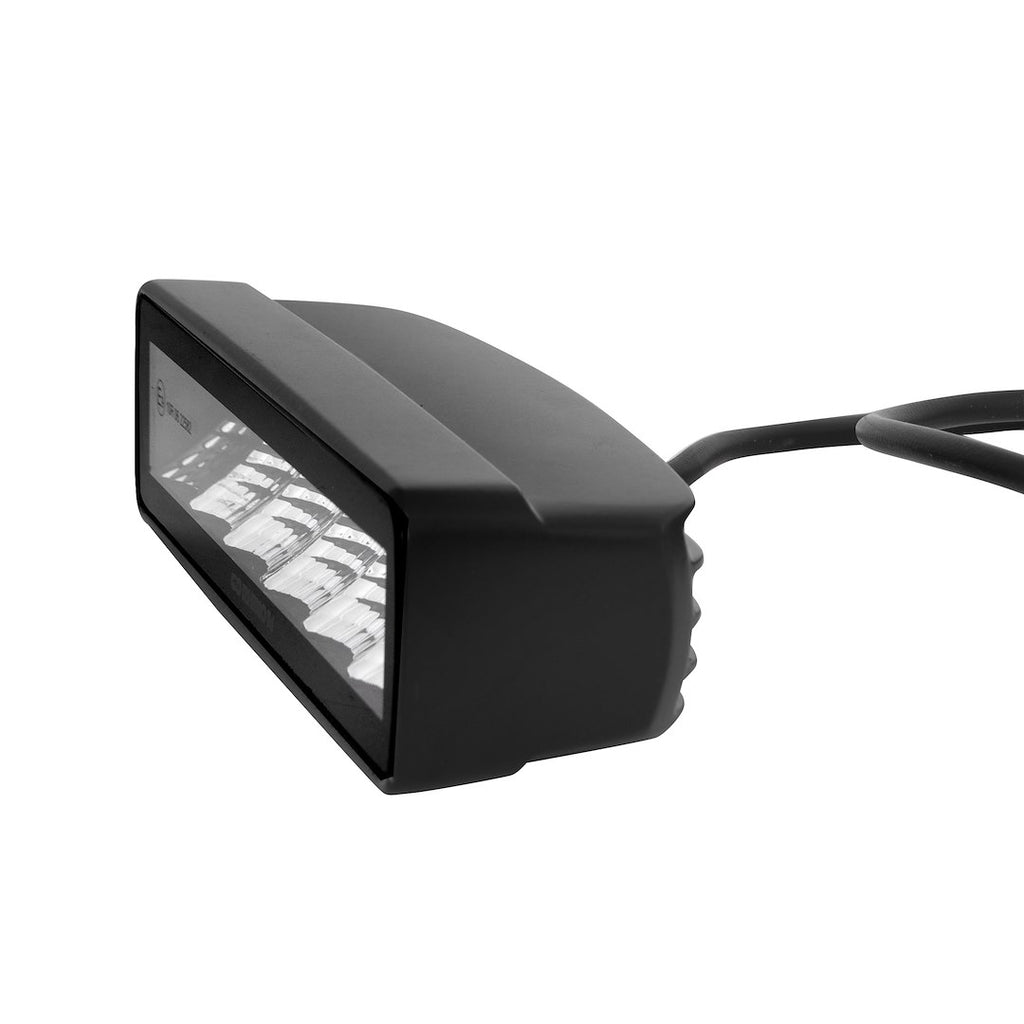

Go Rhino Blackout Series LED Driving Light (MPN: 750300621SBS)

High-performance LED lighting with durable construction and advanced features.

The Go Rhino Blackout Series LED Driving Light is engineered for optimal performance and durability. Featuring a high pressure cast aluminum housing that serves as a heat sink, this light is designed to withstand harsh outdoor conditions. The clear polycarbonate lens is impact and scratch resistant, ensuring clarity and longevity while providing a smooth, hardware-free appearance. With a powerful output of 2880 raw lumens and a spot beam configuration, this light enhances visibility in various driving conditions.

This LED driving light is equipped with Osram LEDs rated for 50,000 hours of use, making it a reliable choice for extended outdoor applications. The IP68 certification guarantees protection against dust and moisture, allowing for worry-free operation in any climate. Additionally, the integrated temperature control system and embedded over/under voltage protection enhance the safety and longevity of the product.

Installation is straightforward with the included stainless steel mounting hardware and wiring harness. The sleek black aluminum housing and textured powder coat finish not only provide a modern aesthetic but also ensure resilience against the elements. This driving light is fully universal, making it suitable for a wide range of vehicles and applications.

Features

• High Pressure Cast Aluminum Alloy Housing For Simple Clean Looks And Functional Heat Sink
• Impact And Scratch Resistant Hard Coated Clear Polycarbonate UV Coated Lens, Smooth With No Hardware
• Lens Is Easier To Clean And Is More Robust And Weather Resistant
• Automatic Pressure Equalizing Vent For Maintenance Free Travel
• Certified IP68 For Dust And Moisture And Ready For Any Climate
• Worry Free Embedded Over And Under Voltage Protection And Reverse Polarity Protection
• Integrated Temperature Control System Maintains The Life Of The LEDs

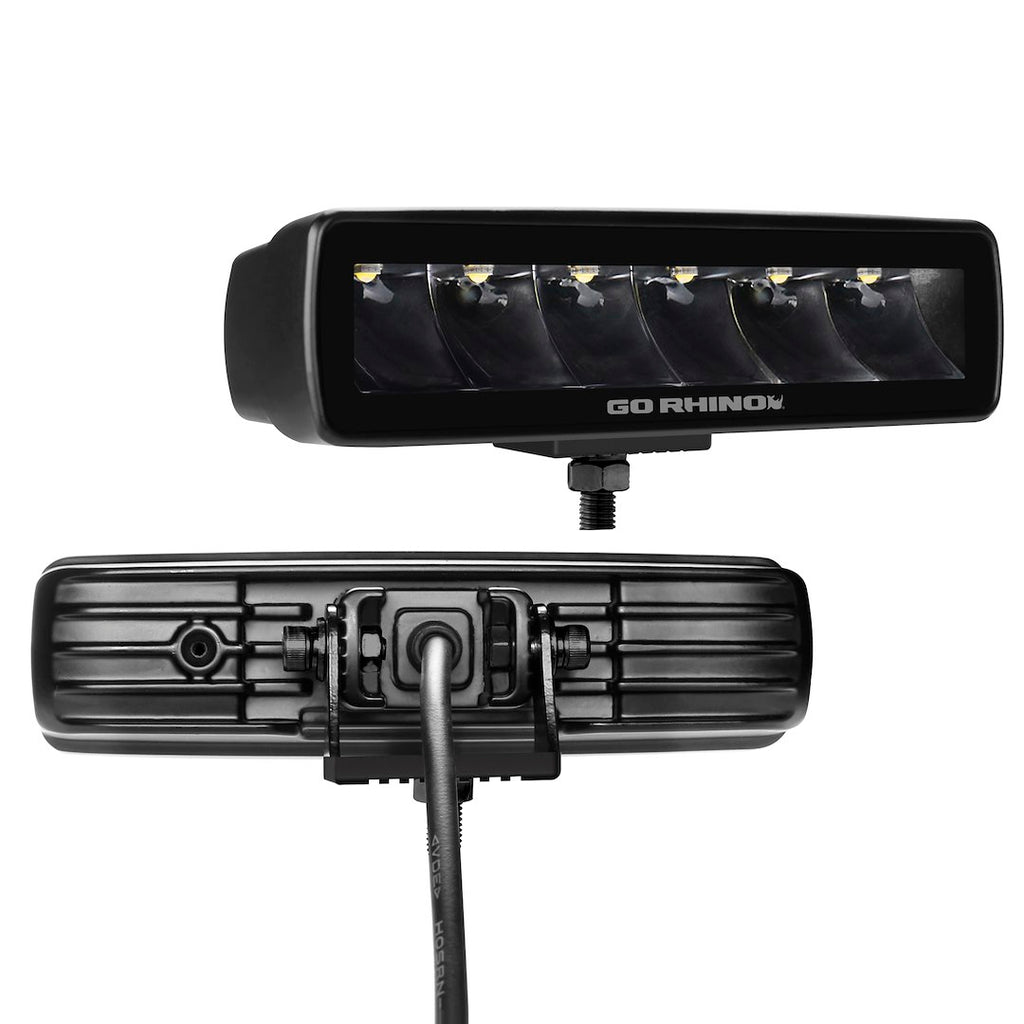

• Texture Black Powder Coat Stainless Steel Mounting Bracket And Black Stainless Steel Hardware For Years Of Outdoor Use
• 50,000 Hour LED Life Span Ensures You'll Be Lighting The Way For Years To Come

Specifications

• Manufacturer: Go Rhino
• Manufacturer Part Number: 750300621SBS
• Shape: Rectangular
• Beam Type: Spot Beam
• Diameter: Not Applicable
• Height/ Width: 1-11/16 Inch Height X 6-1/8 Inch Width
• Bulb Type: LED
• Light Color: White

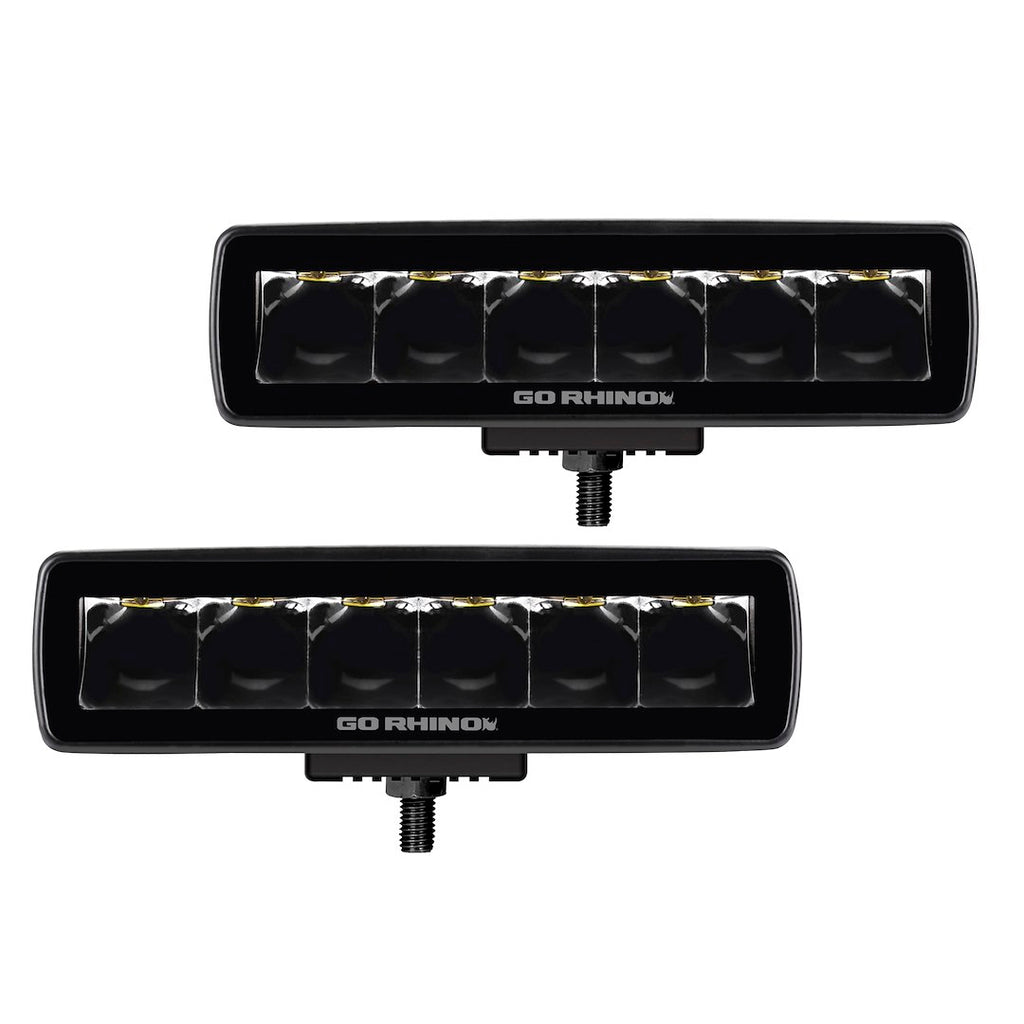

• Quantity: Set Of 2
• Universality: Fully Universal
• Depth: 2-5/16 Inch
• Wattage: 30 Watt
• Voltage Rating: 10 To 30 Volt
• Mounting Style: Surface Mount
• Ampere Rating At 12 Volts: 2.04 Amp
• Ampere Rating At 24 Volts: 1.04 AMP
• Lumens: 2880 Lumens
• Bulb Specifications: 6 OSMR White 5 Watt LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Aluminum

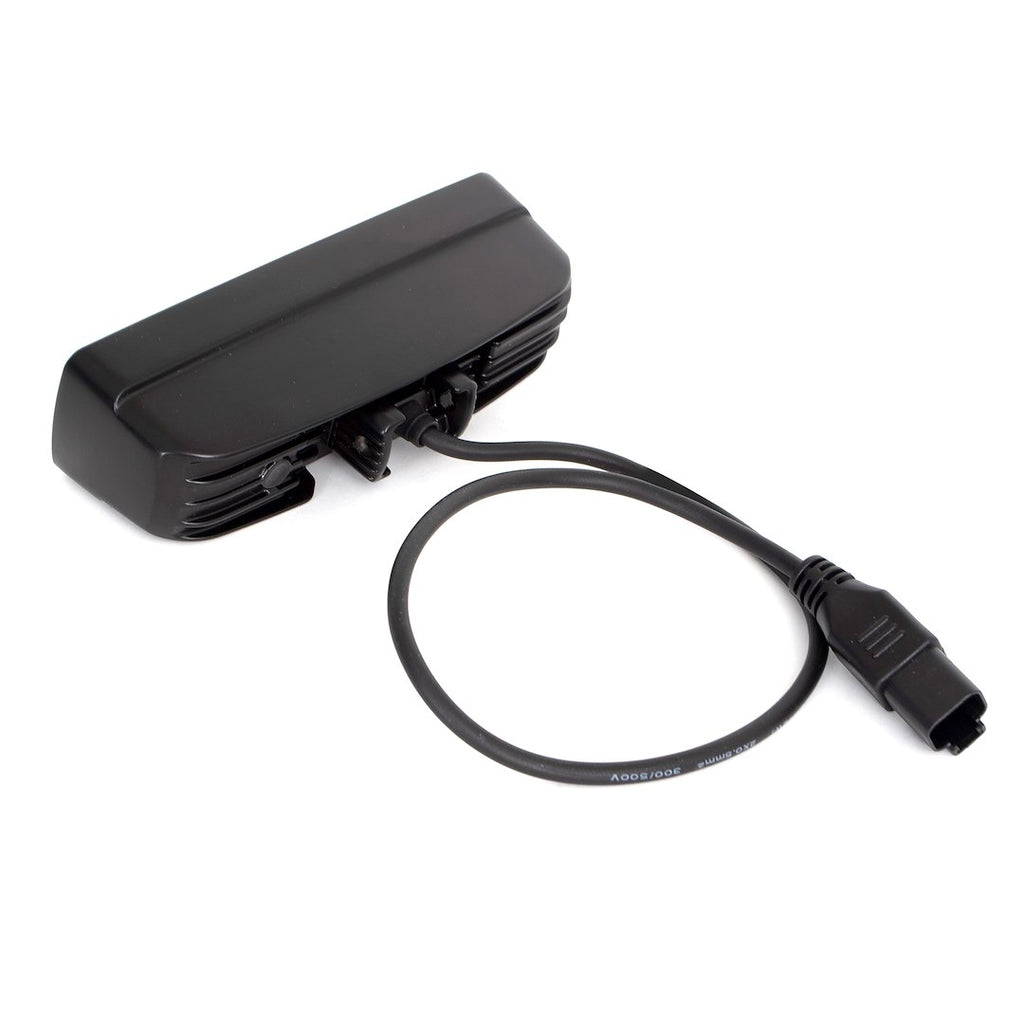

• Includes: With Lights/ Relay/ Switch/ Wiring Harness
• Estimated Install Time (Hours): 1.5

Technical Documents

• xplor_light_WIRING.pdf
