Garmin Ultra High-Definition Scanning Sonar System (MPN: 010-02055-00)

Experience unparalleled clarity with advanced sonar technology for fishing and structure detection.

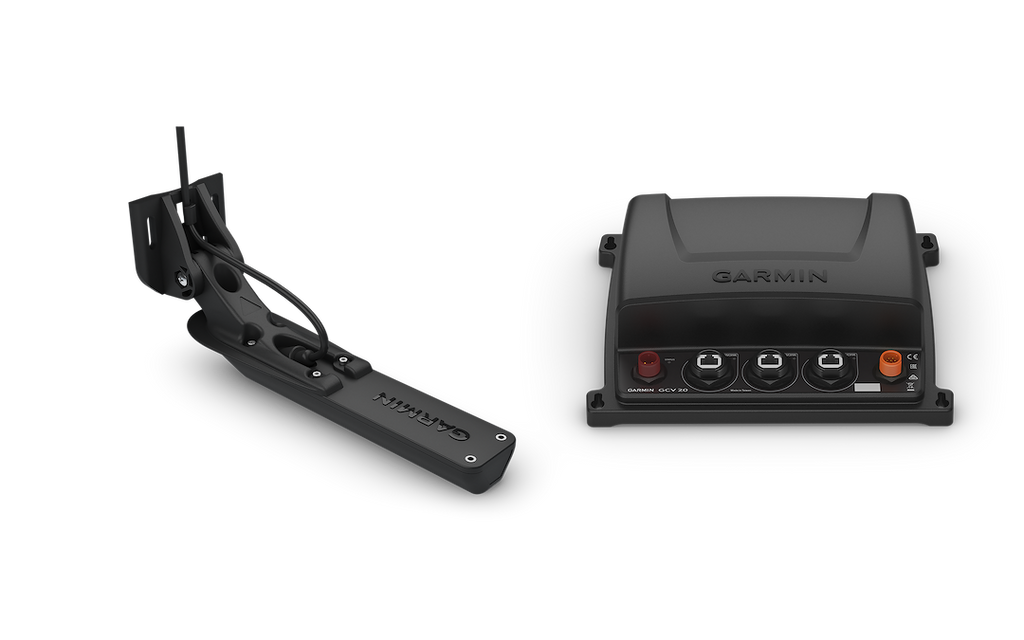

The Garmin Ultra High-Definition Scanning Sonar System redefines clarity and detail in underwater imaging. This system utilizes a GCV 20 sonar black box paired with a three-array GT34UHD transducer to deliver crisp images of structure and fish up to 200 feet below and off to the sides of your boat. With both ClearVü and SideVü scanning modes, users can expect brilliant image clarity that enhances the fishing experience by allowing for quick scouting of fishing areas with stunning detail.

Designed for easy installation, the system includes transom and trolling motor mounts, making it versatile for various boat types. The IPX7 waterproof rating ensures durability in challenging marine environments. Additionally, the sonar images can be shared seamlessly across multiple networked chartplotters, enhancing the functionality of your fishing setup. Optional integration with Panoptix all-seeing sonar further expands the capabilities of this advanced sonar system.

With a power rating of 500 watts and a frequency range of 530-1100 kHz, this sonar system is engineered to provide superior performance. The combination of advanced technology and user-friendly features makes the Garmin Ultra High-Definition Scanning Sonar System a valuable tool for serious anglers.

Features

• Ultra High-Definition Scanning Sonar System Provides Crisp Images Of Structure And Fish In Stunning Detail

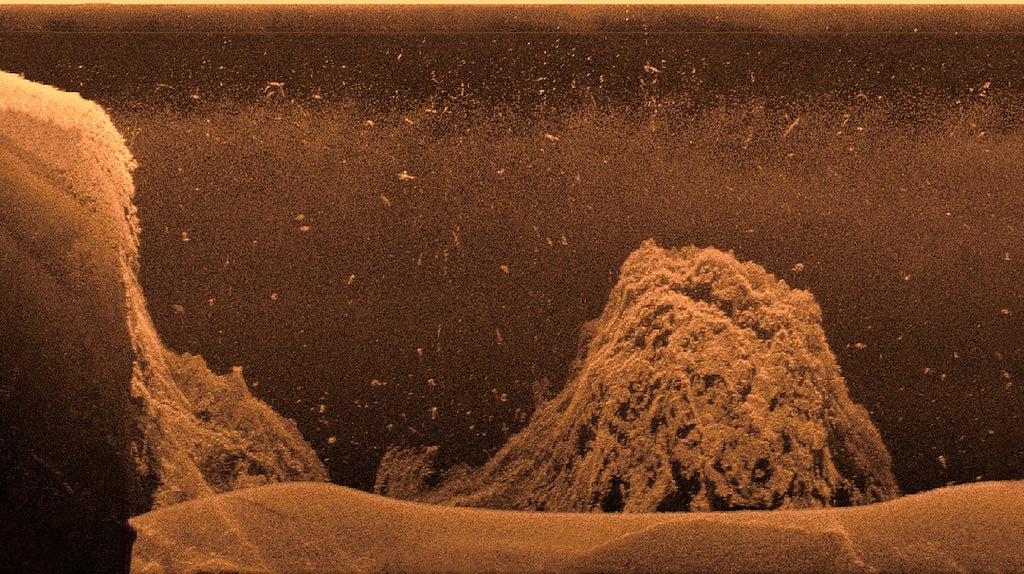

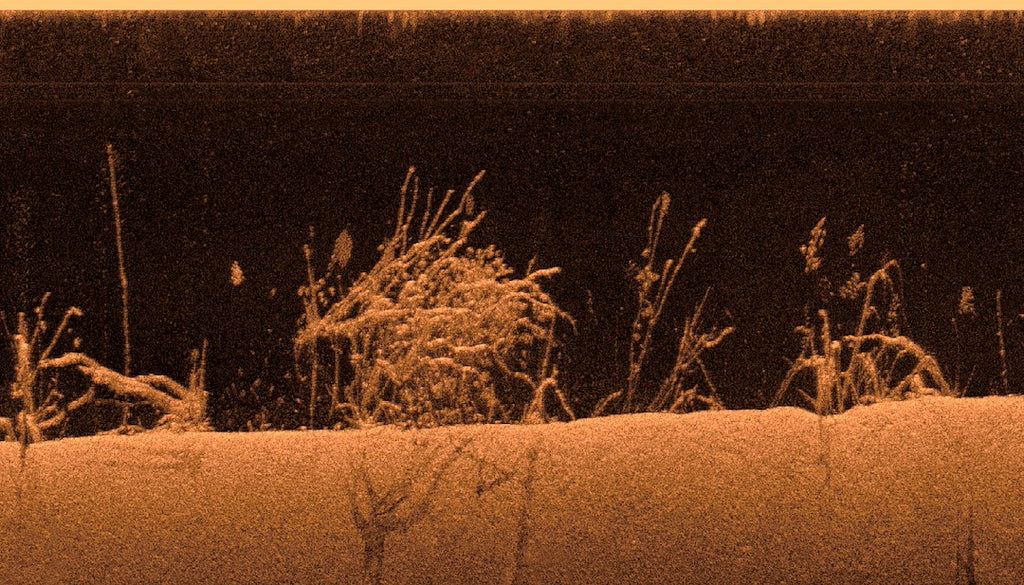

• Ultra High-Definition ClearVü Sonar Provides Brilliant Image Clarity Of Structure And Fish Up To 200 Feet Deep Below Your Boat

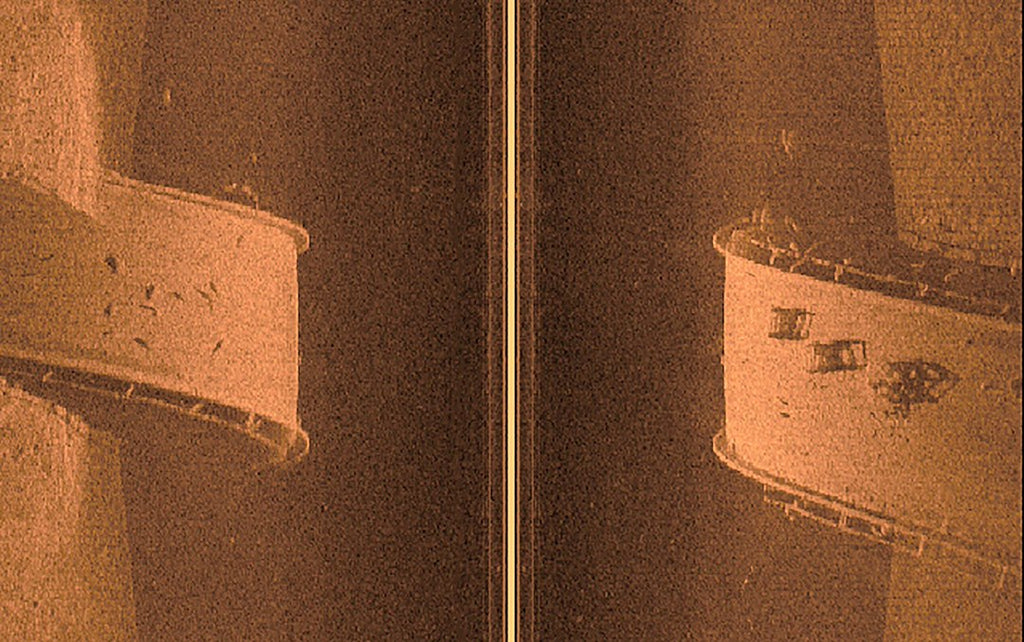

• Ultra High-Definition SideVü Sonar Delivers Stunningly Clear Images Of Structure And Fish Off To The Sides Of Your Boat
• System Includes Easy To Install, Networkable GCV 20 Sonar Black Box With Three-Array Transducer; Includes Transom And Trolling Motor Mounts
• Share Seamlessly Across Multiple Networked Chartplotters As Well As Networking Panoptix All-Seeing Sonar
• Water Rating: IPX7

Specifications

• Manufacturer: Garmin
• Manufacturer Part Number: 010-02055-00
• Mounting Location: Transom Mount
• Number Of Pins: Bare Wire
• Depth: 200 Feet For ClearVü And 125 Feet Each Side For SideVü
• Power Rating: 500 Watt
• Frequency Range: 530-1100kHz

Technical Documents

• TransomTrolling_Mount_Transducer_Install_Instructions_EN-US.pdf
• GCV_20_Installation_Instructions_EN.pdf
• garmin-marine-warranty-policy.pdf
