High-performance transducer for depth and temperature measurement.

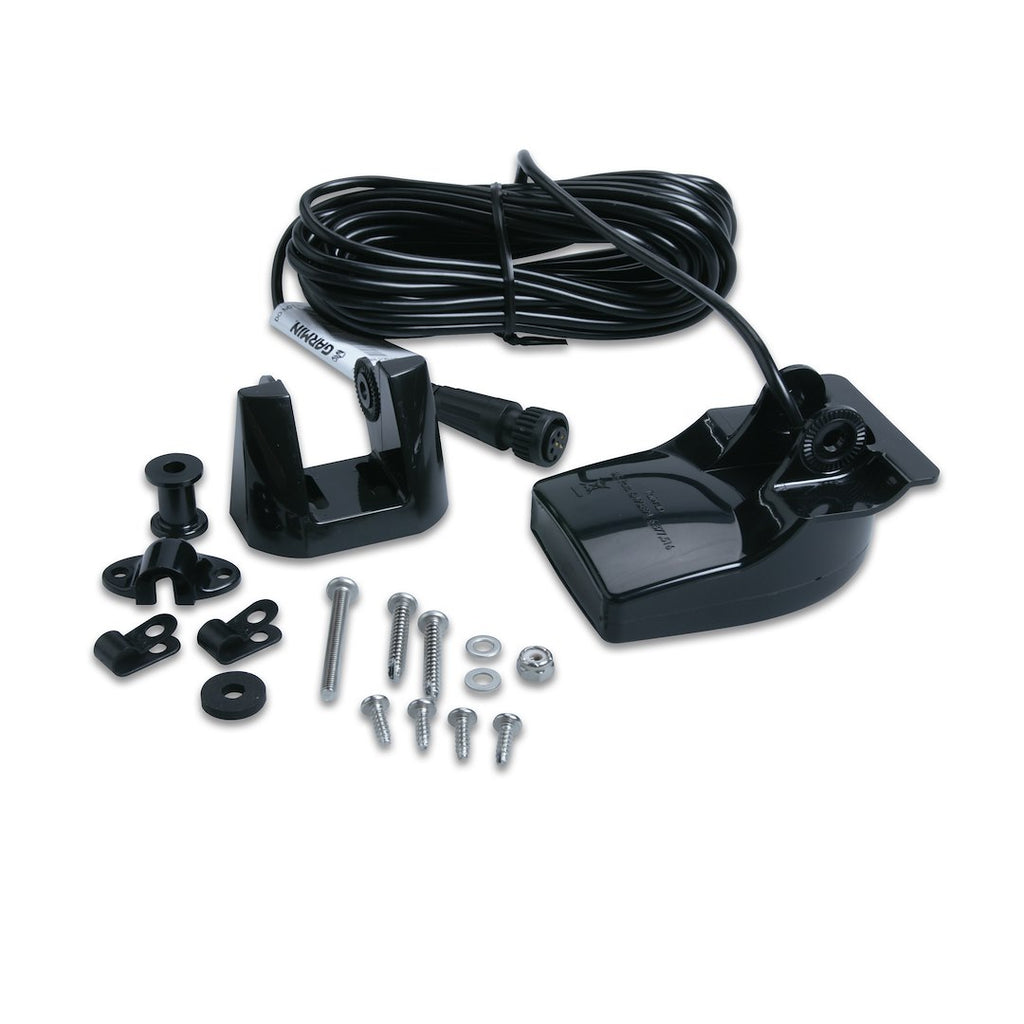

The Garmin Transom Mount Transducer is designed for reliable depth and temperature readings in marine environments. This 6-pin transducer operates at frequencies of 50/200 kHz, providing versatility for various fishing and navigation needs. With a maximum depth capability of 1,500 feet, it ensures accurate readings even in deep waters. The unit is constructed from durable plastic and is suitable for transom angles ranging from 0 to 70 degrees, making it adaptable to different boat designs.
This transducer is rated at 500 watts, delivering powerful performance for effective sonar imaging. It can replace the dual frequency transducers that come with many Garmin units, enhancing the functionality of existing systems. The included installation instructions facilitate a straightforward setup process, allowing users to quickly integrate the transducer into their marine equipment. Overall, the Garmin Transom Mount Transducer is a valuable addition for those seeking enhanced depth and temperature monitoring capabilities.
Features
- Plastic Transom Mount Can Be Used To Replace The Dual Frequency Transducers Provided With Many Garmin Units
- 500 Watt 6-Pin Transducer Has A Maximum Depth Of 1,500 Feet
- Mounts On A 0 To 70 Degree Transom
- Transducer Kit Features Installation Instructions
Specifications
- Manufacturer: Garmin
- Manufacturer Part Number: 010-10272-00
- Mounting Location: Transom Mount
- Number Of Pins: 6 Pin
- Depth: 1500 Feet
- Power Rating: 500 Watt
- Frequency Range: 50/ 200 kHz
- Supported Angle: 0 To 70 Degree Transom Angle
Technical Documents
