Advanced sonar technology for precise depth and temperature readings.

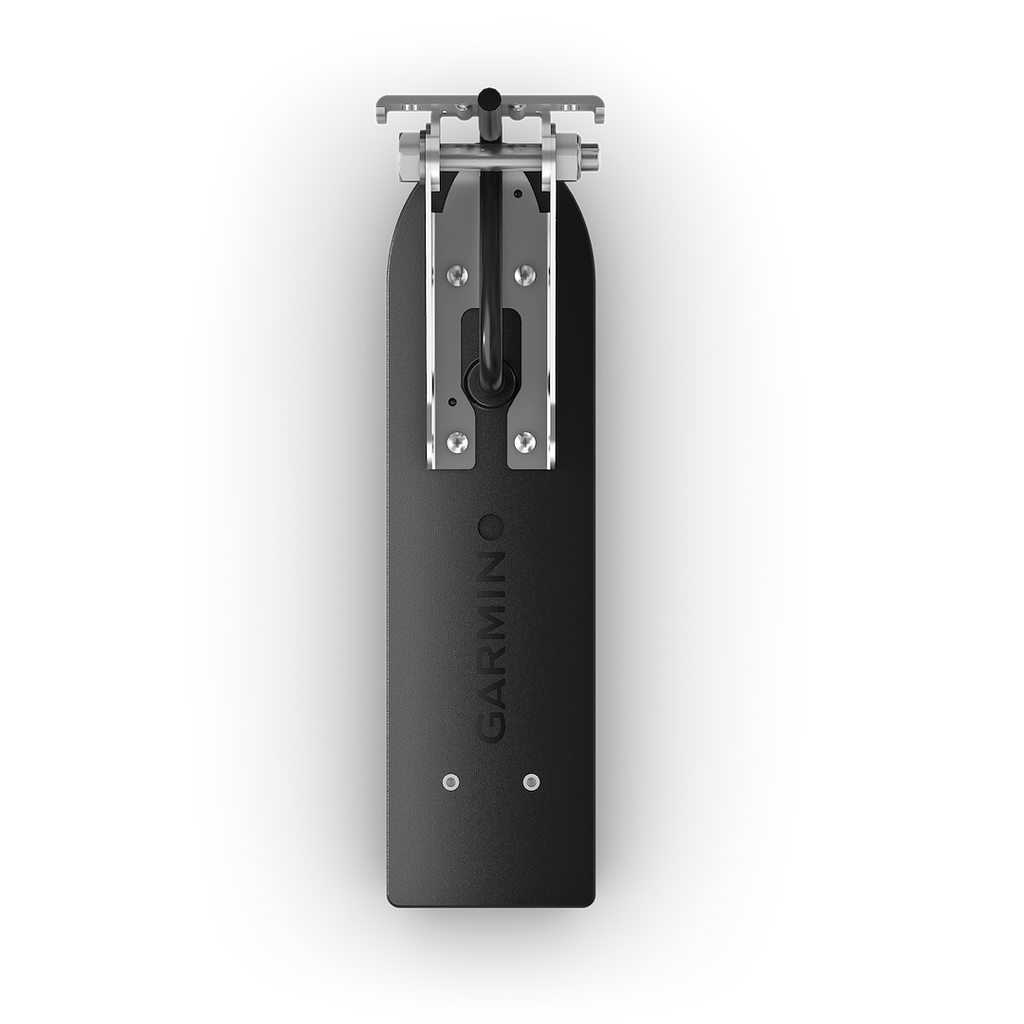

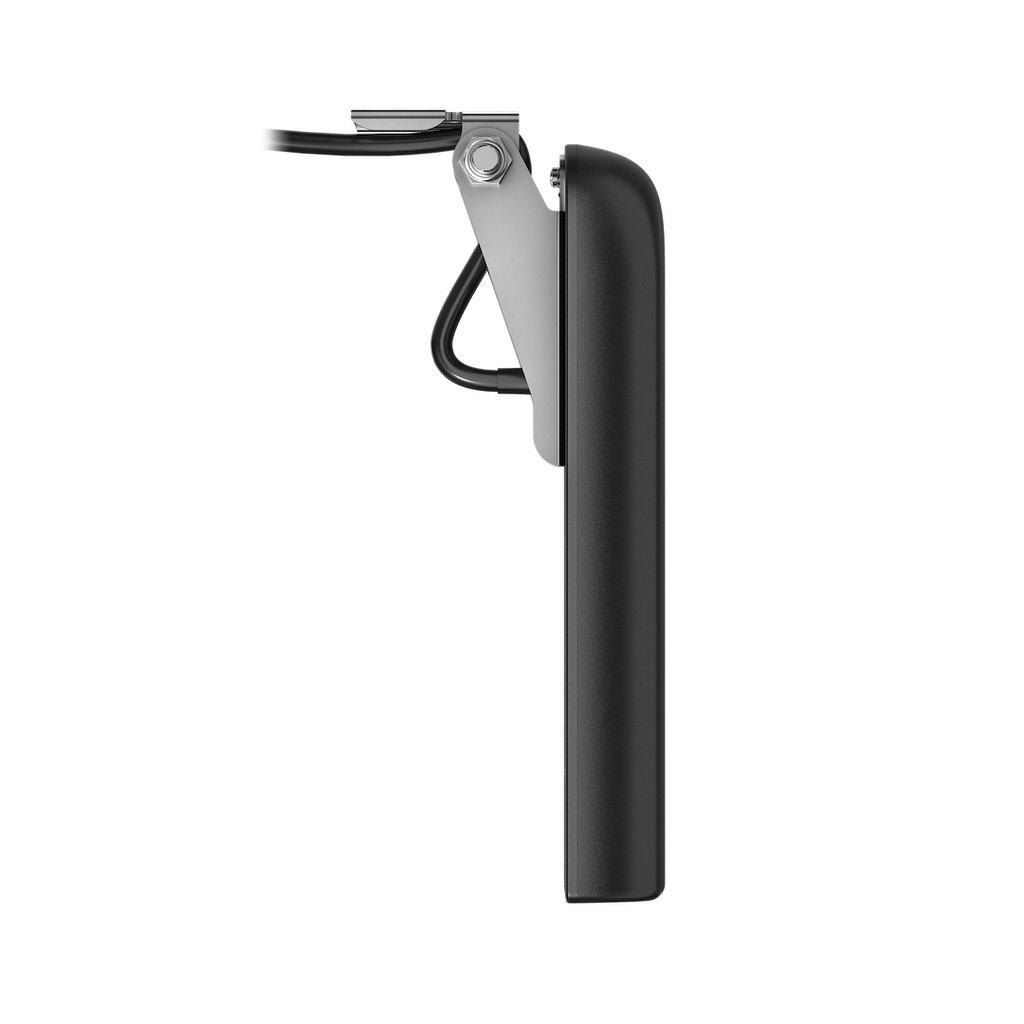

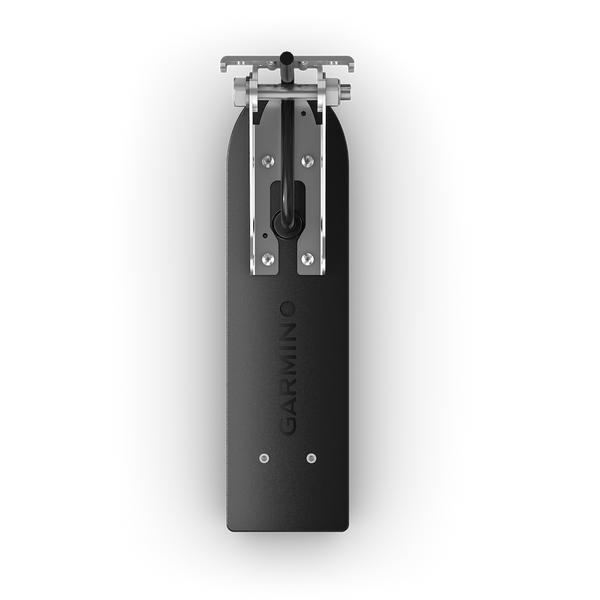

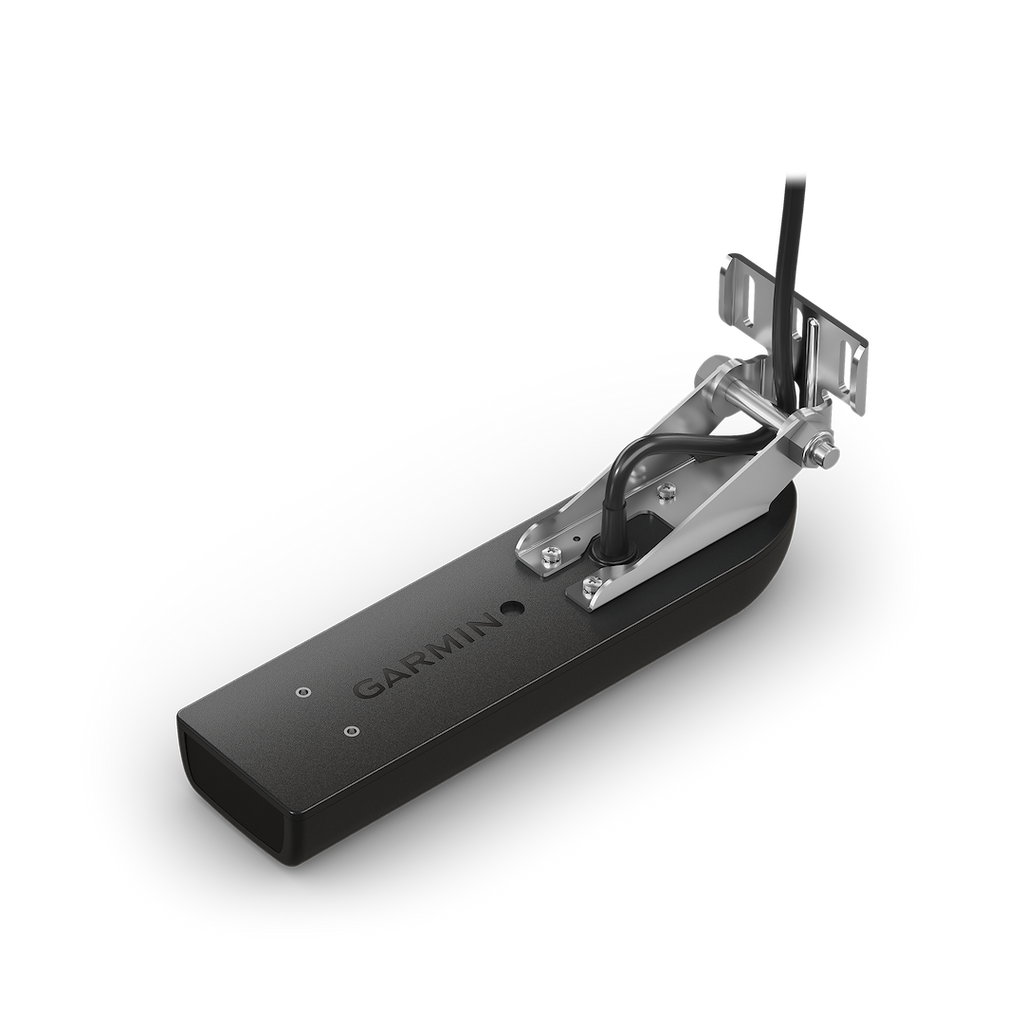

The Garmin Transom Mount Transducer is designed for both traditional sonar and CHIRP ClearVü scanning sonar applications. It features an 8-pin connection and is capable of reaching depths of 1500 feet for traditional sonar and 1000 feet for ClearVü. With a power rating of 600 watts for traditional and 500 watts for ClearVü, this transducer ensures reliable performance in various marine environments.
Engineered for optimal performance, the transducer operates at frequencies of 50/200 kHz for traditional sonar and 260/455 kHz for ClearVü, providing superior target separation and clear definition of underwater structures. The unit supports a transom angle of 0 to 70 degrees, making it versatile for different boat designs and fishing conditions.
Included with the transducer are mounting hardware and installation instructions, facilitating a straightforward setup process. The 30-foot cable allows for flexible installation options, ensuring that the transducer can be positioned effectively for accurate readings. This product is essential for coastal and offshore fishermen seeking reliable sonar technology.
Features
- Perfect For Coastal And Offshore Fishermen Who Want Traditional Sonar And CHIRP ClearVu Scanning Sonar
- Transom Mounted Transducer Consistently Displays Clear And Crisp Fish Arches With Superior Target Separation As Well As Clear Definition Of Structure Below The Boat
- Transducer With Built-In Fast Response Temperature Sensor Has A Power Rating Of 500 Watt
- Provides An 8-Pin Transducer With Mounting Hardware And Installation Instructions
Specifications
- Manufacturer: Garmin
- Manufacturer Part Number: 010-01962-00
- Mounting Location: Transom Mount
- Number Of Pins: 8 Pin
- Depth: 1500 Feet For Traditional And 1000 Feet For ClearVü
- Power Rating: 600 Watt For Traditional And 500 Watt For ClearVü
- Frequency Range: 50/200 kHz For Traditional And 260/455 kHz For ClearVü
- Supported Angle: 0 To 70 Degree Transom Angle
- Cable Length: 30 Feet
