Garmin Transducer Adapter Cable (MPN: 010-12225-00)

Connects GT30-THP Transducers for Enhanced Sonar Imaging

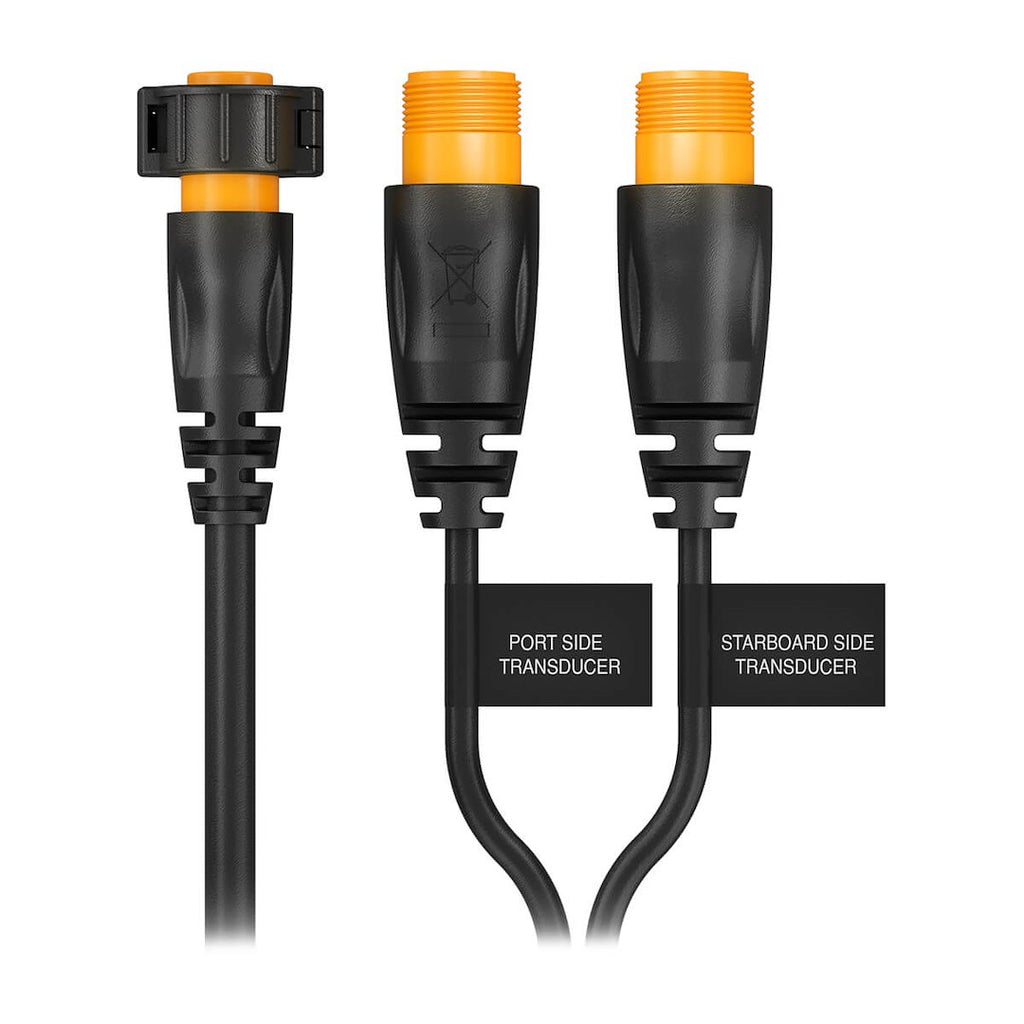

The Garmin Transducer Adapter Cable is designed to facilitate the connection of a port and starboard pair of thru hull or transom mount transducers to a sonar unit using a 12-pin Y-cable. This 32-foot cable enables the use of two different transducers, allowing for the production of left and right SideVu images, which helps to minimize shadowing effects caused by the engine lower unit or keel/hull.

The right-side transducer captures traditional, ClearVu, and right-SideVu images, while also providing water temperature and transducer ID information. Conversely, the left-side transducer is dedicated to generating left-SideVu images. This configuration enhances the overall sonar imaging capabilities, providing clearer and more detailed underwater views.

Compatible with all 12-pin GT transducers, this adapter cable is an essential component for users looking to maximize their sonar system's performance. The robust design ensures reliable connectivity and durability, making it suitable for various marine applications.

Features

• Connect A Port/Starboard Pair Of Thru Hull Or Transom Mount Transducers To The Sonar Unit With This 12-Pin Y-Cable
• Cable Allows The Use Of Two Different Transducers To Produce The Left And Right SideVu Images To Avoid Engine Lower Unit Or Keel/Hull Shadowing
• Right-Side (Starboard) Transducer Is Used For Traditional, ClearVu, And Right- SideVu Images Plus Water Temperature And Transducer ID
• Left-Side (Port) Transducer Is Used For Left-SideVu Images
• Compatible With All 12-Pin GT Transducers

Specifications

• Manufacturer: Garmin
• Manufacturer Part Number: 010-12225-00
• Compatibility: GT30-THP Port/ Starboard SideVu Transducers
• Connection Type: Garmin 12-Pin Y-Cable
• Length: 384 Inch

Technical Documents

• garmin-marine-warranty-policy.pdf
