Advanced sonar technology for precise depth and temperature readings.

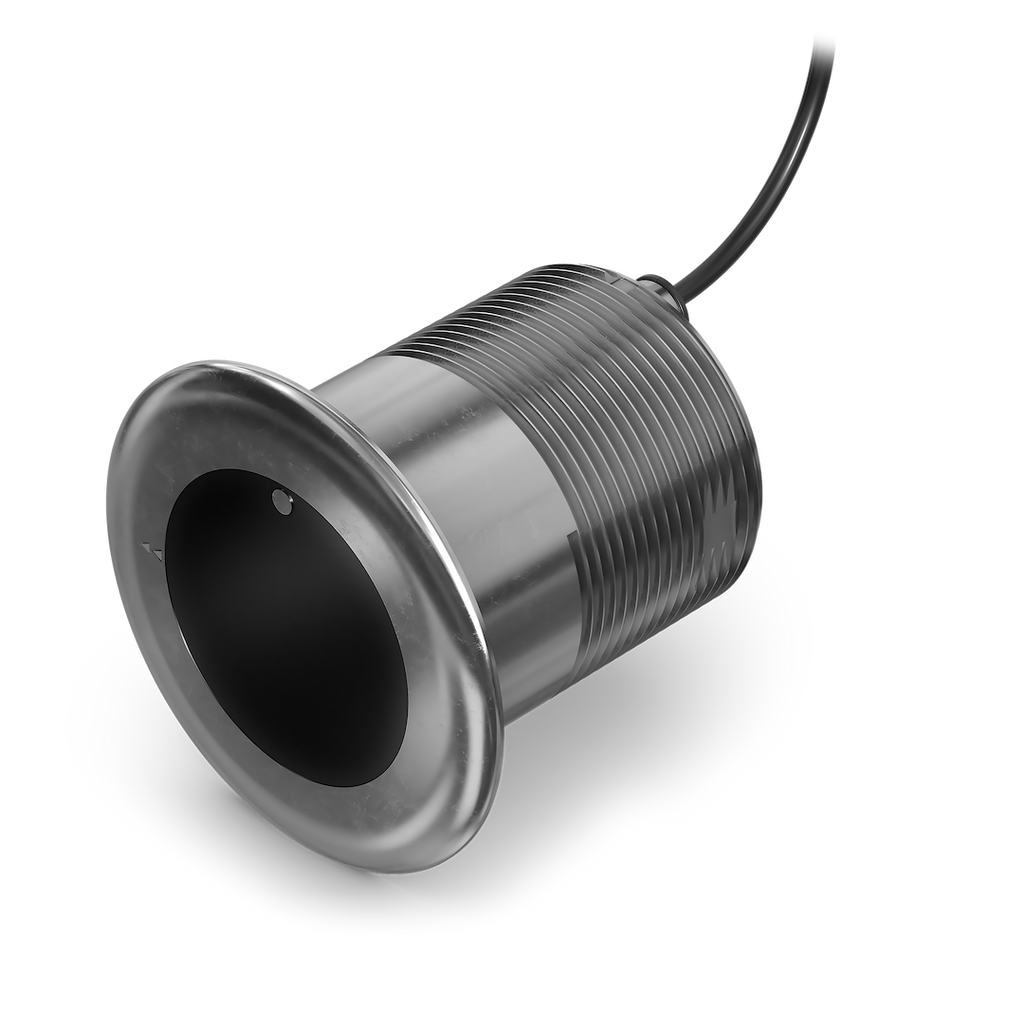

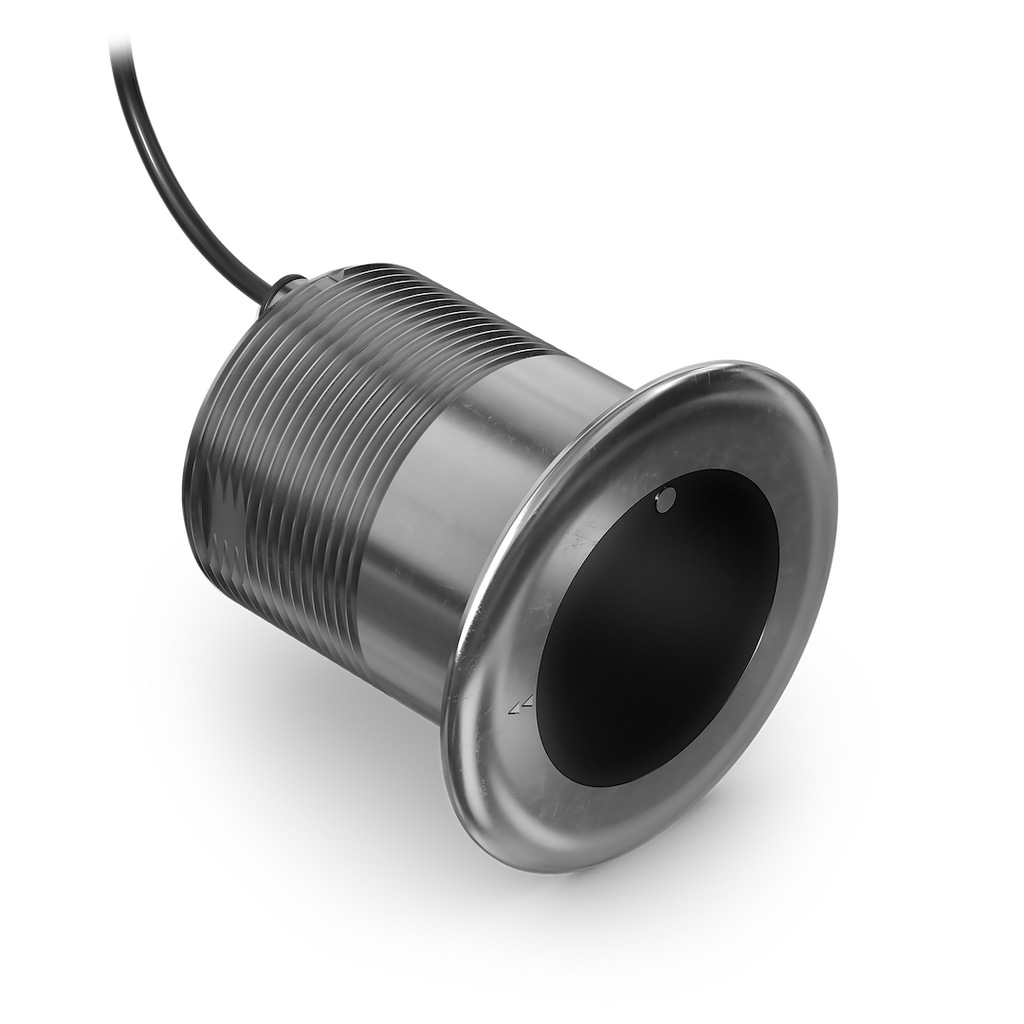

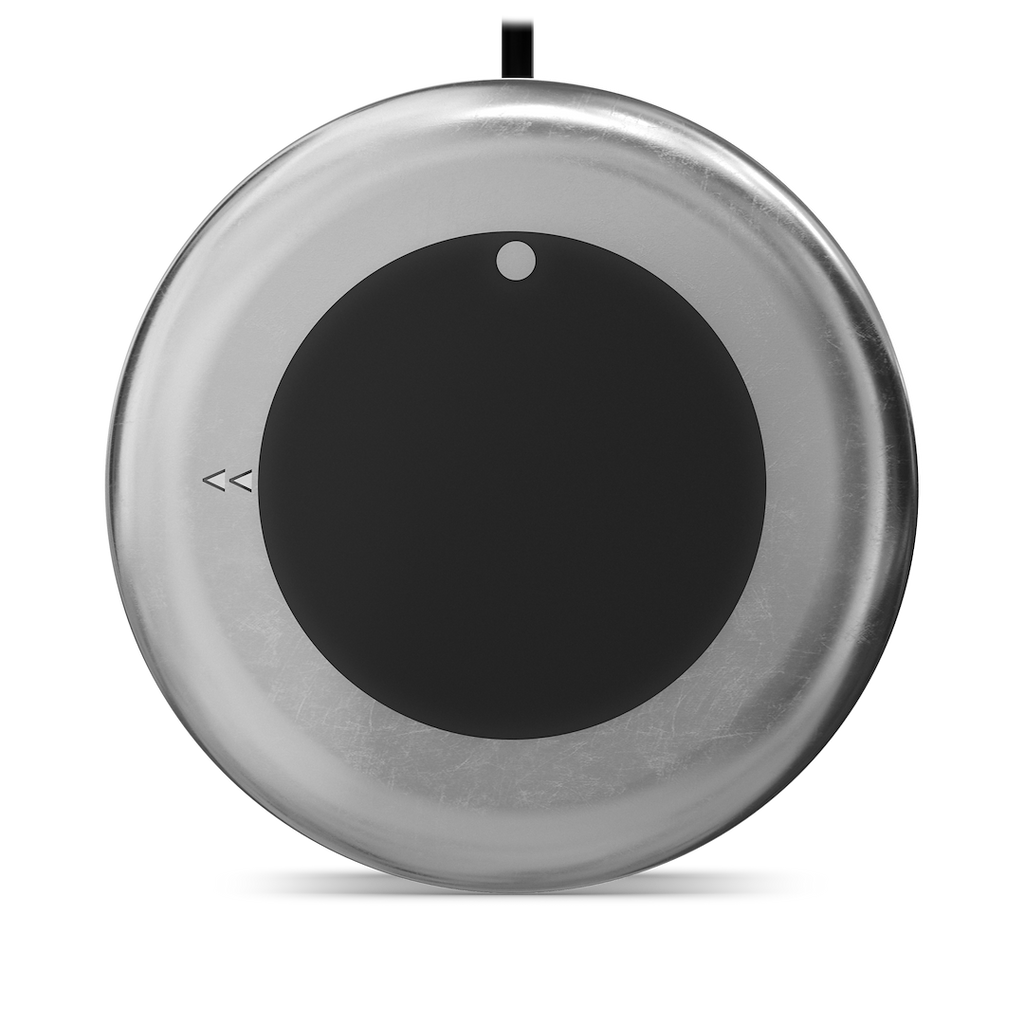

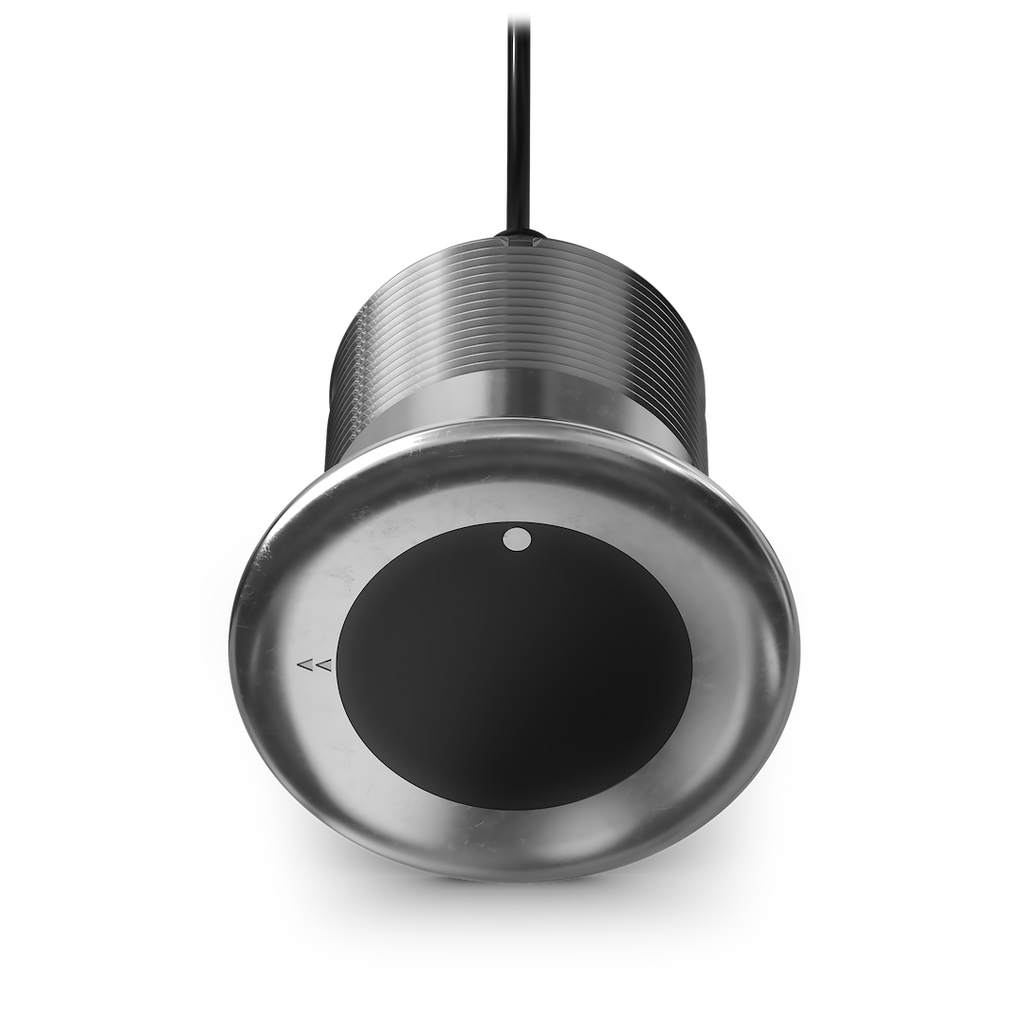

The Garmin Thru-Hull Transducer is engineered for optimal performance in both saltwater and freshwater environments, capable of reaching maximum depths of 1800 feet in saltwater and 2400 feet in freshwater. This transducer operates within a medium frequency range of 80 to 165 kHz, providing excellent sonar sensitivity and high-resolution imaging for clear fish arches and accurate depth readings. Its robust stainless steel housing ensures durability and facilitates straightforward flush mounting, minimizing drag and optimizing beam orientation for enhanced sonar returns.
Designed for versatility, this transducer accommodates a variety of boat hull materials, including fiberglass, composite, steel, aluminum, and wood. It features a configurable tilt design that supports deadrise angles from 0 to 24 degrees, allowing for effective installation without the need for a fairing block. The 50-foot cable and 8-pin connection enable seamless integration with compatible chartplotters, while Garmin's auto-identification technology simplifies setup by automatically configuring the sonar to the transducer in use.
With a beamwidth range of 9 to 18 degrees, this transducer enhances search capabilities, making it easier to distinguish between fish and underwater structures. Additionally, it includes fast-response water temperature sensing, providing critical information for fishing strategies. The Garmin Thru-Hull Transducer is a reliable choice for serious anglers seeking advanced sonar capabilities.
Features
- See Maximum Depth Performance To 2,400 Feet In Freshwater
- Access CHIRP Sonar Frequency Range From 80 To 165 Kilohertz
- Search With Beamwidths Of 9 To 18 Degree
- Count On Fast-Response Water Temperature Sensing
- Thru-Hull Design Offers Flush Installation With 0-, 12- Or 20-Degree Tilt
- Auto-ID Enables Simple Plug-And-Play Operation
Specifications
- Manufacturer: Garmin
- Manufacturer Part Number: 010-02930-01
- Mounting Location: Thru-Hull Mount
- Number Of Pins: 8 Pin
- Depth: 1800 Feet Saltwater/ 2400 Feet Freshwater
- Power Rating: 1000 Watt
- Frequency Range: 80 To 165 kHz Medium Band CHIRP Frequency
- Supported Angle: 8 To 15 Degree Deadrise Angle
- Cable Length: 50 Feet
