Advanced sonar technology for accurate depth and temperature readings.

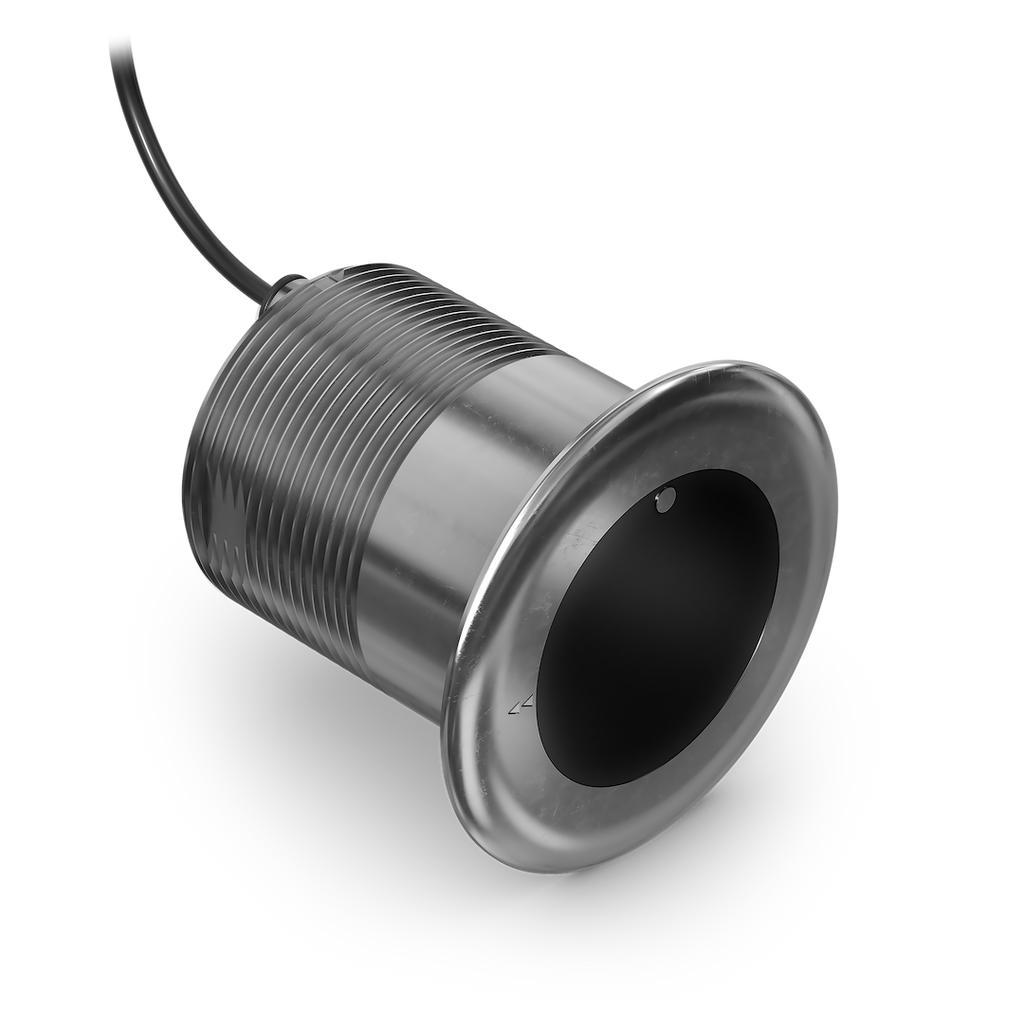

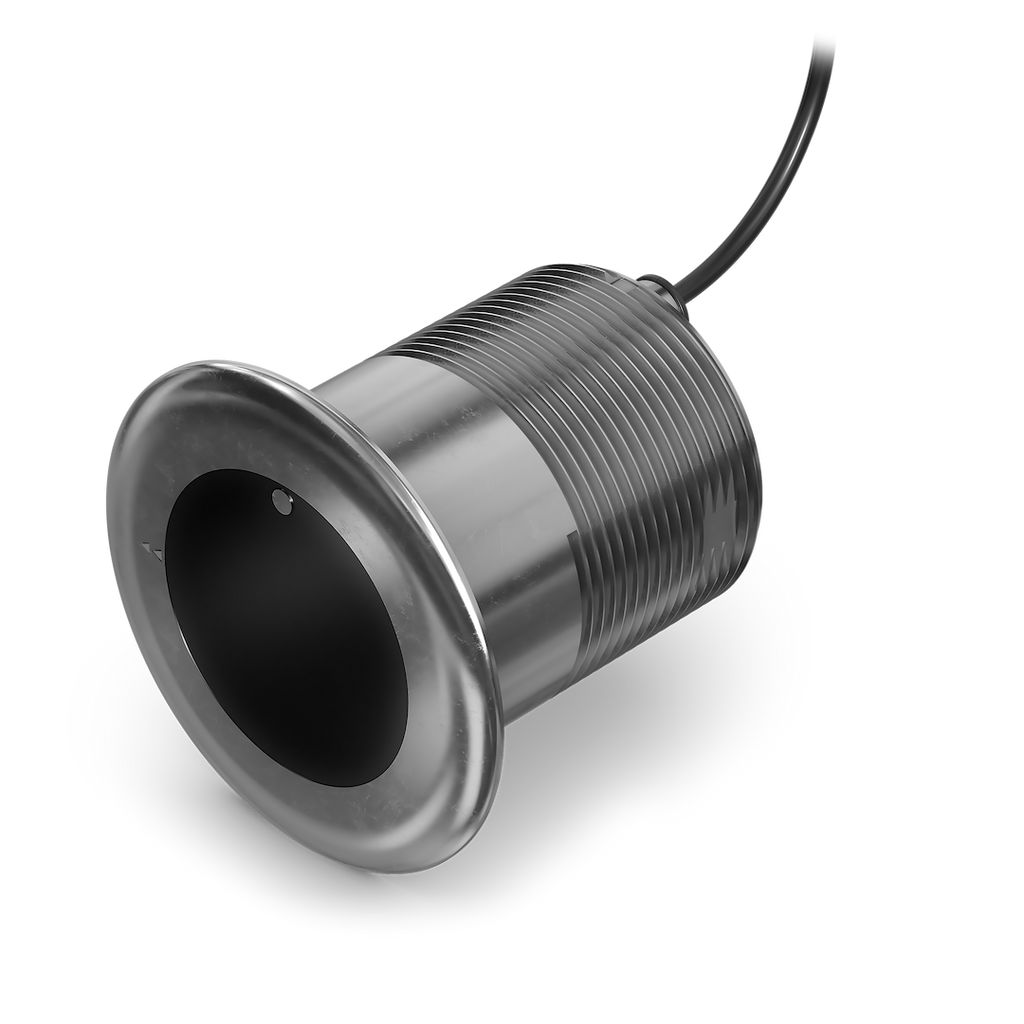

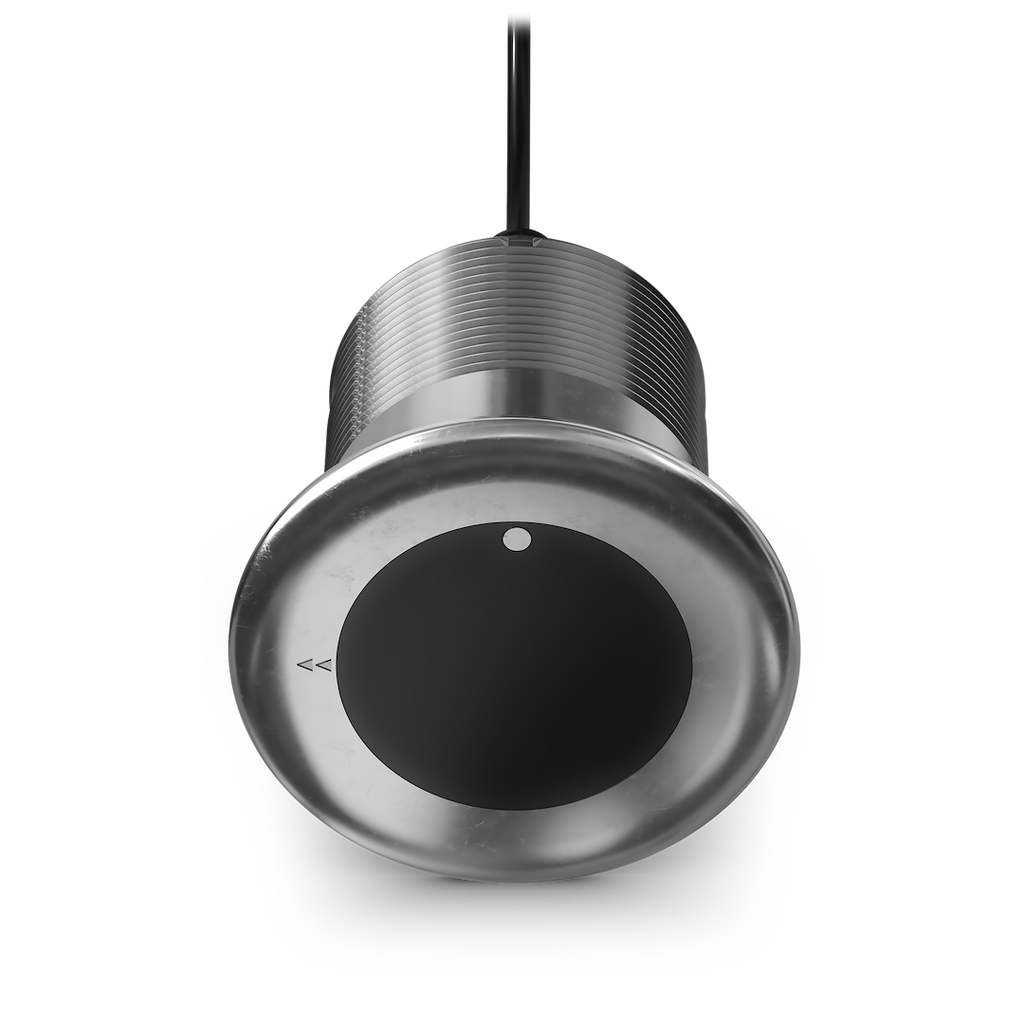

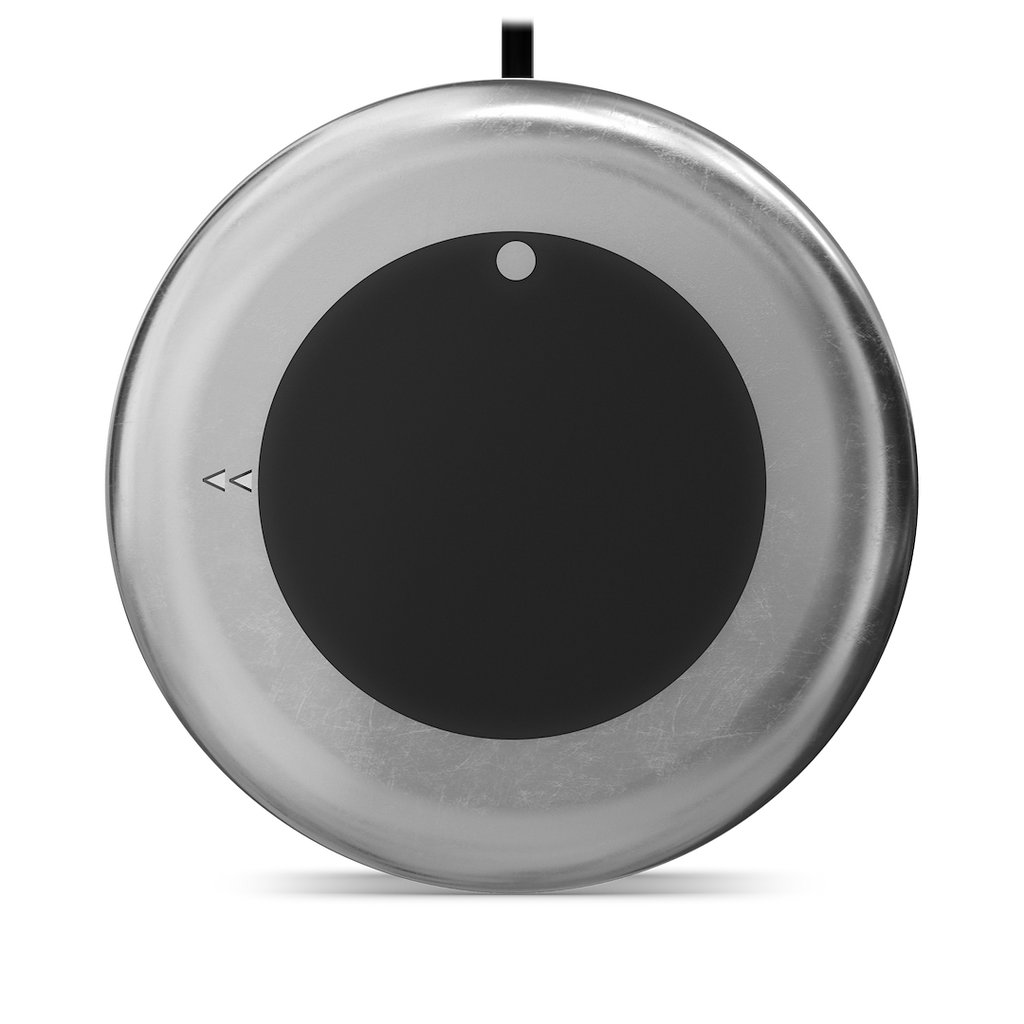

The Garmin Thru-Hull Transducer is engineered for optimal performance in both saltwater and freshwater environments. With a maximum depth capability of 1800 feet in saltwater and 2400 feet in freshwater, this transducer utilizes a medium band CHIRP frequency range of 80 to 165 kHz to deliver precise sonar readings. Its robust stainless steel housing ensures durability and facilitates a flush installation that minimizes drag while maintaining optimal beam orientation for clear sonar returns.
Designed for versatility, the transducer accommodates a variety of boat hull materials including fiberglass, composite, steel, aluminum, and wood. It supports deadrise angles from 16 to 24 degrees, allowing for installation without the need for a fairing block. The 50-foot cable provides ample length for various mounting configurations, while the 8-pin connector ensures compatibility with a range of Garmin chartplotters.
Equipped with Garmin's auto-identification technology, the transducer simplifies installation with plug-and-play operation, automatically configuring itself to the sonar system. The 9 to 18 degree beamwidth enhances target separation and clarity, making it easier to distinguish between fish and underwater structures. Additionally, the fast-response water temperature sensing feature provides real-time data, enhancing the overall fishing experience.
Features
- See Maximum Depth Performance To 2,400 Feet In Freshwater
- Access CHIRP Sonar Frequency Range From 80 To 165 Kilohertz
- Search With Beamwidths Of 9 To 18 Degree
- Count On Fast-Response Water Temperature Sensing
- Thru-Hull Design Offers Flush Installation With 0-, 12- Or 20-Degree Tilt
- Auto-ID Enables Simple Plug-And-Play Operation
Specifications
- Manufacturer: Garmin
- Manufacturer Part Number: 010-02930-02
- Mounting Location: Thru-Hull Mount
- Number Of Pins: 8 Pin
- Depth: 1800 Feet Saltwater/ 2400 Feet Freshwater
- Power Rating: 1000 Watt
- Frequency Range: 80 To 165 kHz Medium Band CHIRP Frequency
- Supported Angle: 16 To 24 Degree Deadrise Angle
- Cable Length: 50 Feet
