Advanced sonar technology for precise depth and temperature readings.

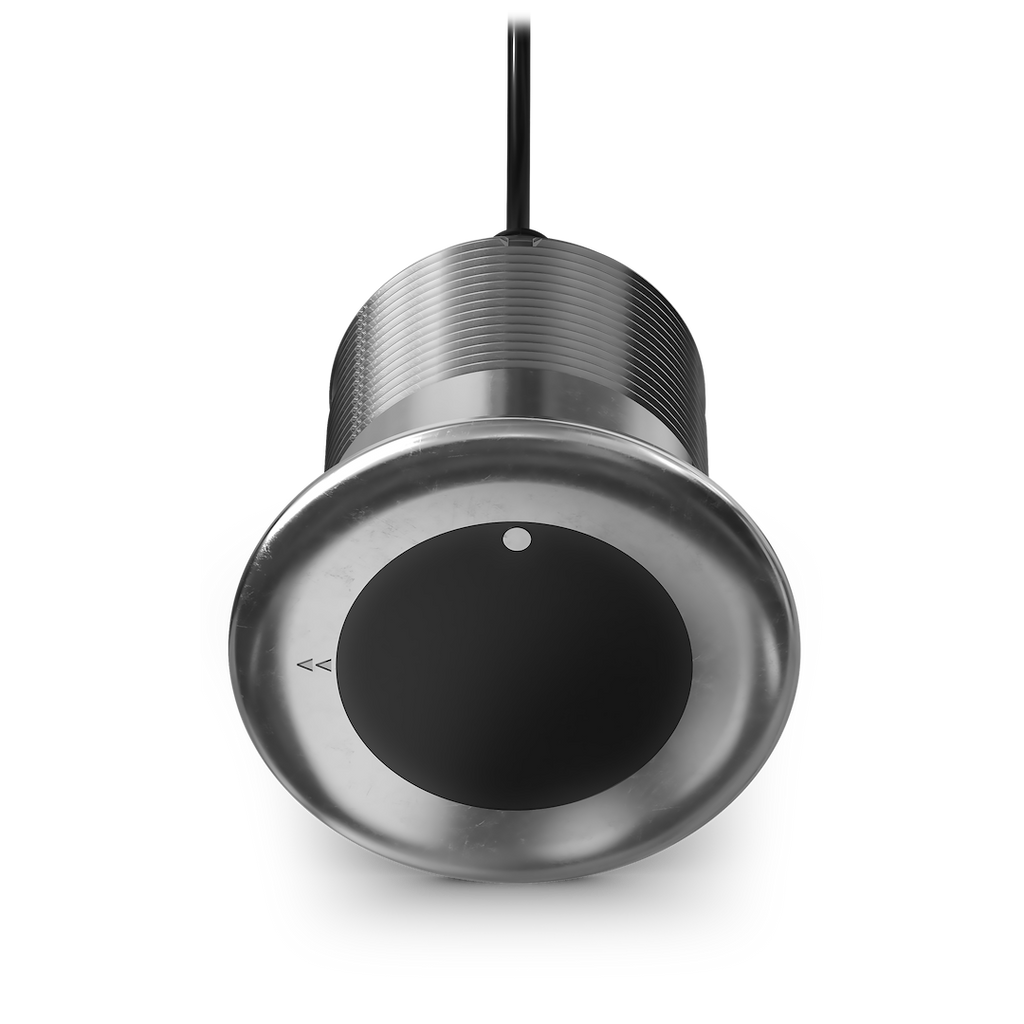

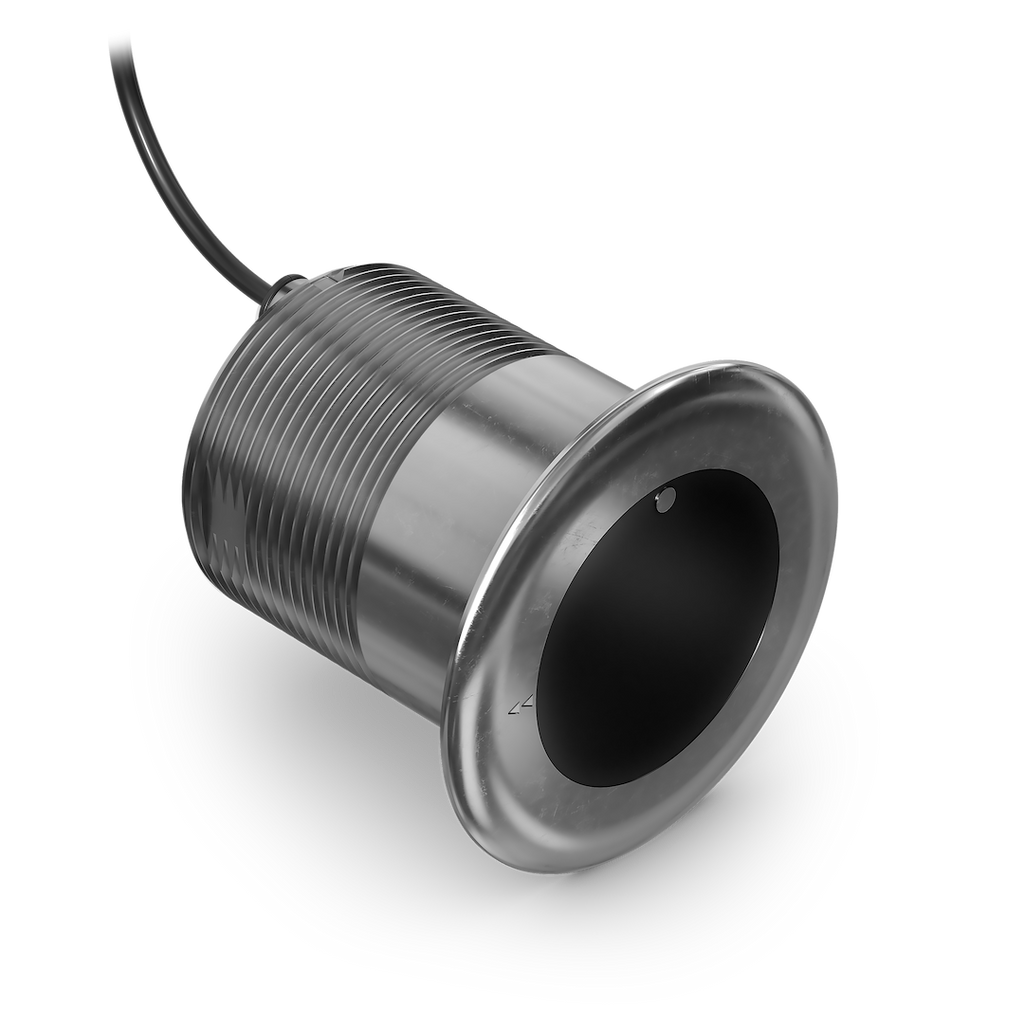

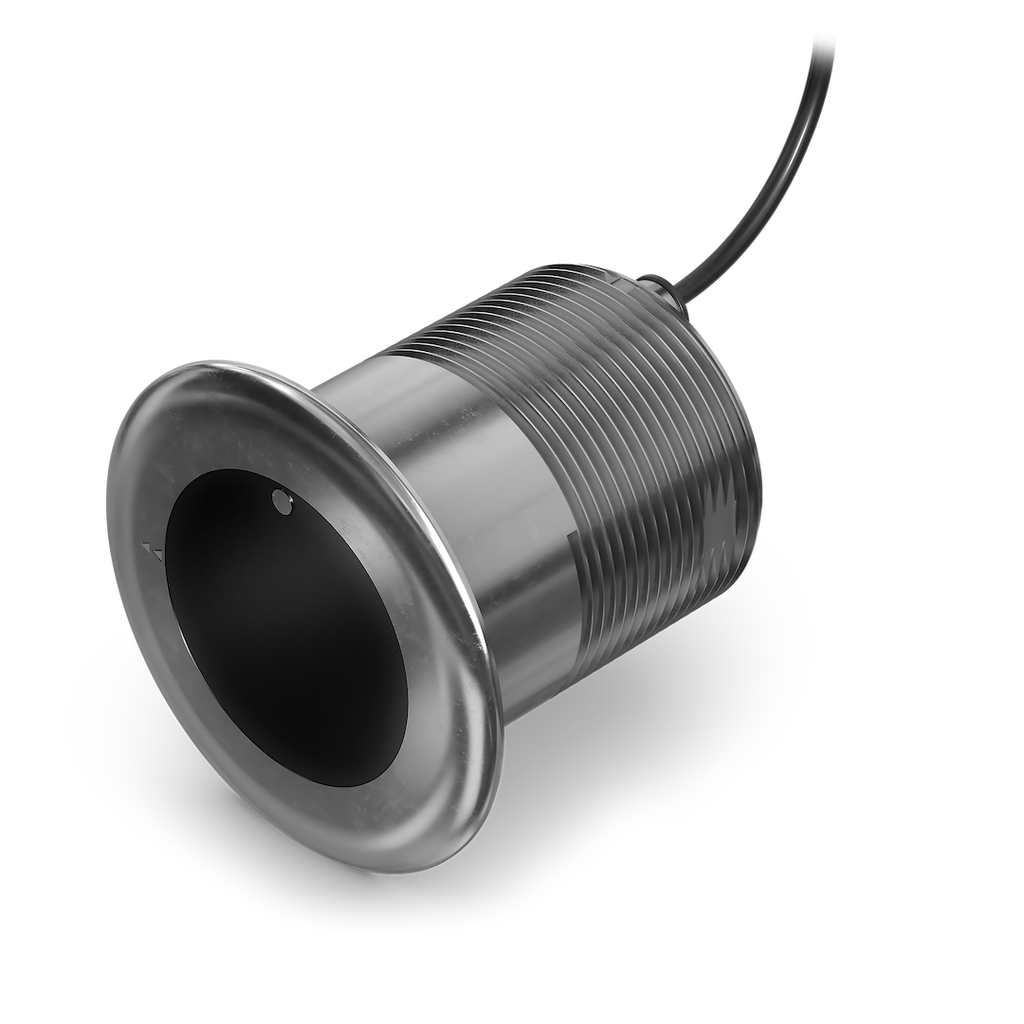

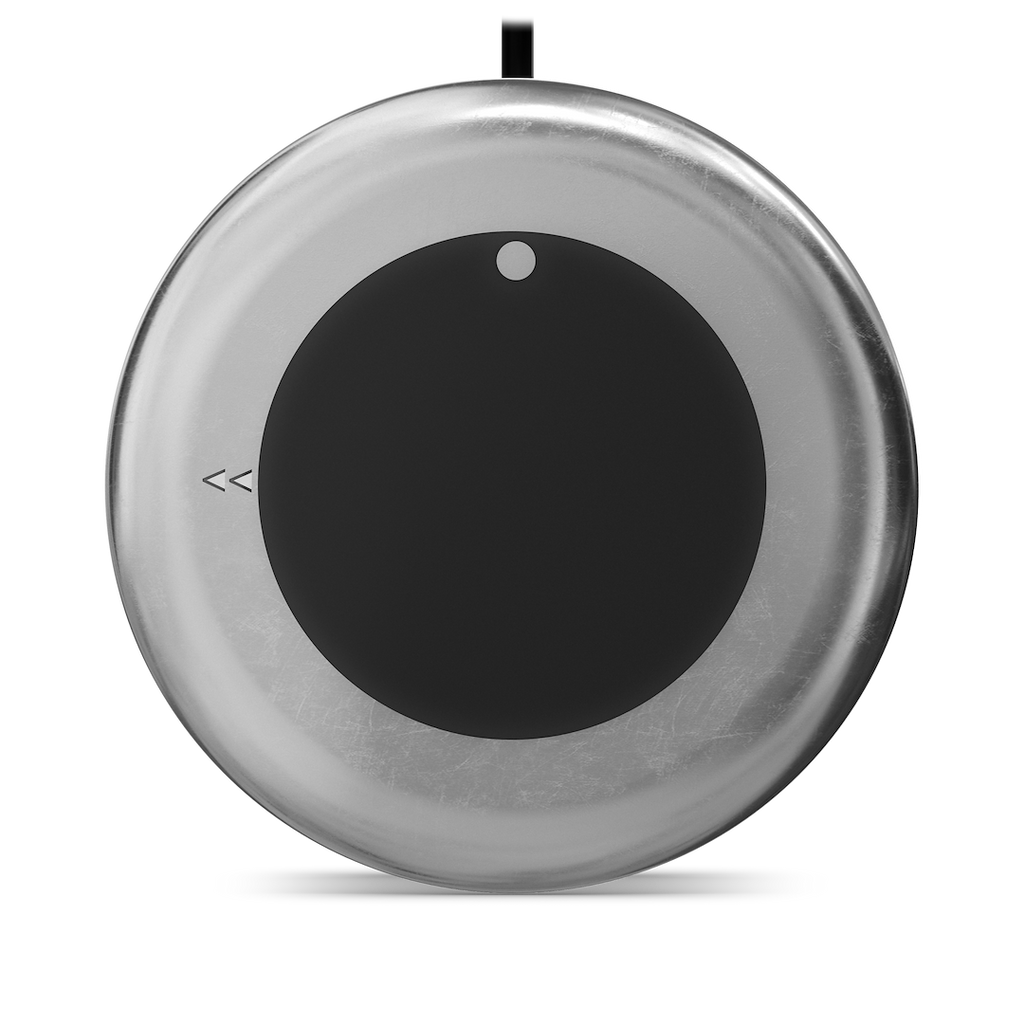

The Garmin Thru-Hull Mount Transducer is engineered for optimal performance in both saltwater and freshwater environments. With a maximum depth capability of 2400 feet in freshwater and 1800 feet in saltwater, this transducer utilizes a medium band CHIRP frequency range of 80 to 165 kHz to deliver clear fish arches and accurate depth readings. Its robust design features a durable stainless steel housing that ensures reliable operation and minimal drag during use.
This transducer is compatible with a variety of boat hull materials, including fiberglass, composite, steel, aluminum, and wood, making it versatile for different vessel types. The thru-hull design allows for flush installation with a tilt option of 0 to 7 degrees, ensuring optimal beam orientation for enhanced sonar returns. Additionally, the transducer supports a beamwidth range of 9 to 18 degrees, providing a wide coverage area for effective searching.
Equipped with Garmin's auto-identification technology, the transducer simplifies installation with plug-and-play operation, automatically configuring itself to the sonar system. Fast-response water temperature sensing further enhances its functionality, making it a valuable tool for serious anglers seeking to improve their fishing experience.
Features
- See Maximum Depth Performance To 2,400 Feet In Freshwater
- Access CHIRP Sonar Frequency Range From 80 To 165 Kilohertz
- Search With Beamwidths Of 9 To 18 Degree
- Count On Fast-Response Water Temperature Sensing
- Thru-Hull Design Offers Flush Installation With 0-, 12- Or 20-Degree Tilt
- Auto-ID Enables Simple Plug-And-Play Operation
Specifications
- Manufacturer: Garmin
- Manufacturer Part Number: 010-02930-00
- Mounting Location: Thru-Hull Mount
- Number Of Pins: 8 Pin
- Depth: 1800 Feet Saltwater/ 2400 Feet Freshwater
- Power Rating: 1000 Watt
- Frequency Range: 80 To 165 kHz Medium Band CHIRP Frequency
- Supported Angle: 0 To 7 Degree Deadrise Angle
- Cable Length: 50 Feet
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
